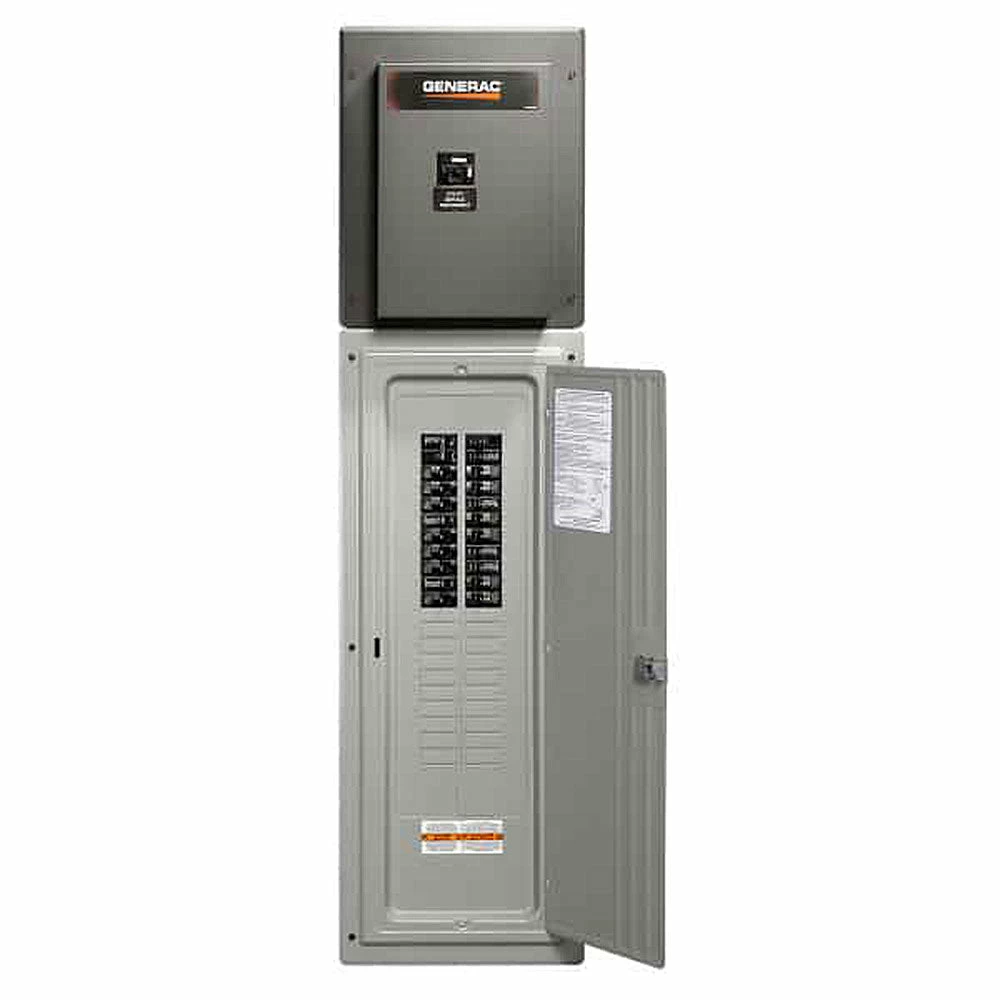

Generac RXG42SHA1 200 Amp 42-circuit Load Center Automatic Transfer Switch

Features

• Generac 200-Amp GenReady Automatic Transfer Switch and Load Center
• Ideal during new construction or major electrical retrofit
• Compatible with Evolution or Nexus generator controllers
• 200-Amp Main Circuit Breaker
• Designed for single-phase operation
• 42-Space Main Load Center (Breakers Not Included)
• 60 Circuit capacity with the use of tandem breakers
• Accepts GFCI, AFCI and tandem breakers
• For use with Siemens, Murray, Square D and Eaton 1″ breakers
• 200-Amp Automatic Transfer Switch
• Service-entrance rated for reduced installation costs
• Digital Power Management Technology (DPM)
• Allows your generator to work smarter, not harder
• Manage Up To (4) Individual HVAC Loads – No Hardware Req.
• Great for homes with multiple Air conditioners (24 VAC controlled)
• Up To (8) Smart Management Modules (SMM) (Sold Separately)
• Frequency (Hz) monitoring design, no control wire required
• Versatile design, easily prioritize loads and lock-out non-essential loads
• NEMA 1 Indoor Rated Enclosure
• Flush-mount design with electrostatically applied and baked powder coat paint
• Installation Flexibility
• Multiple GenReady panels can be supported with a single generator
• Allows for the generator to be installed at a later time

What’s in The Box

• Generac 42-circuit 200 Amp Load Center Automatic Transfer Switch – RXG42SHA1
• Owner’s Manual

Warranty

• 5-Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

SKU	RXG42SHA1
Brand	Generac
Voltage	120/240V
Switch Amps	200
Rated Watts	48000
Switch Circuits	42 Space Load Center
Type	Automatic Transfer Switch
ATS Poles	2 Pole
Frequency	60 hz
Length	59 in
Width	14 in
Height	7 in
Weight	64 lbs
