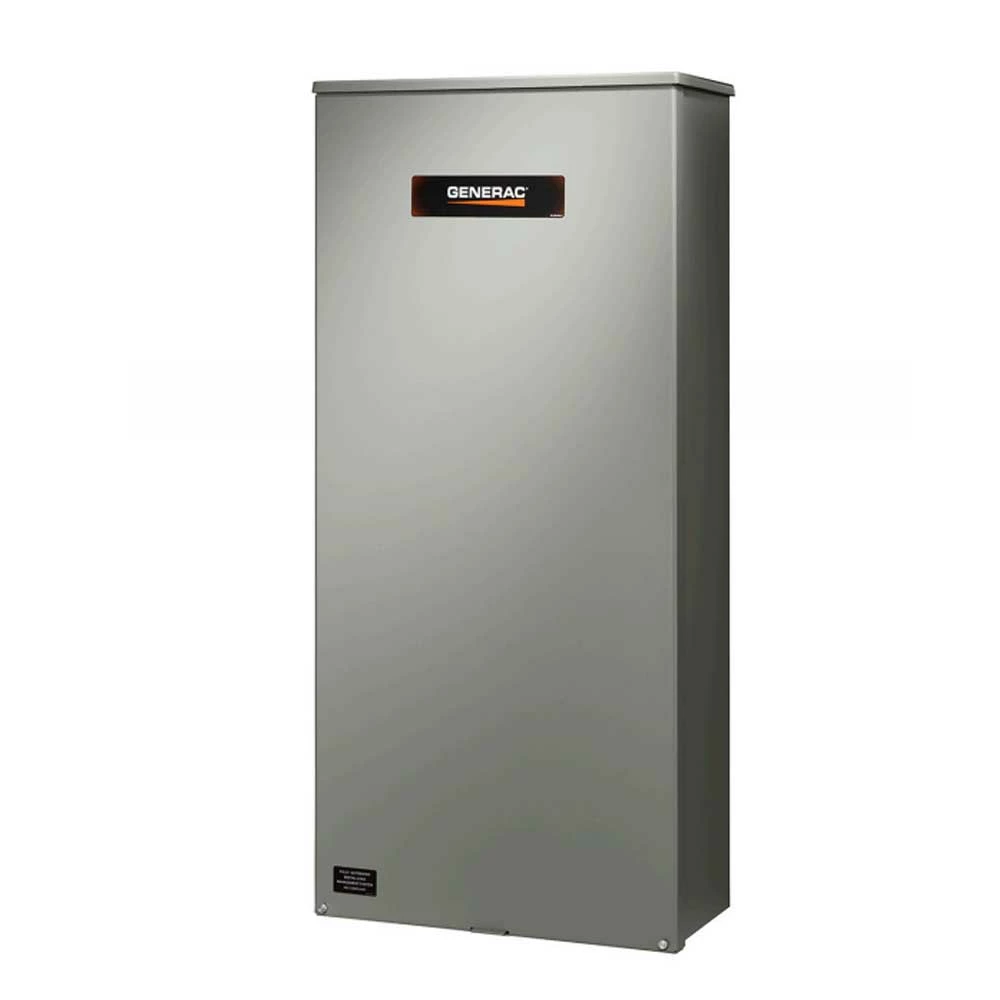

Generac RXGW20SHA3 120/240V Automatic Smart Transfer Switch 20-40 Circuit Load

Features

• Generac 200-Amp Auto Smart Transfer Switch w/ Power Management
• Compatible with Evolution or Nexus generator controllers
• Improved Design
• 35 percent Smaller footprint and greater branch circuit capacity
• Integrated 20-Circuit Load Center (Breakers Not Included)
• 40-Circuit capacity with the use of tandem breakers
• For use with Siemens, Murray, Square D and Eaton 1″ breakers
• Accepts GFCI, AFCI and tandem breakers
• Digital Power Management Technology (DPM)
• Allows your generator to work smarter, not harder
• Be Smart Get More Out Of Your Generator
• Cycles power on and off as needed for different appliances
• Manage Up To (4) Individual HVAC Loads – No Hardware Req.
• Great for homes with multiple Air conditioners (24 VAC controlled)
• Up To (8) Smart Management Modules (SMM) (Sold Separately)
• Frequency (Hz) monitoring design, no control wire required
• Versatile design, easily prioritize loads and lock-out non-essential loads
• Service Entrance Rated (Load Side and Line Side Disc. Breakers)
• Installs between the main meter and service panel
• NEMA 3R Indoor/Outdoor Rated
• Aluminum, wall mountable weather-proof enclosure
• Electrostatically applied and baked powder coating paint (Gray)
• Tech Spec Summary: Only For Use w/ Generac Generators
• Load Transition Type: Open Transition
• Withstand Rating: 22,000 Amps Lug Range: 2/0 – #14

What’s in The Box

• Automatic Smart Transfer Switch 20-40 Circuit Load
• Owner’s Manual

Warranty

• 5 Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

SKU	RXGW20SHA3
Brand	Generac
Volts	120/240V
Phase	Single
Watts	48000
Amps	200
Max Circuits	20
Enclosure	NEMA 3R
Transfer Switch Style	Service Disconnect
ATS Poles	2 poles
Length	38.5 inch
Width	17 in
Height	8 in
Weight	45 lbs
