Features
- Generac automatic transfer switches are housed in an aluminum NEMA/CUL type 3R enclosure, with electrostatically applied and baked powder paint.
- Heavy duty Generac contactor is a CUL recognized device, designed for years of service, the controller at the generator handles all the timing, sensing, exercising functions and transfer commands.
- Through the use of digital power technology (DPM), these switches have the capability to manage up to 4 individual HVAC (24 VAC controlled) loads with no additional hardware.
- When used in tandem with smart management modules, up to 8 more loads can be managed as well, providing the most installation efficient power management options available.
- Cycles power on and off as needed for different appliances.
What’s in The Box

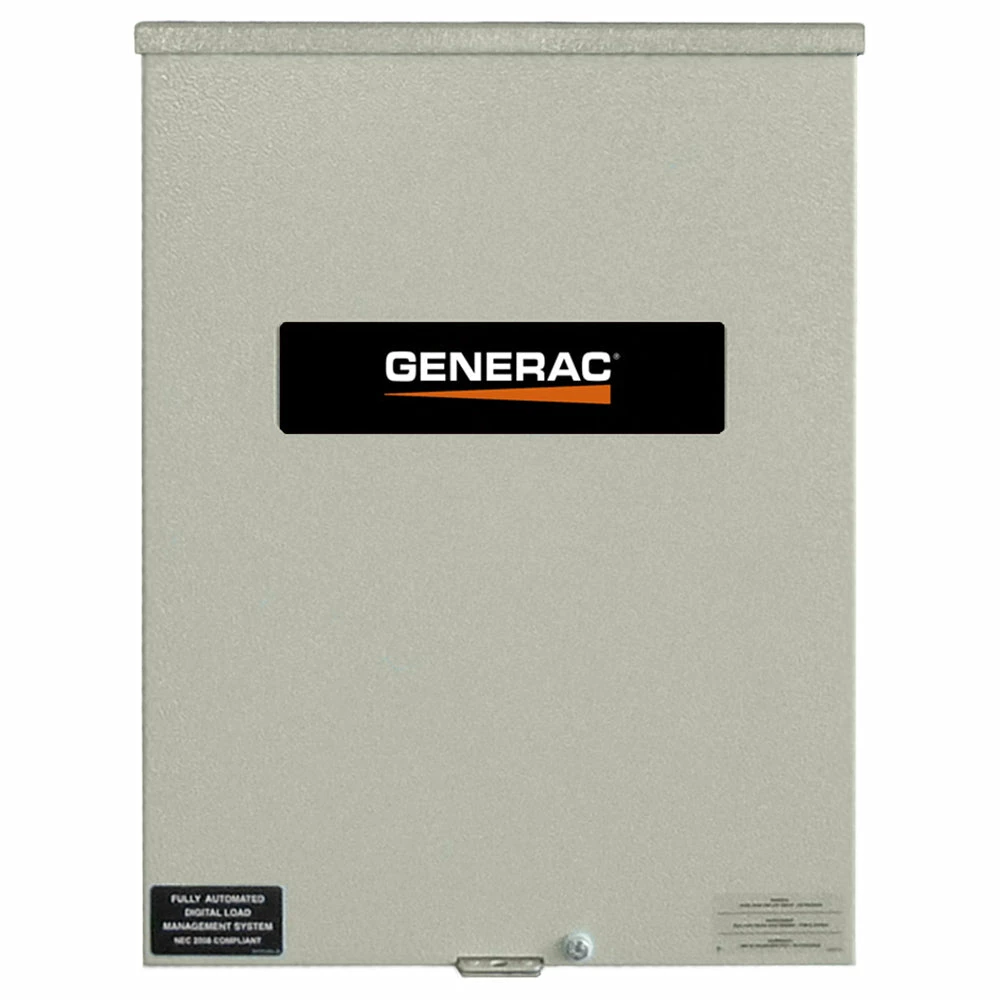

- Generac 120/240-Volt 100-Amp NEMA 3R CUL Smart Transfer Switch – RXSC100A3
- Owner’s Manual
Warranty
- 3-Year Limited Factory Warranty
- 30 Day Satisfaction Guaranteed
Specifications
| Sku | RXSC100A3 |
| Brand | Generac |
| Voltage | 120/240V |
| Phase | Single-Phase |
| Frequency | 60 Hertz |
| Rated Amps | 100 Amps |
| Enclosure | NEMA 3R |
| Transfer Switch Style | Standard Installation |
| Max Utility Input | 100 Amps |
| Max Generator Input | 100 Amps |
| Maximum Wattage | 24000 Watts |
| Product Dimensions (LxWxH)(In.) | 20 x 14.6 x 7 In. |
| Shiping Weight (lbs) | 20 lbs |
