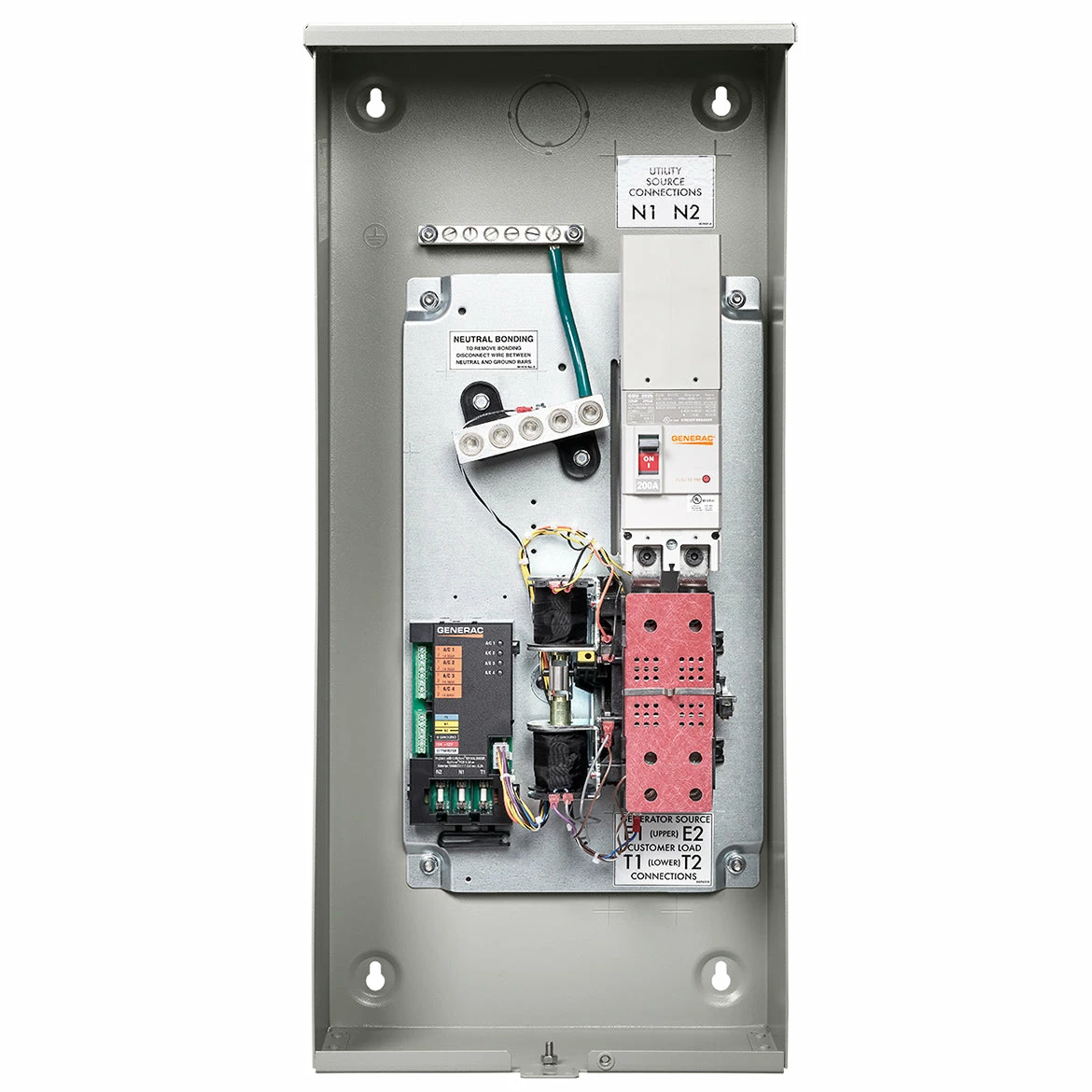

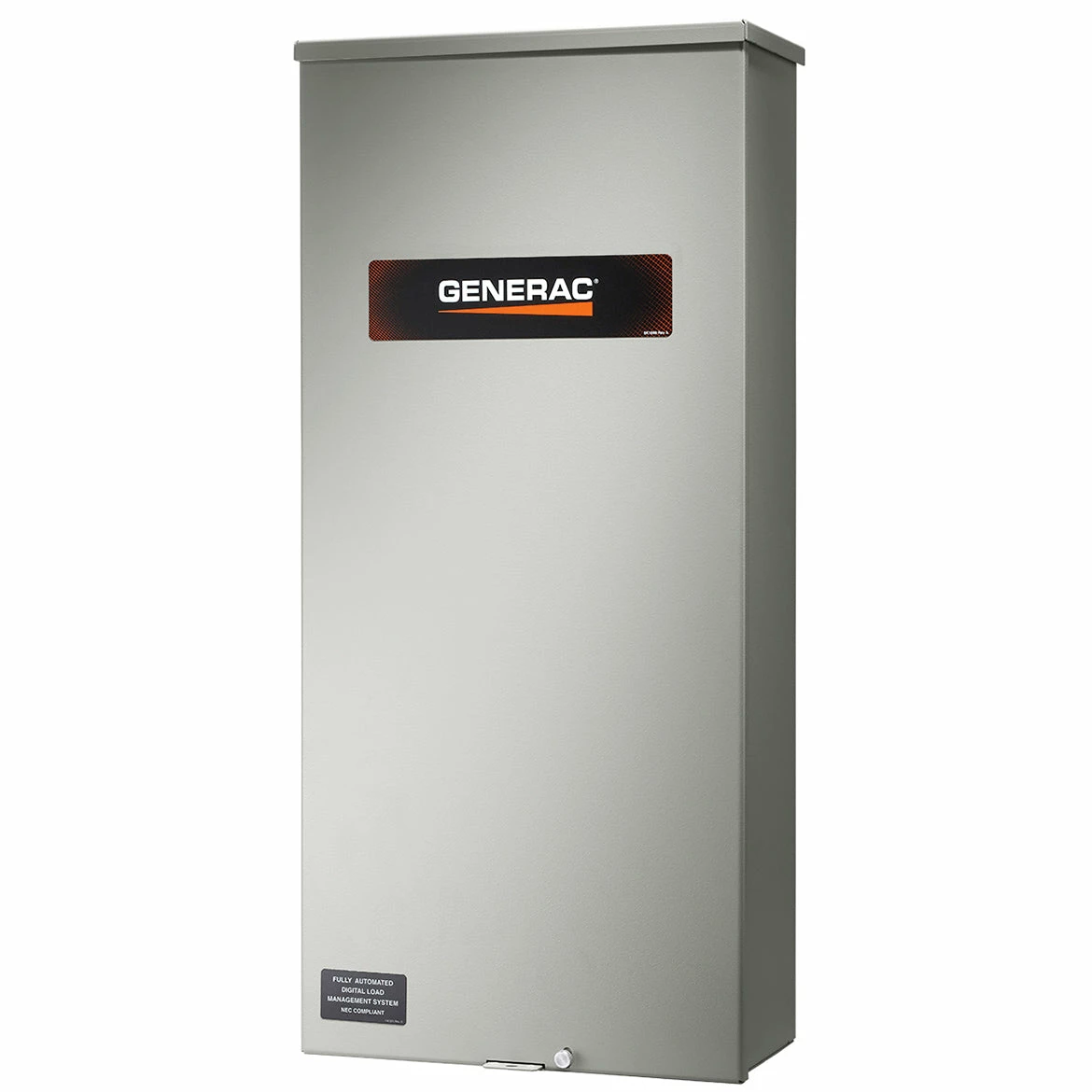

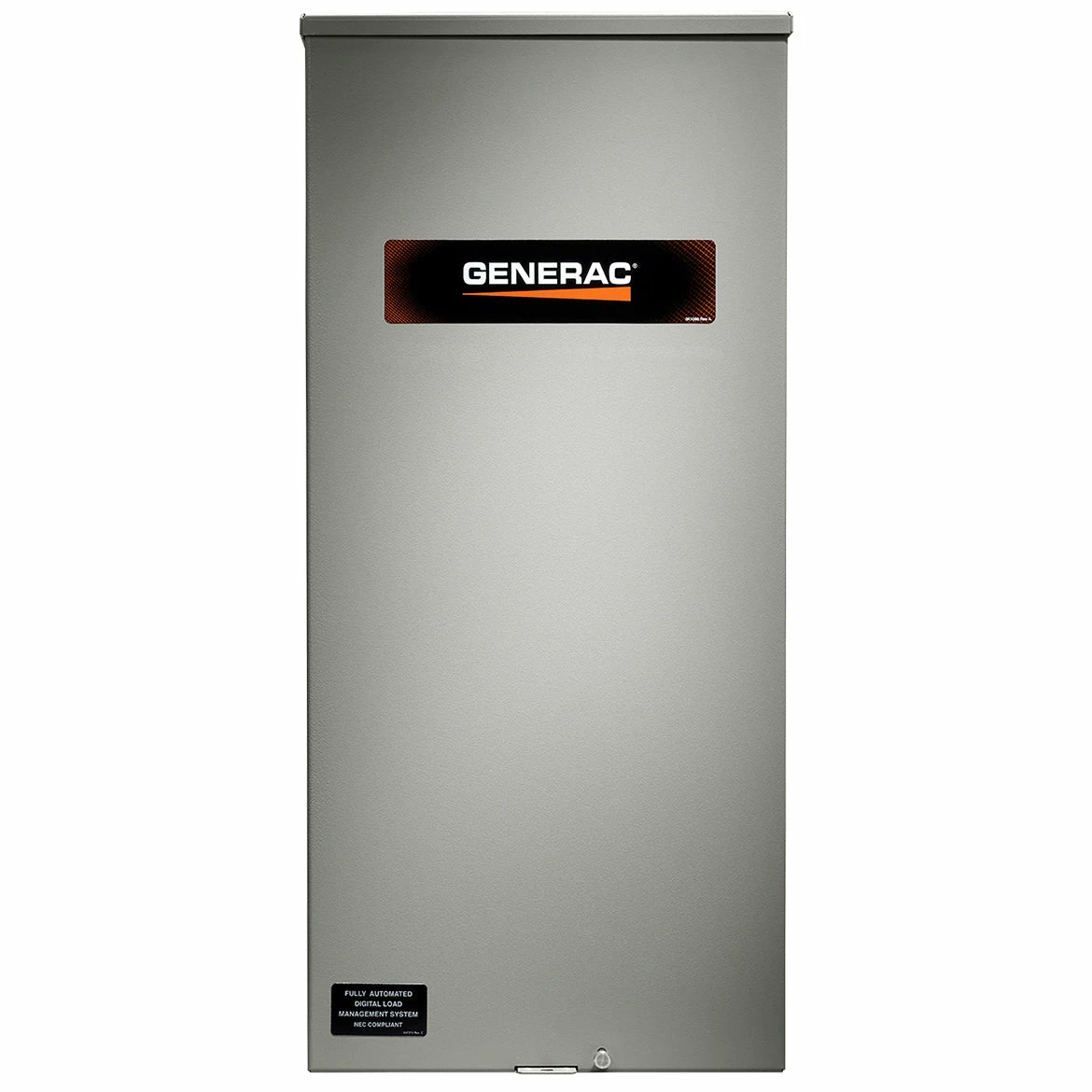

Generac RXSW100A3 240-Volt 100-Amp NEMA 3R Automatic Smart Transfer Switch

Features

Generac 100-Amp Automatic Smart Transfer Switch
• For Generac Evolution

Digital Power Management Technology (DPM)

• Allows your generator to work smarter, not harder

Manage Up To (4) HVAC 24V Electrical Loads (Built-In – No Add. Hardware)

• Monitors selected circuits and automatically supplies power when needed

Smart Management Modules (SMM) (Sold Separately)

• Manage up to (8) more electrical loads – Installation efficient

Service Entrance Rated

• Installs between main meter and service panel
• Contains load side and line side disconnecting breaker

NEMA 3R Indoor/Outdoor Rated

• Aluminum, wall mountable weather-proof enclosure
• Electrostatically applied and baked powder paint (Gray)

What’s in The Box

• Generac 240-Volt 100-Amp NEMA 3R Automatic Smart Transfer Switch – RXSW100A3
• Owner’s Manual

Warranty

• 5-Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

Sku	RXSW100A3
Brand	Generac
Voltage	120/240
Phase	Single-Phase
Frequency	60 Hertz
Rated Amps	100 Amps
Enclosure	NEMA 3R
Transfer Switch Style	Service Disconnect
Max Utility Input	100 Amps
Max Generator Input	100 Amps
Maximum Wattage	24000 Watts
Product Dimensions (LxWxH)(In.)	20 x 14.6 x 7 In.
Shiping Weight (lbs)	20 lbs
