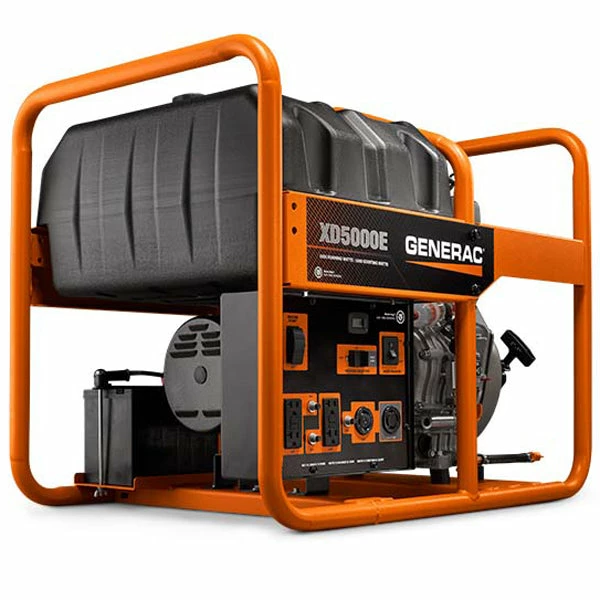

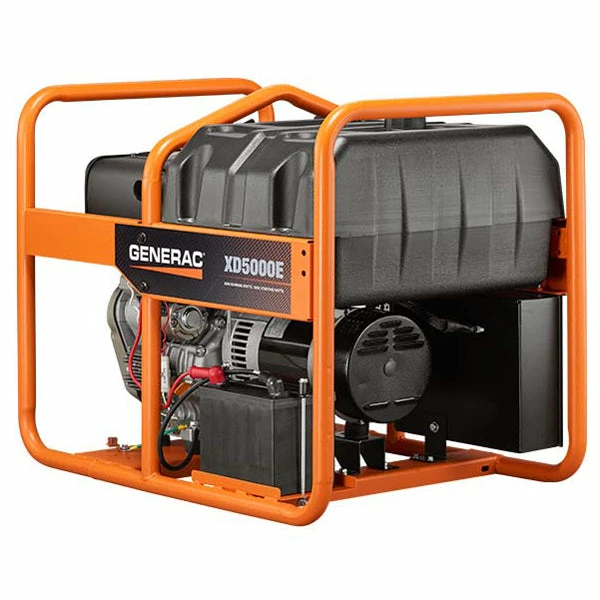

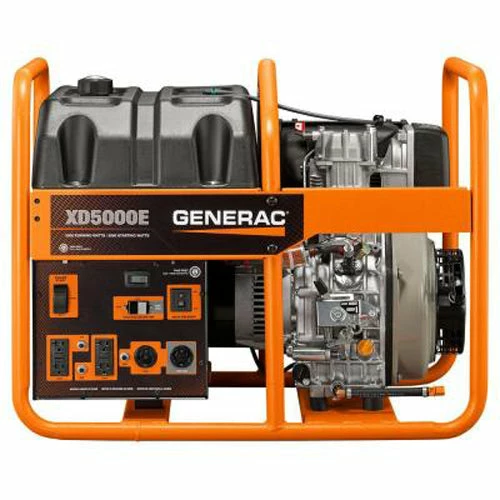

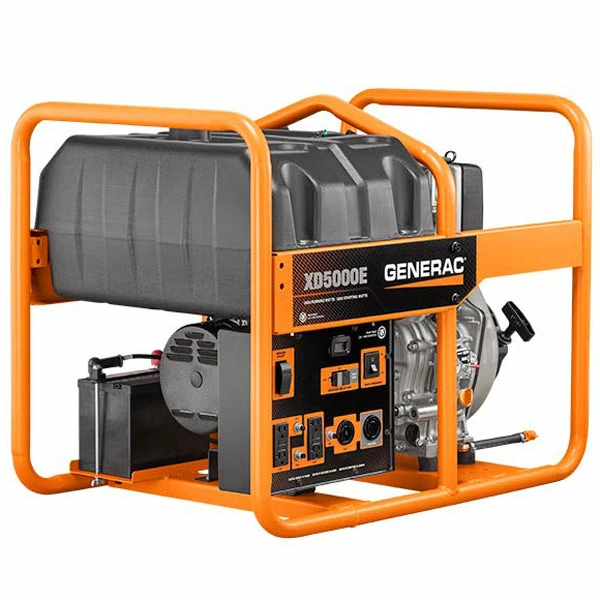

Generac XD5000E 5500-Watt Electric Start Diesel Power Portable Generator

Features

• Integrated lifting eye allows for easy transport and security on the jobsite
• 12-gallon fuel tank provides a long run-time of 32.4 hours @ 50% load

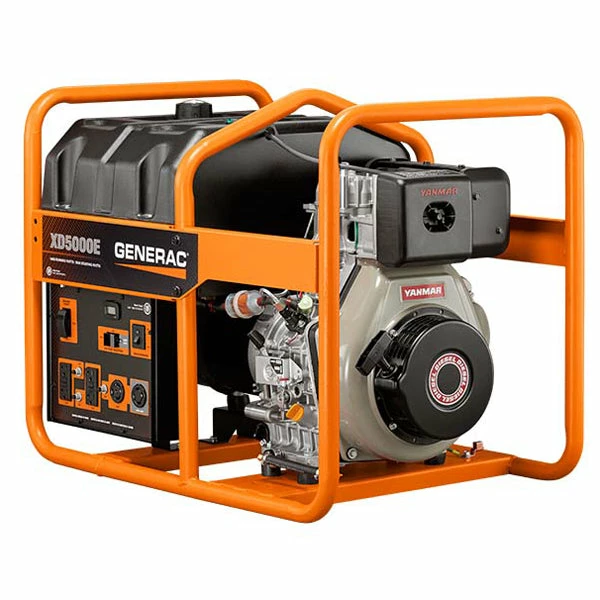

• Yanmar LW Series 435cc air-cooled direct injection, industrial-grade diesel engine
• 1-1/4 steel cradle for added strength and durability
• Single touch Electric Start for easy Start-Up

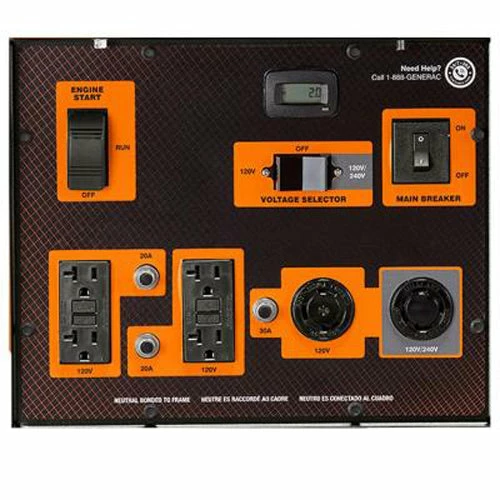

• (2) 120-Volt 20-Amp GFCI Duplex Outlets NEMA 5-20R
• (2) 20-Amp 1P push button circuit breakers
• 30-Amp psuh button circuit breaker
• Hour meter – Tracks Maintenance intervals
• 20-Amp two-pole main circuit breaker
• 120/240-Volt Voltage Selector
• 120/240-Volt TwistLock Outlet NEMA L14-30R
• 120-Volt TwistLock Outlet NEMA L5-30R

What’s in The Box

• XD5000E 5000-Watt Electric Start Diesel Power Portable Generator – 6864
• Owner’s Manual

Warranty

• 2-Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

Model	6864
Brand	Generac
Engine Displacement	435cc
Running Wattage	5,000 Watts
Starting Wattage	5,500 Watts
AC Voltage	120/240V
Frequency	60 Hz
Amperage	41.7A / 20.8A
Harmonic Distortion	Less than 6-Percent
Engine Type	Air Cooled 4-Cycle Vertical Cylinder Diesel
Engine Rpm	3,600 Rpm
Recommended Oil	SAE 10W-30
Lubrication Method	Pressure
Fuel Shut Off	On Fuel Tank
Starting Method	Electric w/ Recoil Back-Up
Low OIl SHutdown Method	Low pressure
Neutral onded To Ground	Yes
Start Switch Type	Start/Run/Off
Switch Location	On Control Panel
Fuel Gauge	On Cap
Fuel Tank Capacity	12 Gallons
Run Time at 50-Percent	32.4 Hours
Wheel Type	10.4 in. Solid
Length	33.1 in.
Width	22.5 in.
Height	25.6 in.
Product Weight	24.5 lbs.
