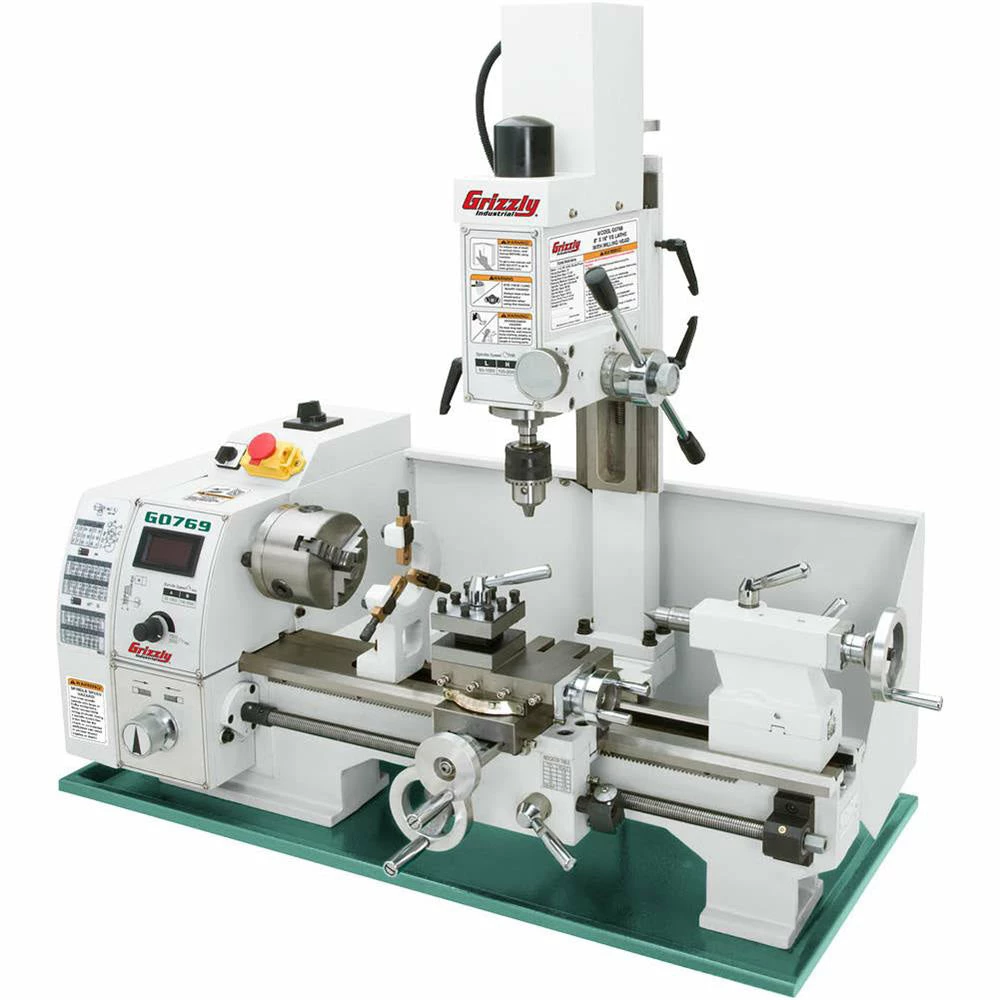

Grizzly G0769 110V 8 Inch X 16 Inch Lathe With Milling Head

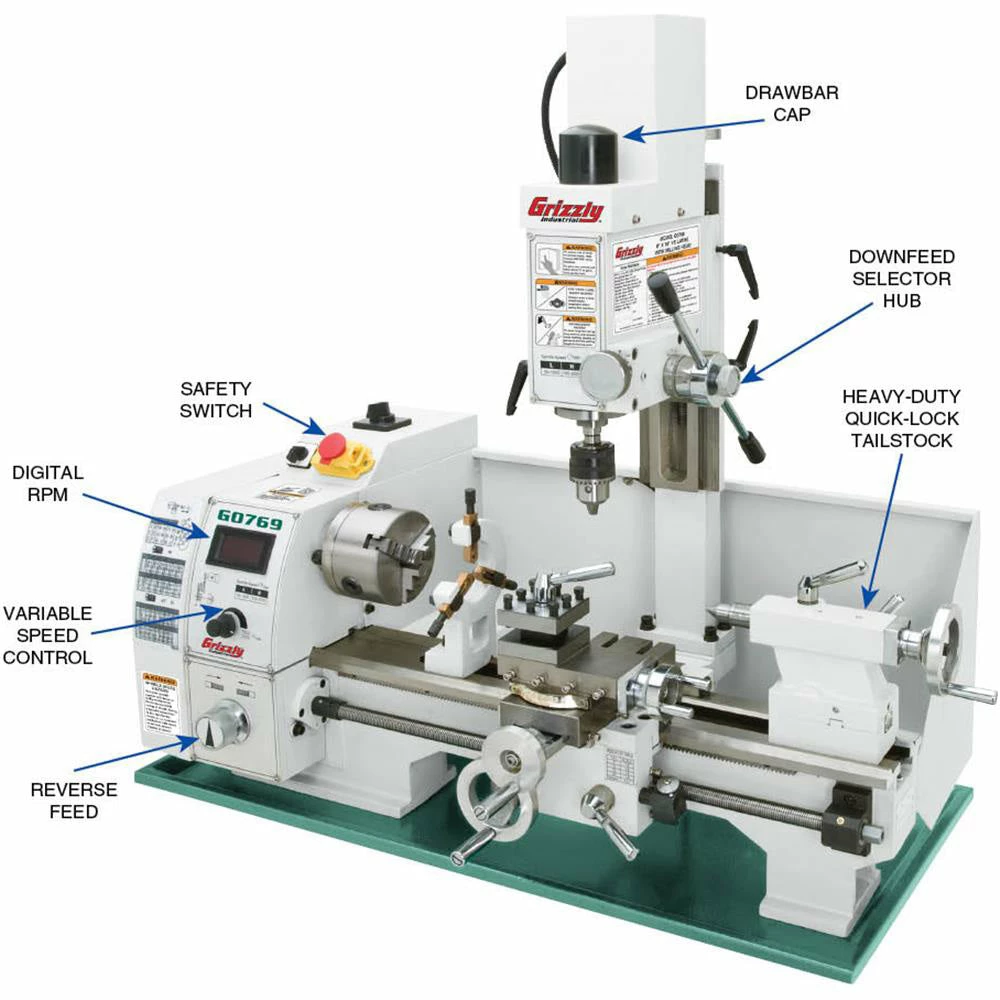

Features

• Variable-speed lathe and mill spindles
• Lathe spindle speed DRO
• Fine and coarse mill spindle downfeed
• Lathe cuts left and right-hand threads
• Heavy-duty quick-release tailstock

What’s in The Box

• 8 in x 16 in Lathe with Milling Head – G0769
• Owner’s Manual

Warranty

• 1 Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

SKU	G0769
Brand	Grizzly
Motor	600W (3/4 HP)
Volts	110V
Spindle	Bore 0.787 in, Taper MT 3
Spindle Speed Ranges	Low 50-1000, High 100-2000 RPM
Travel	Compound rest 2-1/8 in, cross slide 3 in
Tail-stock	Quill travel 2 in, taper MT 2
Feed Speeds	(2) 0.0037 in – 0.0068 in
Inch Threads	(15) 9-44 TPI
Metric Threads	(12) 0.4-3.0mm
Item Dimensions(inches)	36 W x 20 D x 34 H
Weight	287 lbs
