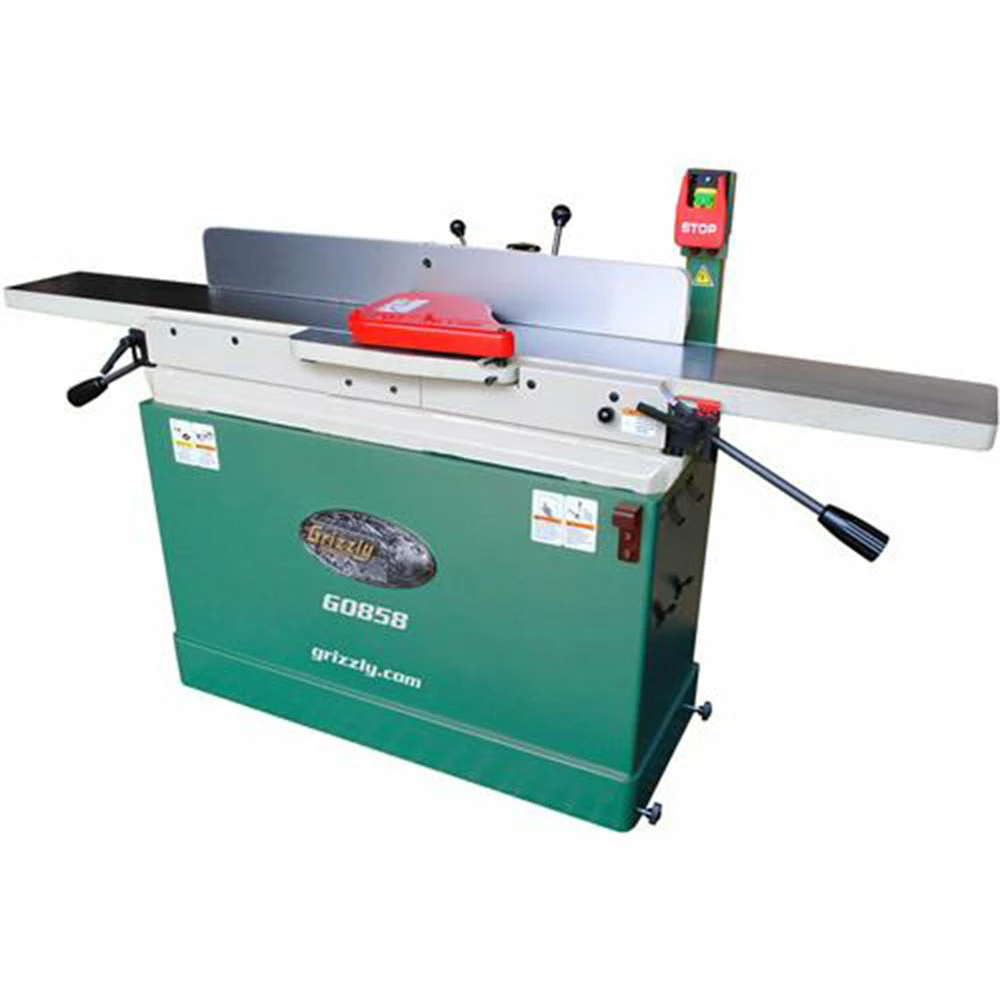

Grizzly G0858 230V 8 X 76 Parallelogram Jointer Spiral Cutterhead Mobile Base

Features

• Parallelogram table adjustment
• Lever-adjusted tables with depth gauge
• Pedestal-mounted magnetic switch
• Cast-iron fence with rack and pinion adjustment
• Precision-ground cast-iron tables
• Extra-long 40 in infeed table
• Powder-coated finish

What’s in The Box

• 8 in x 76 in Parallelogram Jointer with Helical Cutter Head and Mobile Base – G0858
• Owner’s Manual

Warranty

• 1 Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

SKU	G0858
Brand	Grizzly
Motor	3 HP, Single Phase
Volts	230V
Fence Size(inches)	4-1/2 x 38
Maximum Depth Cut	1/8 in
Rabbeting Capacity	1/2 in
Cutter head Speed	5500 RPM
Cutter head Diameter	3-1/16 in
Cutter head Knives	4
Cuts Per Minute	22000
Power Transfer	V-belt Drive
Table Dimensions(inches)	8 x 76
Weight	487 lbs
