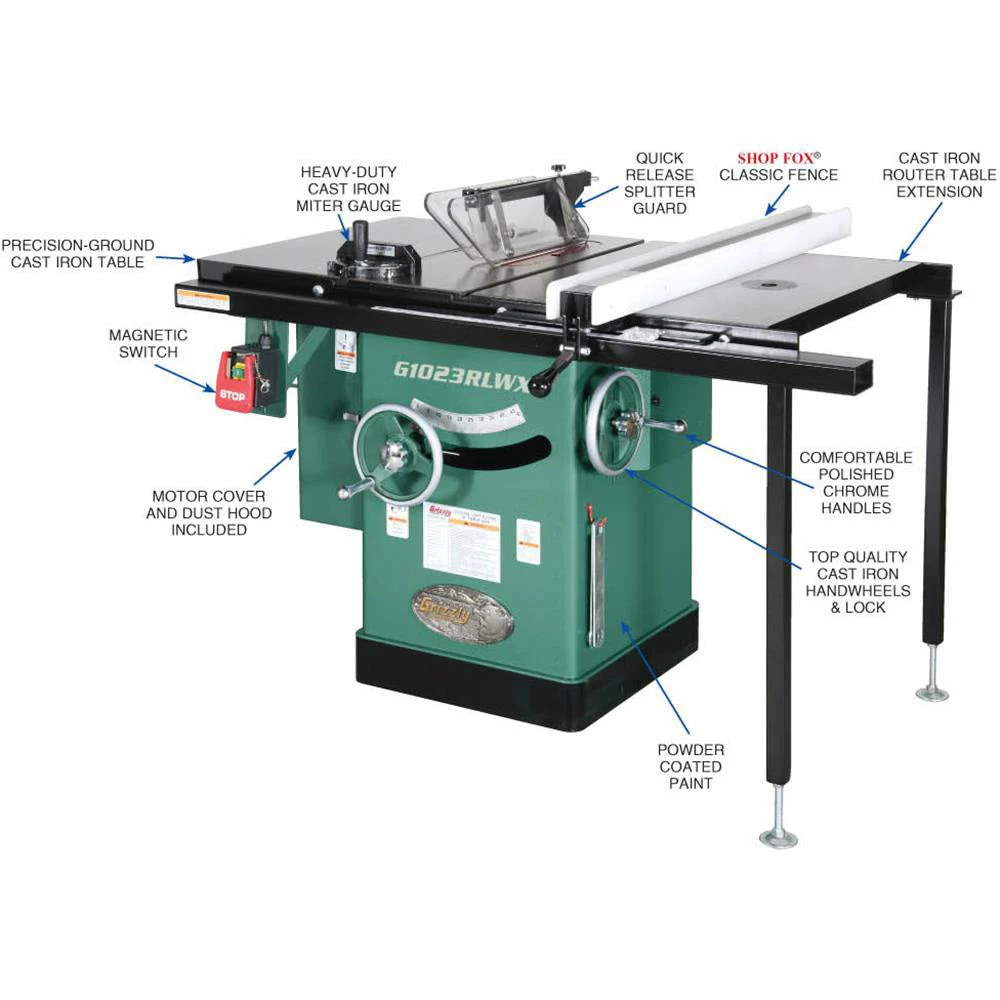

Features
- Quick-Release Blade Guard And Spreader

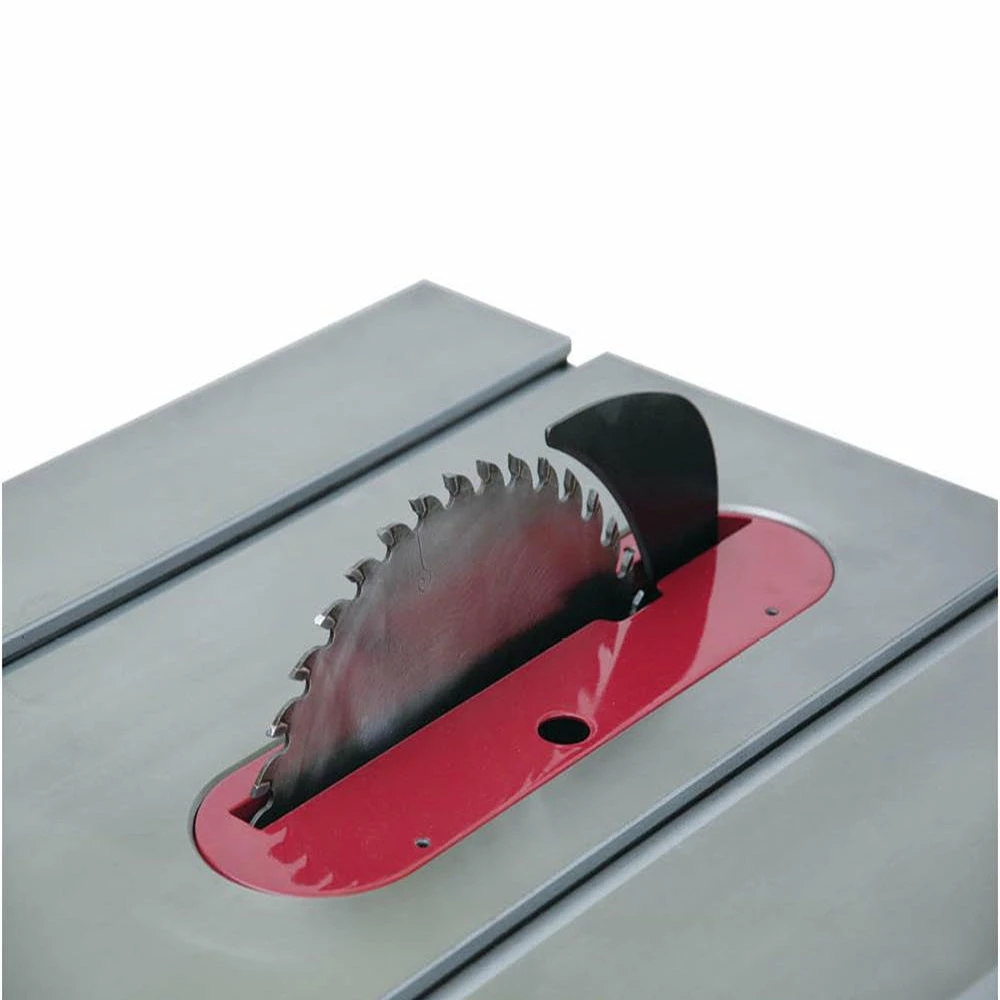

- Riving Knife Included

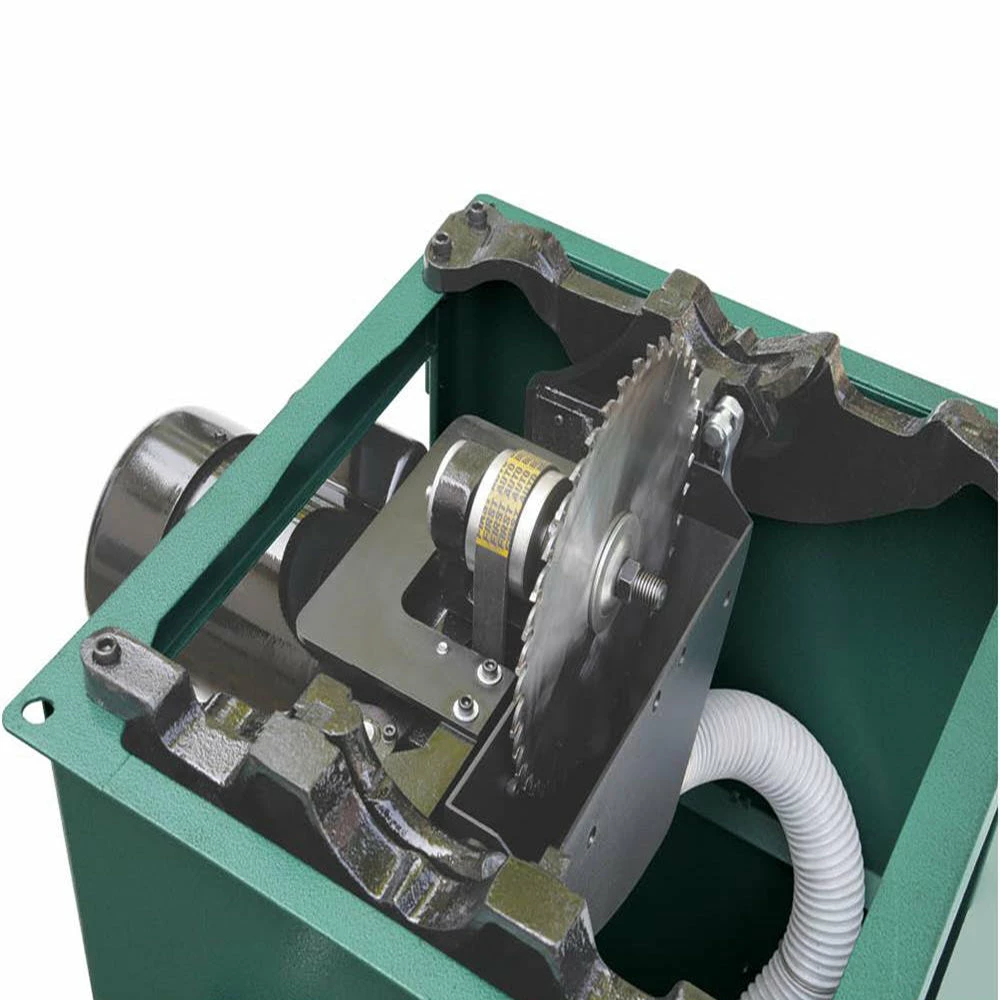

- Hinged Motor Cover
- 4 in Dust Port
- Extra-Large Cast-Iron Handwheels and Lock
What’s in The Box

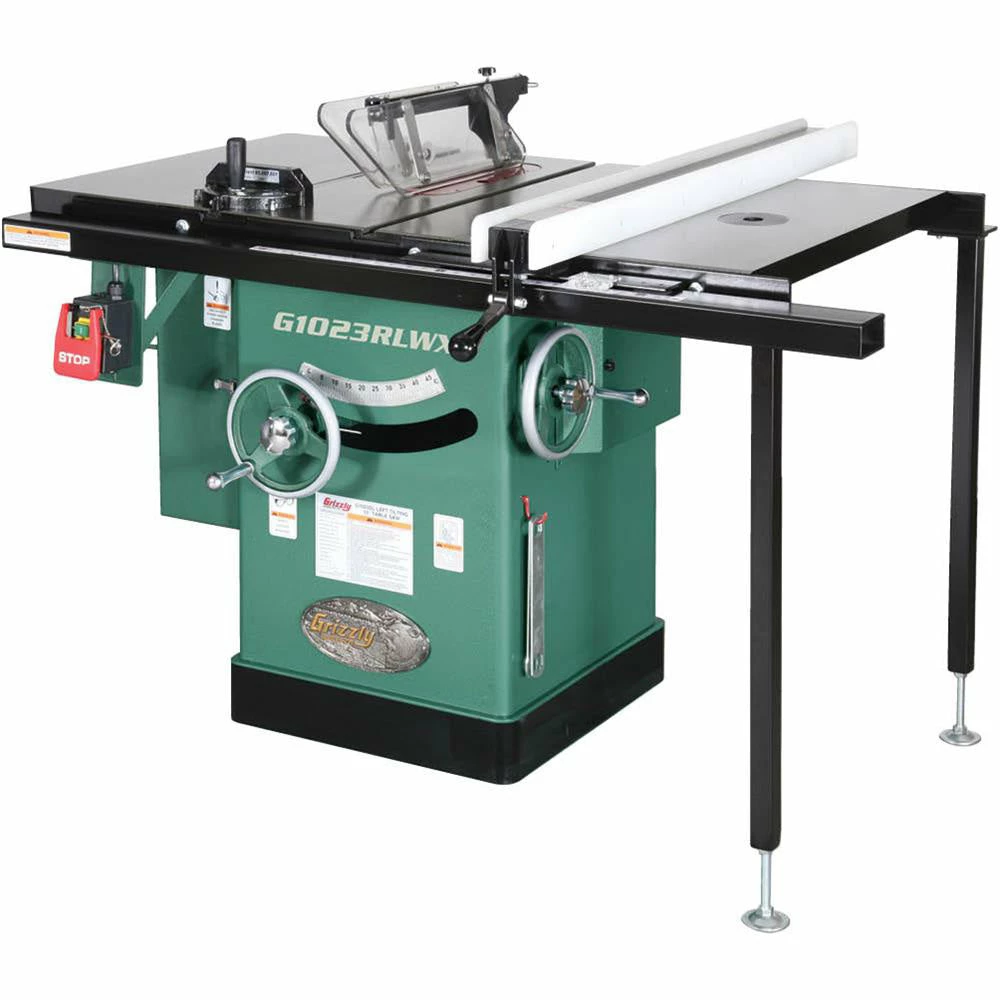

- 10 in 5 HP 240V Cabinet Left Tilting Table Saw – G1023RLWX
- Owner’s Manual
Warranty
- 1 Year Limited Factory Warranty
- 30 Day Satisfaction Guaranteed
Specifications
| SKU | G1023RLWX |
| Brand | Grizzly |
| Motor | 5 HP, Single Phase |
| Speed | 3450 RPM |
| Amps | 23A |
| Cutting Capacity | 8 in left and 32 right of blade |
| Max Depth of Cut at 90 Degrees | 3 in |
| Max Depth of Cut at 45 Degrees | 2-1/8 in |
| Power Cord Length | 6 ft |
| Power Gauge | 12 AWG |
| Full Load Current Rating | 23A |
| Minimum Circuit Size | 30A |
| Bearings | Shielded and Permanently Lubricated |
| Item Dimensions(inches) | 66 W x 47 D x 39-3/4 H |
| Weight | 509 lbs |
