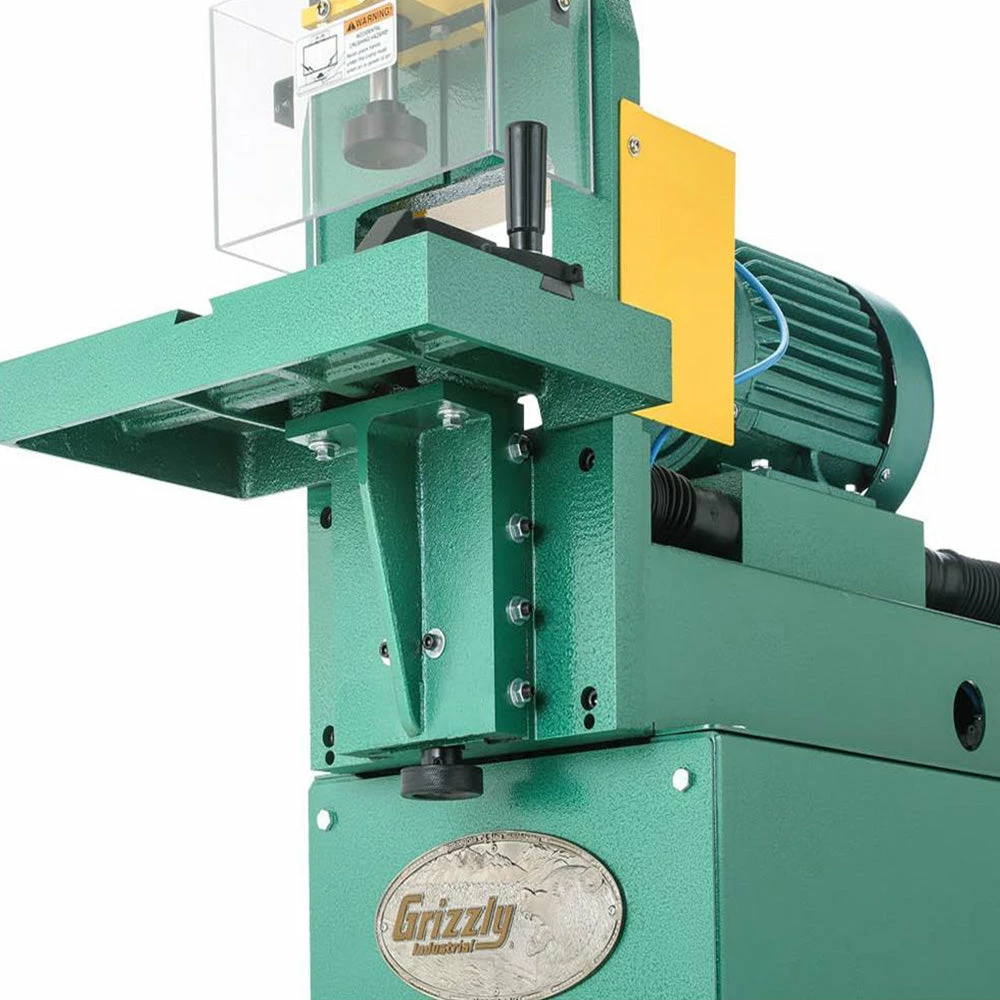

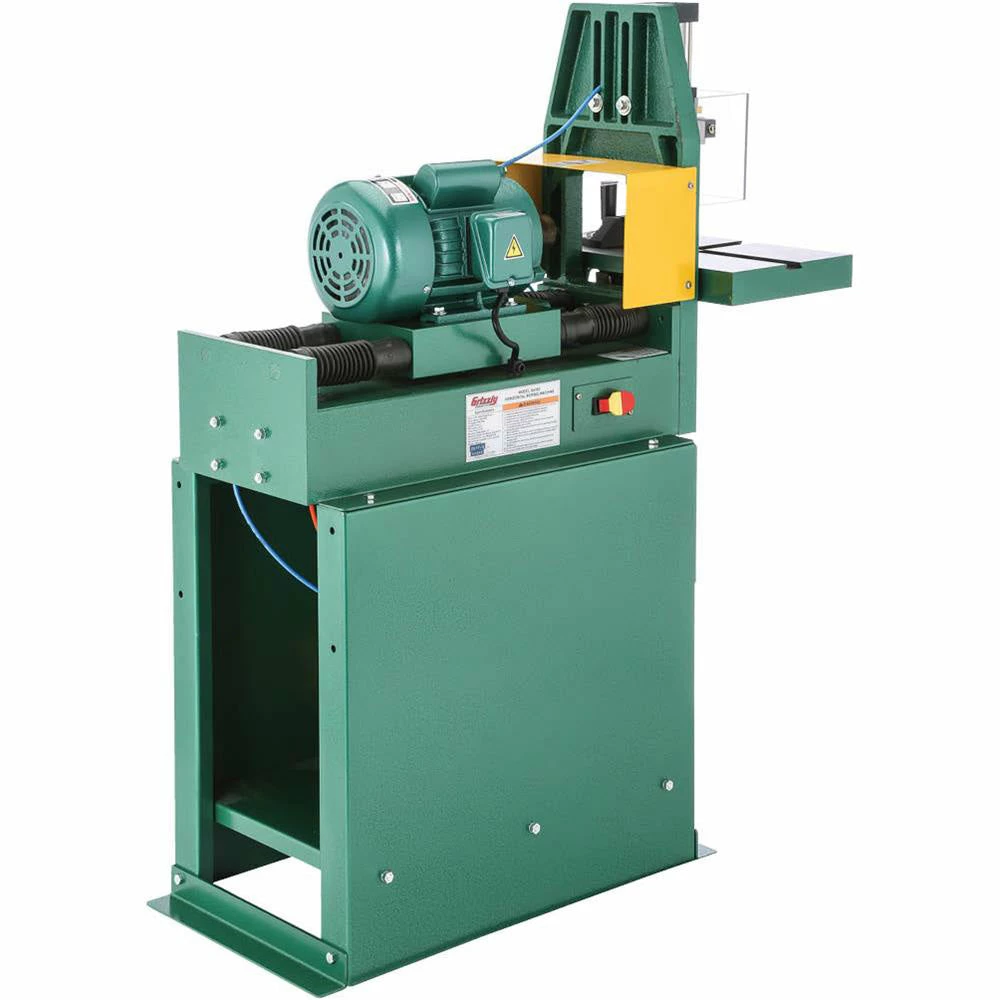

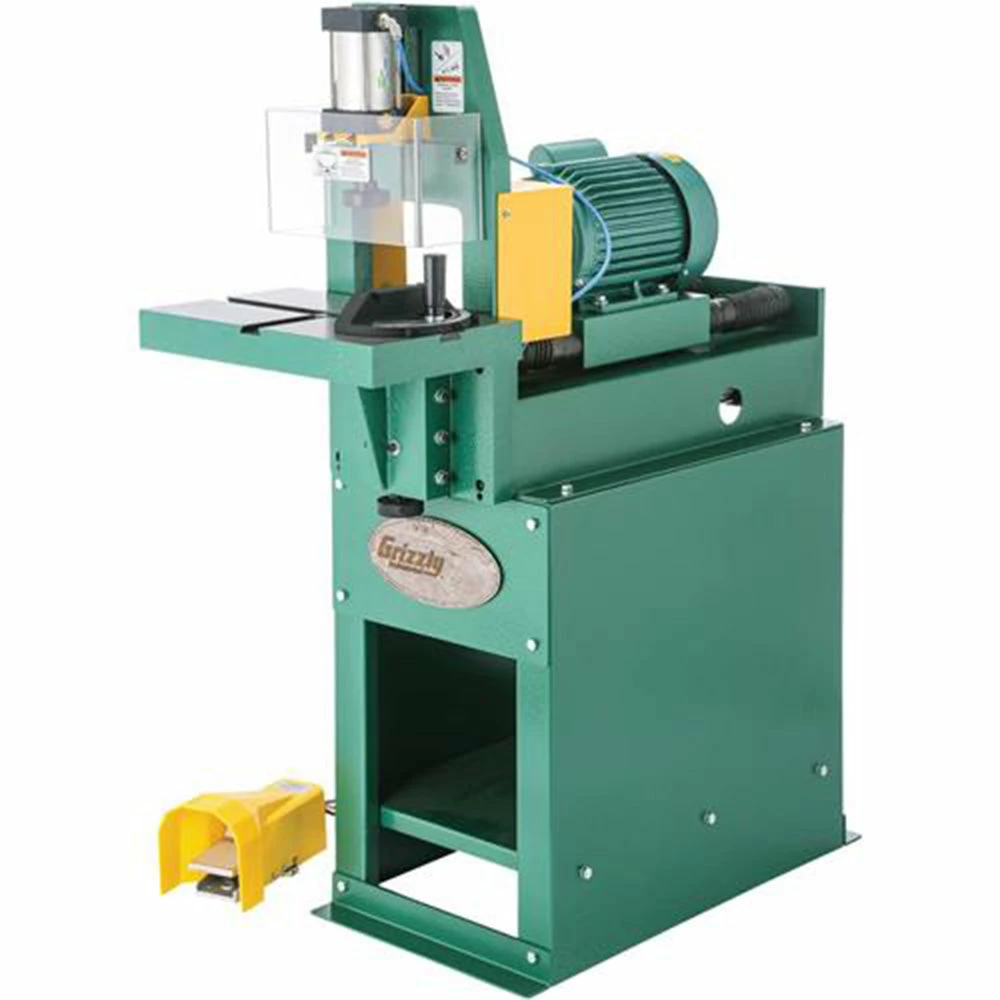

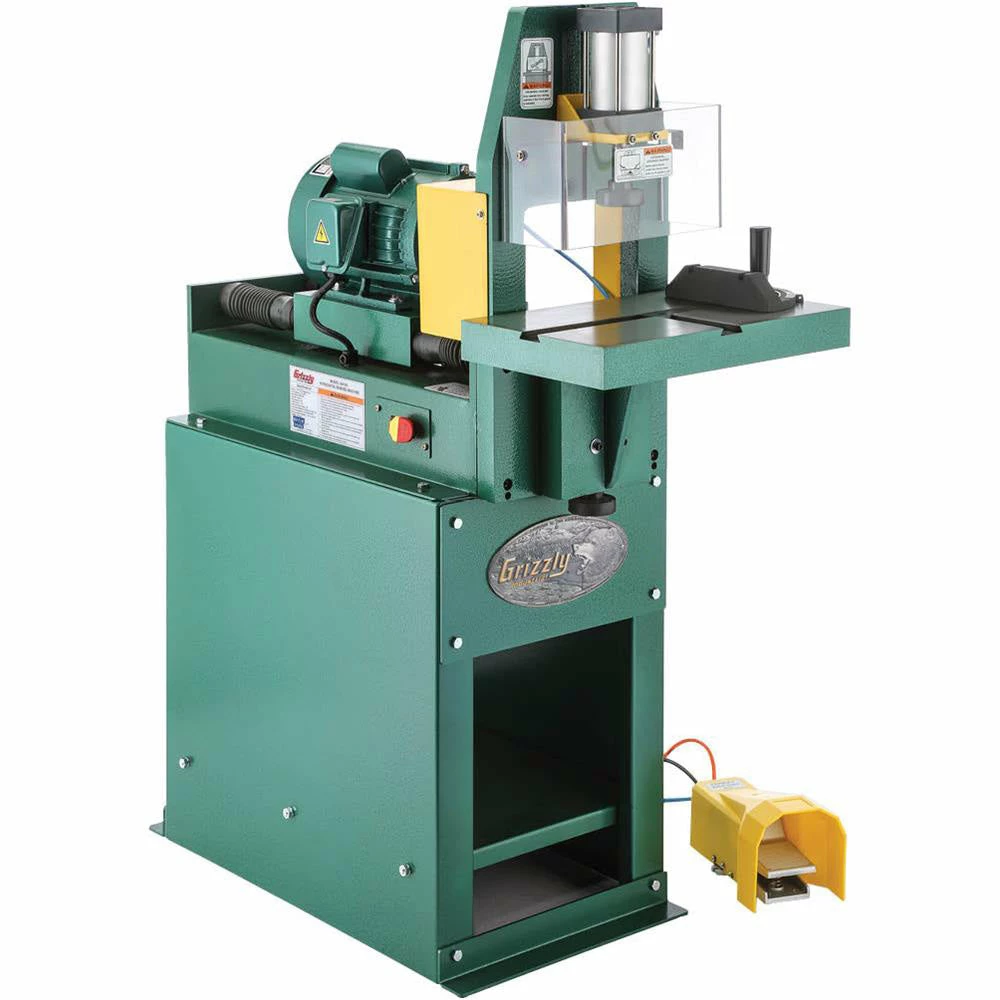

Grizzly G4185 220V Horizontal Boring Machine

Features

• Dovetailed Miter Slots

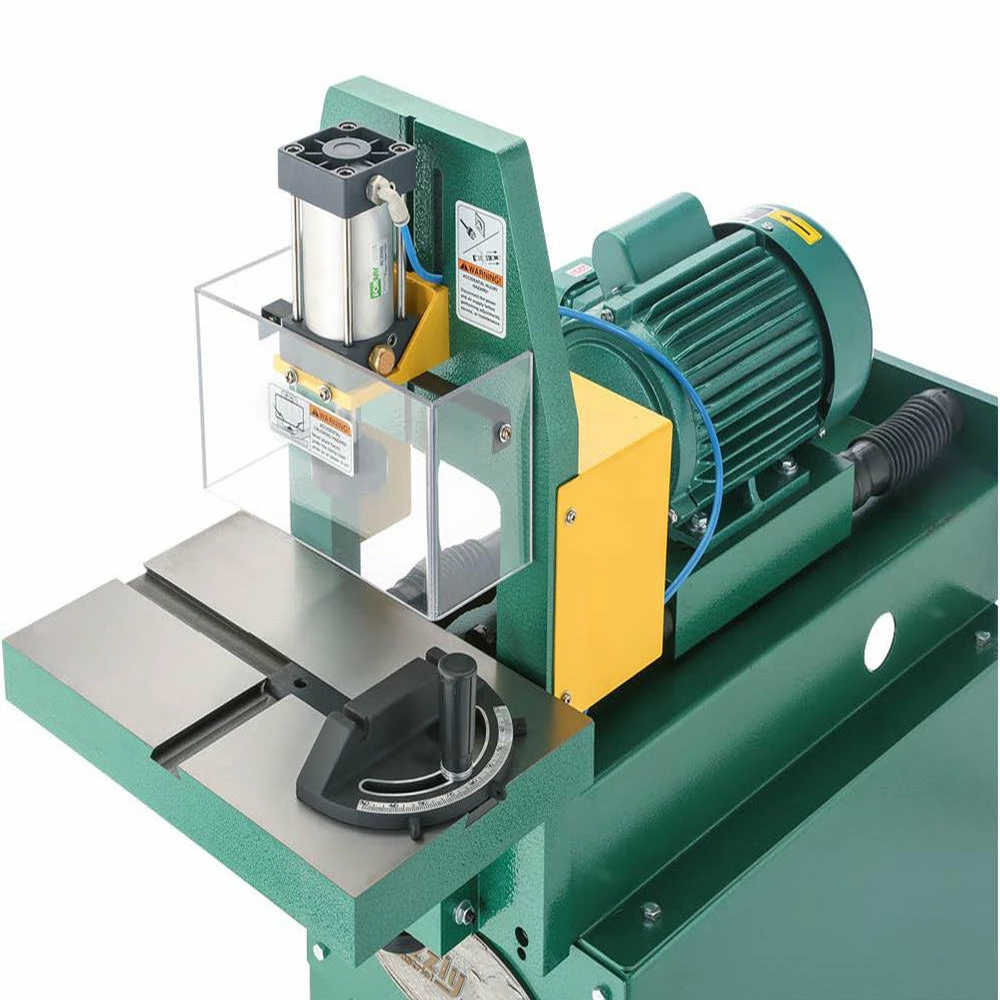

• Pneumatic Spindle Travel

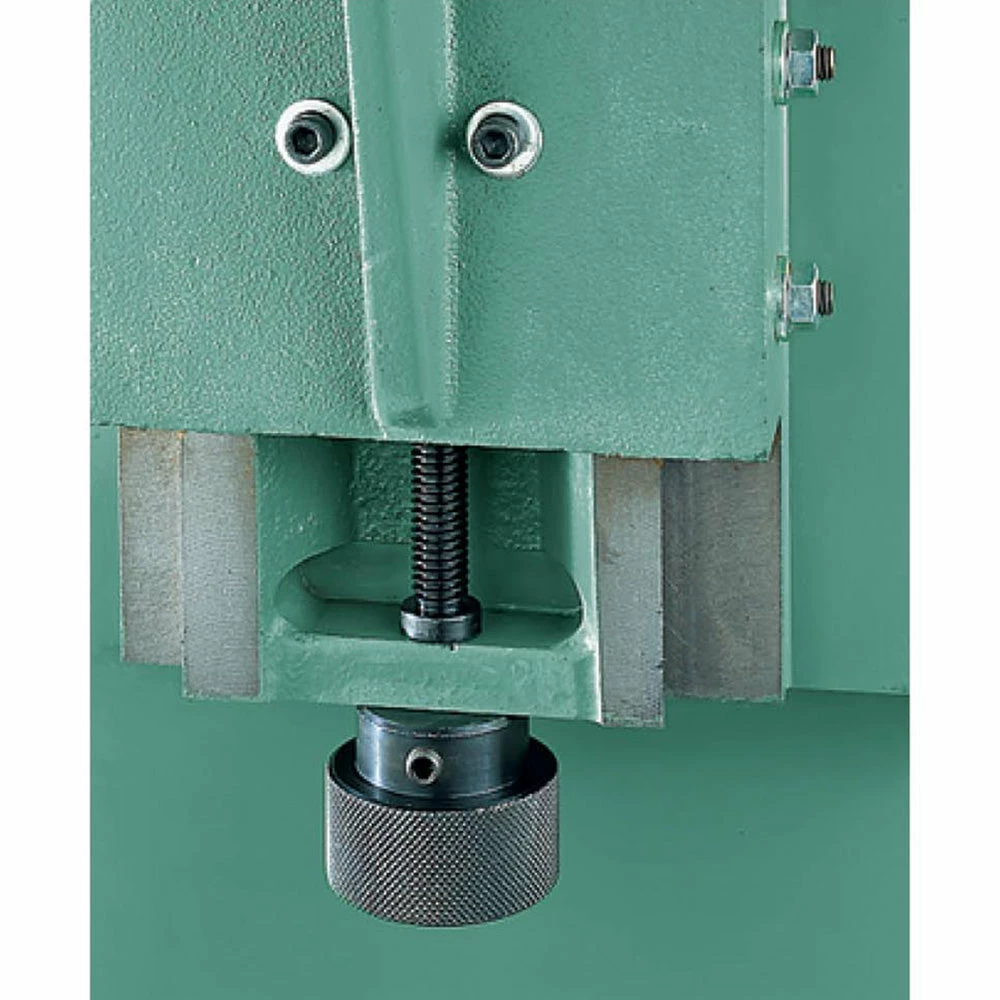

• Dovetailed Vertical Table Ways
• Pneumatic Foot Activator
• Pneumatic Clamp, 2 1/4 in diameter Pad

What’s in The Box

• Horizontal Boring Machine – G4185
• Owner’s Manual

Warranty

• 1 Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

SKU	G4185
Brand	Grizzly
Motor	2 HP, Single Phase
Amps	12
Table Size	15-3/4 in(wide) x 9-3/4 in(deep)
Spindle Travel	3 in
Table Travel, Vertical	3-1/2 in
Drill Bit Capacity	9/16 in
Spindle Speed	3450 RPM
Air Consumption	0.5 CFM at 90 PSI
Maximum SPM	12 at 90 PSI
Item Dimensions(inches)	15 W x 37-1/4 D x 47-1/2 H
Weight	360 lbs
