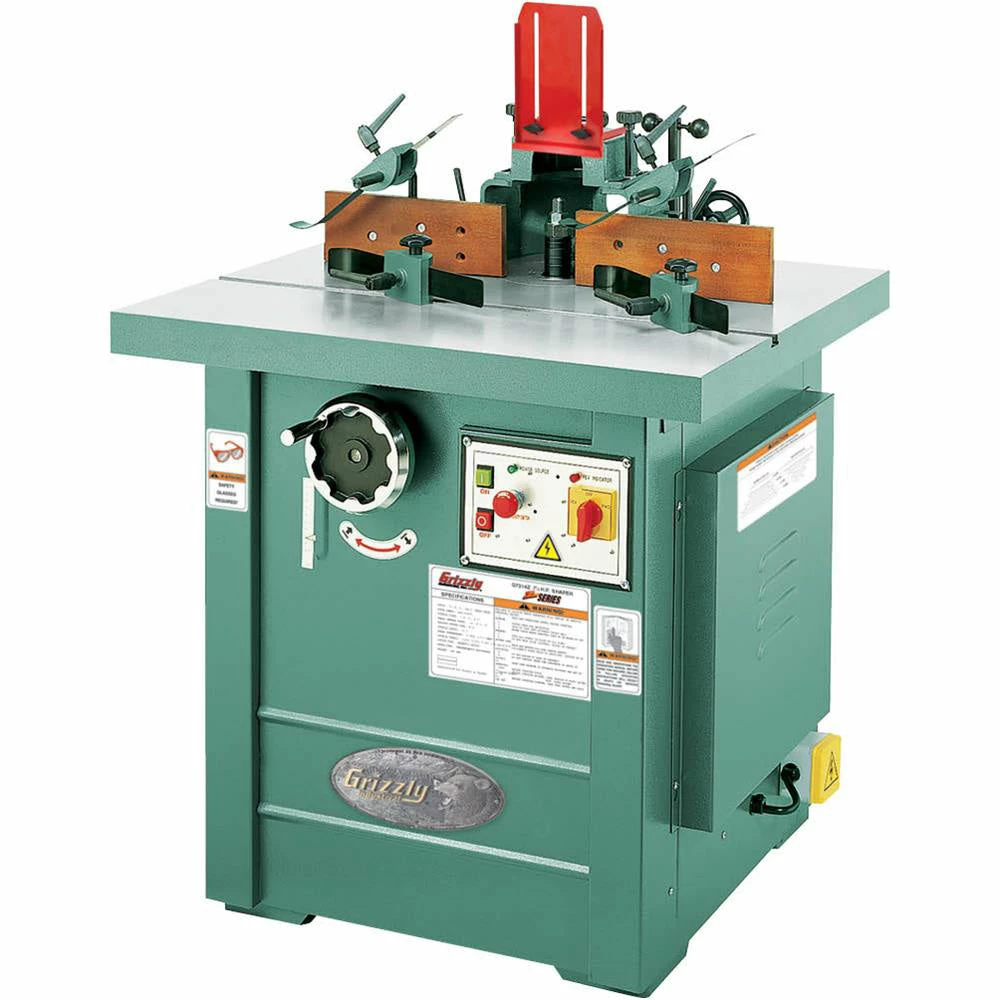

Grizzly G5912Z 220V 5 HP Professional Spindle Shaper – Z Series

Features

• Cast-Iron Miter Gauge, Adjustable 60 deg. Left to 60 deg. Right
• Precision-Ground Cast-Iron Table
• Green Epoxy Paint

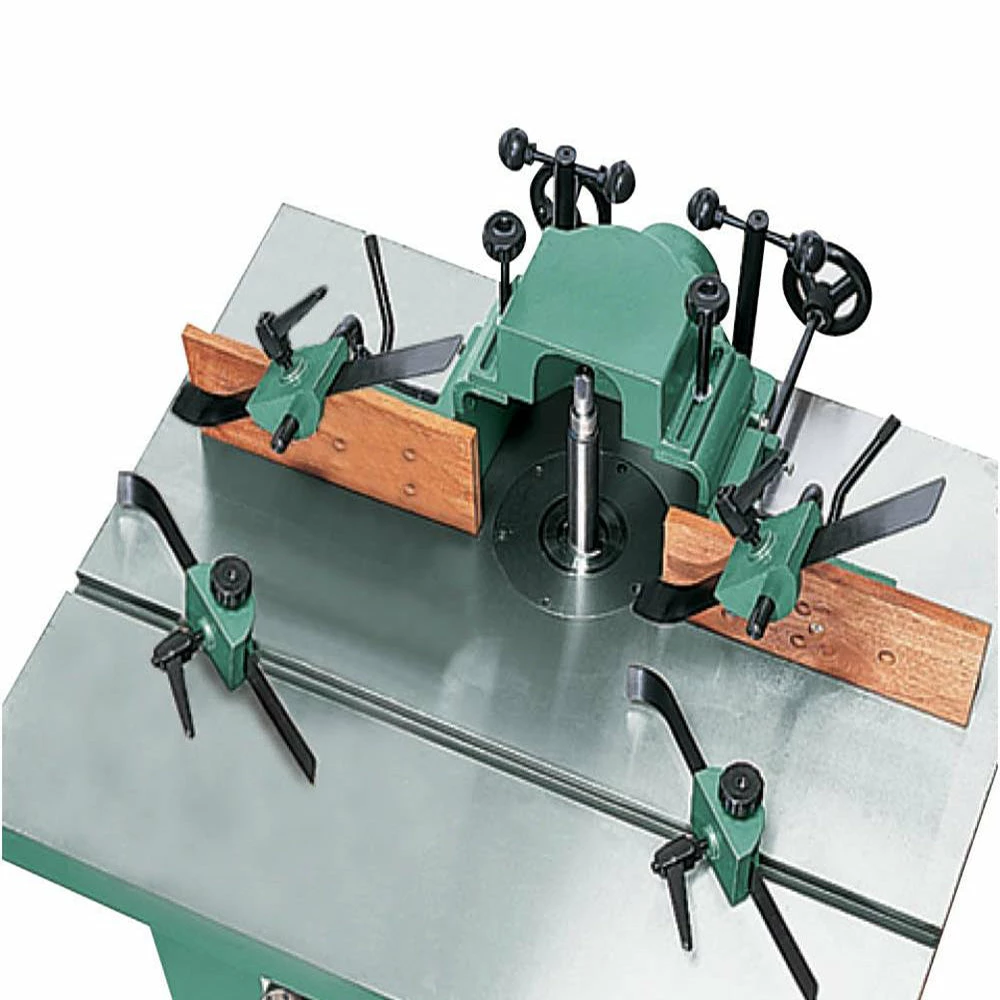

• Fence Adjustment Includes Built-In Ratchets and Knob-Equipped Adjusters
• 2 Wood Fence Pieces Included
• 3 Spindles with 8 Spacers and 2 Nuts Included

What’s in The Box

• 5 HP Professional Spindle Shaper / Z Series – G5912Z
• Owner’s Manual

Warranty

• 1 Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

SKU	G5912Z
Brand	Grizzly
Motor	5 HP, Single Phase
Amps	25A
Speed	3450 RPM

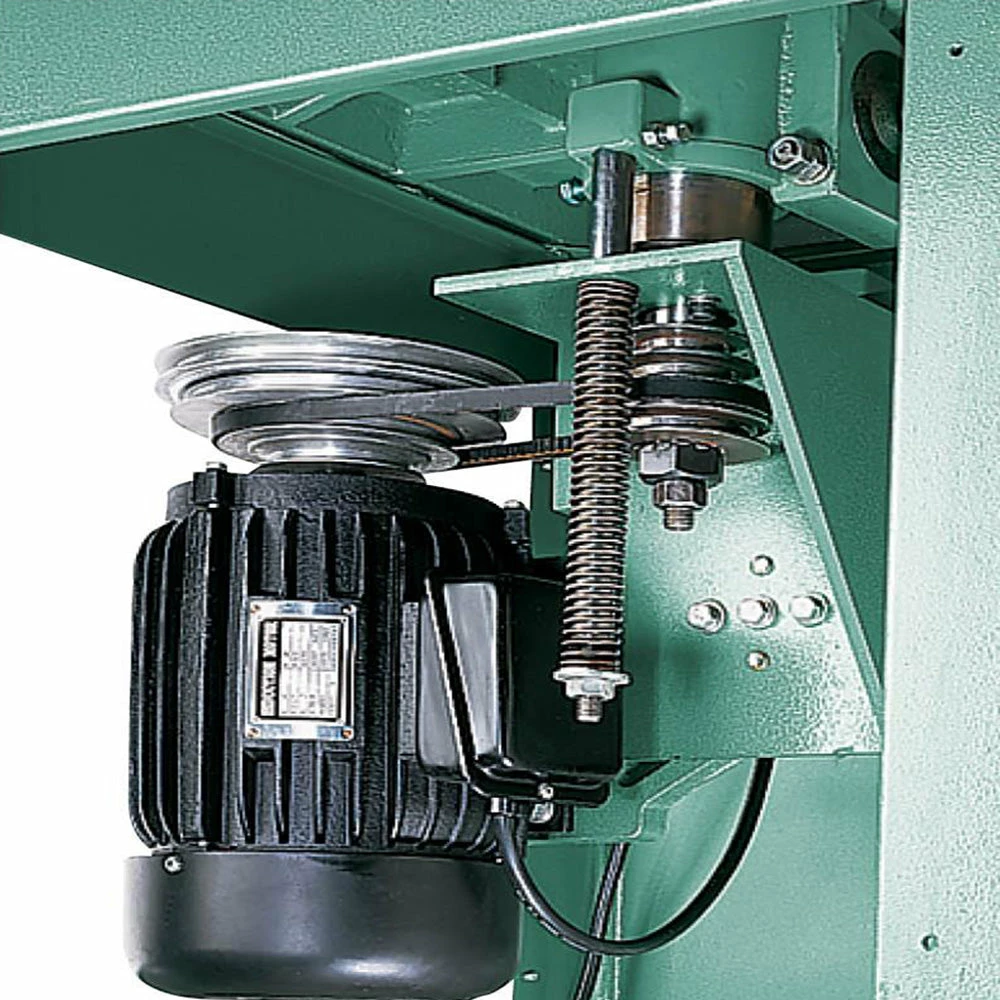

Power Transfer	Belt Drive
Number of Table Inserts	3
Table Insert Sizes I.D	2, 3, 3-1/2 in
Table Insert Sizes O.D	3, 3-1/2, 7 in
Miter Angle	0-60 degrees L/R
Miter Gauge Slot Type	T-slot
Miter Gauge Slot Width	1 in
Miter Gauge Slot Height	9/16
Spindle Speeds	4 (3600 – 10000 RPM)
Item Dimensions(inches)	34-3/4 W x 35-1/2 D x 42 H
Weight	562 lbs
