Grizzly G7943 120V 14 Inch 12 Speed Heavy-Duty Benchtop Drill Press

Features

• 1/64 in – 5/8 in Chuck

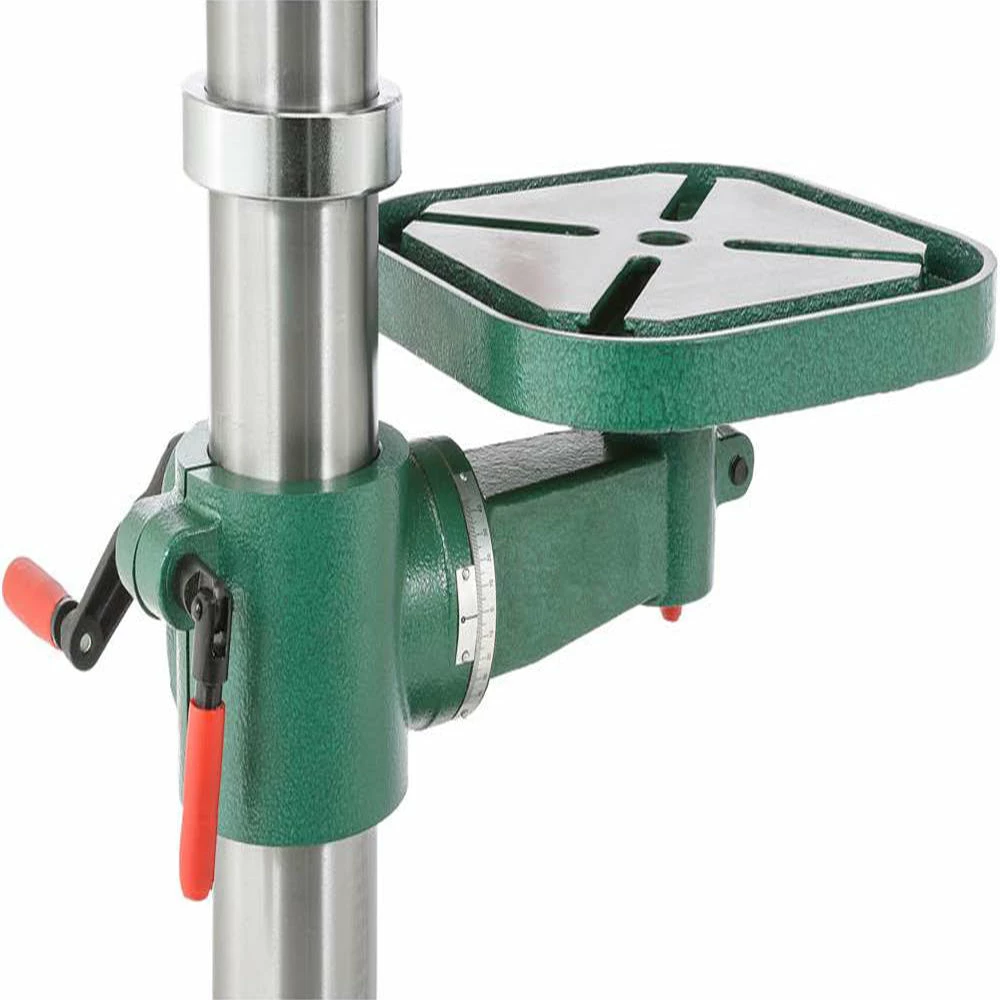

• Table Has Lock Levers and Coolant Trough
• Crank Handle Operated Rack and Pinion Vertical Table Movement

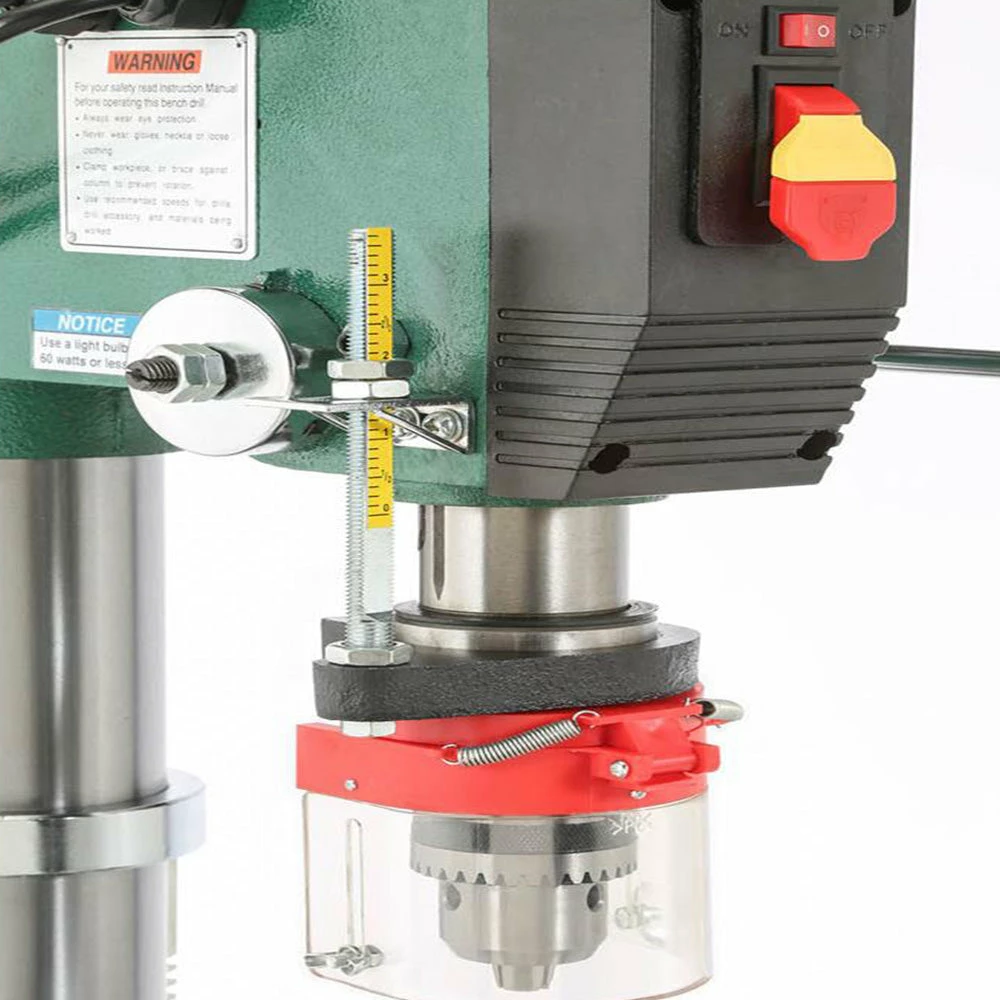

• Threaded Depth Stop
• Four T-Slots Accommodates 1/2 in Clamping Kit

What’s in The Box

• 14 in Heavy Duty Benchtop Drill Press – G7943
• Owner’s Manual

Warranty

• 1 Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

SKU	G7943
Brand	Grizzly
Motor	3/4 HP, Single Phase
Volts	120V
Swing	14 in
Drill Chuck	3/64 in – 5/8 in
Drilling Capacity	3/4 in (steel)
Spindle Taper	MT 2
Spindle Travel	3-1/4 in

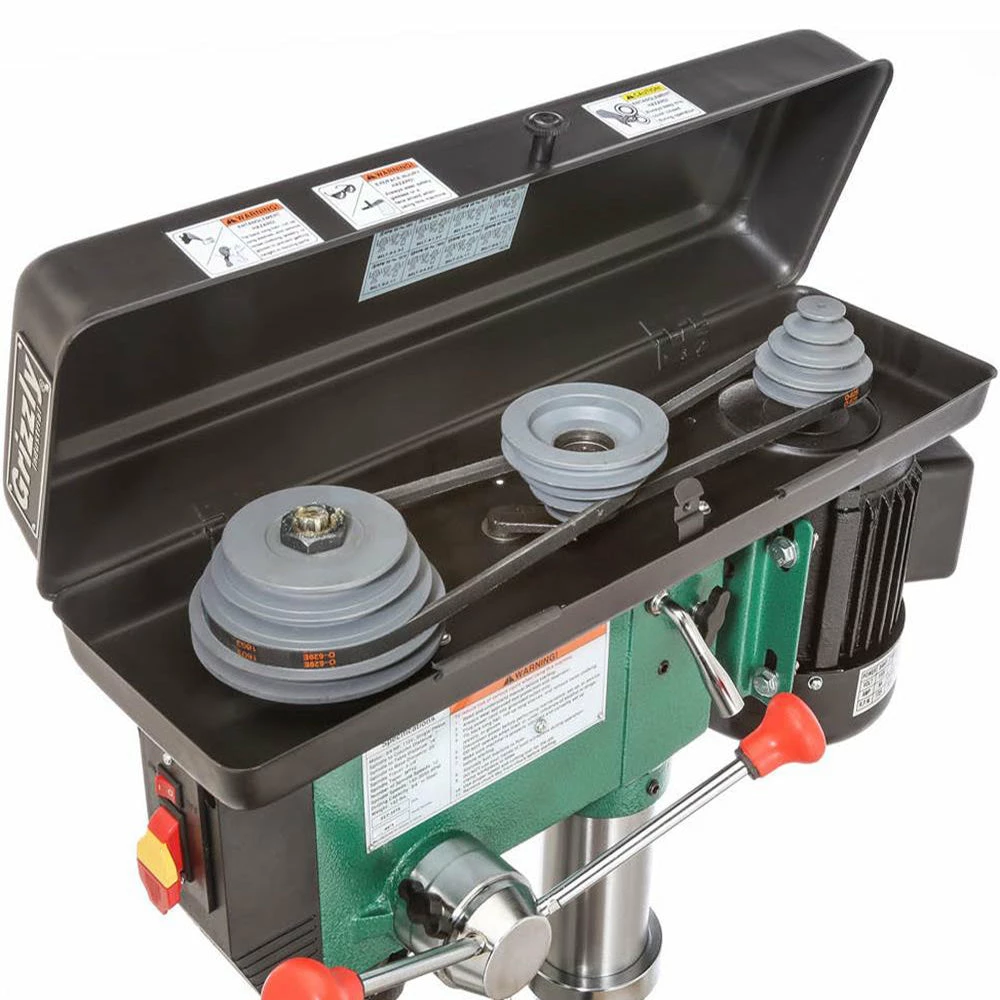

Number of Speeds	12 (140, 260, 320, 380, 480, 540, 980, 1160, 1510, 1650, 2180, 3050 RPM)
Quill Flange/Collar Diameter	2.595 in
Precision-Ground Cast Iron Table	Yes
Table Swing	360 degrees
Table Tilts	90 degrees Left/Right
Footprint	18 in 11 in
Item Dimensions(inches)	14-1/2 W x 24 D x 38 H
Weight	133 lbs
