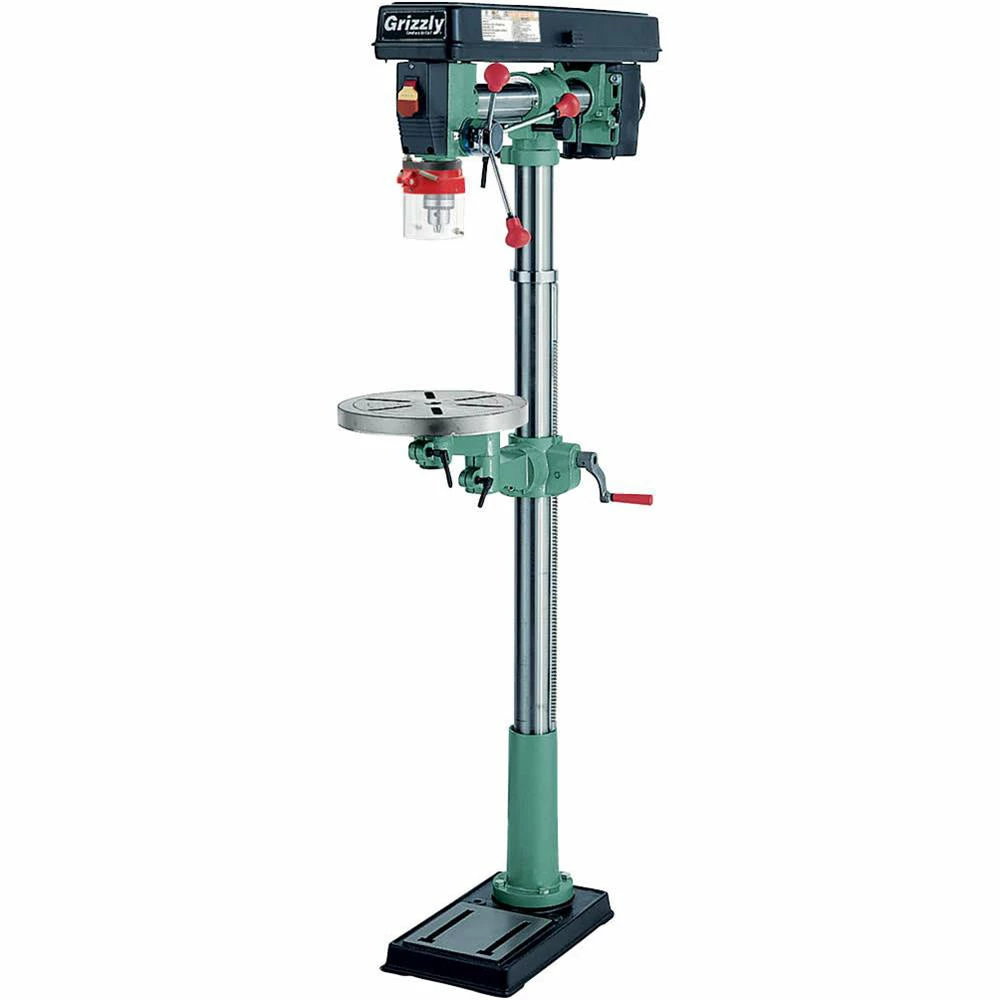

Grizzly G7946 120V 34 Inch 5 Speed Floor Radial Drill Press

Features

• Threaded Depth Stop
• Crank Handle Operated Rack and Pinion Vertical Table Movement
• Table Has Lock Levers
• Table and Base are Cast Iron
• Radial Design Allows Angle Drilling

What’s in The Box

• 34 in Floor Radial Drill Press – G7946
• Owner’s Manual

Warranty

• 1 Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

SKU	G7946
Brand	Grizzly
Motor	1/2 HP, Single Phase
Footprint	18 in x 11 in
Spindle Travel	3-1/4 in
Spindle Taper	JT-33
Number of Speeds	5 (550-3000 RPM)
Collar Size	2.160 in
Drill Chuck	1/16 in – 5/8 in
Swing	34 in
Table	Precision ground Cast Iron
Table Size	12-3/16 diameter
Table Swing	360 degrees
Table Tilts	90 degrees left, 45 degrees right
Item Dimensions(inches)	14 W x 32 D x 64-1/2 H
Weight	138 lbs
