Grizzly G8027 1 HP Dust Collector Tools & Equipment

Features

• 2.5 Micron upper bag filtration

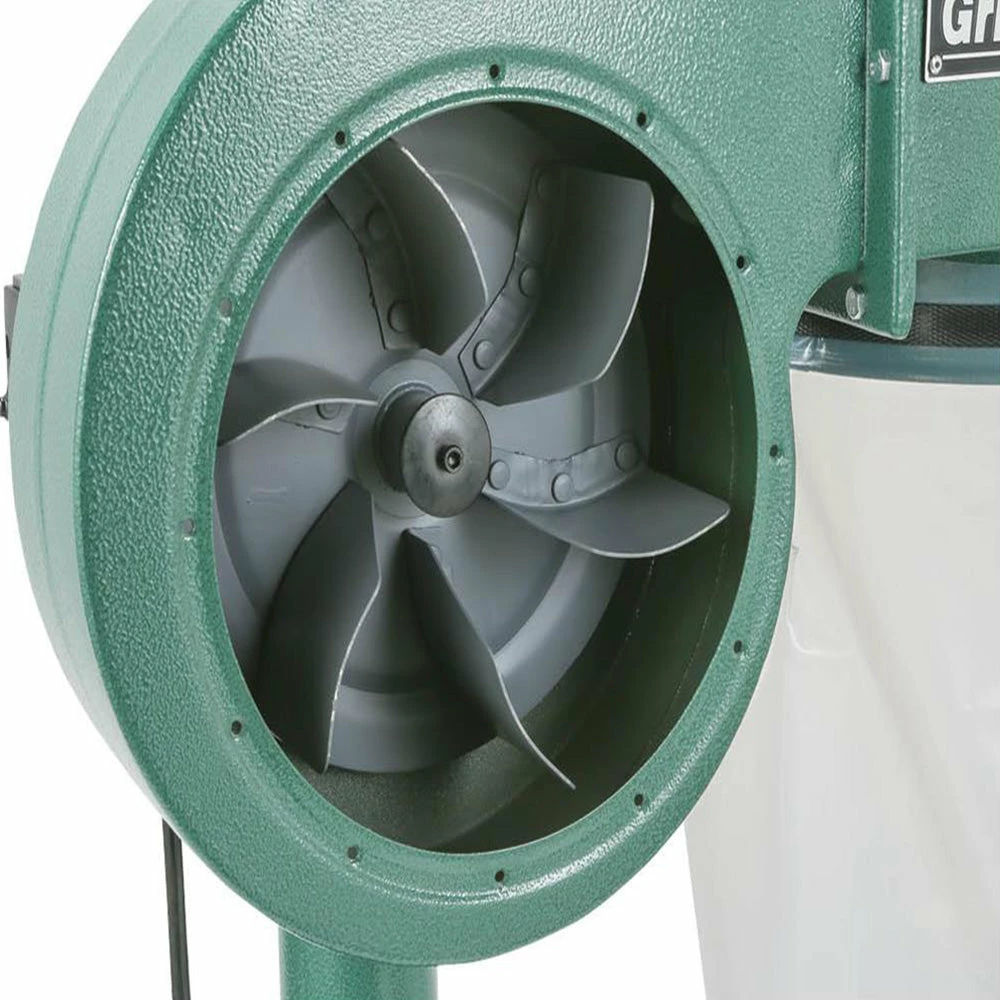

• 9″ Steel impeller
• Powder coated paint
• Steel base with casters for mobility

What’s in The Box

• Grizzly 1 HP Dust Collector – G8027
• Owner’s Manual

Warranty

• 5 Year Limited Factory Warranty
• 30 Day Money Back Guarantee

Specifications

SKU	G8027
Brand	Grizzly
Filter Type	Bag
Dust Collector Type	Single Stage
Airflow Performance	500 CFM
Max Static Pressure (at 0 CFM)	2.76 in
Main Inlet Size	4 in
Inlet Adpater Included	No
Machine Collection Capacity at One Time	1
Maximum Material Collection Capacity	2.3 cu. ft.
Filtration Rating	2.5 Micron
Number of Upper Bags	1
Number of Lower Bags	1
Upper Bag Diameter	14-1/2 in
Upper Bag Length	24 in
Lower Bag Diameter	14-1/2 in
Lower Bag Length	23 in
Upper Bag	Fabric
Lower Bag	Plastic
Impeller Type	Radial Fin
Impeller Size	9 in
Impeller Blade Thickness	3/32 in
Base	Steel Metal w/Casters
Frame	Formed Steel
Caster High Density	Plastic
Impeller Steel
Paint Type Finish	Powder
Overall Depth	15 in
Overall Width	25-1/2 in
Overall Height	63 in
Weight	57 lbs
