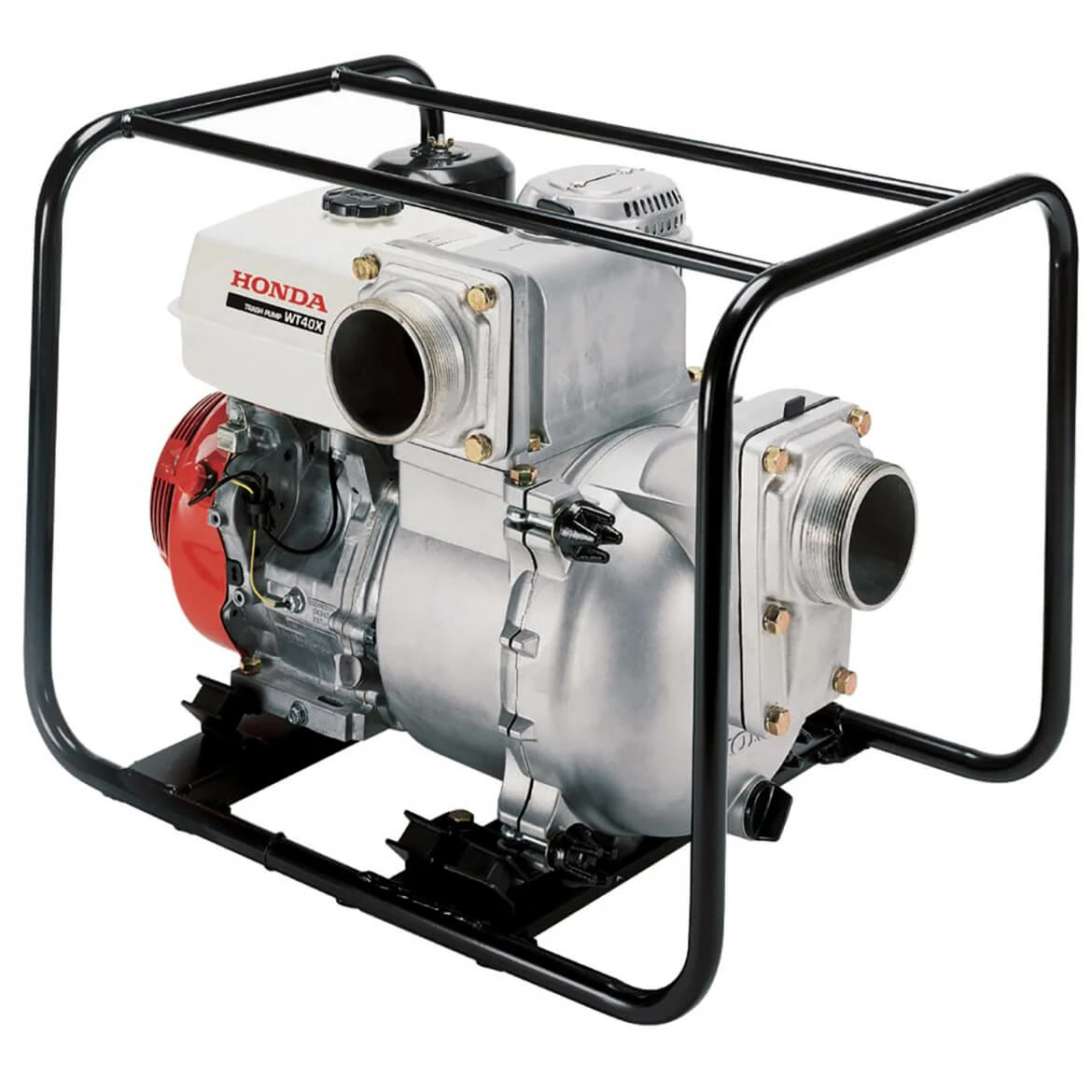

Honda WT40 4″ 433-Gpm Full Frame Isolation Mounted Trash Pump – Scratch And Dent

Features

• The durable Honda GX series commercial grade engine is easy starting and provides ample power for the toughest conditions.
• Specially designed for job sites and applications where high volume trash water capacity is needed.
• The rigid-mount cast iron volute reduces case wear, increasing the life of the pump.
• Protects the pump, while offering a convenient tie down location for transport.
• The WT30 is designed for quick and easy service. An easy access service port makes clean-out quick.
• Features abrasion-resistant silicone-carbide seals for extended wear.
• High performance mounts minimize vibration, keeping the pump from walking away or burying itself in soft soil conditions. The reduced vibration also reduces wear on components, increasing the pump’s durability.
• A convenient multi-tool is provided for easy removal and installation of the pump case, for tightening and removal of the priming plug and drain plug, and for tightening and removal of the hose coupling.
• The unique shape improves priming and higher discharge capacity. Wide vanes are designed to resist wear and maximize durability.
• You can rest easy, knowing your pump is covered from top to bottom for 3 full years.
• Protects the pump by shutting the engine off when low oil is detected.
• Heavy-Duty 4 Construction Trash Pump
• Honda OHV Commercial Engine
• 433 Gal./Min Capacity
• Solid Handling Capability Up To 1 1/16
• Cast Iron Volute And Impeller
• Quick Clean Out Port

What’s in The Box

• 4” Trash Pump – Power Equipment
• Owner’s Manual

Warranty

• 3-Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

Engine	GX390
Displacement	389 cc
Bore and stroke (in.)	3.5 x 2.5
Compression Ratio	8.2:1
Oil Alert	Standard
Pump type	Trash Centrifugal Self-priming
Volute	Rigid Mounted Cast Iron w/ Stainless Wear Plate
Impeller	Conical Cast Iron
Mechanical Seal (Pump case / impeller)	Silicon Carbide/Silicon Carbide
Priming time	150 sec. @16.4 ft.
Drive system	Direct
Discharge capacity	423 gal/min
Suction port diameter (in.)	4
Discharge port diameter (in.)	4
Total head lift	82 ft.
Suction head lift	26 ft.
Maximum pressure	36 psi
Solids handling	1 1/16 inches
Dimensions (LxWxH)	28.9 x 21.1 x 22.2
Dry weight	172 lbs.
Fuel Capacity	1.6 gal
Run Time @ Max Discharge	1.5 hr
Residential Warranty	3 years
Commercial Warranty	3 years
