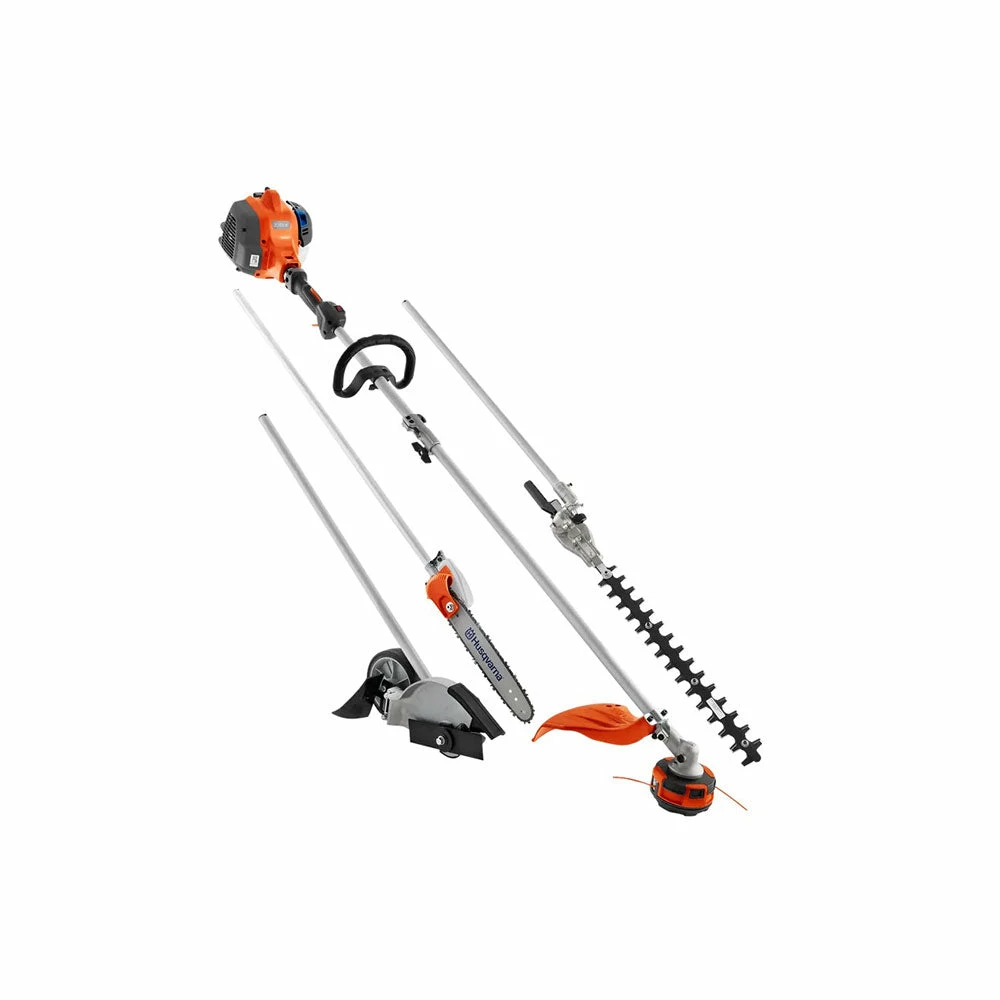

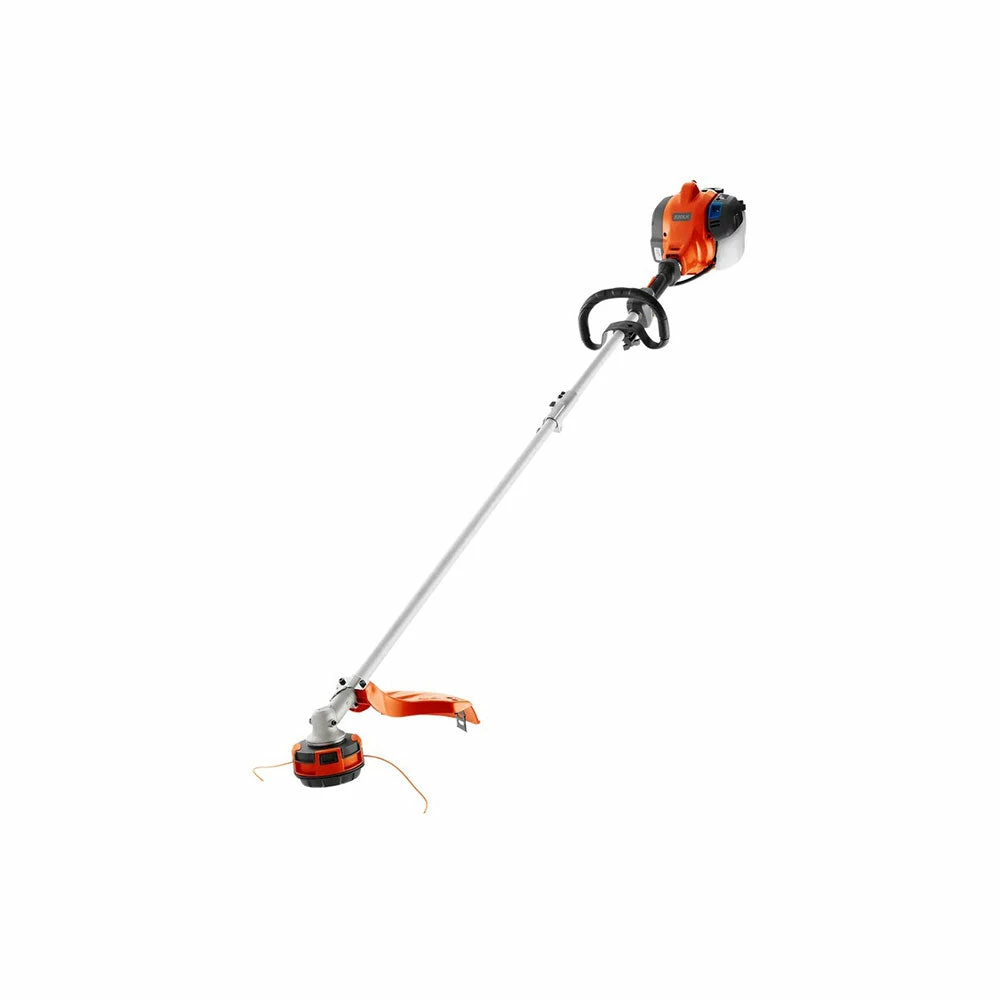

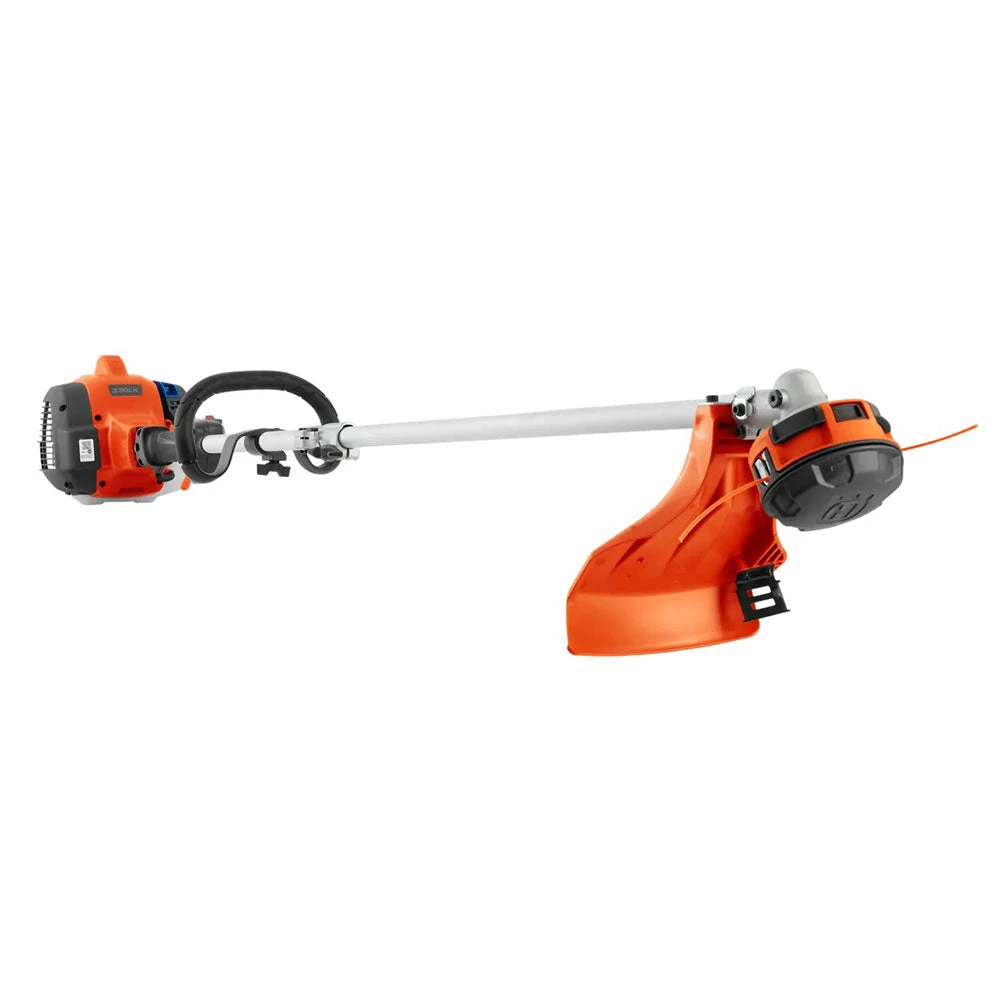

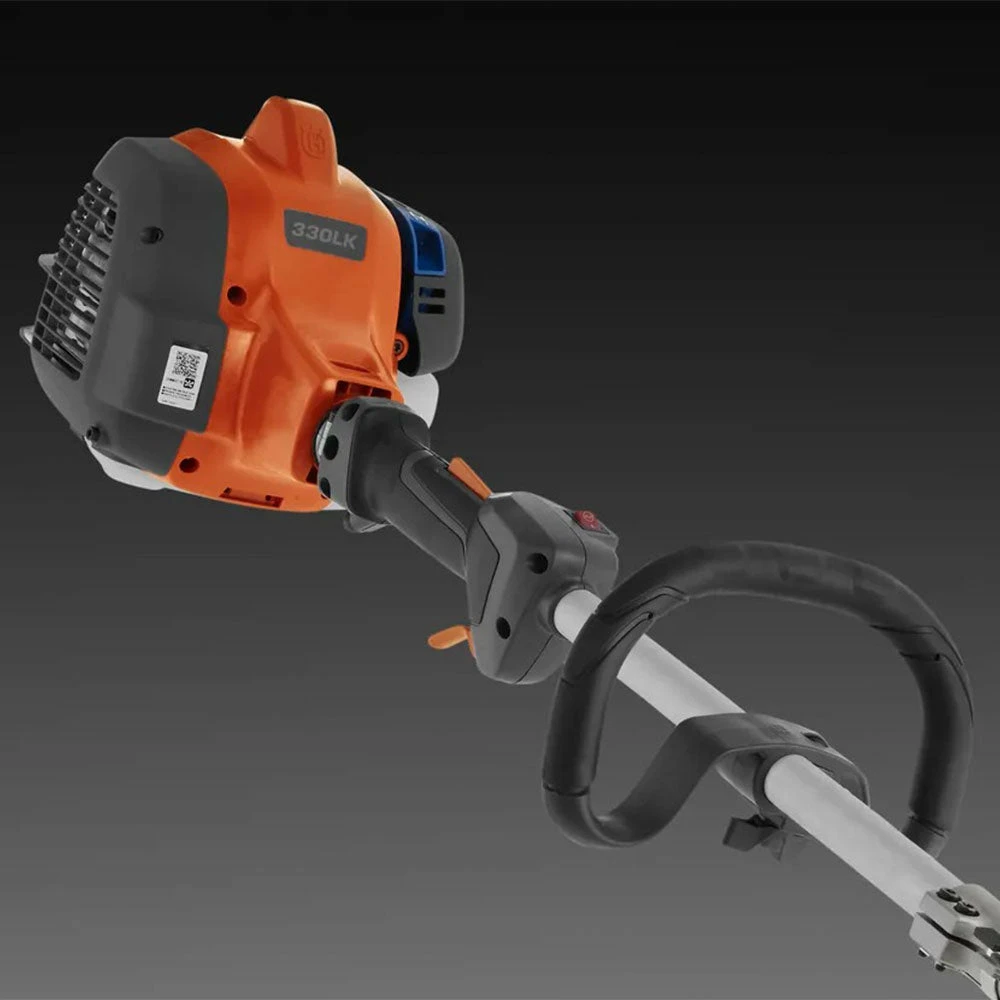

Husqvarna 970545001 330LK 28CC 20″ Gasoline Straight Detachable Shaft Trimmer

Features

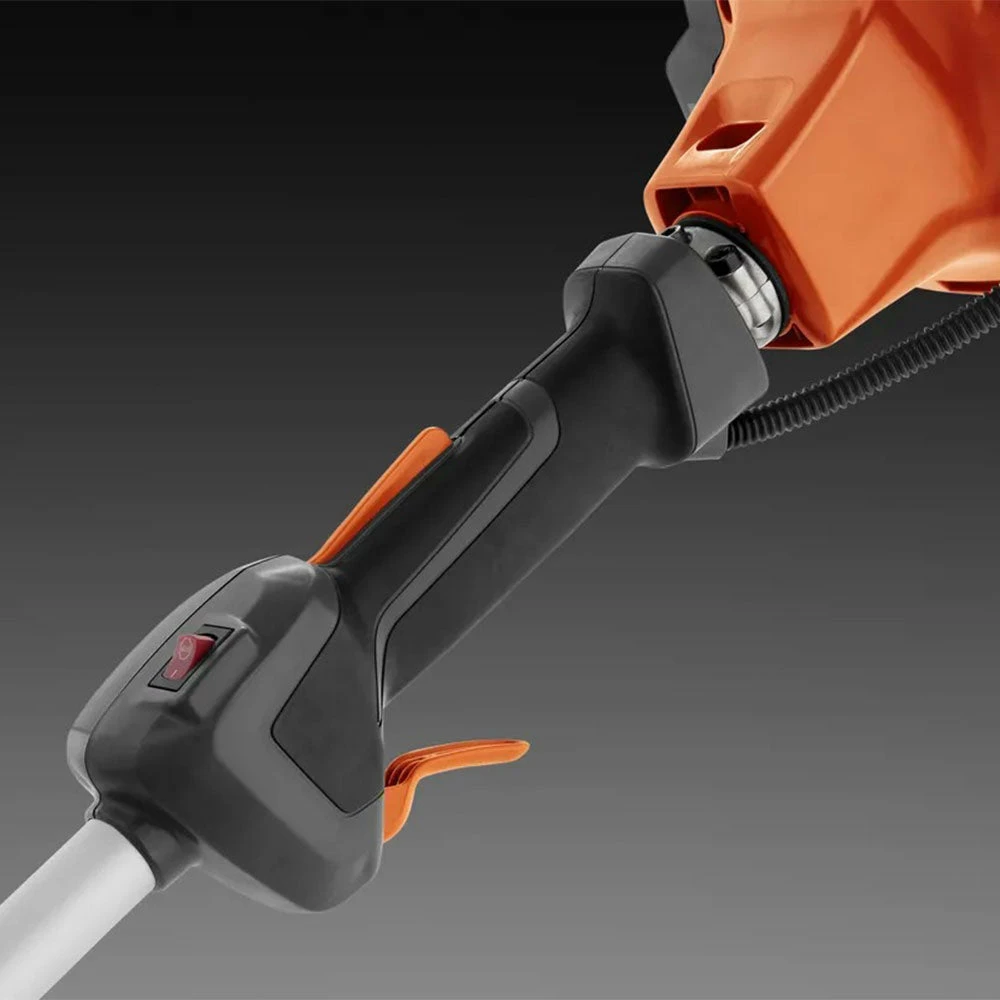

• Auto Return Stop Switch

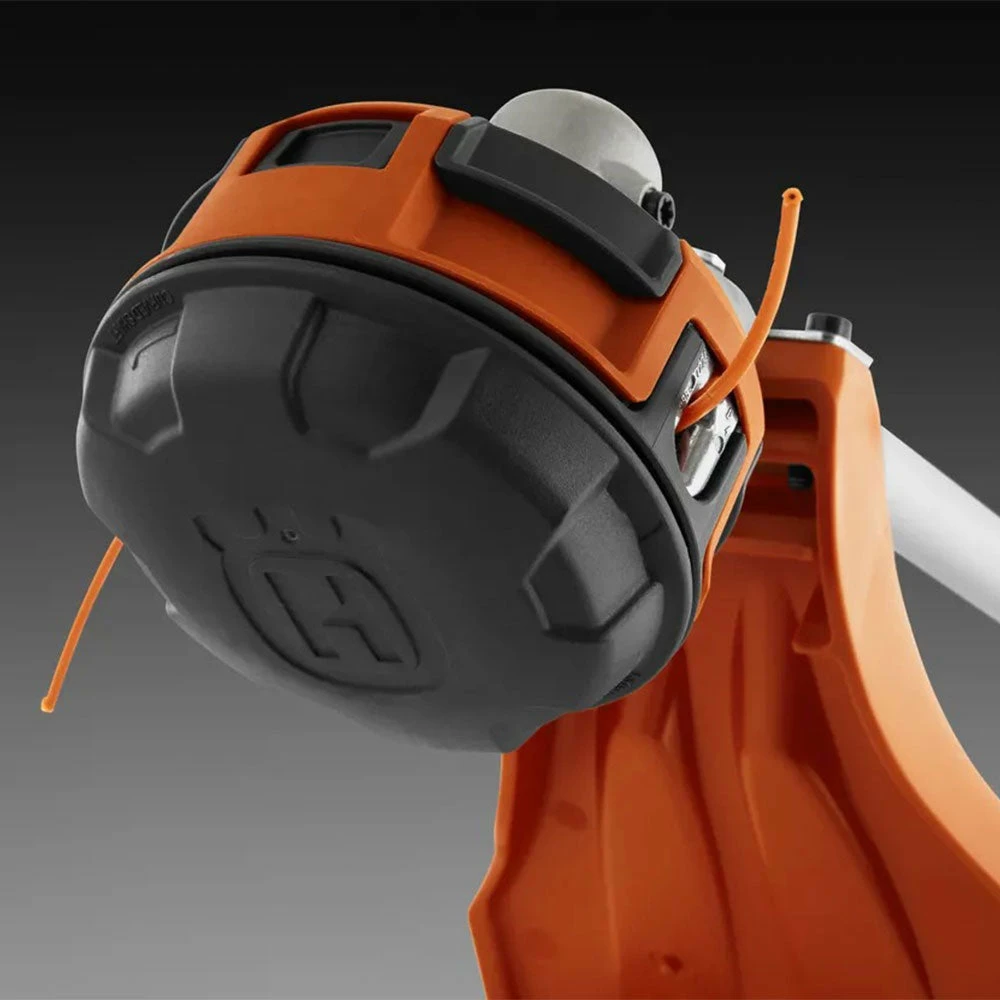

• 20″ Cutting Diameter
• Air Purge Prime
• Displacement 28cc
• Power 1.0 HP / 7800RPM
• Digital Ignition
• 12.8LB Ready To Run

What’s in The Box

• 330LK 28cc Straight Shaft Trimmer
• Owner’s Manual

Warranty

• 5 Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

SKU	970545001
Brand	Husqvarna
Cutting width	20 in
Cylinder displacement	1.7 cu.inch
Power output	1 hp
Maximum power speed	8,000 rpm
Fuel tank volume	17.82 fl oz (US)
Fuel consumption	543 g/kWh
Idling speed	3,000 rpm
Spark plug	Champion QCJ-8Y
Electrode gap	0.02 in
Torque, max. at rpm	7,000 rpm
Torque, max	0.95 Nm
Clutch engagement speed (±120)	4,200 rpm
Maximum rpm output shaft	5,478 rpm
Exhaust emissions (CO average)	288 g/kWh
Exhaust emissions (CO average)	134 g/kWh
Exhaust emissions (CO average)	247 g/kWh
Gear ratio	0.522
Drive gear angle	60
Equivalent vibration level (ahv, eq) front handle	5.97 m/s
Equivalent vibration level (ahv, eq) rear handle	6.12 m/s
Lubricant type	Husqvarna 2 stroke or equiv. at 50-1
Sound pressure level at operators ear	96.1 dB(A)
Sound power level, guaranteed (LWA)	116 dB(A)
Product size length	72 in
Product size width	9.5 in
Tube length	59.291 in
Product size height	10 in
Tube diameter	0.945 in
Weight (excl. cutting equipment)	12.85 lbs
