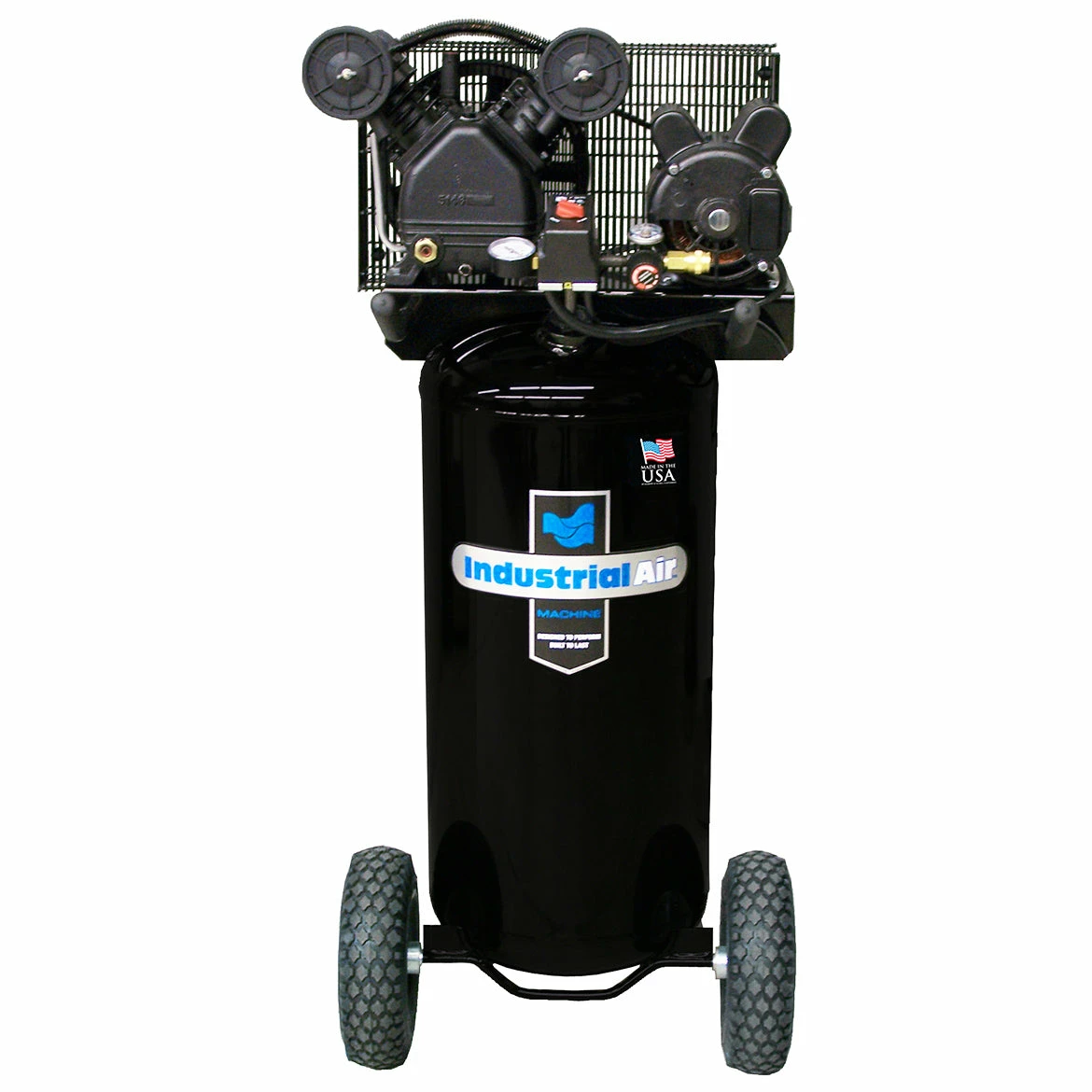

Industrial Air IL1682066.MN 120/240-Volt 20 Gallon Vertical Air Compressor Tools & Equipment

Features

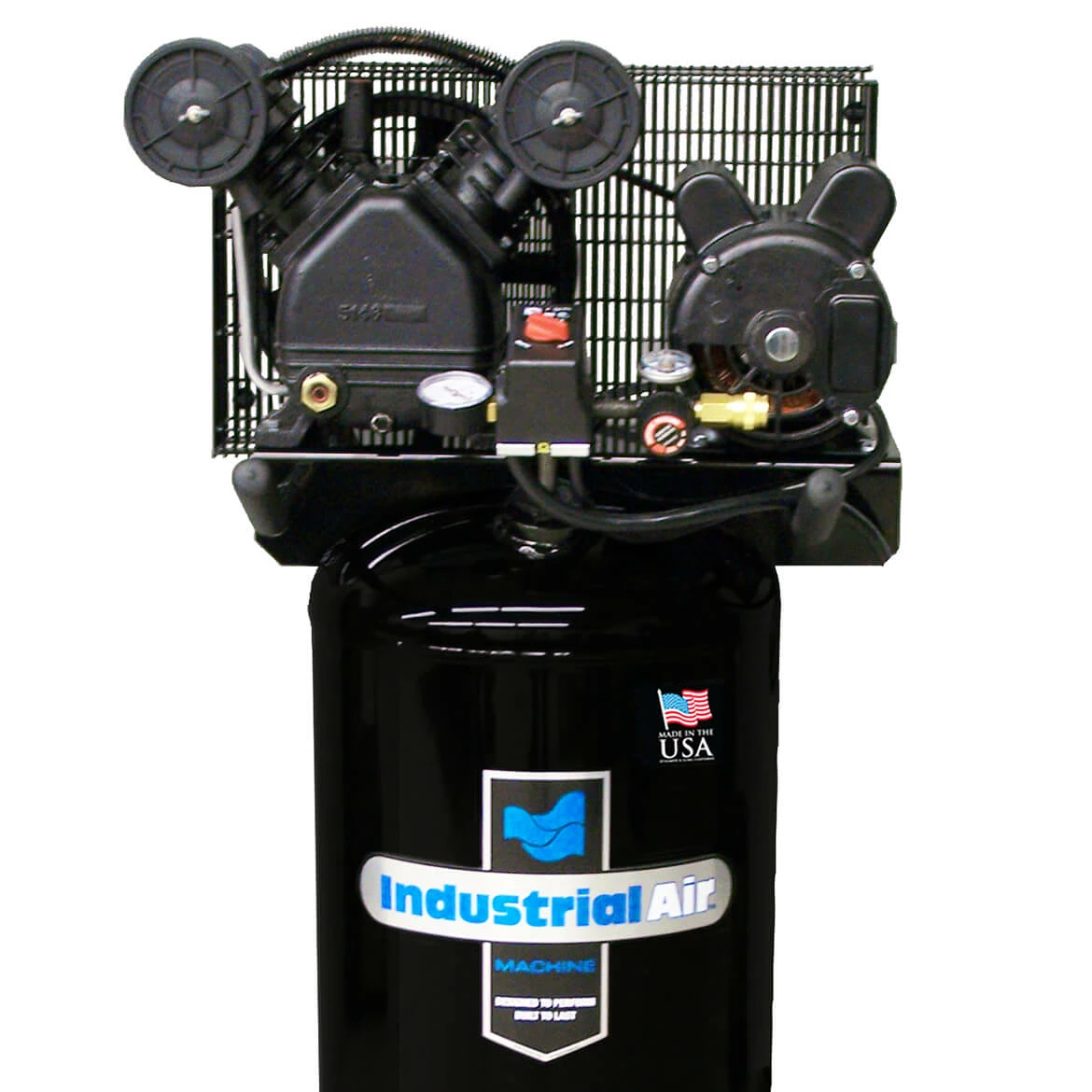

• Cast iron V-twin cylinder pump provides durable and reliable performance that drives many air tools
• Belt driven and oil lubricated for less noise than direct drive compressors
• Pump features one-piece iron crankcase, thermally stable cast iron cylinder body, aluminum head and machined cast iron valve plates, automotive style ball bearings, and durable stainless steel reed valves
• Oil level sight glass with easily accessible oil fill
• 10 in. cast iron balanced flywheel for smooth, powerful operation
• Heavy-duty induction motor for maximum performance and efficiency
• 20 gallon ASME portable tank equipped with pneumatic tires for maximum portability
• Dual voltage motor is wired for standard 120V outlet, and may also be converted for 240V applications
• Equipped with quick-set regulator, tank and tool pressure gauges, quick connect air outlet and on/off switch

What’s in The Box

• 120/240-Volt 20 Gallon Vertical Air Compressor – IL1682066.MN
• Owner’s Manual

Warranty

• 1-Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

Sku	IL1682066.MN
Brand	Industrial Air
Manufacturer	MAT Industries
Color	Black
Voltage	120/240V
Air Consumption at 40 PSI (SCFM)	6.2 SCFM
Air Consumption at 90 PSI (SCFM)	5.3 SCFM
Drive System	Belt Drive
Horsepower	1.6 HP
Lubrication	Oil-Lube
Motor Type	Single Stage
Operating Pressure (Psi)	135 Psi
Power Type	Electric
Tank Capacity	20 gallon
Tank Construction	Cast Iron
Tank Orientation	Vertical
Tank Style	Dolly
Product Dimensions (In.)	34 x 22.5 x 33.5 In.
Shipping Weight (lbs)	164 lbs
