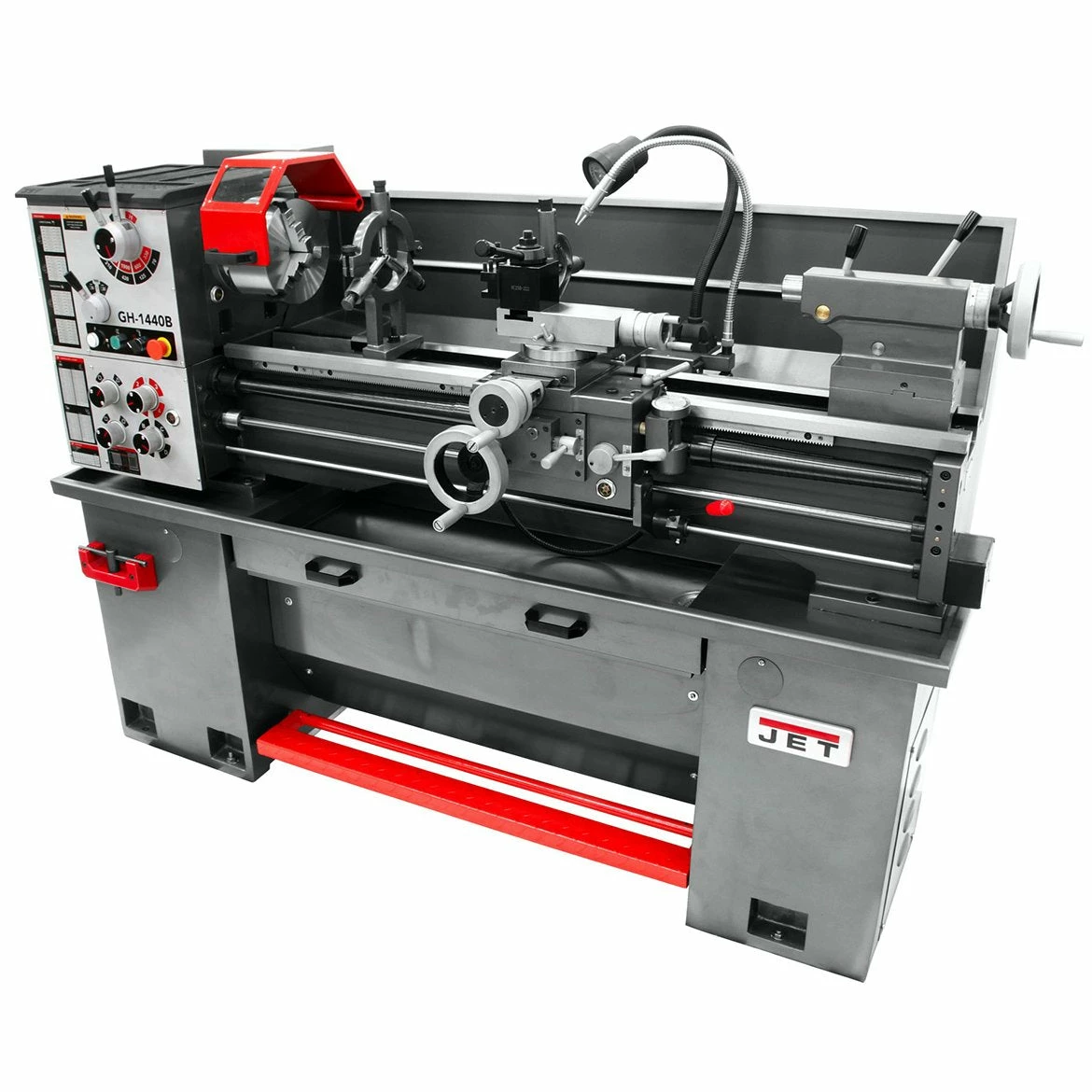

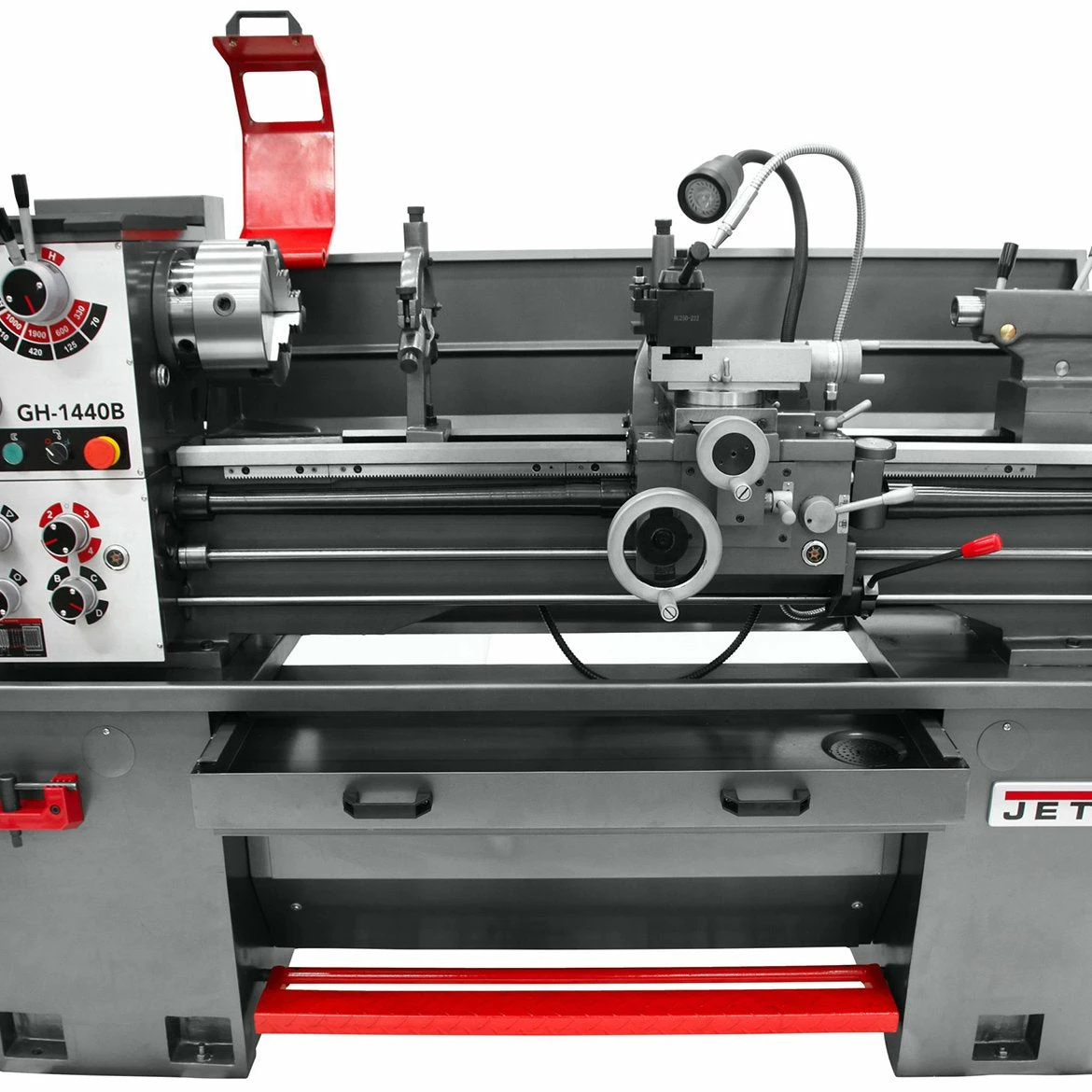

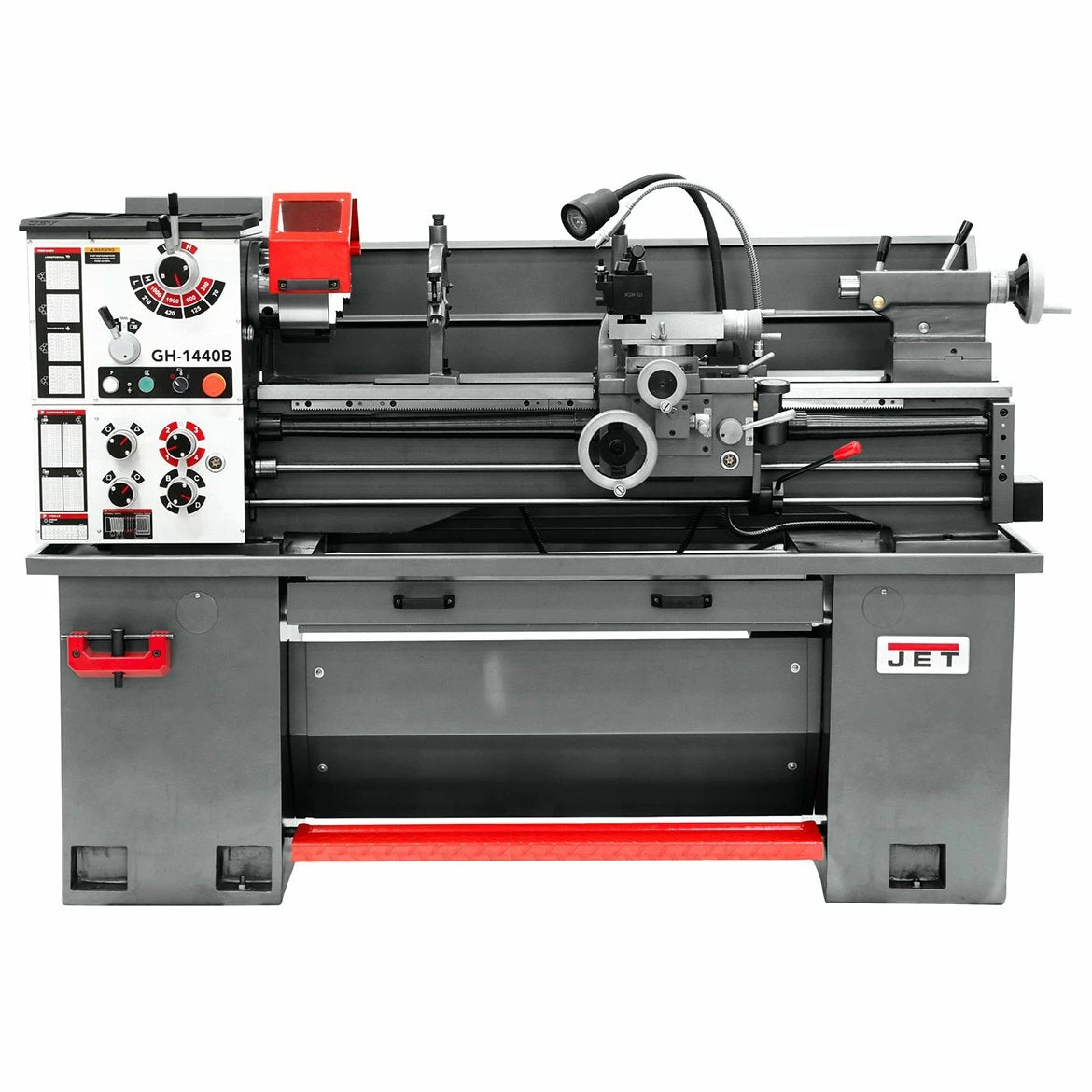

Jet 331440 14-Inch X 37-Inch 1-Phase Geared Head Bench Lathe W/ Stand Tools & Equipment

Features

• Precision spindle roller bearings
• High quality steel hardened gears in headstock
• Lead screw cover
• Cast iron Stand
• Foot Brake comes standard
• Emergency Stop within easy reach of the Operator
• Emergency Stop within easy reach of the Operator
• Chuck Guard
• Electronic Chuck Key Docking Station, provides Operator safety as the Lathe will not turn without the chuck key being docked
• Mounted on Cast Iron stand with foot pedal, coolant, chuck key docking station ready to use

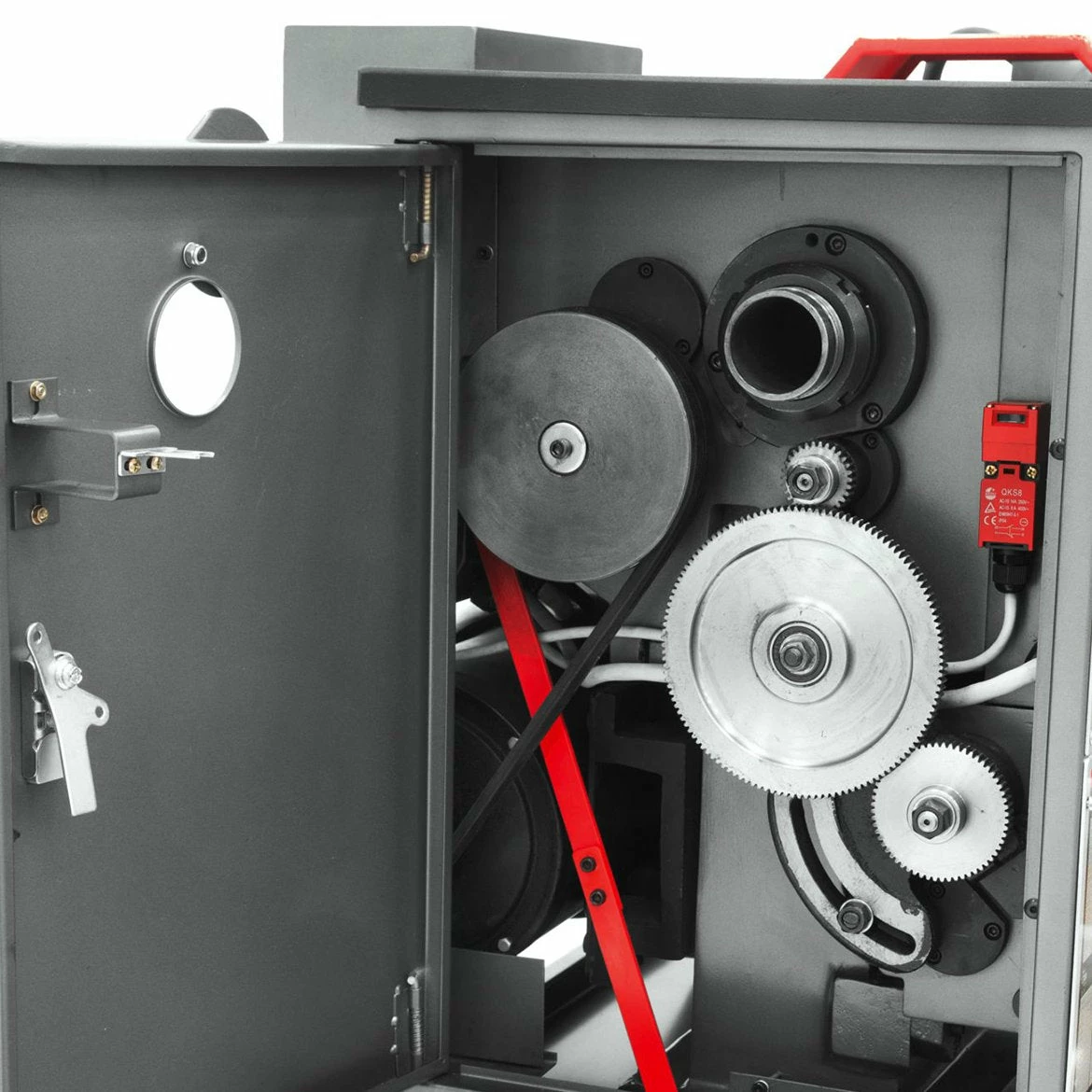

• Enclosed gearbox design provides smooth, quiet operation
• Gap bed section provided for larger diameter work
• Adjustable gibs are incorporated in the carriage and slideways
• Gearbox gives wide range of inch and metric threading and feed capabilities with few gear changes

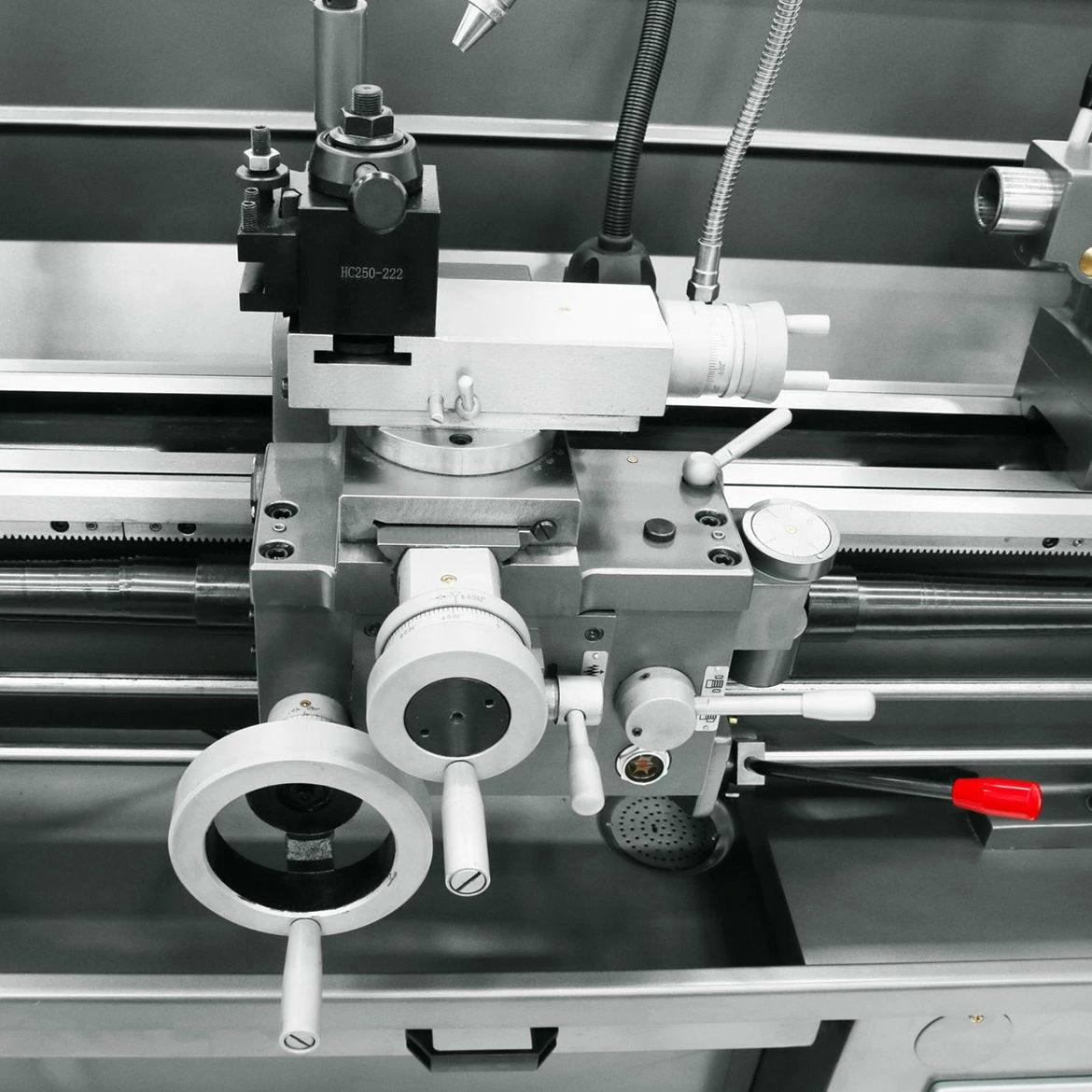

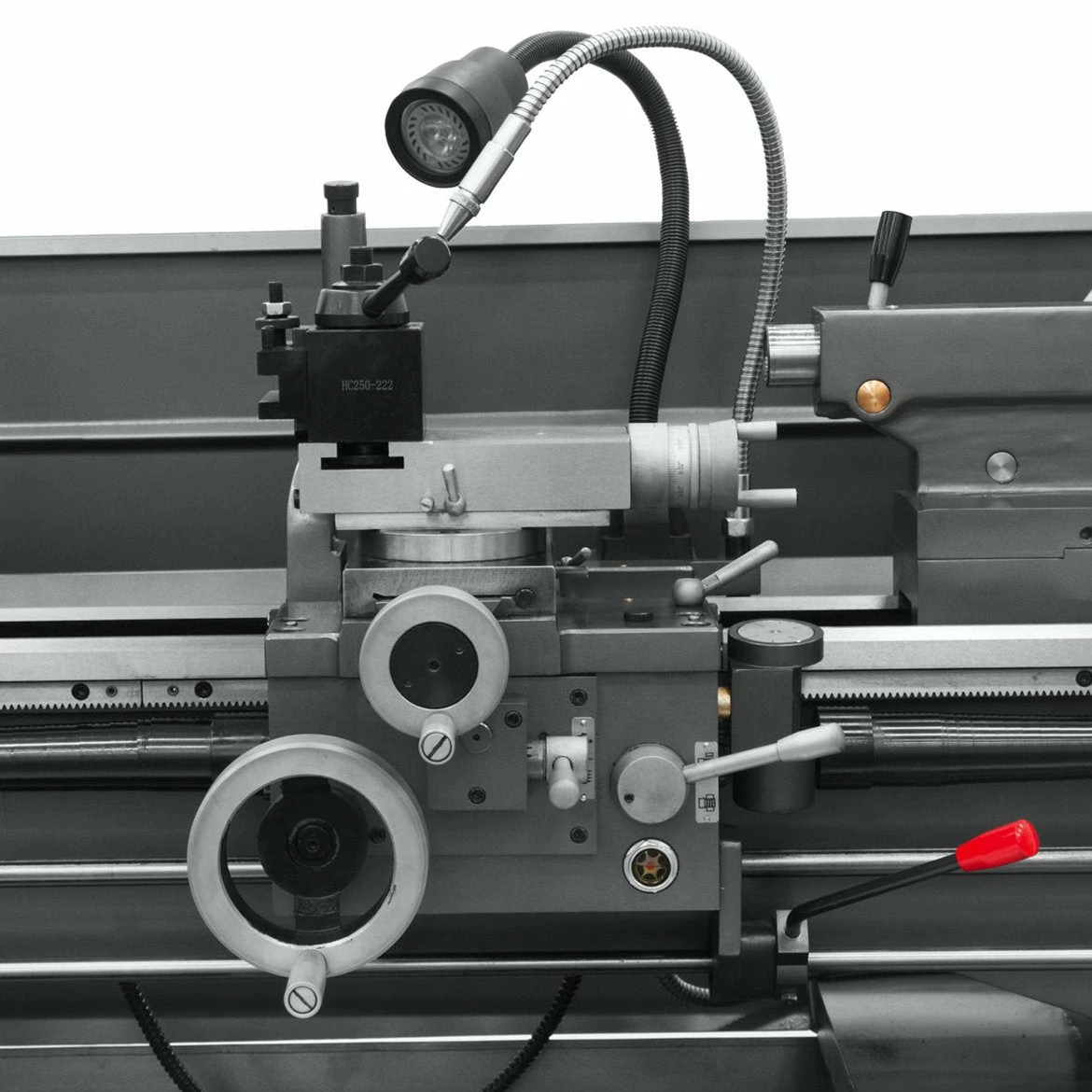

• Compound and cross slide have backlash adjustment
• Tailstock may be offset for turning tapers and include and inch/metric graduated quill
• Spindle Spider available for ease of turning Gun barrels

What’s in The Box

• 14-Inch x 37-Inch 1-Phase Geared Head Bench Lathe
• Stand
• Owner’s Manual

Warranty

• 2-Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

Sku	331440
Model	GH-1440B
Brand	Jet
Voltage	230v
Horsepower	2 Hp
Phase	1-Phase
Swing Over Bed	14 in.
Swing Over Cross Slide	8 in.
Swing Through Gap	20 in.
Lenght of Gap	8 in.
Distance Between Centers	36-7/8 in.
Spindle Bore	2 in.
Spindle Mount	D1-5
Spindle Taper w/ Sleeve	MT6
Number of Spindle Speeds	8
Range of Spindle Speeds	70 Rpm – 1,900 Rpm
Number of Longitudinal and Cross Feed Rates	32/32
Range of Longitudinal Feeds	0.002 Ipr – 0.0548 Ipr
Range of Cross Feeds	0.007 Ipr – 0.00187 Ipr
Number of Metric Threads	26
Range of Metric Threads	26
Range of Metric Threads	0.4 – 7
Max Tool Size	4/5 in. x 4/5 in.
Compound Slide Travel	3-1/2 in.
Cross Slide Travel	7 in.
Carriage Travel	37-2/5 in.
Tailstock Spindle travel	4 in.
Taper in Tailstock Spindle	MT4
Follow Rest Capacity	0.31 in. – 2.16 in.
Steady Rest Capacity	0.31 in. – 2.95 in.
Width of Bed	7.32 in.
Length	76-13/32 in.
Width	29-29/32 in.
Height	59-13/16 in.
Product Weight	1,753 lbs.
