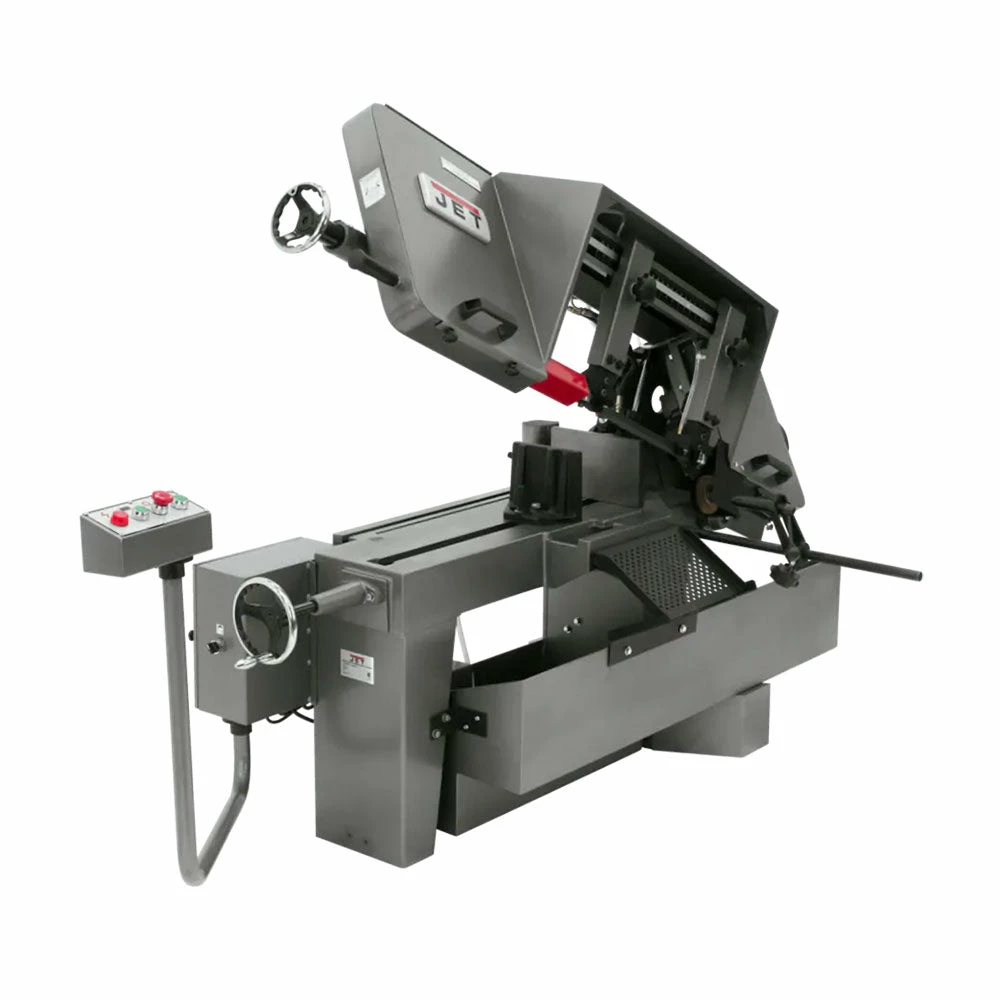

JET 414478 J-7040 230V 10″ X 16″ 3 Phase Horizontal Durable Mitering Bandsaw

Features

• For added safety, the J-7040 follows strict guidelines and electrical requirements to be certified by CSA Group
• Swing away control panel houses major saw controls
• Variable speed drive system allows the operator to easily fine-tune the blade speed

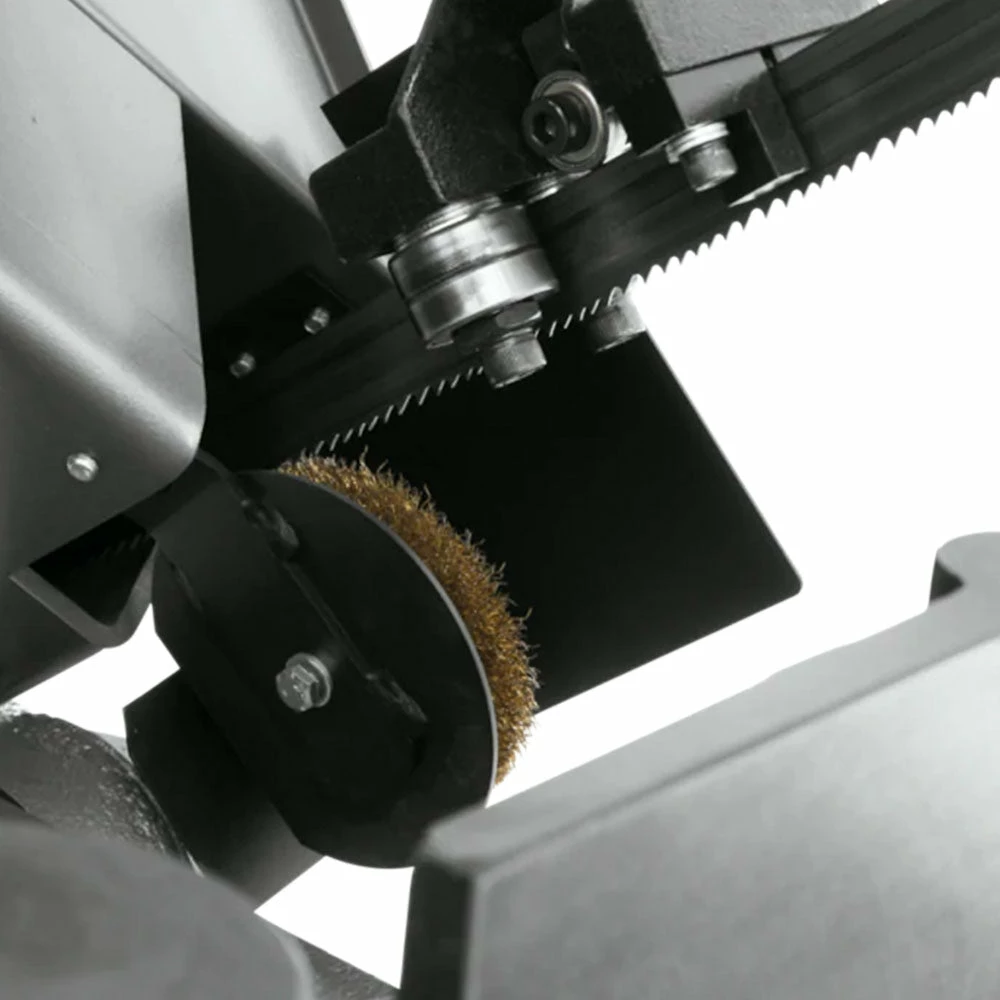

• Adjustable blade guide with six contact point system that utilizes cam follower bearings mounted on eccentric shafts on both sides of the blades
• Heavy-Duty transmission utilizes hardened and ground gears operating in an oil bath
• Patented 3-Jaw vise with rapid action moveable jaw for faster set up
• One-piece wheel cover
• Coolant system
• Adjustable material stop
• 1″ Bi-Metal blade

What’s in The Box

• Horizontal Durable Bandsaw
• Owner’s Manual

Warranty

• 2 Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

SKU	414478
Brand	Jet
Volts	230
Horsepower	2
Phase	3
Cutting Capacity (W x D)	10 x 16 in
Round at 90 Degrees	10 in
Round at 45 Degrees	10 in
Rectangle at 90 Degrees	10 x 10 and 7 x 16 in
Rectangle at 45 Degrees	6-1/2 x 11 in
Vise Swivel	45 degrees
Blade Speeds (SFPM)	100 – 350
Blade Wheel Diameter	14 in
Blade Length	135 in
Blade Size	1 x .035 x 135 in
Bed Height	23-1/2 in
Dimensions (L x W x H)	75-1/2 x 33 x 41 in
Weight	927 lbs
