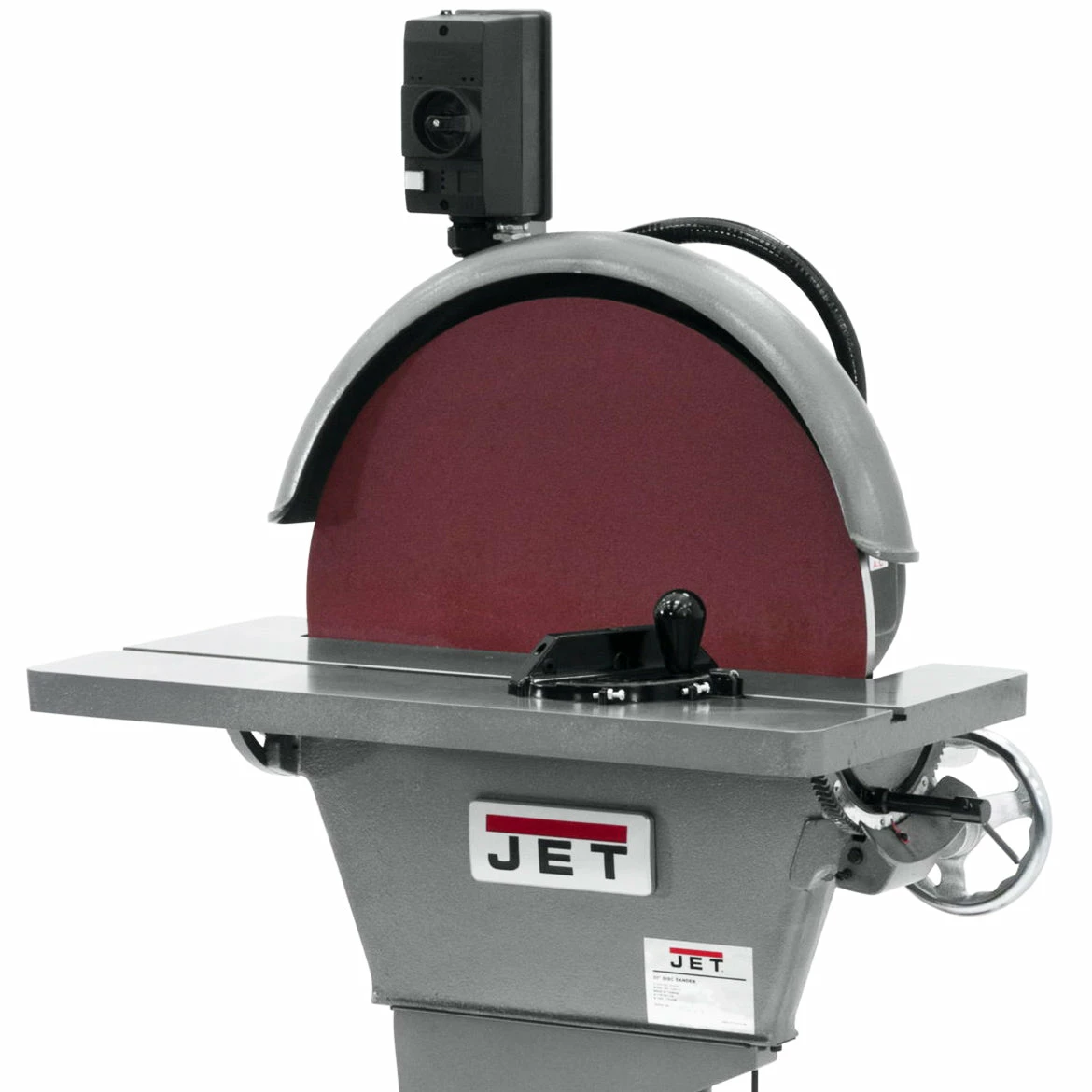

JET 577010 J-4421-2 3-Hp 220V 20″ Heavy Duty Large Surface Disc Grinder Tools & Equipment

Features

• For added safety, the motor and electrics follow strict guidelines and electrical requirements to be certified by CSA Group
• Tilting table capability adds flexibility of 45° forward and 15° backward on positive lock rack and gear
• Table can be lowered below the disc to accomodate large work pieces
• Precision table raiser utilizes a rack and gear machanism for effortless operation
• Low voltage protection switch

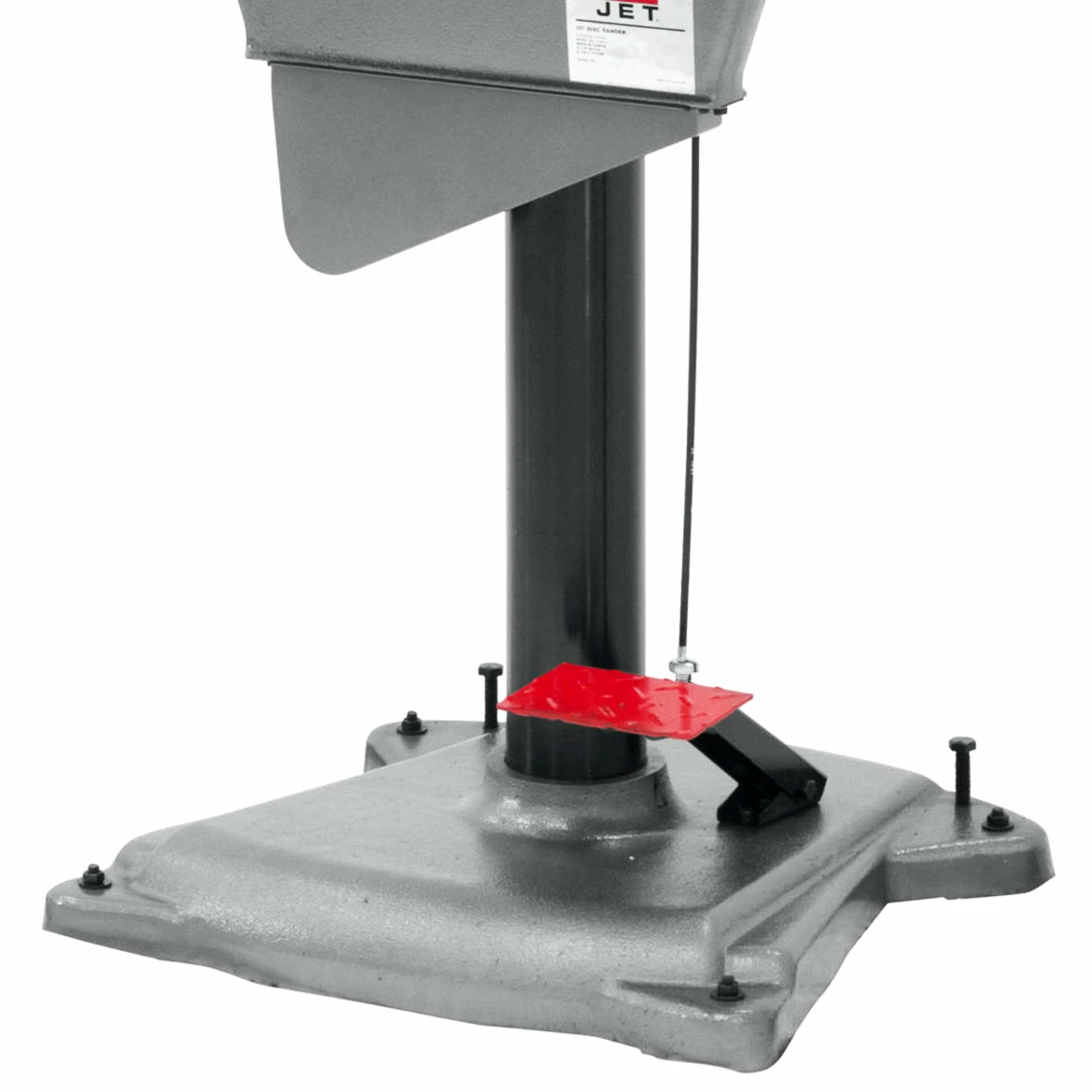

• Rigid column and heavy duty base
• Direct drive motor
• Miter gauge
• Extra large tilting table lowers completely below disc for use of the entire disc surface
• Wrap over guard for added safety

What’s in The Box

• J-4421-2, 20″ Disc Grinder 220V 3Ph 577010
• Owner’s Manual

Warranty

• JET Red Assurance 2-Year Warranty
• 30 Day Satisfaction Guaranteed

Specifications

Style (Type)	Disc
Disc Diameter (In.)	20
Disc Speed (RPM)	1,725
Table Slots (In.)	3/8 x 3/4
Disc Table Tilt (Deg.)	45 Out, 15 In
Motor (HP)	3 HP, 220V, 3Ph
Overall Dimensions (L x W x H) (In.)	30 x 28 x 53
Weight (Lbs.)	400
