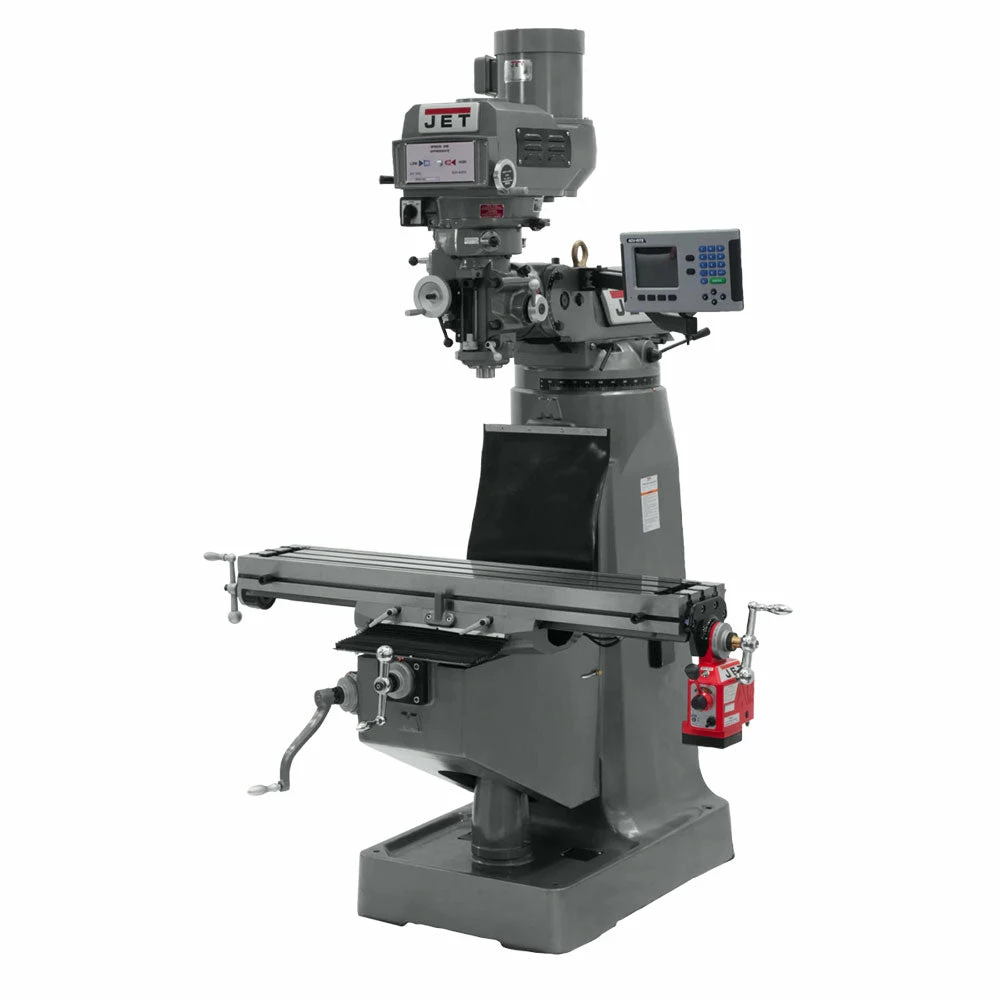

JET 690408 JTM-4VS 230/460V Mill W/ 3-Axis ACU-RITE 203 DRO W/ X-Axis Powerfeed Tools & Equipment

Features

• Certified Meehanite Castings
• Precision bored and honed milling head
• Large diameter quill is chromed
• High precision Class 7 spindle bearings
• Chrome-plated motor shaft with lower bearing support
• The spindle head is internally cooled
• Heavy-duty splined motor drive
• One-piece quill pinion and shaft
• Three-stage power down feed with automatic stop
• Heavy-duty spindle brake
• Locks on all movable surfaces
• Precision hardened and ground ways and table
• Adjustable gibs throughout
• Internal coolant tank built into casting base for use with a coolant system (coolant pump not included)
• Tolerance test sheet included
• One-shot lubrication system
• Way covers
• Drawbar
• Toolbox with tools

What’s in The Box

• Mill With 3-Axis ACU-RITE 203 DRO
• Owner’s Manual

Warranty

• 2 Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

SKU	690408
Brand	Jet
Volts	230/460
Horsepower	3
Phase	3
Style	Variable Speed R8
Digital Readout	ACU-RITE 203
Number of Axis	3
Spindle Taper (in x TPI)	R-8
Table Size (L x W)	9 x 49 in
Quill Diameter	3-3/8 in
Number of Spindle Speed (RPM)	Variable
Range of Spindle Speed (RPM)	60 – 4,200
Quill Down Feed Rates (IPR)	.0015 – .003 – .006
Spindle Travel	5 in
Head Movement	90 R & L, 45 F & B degree
Max Distance Spindle to Table	17-1/2 in
Distance Spindle to Column (Max)	19 in
Distance Spindle to Column	4-1/2 in
Collet Capacity	1/8 – 7/8
Table Longitudinal Travel	34 in
Table Longitudinal Travel w/ Powerfeed	28-3/4 in
Table Cross Travel	12 in
T-Slots Number and Size	3 and 5/8 in
T-Slot Centers	2-1/2 in
Work Table Weight Capacity	660 lbs
Travel of Knee	14-1/2 in
Travel of Ram	13-3/8 in
Dimensions	66 x 63 x 85 in
Weight	2420
