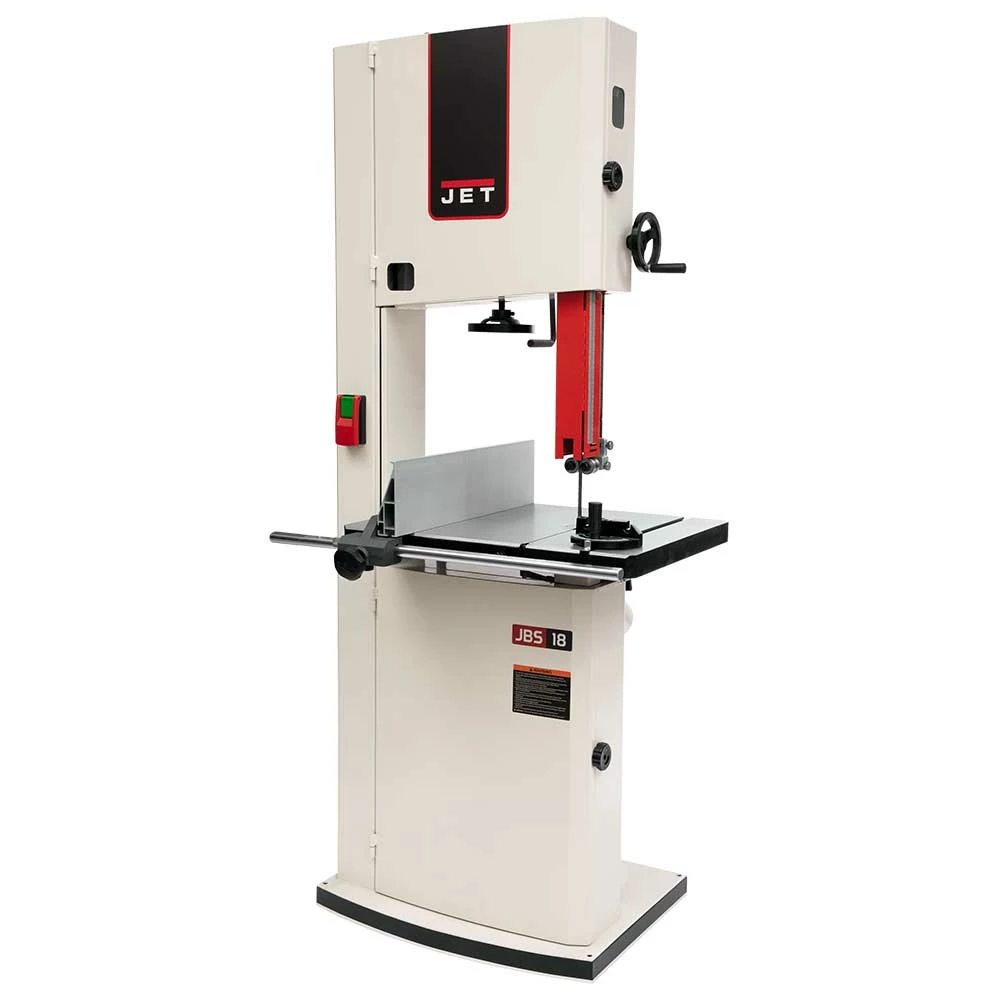

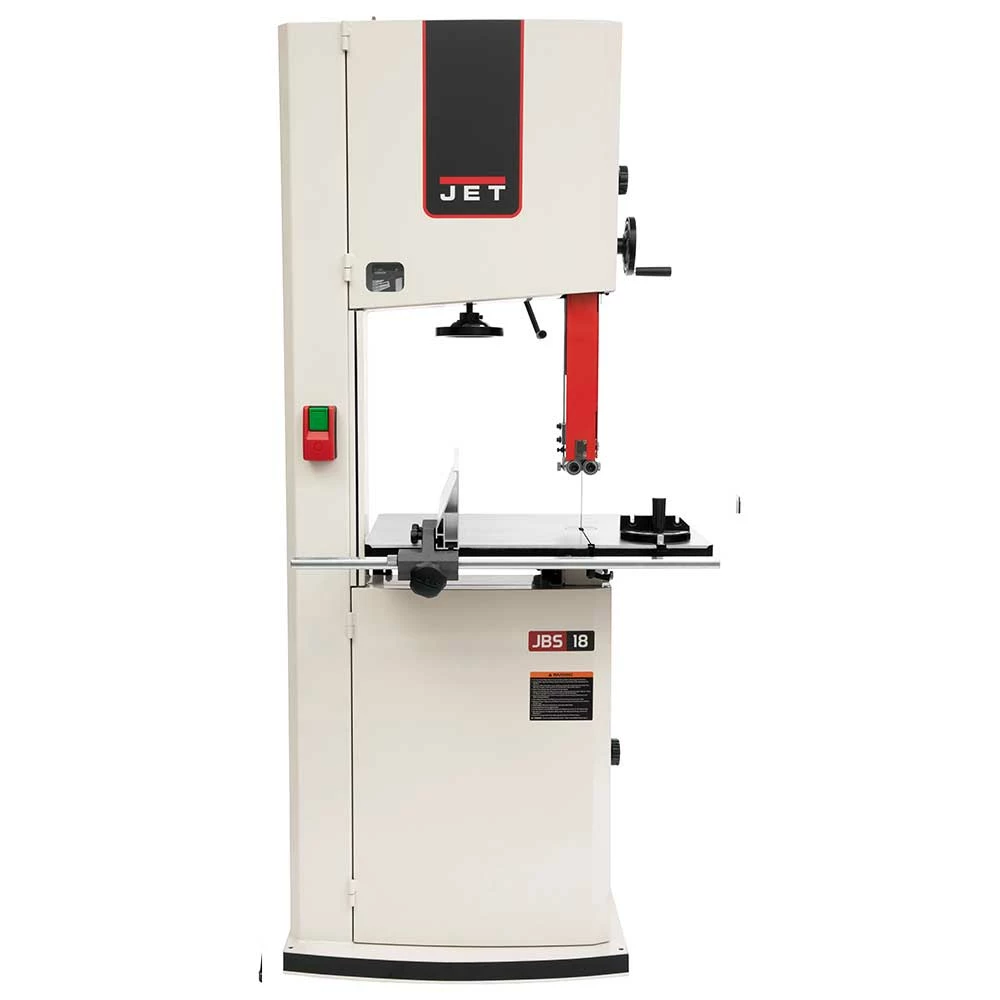

JET 714700 JWBS-18 115V/230V 1-3/4 HP 18″ Heavy Duty Steel Frame Bandsaw

Features

• 16″ resaw capacity handles both large and small projects
• 27-1/4″ x 20″ precision ground cast iron table for added stability and work support
• Fence system features a micro-adjustable, dual-position side plate
• Tool-less, independently adjustable, upper and lower ball bearing guides
• Rigid, four-sided guidepost with rack and pinion adjustment for optimum blade support
• Easy-to-read blade tension scale can be viewed through upper door window
• Single knob adjustment simplifies the blade tracking process
• Blade tracking window provides clear view of blade during tracking
• Heavy duty tensioning with quick release features three settings: full tension, partial tension and full release
• Cast iron trunnion for maximum support and stability
• Slotted table allows for front blade removal
• Cast iron handwheels and ergonomically designed knobs adjust smooth and easy
• Round table insert features leveling screws for precise adjustment
• Conveniently located dual 4″ dust collection ports catch dust and chips at the source
• Table tilts 5 degrees left and 45 degrees right to accommodate a wide variety of cuts

What’s in The Box

• 115V/230V 18 in Bandsaw
• Owner’s Manual

Warranty

• 5 Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

SKU	321372K
Brand	JET
Horsepower	3/4
Volts	115V
Motor	Single Phase
Swing Over Bed	8-3/4 in
Swing Over Cross Slide	5 in
Distance Between Centers	27.5 in
Spindle Bore	3/4 in
Spindle Mount	1-1/2 x 8 TPI
Number of Spindle Speeds	6
Range of Spindle Speeds	130-2000
Spindle Taper w/ Sleeve	MT-3
Range of Longitude Feeds	0.0006 – 0.0368
Number of Inch Threads	27 in
Range of Metric Threads	8 – 56
Number of Metric Threads	12
Range of Metric Threads	0.5 – 3.5
Max Tool Size	1/2 in
Compound Slide Travel	1-7/8 in
Cross Slide Travel	4-1/4 in
Carriage Travel	26.5 in
Tailstock Spindle Travel	1-9/16 in
Taper in Tailstock Spindle	MT-2
Follow Rest Capacity	1-3/4 in
Width of Bed	4-1/2 in
Length	51 in
Width	22 in
Height	20 in
Weight	287 lbs
