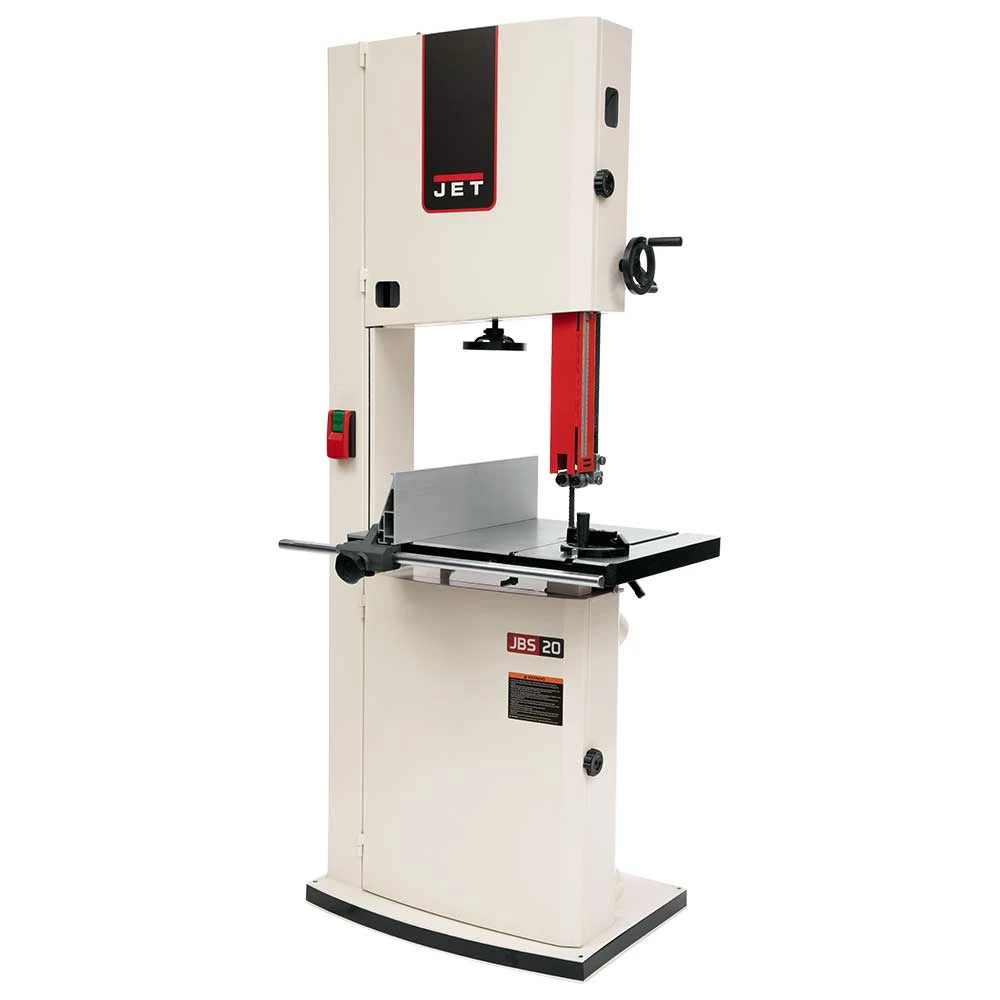

JET 714850 JWBS-20-5 230V 5HP 20″ Heavy Duty Steel Frame Bandsaw Tools & Equipment

Features

• 16″ resaw capacity handles both large and small projects
• 27-1/4″ x 20″ precision ground cast iron table for added stability and work support

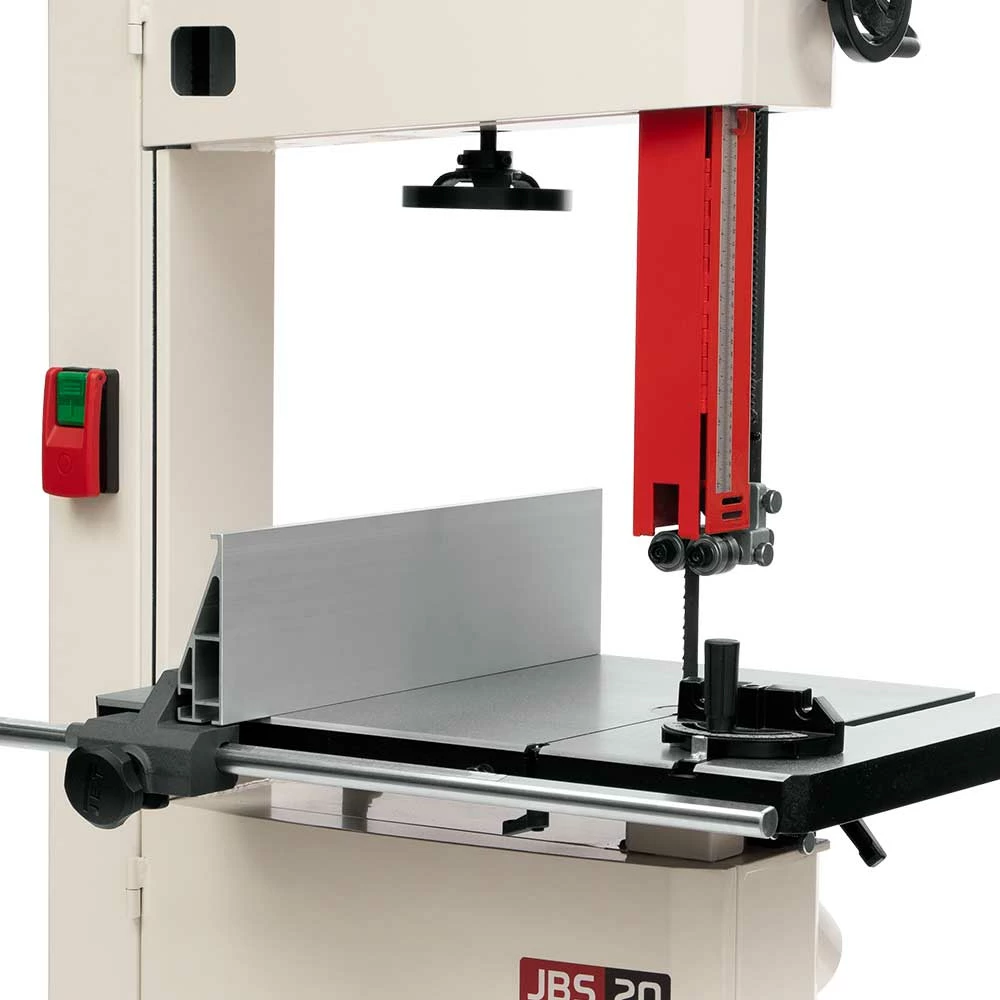

• Fence system features a micro-adjustable, dual-position side plate
• Tool-less, independently adjustable, upper and lower ball bearing guides
• Rigid, four-sided guidepost with rack and pinion adjustment for optimum blade support
• Easy-to-read blade tension scale can be viewed through upper door window
• Single knob adjustment simplifies the blade tracking process
• Blade tracking window provides clear view of blade during tracking
• Heavy duty tensioning with quick release features three settings: full tension, partial tension and full release
• Cast iron trunnion for maximum support and stability
• Slotted table allows for front blade removal
• Cast iron handwheels and ergonomically designed knobs adjust smooth and easy
• Round table insert features leveling screws for precise adjustment
• Conveniently located dual 4″ dust collection ports catch dust and chips at the source
• Table tilts 5 degrees left and 45 degrees right to accommodate a wide variety of cuts

What’s in The Box

• 20″ Heavy Duty Steel Frame Bandsaw
• Owner’s Manual

Warranty

• 5 Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

SKU	714850
Brand	JET
Horsepower	5
Volts	230V
Amps	22
Recommended Circuit Size	40
Band Saw Size/Wheel Diameter	20-1/4 in
Cutting Capacity Width	20 in
Cutting Capacity Height	16 in
Blade Length	158 in
Blade Speed	2530/4850
Table Size(L x W)	27-1/4 x 20 x 1-5/8 in
Blade Width	1 in x 3 TPI
Maximum Saw Blade Width	1-1/2 in
Minimum Saw Blade Width	1/8 in
Table Tilt	-5,45 degrees
Table Height from Floor	37
Dust Collection Minimum CFM Required	400
Dust Port Outside Diameter	4 in (x2)
