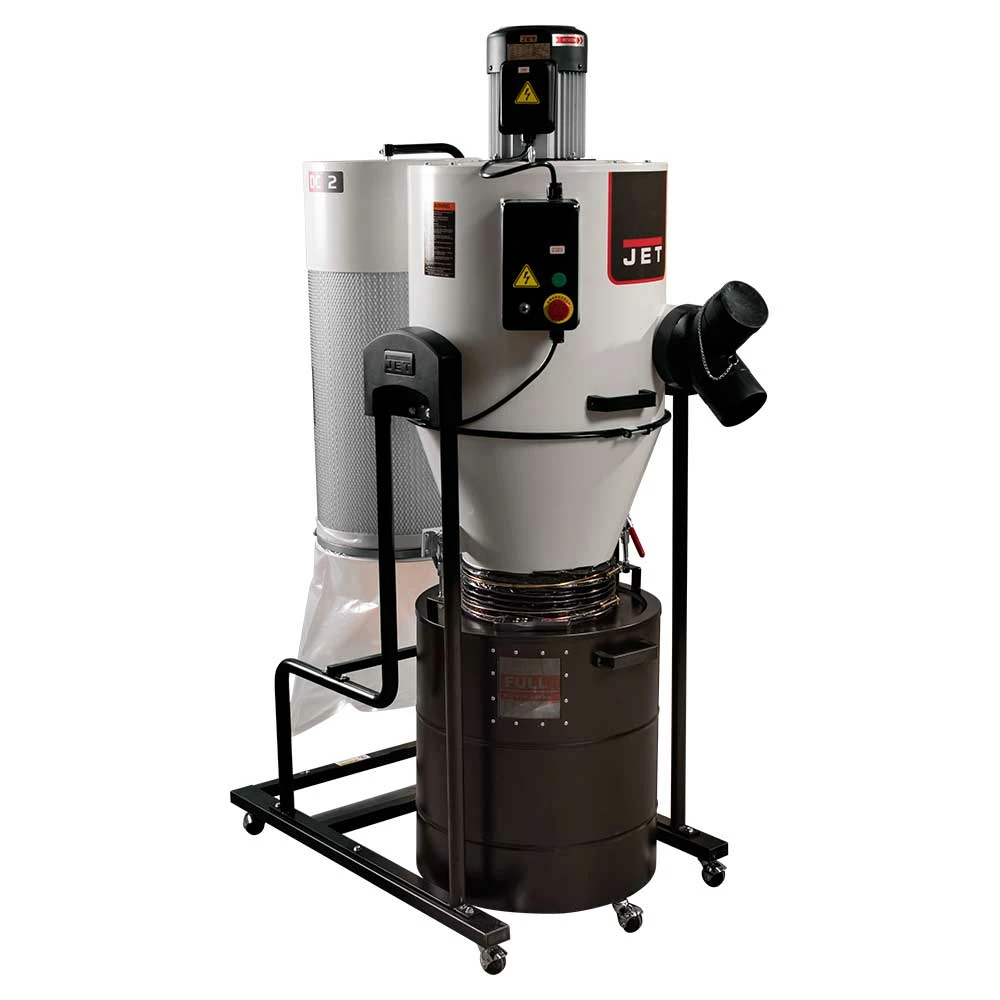

JET 717520 JCDC-2 230V 2-HP Cyclone Dust Collector Tools & Equipment

Features

• Cyclones two stage separation provides more working CFM than comparable horsepower single stage units
• Heavy Debris is pulled down to collection drum before debris stream reaches the filter, providing constant suction
• Direct mounted filter eliminates inefficiencies from ridged flex hosing bends
• Fine dust particles are filtered through pleated material that captures even the smallest particles down to 1 micron and below
• Heavy debris is captured in a 30 gallon drum with quick release levers and independent casters for quick emptying
• Included radio frequency remote control works from up to 50 feet away
• Remote timer settings allows system to run 2, 4, 6, or 8 hours before automatic shutoff
• Double paddle manual cleaning system quickly cleans the pleated filter
• Swivel casters make it easy to move the unit around the shop

What’s in The Box

• Jet JCDC-2 230V 2-HP Cyclone Dust Collector – 717520
• Owner’s Manual

Warranty

• 5 Years Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

SKU	717520
Brand	JET
Number of Air Inlets	1 at 6 in, 2 at 4 in
Air Flow ay 6 in CFM	938
Air Velocity at 6 in FPM	4763
Static Pressure Loss	2.520
Max Static Pressure	10
MERV Value	13
Filter Efficiency Microns	99 percent of 2-micron particles
Canister Filter Length	22-5/8 in
Canister Filter Diameter	14-9/16 in
Collection Drum Capacity	30 gallon
Impeller Material	Steel
Impeller Diameter	14-1/2 in
Impeller Fins	radial
Sound Rating	76 dB
Motor Speed	3450 RPM
Motor Power	2 HP
Motor Voltage	230V
Motor Amps	9
Footprint	50-5/8 in X 25-7/8 in
Length	25-7/8 in
Width	50-5/8 in
Height	72-1/4 in
Weight	235 lbs
