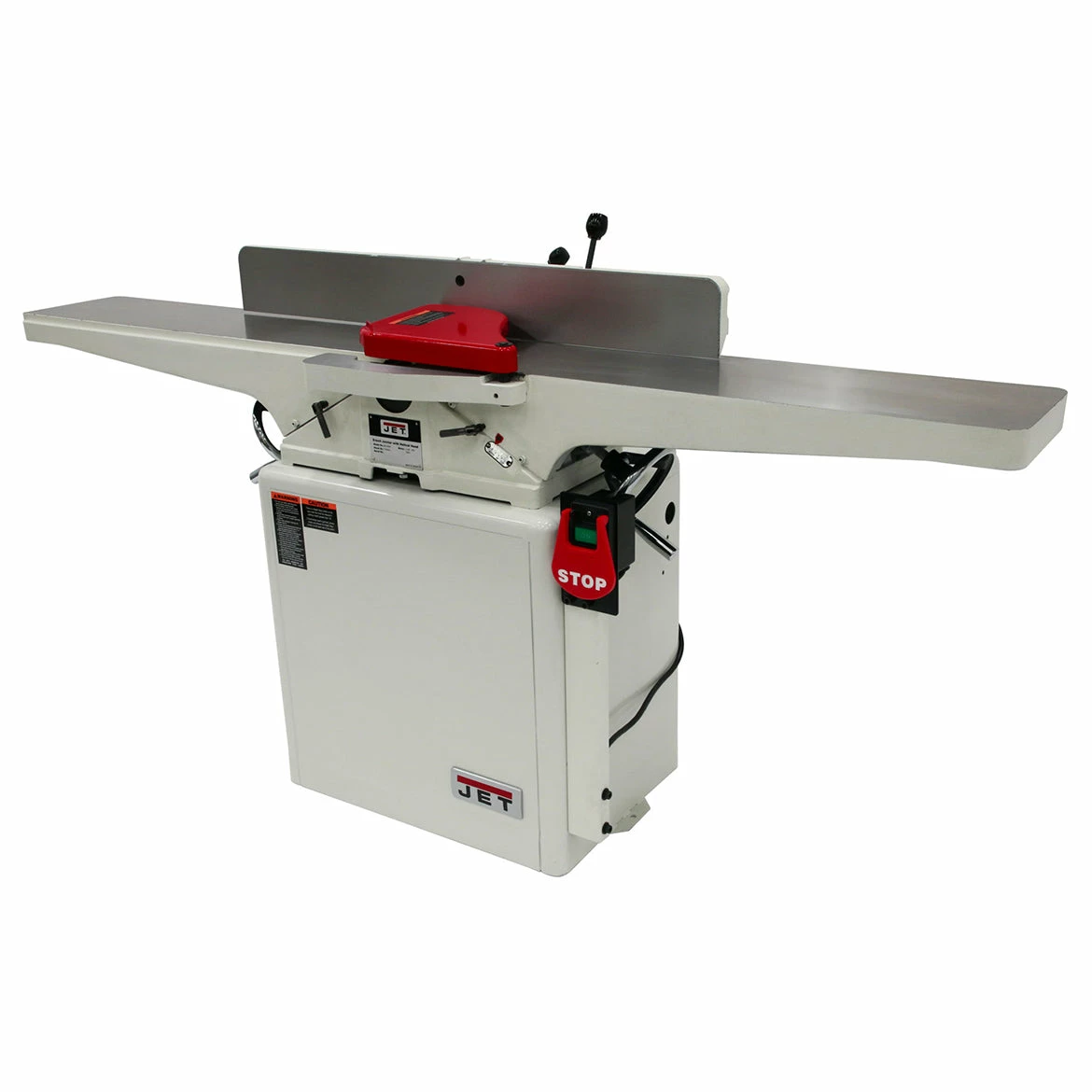

Jet 718250K 230-Volt 8-Inch 2-Hp Indexable Carbide Helical Cutterhead Jointer

Features

• Helical cutterhead with indexable carbide inserts for a superior finish and quieter cut
• Extra-long, heavy-duty cast iron infeed and outfeed tables with precision machined finish
• Large chrome handwheels and easy-to-reach locks make table adjustments less of a hassle
• Tall, rigid fence provides added support
• Two-way tilting fence with positive stops at 45Degree and 90Degree to handle bevel operations

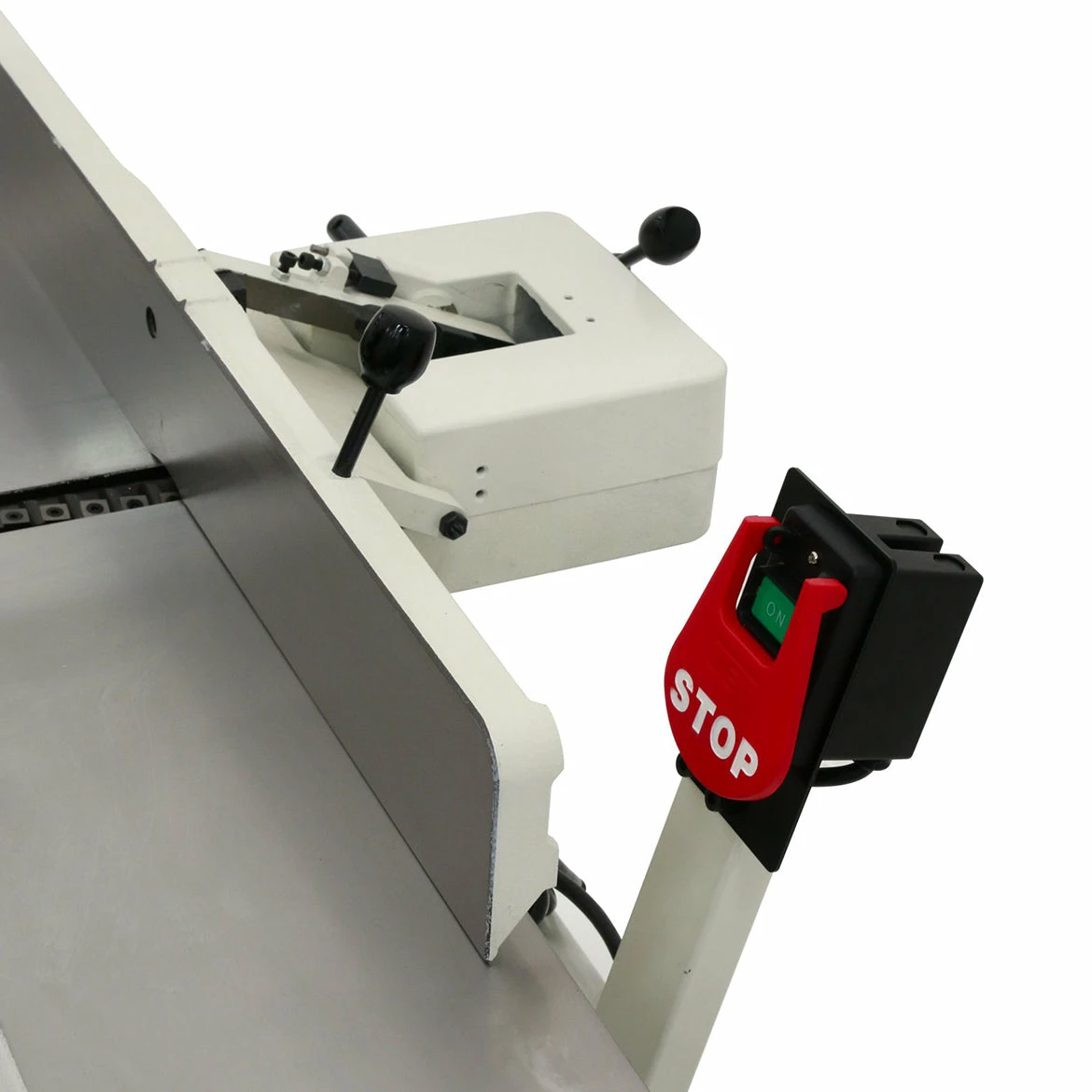

• Dual position magnetic controls provide long life and reliability, protecting the motor from potential electrical supply issues
• Built-in 4 dust chute connects to your collection system for efficient dust/chip disposal

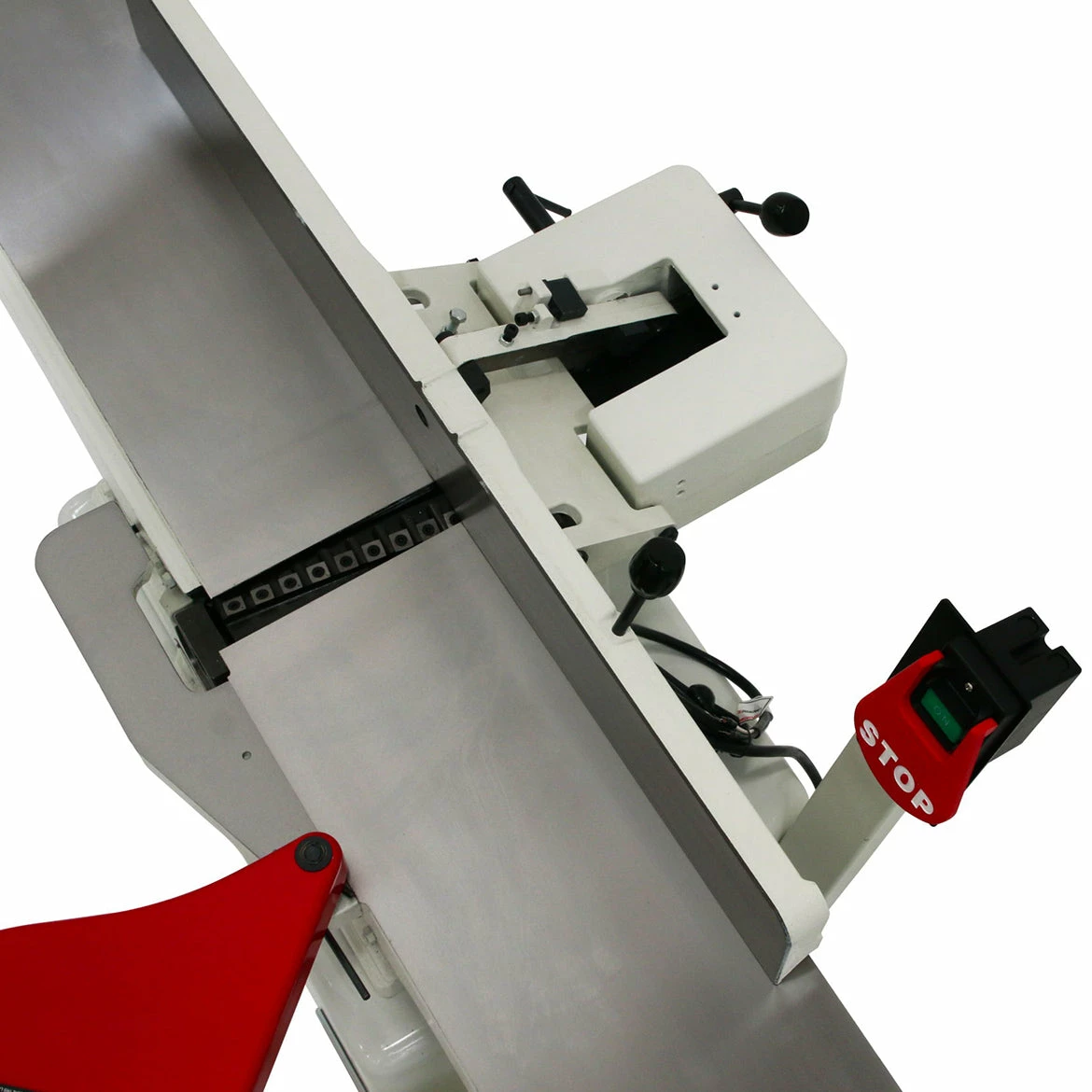

• Fence adjustment levers are conveniently located in the center of the fence for quick access
• Powerful 2HP motor easily handles the toughest jointing tasks
• Heavy-duty, one-piece steel closed stand includes mounting tabs for increased stability

What’s in The Box

• 230-Volt 8-Inch 2-Hp Helical Head Jointer
• Owner’s Manual

Warranty

• 5-Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

Sku	718250K
Brand	Jet
Voltage	230v
Horsepower	2 Hp
Motor Phase	1-Phase
Amperage	12A
Recommended Circuit Size	20A
Number of Knives	36
Helical Knife Size (L x W x T)	15 in. x 15 in. x 2.5 in.
Cutter Head Speed	5,500-Rpm
Cutting Capacity (W x D)	8 in. x 1/2 in.
Table Size (L x W)	72 in. x 9 in.
Table Height From Floor	31-1/4 in.
Fence Size (L x H)	38-1/2 in. x 4-3/4 in.
Fence Tilt	45-Degrees (L) / 45-Degrees (R)
Fence Positive Stops	45-Degrees (L) / 90-Degrees / 45-Degrees (R)
Dust Collection Minimum Cfm Required	350 Cfm
Dust Port Outside diameter	4 in.
Shipping Weight	456 lbs.
