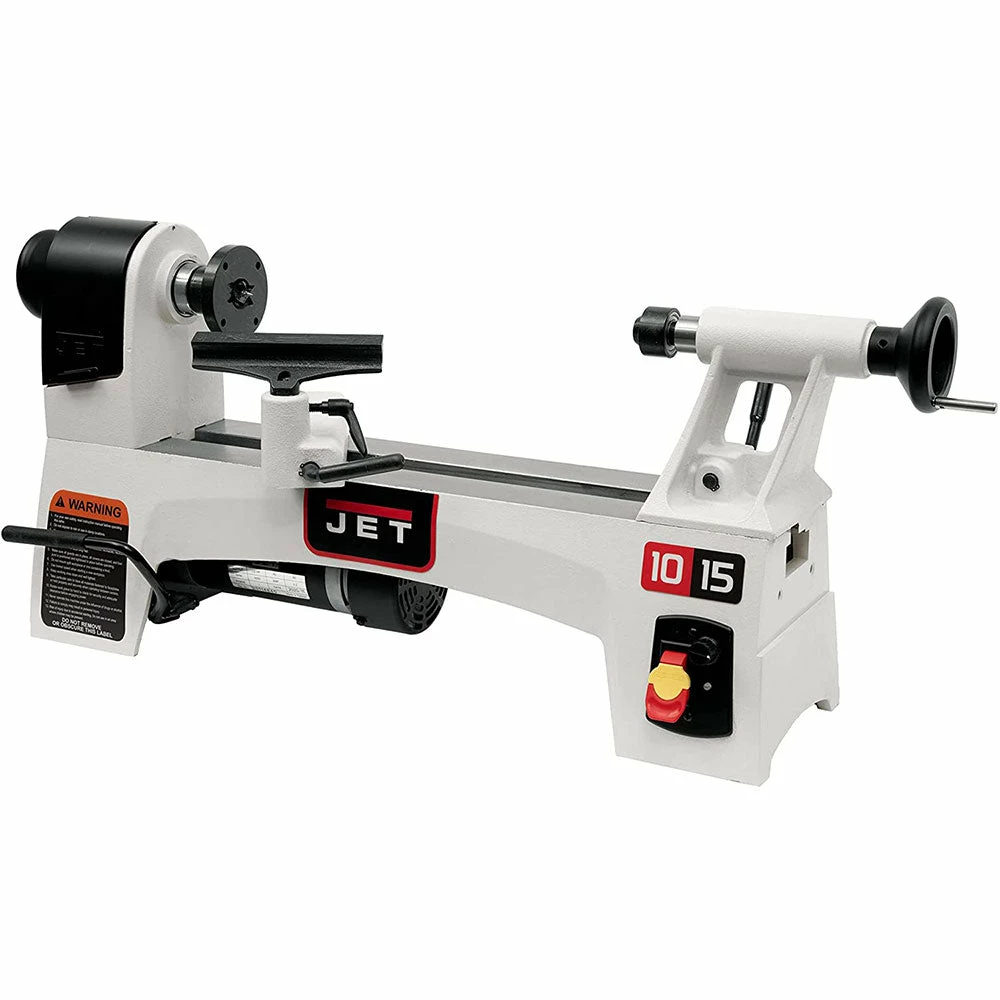

JET 719110 JWL-1015VS 10″x 15″ Variable Speed Wood Lathe

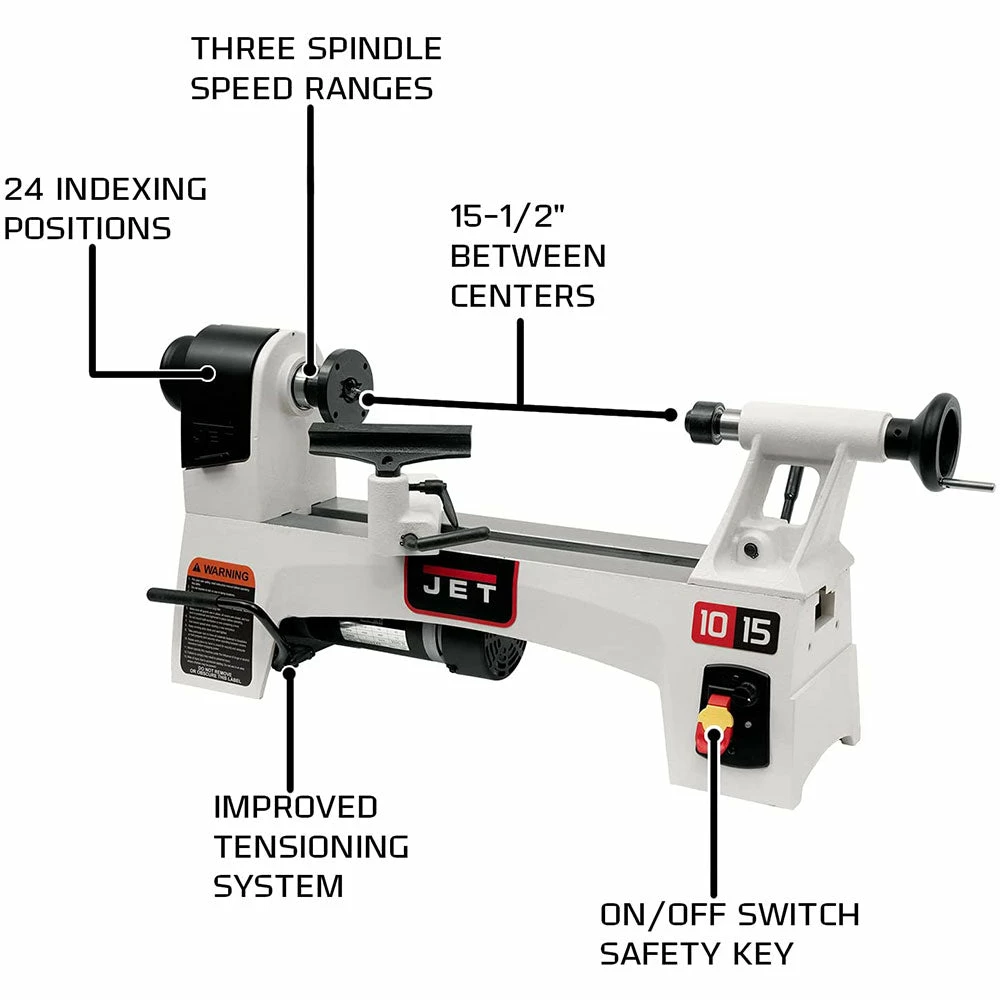

Features

• 5-1/2” between centers
• Three speed ranges: 200-1050, 300-1750 and 600-3600
• Integrated 24 position indexing
• Improved tensioning system with easier access to belts
• Wider bed ways provide increased rigidity
• Live center in the tailstock

What’s in The Box

• Variable Speed Wood Lathe – 719110
• Owner’s Manual

Warranty

• 5 Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

SKU	719110
Brand	Jet
Motor Power	1/2 HP
Motor Phase	1
Motor Voltage	115V
Prewired Voltage	115V
Motor Current	4 Amps
Recommended Circuit Size	10 Amps
Swing Over Bed	10 in.
Swing Over Tool Rest Base	7-5/16 in.
Distance Between Centers	15-1/2 in.
Spindle Bore	3/8
Spindle Taper	MT2
Quill Taper	MT2
Quill Travel	2 in.
Spindle Thread (TPI)	1 in./8
Speed Range	200-1050, 300-1750, 600-3600
Number of Indexing Positions 24
Bed Construction Cast Iron
Length	26 in.
Width	7 in.
Height	14 in.
Weight	78 lbs
