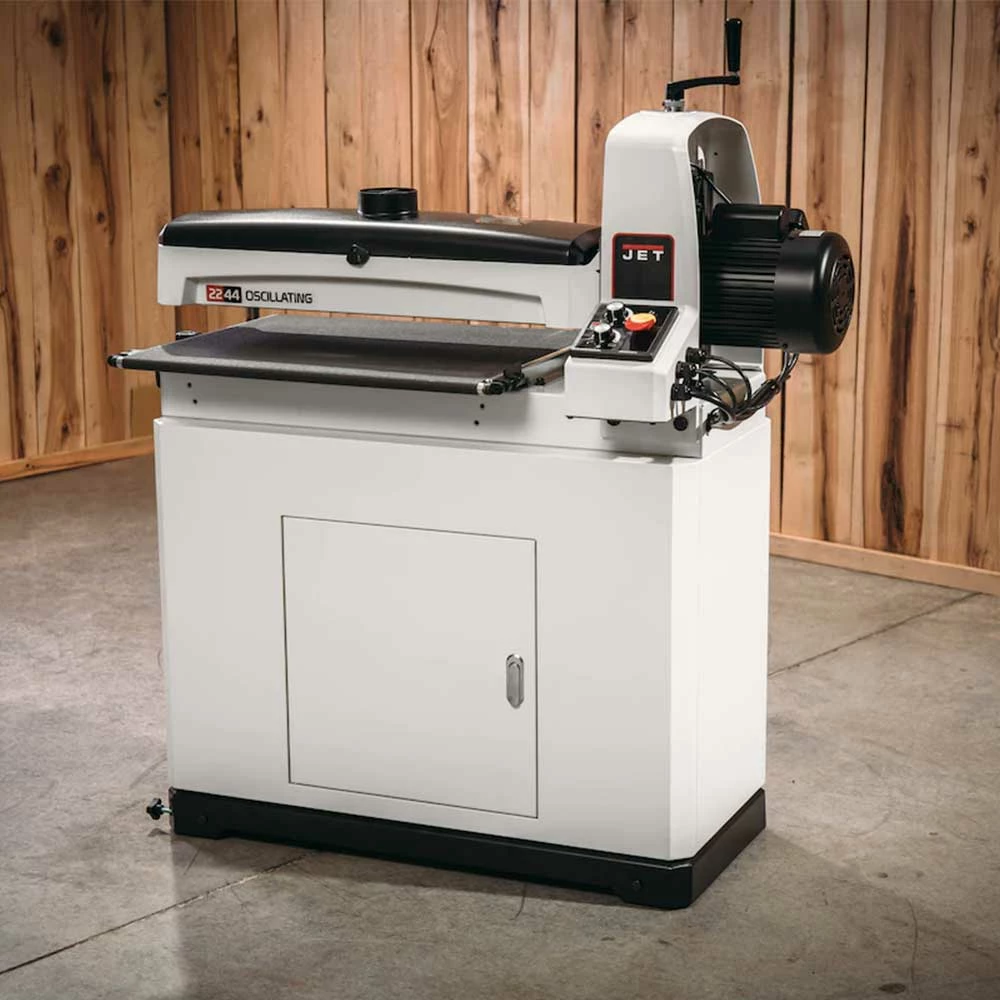

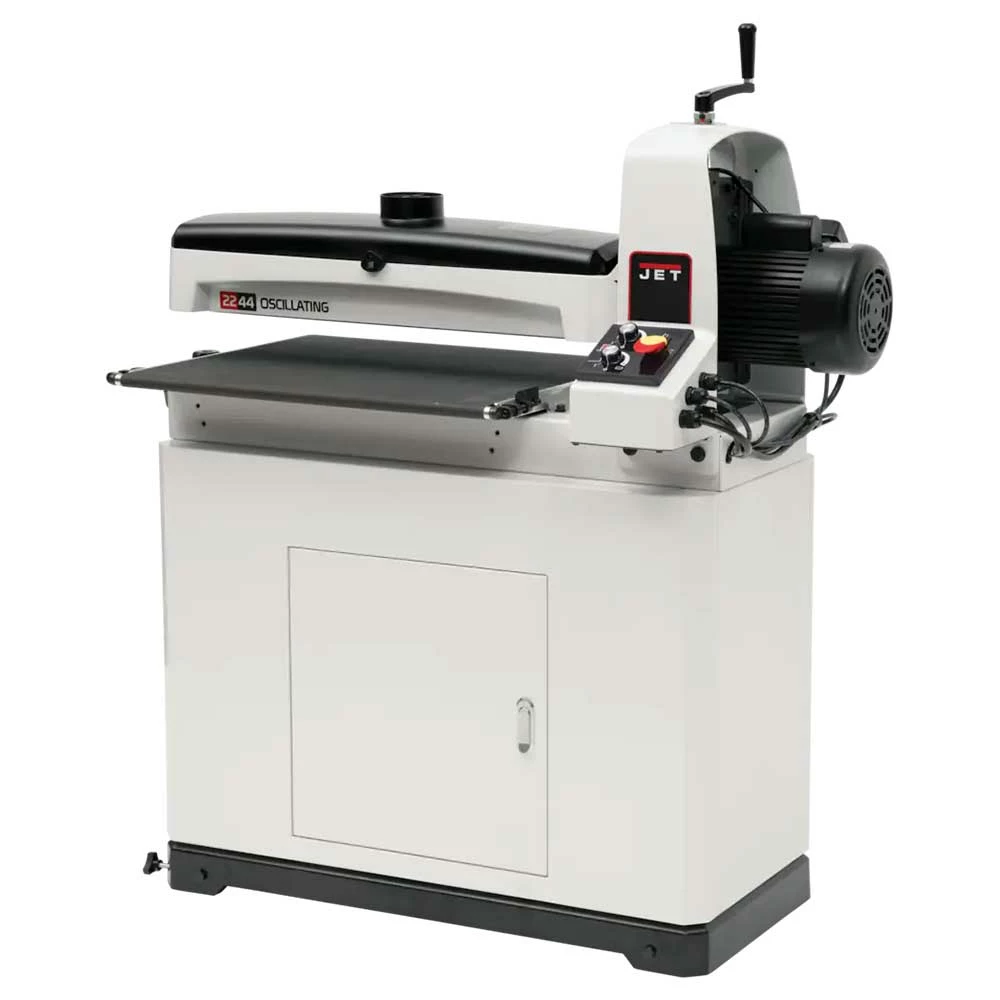

Jet 723544OSCK 23 Inch X 5 Inch 15 Amp Electric Oscillating Drum Sander Sanders

Features

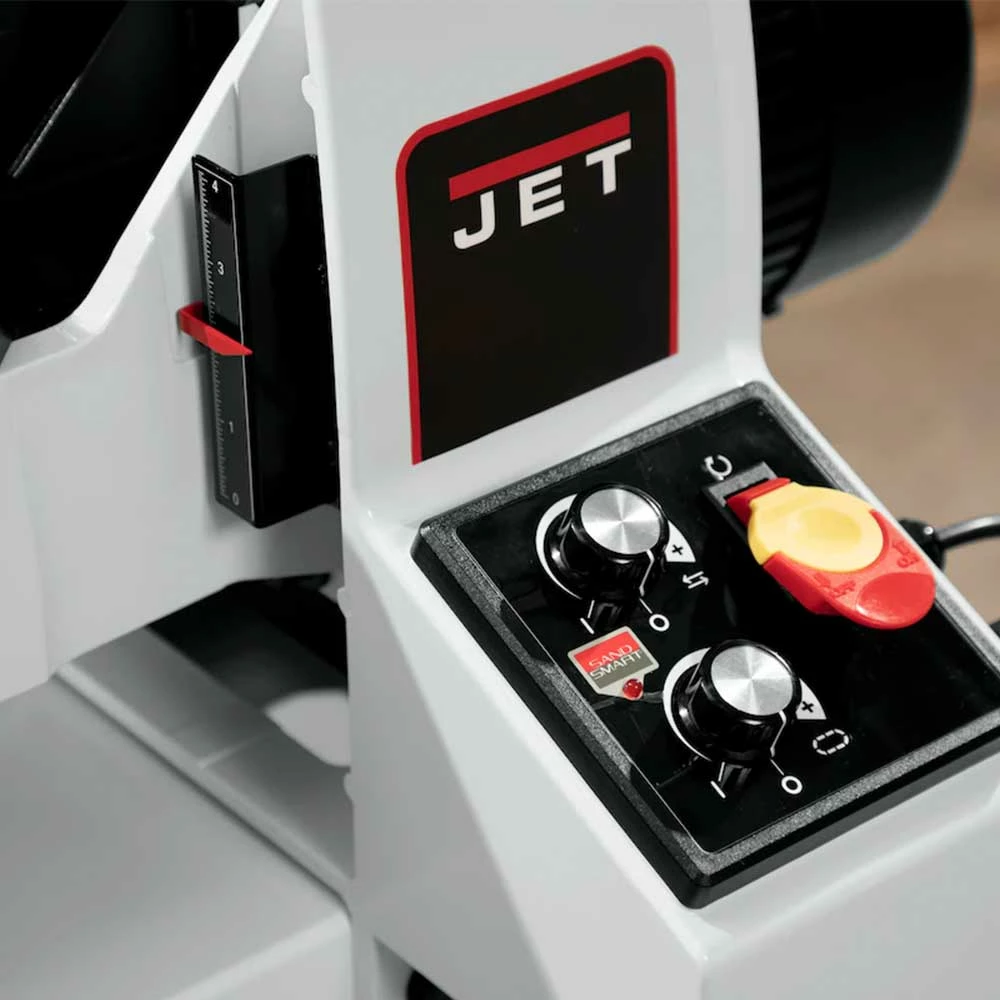

• Sandsmart control continuously monitors the load on the drum motor and automatically regulates the speed of the conveyor motor to maintain the highest feed rate without overload
• Conveyor bed parallelism is easily adjusted by turning the dial on the outside of the bed – no tools required
• Parallelism adjust dial features a stop to quickly return the conveyor bed to a flat position

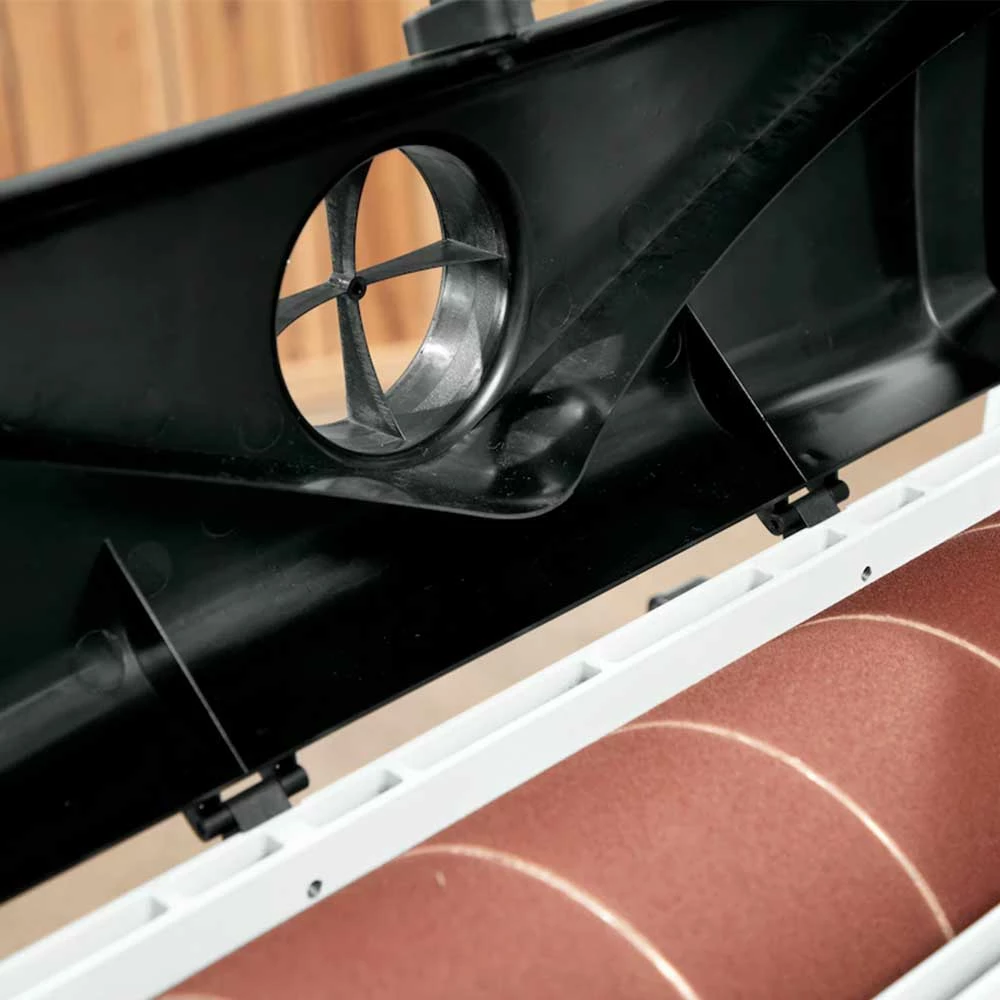

• Dust hood includes an integrated channel that mirrors the shape of the drum and directs chips and dust to the 4 collection port

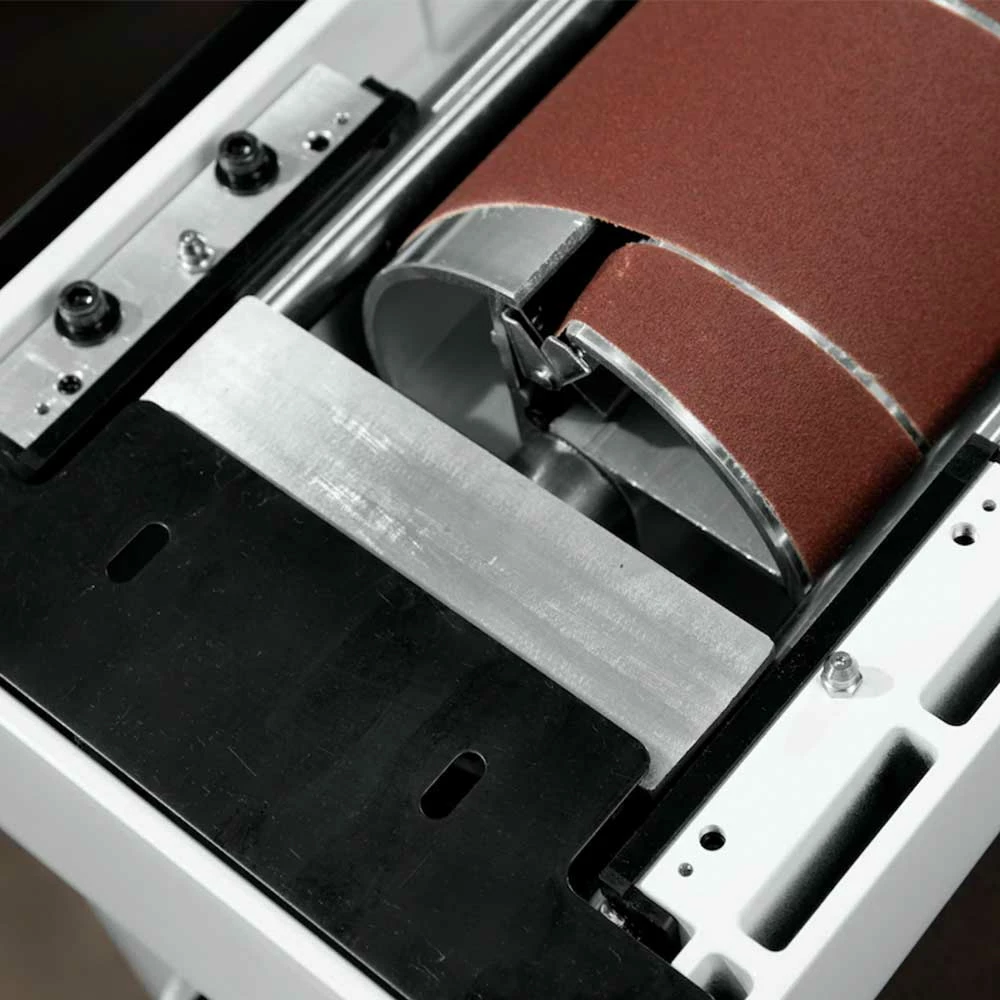

• Precision-machined and dynamically balanced extruded aluminum drum is designed to dissipate heat and protect the work surface from heat-damage
• Die cast drum carriage design is optimized for rigidity to provide years of consistent quality
• Precision-flattened reinforced steel conveyor bed
• Redesigned conveyor system pulls the workpiece through the sander instead of pushing
• One rotation of the top-position handwheel adjusts the drum height by 1/16

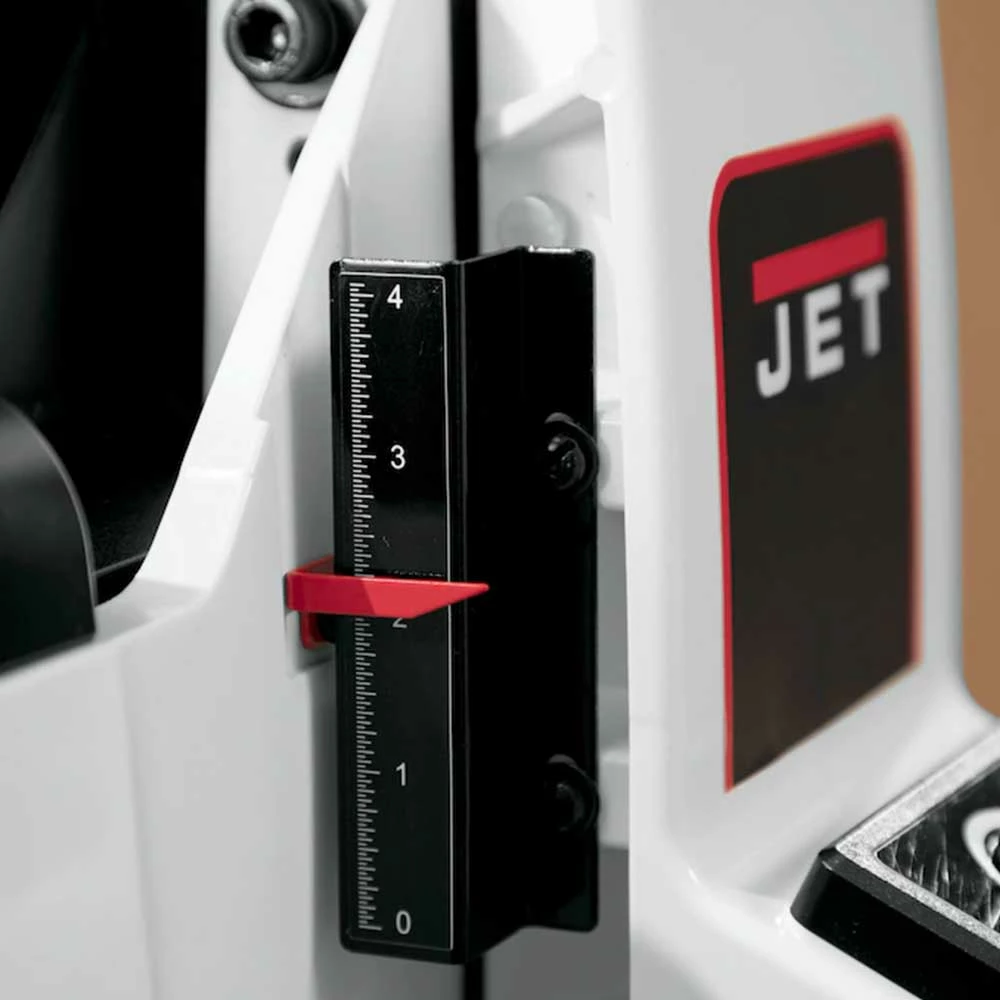

• The relative depth scale on the handwheel allows the user to reset and measure the depth for every project

What’s in The Box

• Oscillating Drum Sander w/ Closed Stand
• Owner’s Manual

Warranty

• 2 Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

Sku	723544OSCK
Brand	Jet
Voltage	115V
Amperage	15A
Drum Diameter	5 in.
Drum Length	23 in.
Motor Phase	Single
Horsepower	1-3/4 Hp
Min. Board Thickness	1/32 in.
Max. Board Thickness	4 in.
Min. Board Length	2-3/8 in.
Max. Board Width	44 in. (Two Passes)
Conveyor Speed	0 – 10 Fpm
Drum Speed	1,725 Rpm
Product Weight	216 lbs.
