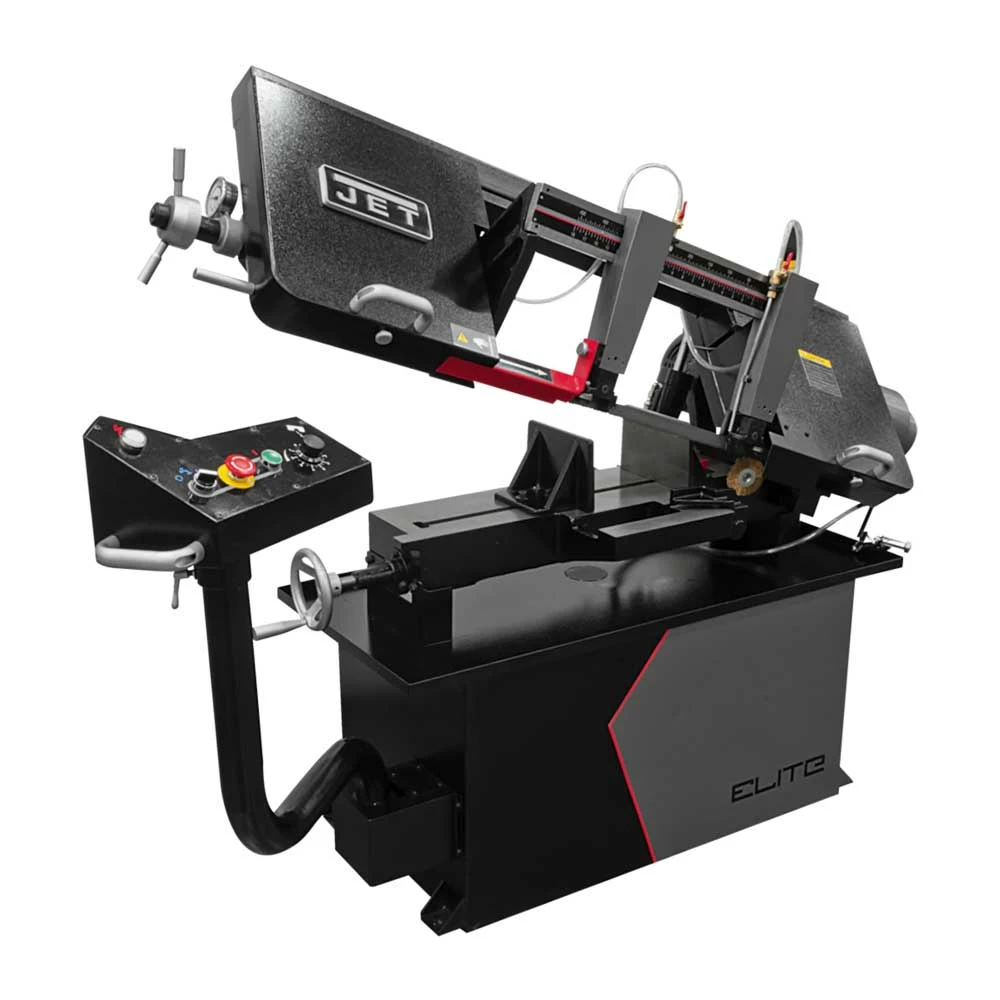

JET 891050 EHB-916V 9″ X 16″ Elite Heavy Duty Variable Speed Bandsaw Tools & Equipment

Features

• The ELITE swing away panel relocates saw controls to a single location, offering finger-tip operation of most major saw functions.
• For added safety, the EHB-916V Bandsaw follows strict guidelines and electrical requirements to be certified by CSA Group
• To reduce user fatigue and increase the safety of the worker, we increased the saw bed height to up to 30 in.
• Automatic blade breakage sensor detects accidental breakage and interrupts the power
• Variable speed drivetrain allows the operator to fine-tune the blade speed fast and easily
• Integrated pressurized wash hose for easy machine cleaning
• Quick positioning vise for clamping of materials

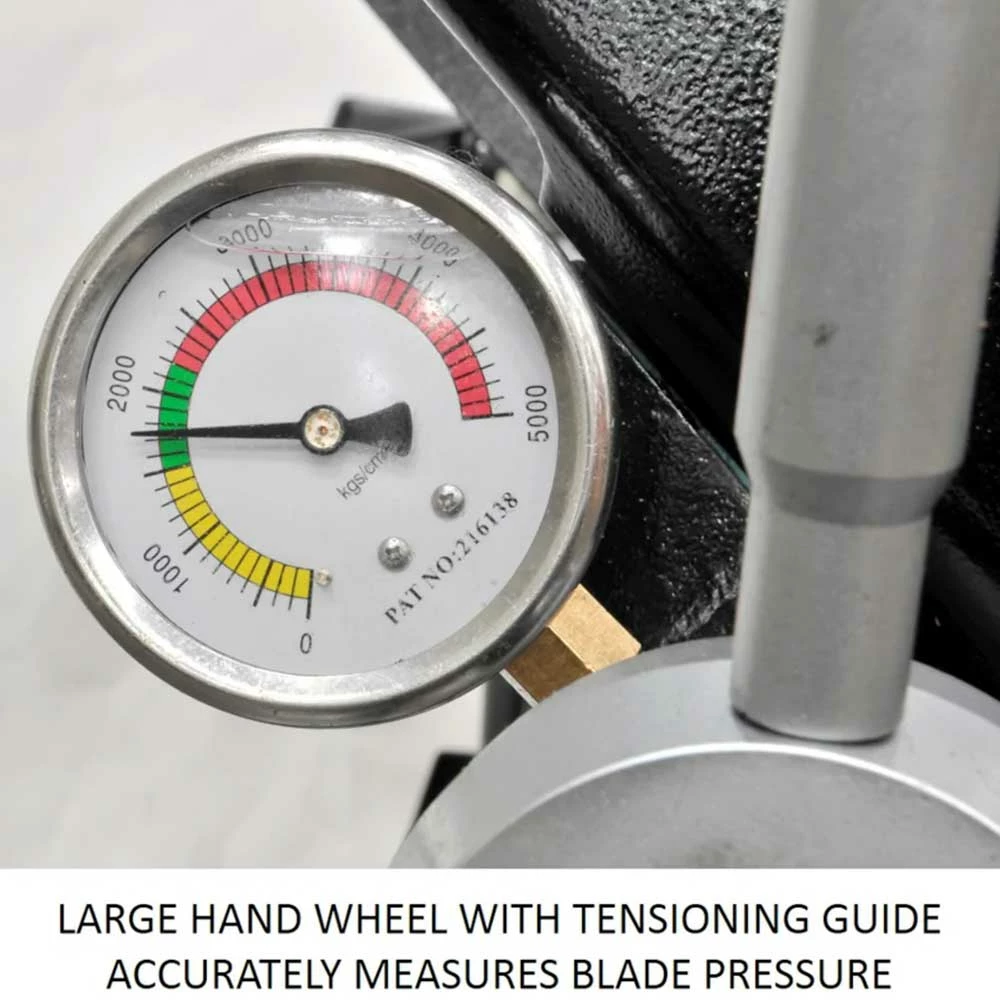

• Large handwheel with blade tensioning gauge accurately measures blade pressure
• Automatic blade shut off switch stops the sawing process
• Hydraulic down feed control is easily adjusted enabling feed rates to evolve with the various types of materials
• Built-in, self-propelled chip brush prevents chip build up in blade guides.
• The blade is fully guarded for operators safety
• Standard Equipment
• Coolant System
• Quick positioning vise
• Adjustable material stop
• 1 4/6 VT Bi-Metal blade

What’s in The Box

• Variable Speed Bandsaw – EHB-916V
• Owner’s Manual

Warranty

• 3 Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

SKU	891050
Brand	JET
Volts	115V/230V
Horsepower	1-1/2
Phase	Single
Amperage Draw at 115V -1 PH	15
Amperage Draw at 230V -1 PH	7
Blade Length	128-1/2 in
Blade Speed	53-275 SFPM
Bed Height	30
Drive	Variable Speed
Blade Size	1 x .035 x 128-1/2 in
Vise Swivel	45 degrees
Square at 45 Degrees	7 x 7 in
Square at 90 Degrees	9 x 9 in
Rectangle at 45 Degrees	7 x 8-1/2 in
Rectangle at 90 Degree	6 x 16 in
Round at 45 Degrees	7 in
Round at 90 Degrees	9 in
Cutting Capacity	9 x 16 in
Dimensions (L x W x H)	65 x 28 x 42 in
Weight	726 lbs
