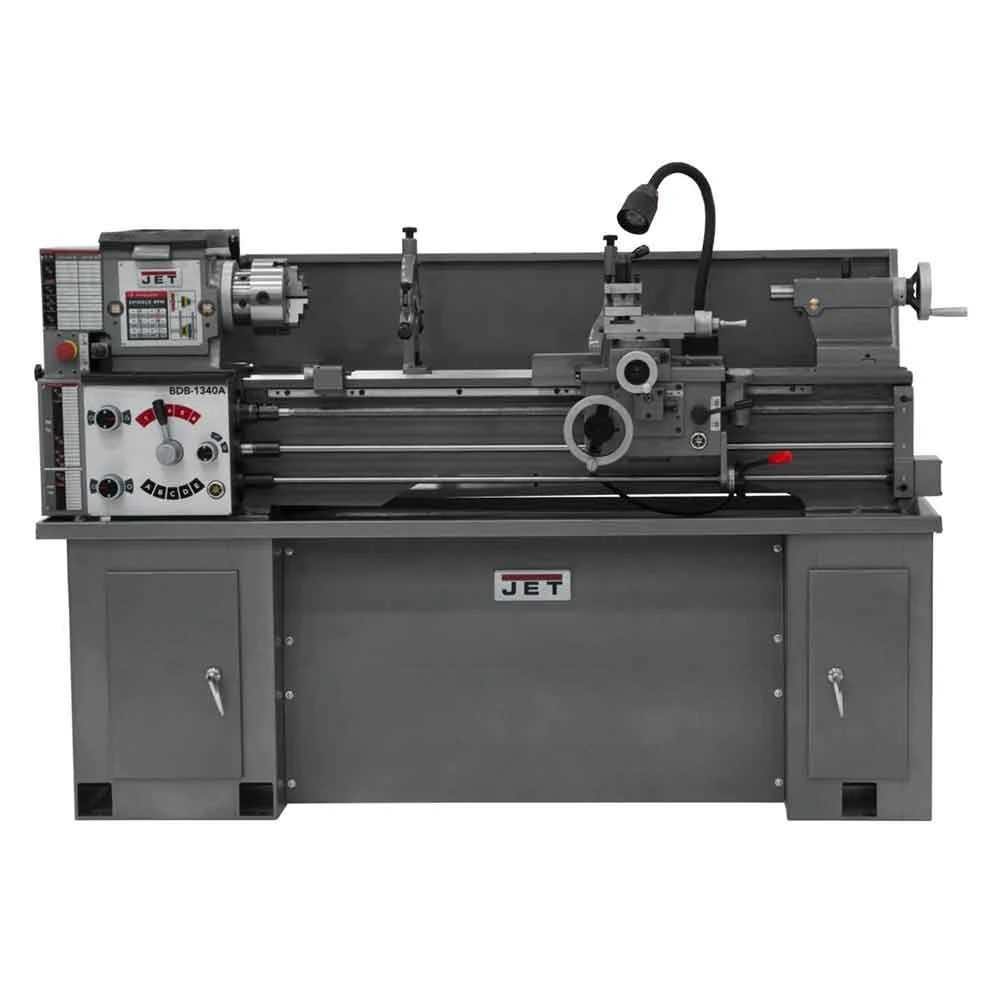

JET BDB-1340A 2-Hp 230V Quiet Operation Belt Drive Bench Lathe – 321360A

Features

• One of the most popular JET lathes now comes with an enclosed gearbox as a standard feature
• Enclosed gearbox design provides smooth, quiet operation
• Fast, easy speed changes
• Low voltage motor controls
• Helical cut headstock gears reudce noise
• Change gears allow metric threading
• Spindle is supported by precision tapered roller bearings
• V-way bed is induction hardened and ground
• Gap bed section provided for large diameter work
• Independent leadscrew and feed rod
• T-slotted compound slide with four-way tool post
• Carriage mounted spindle control lever
• Automatic feeding and threading are fully interlocked
• Feed selectors travel in grooved ways
• Tailstock may be offset for turning tapers and includes and inch/metric graduated quill
• Oil pan included
• Tolerance test certificate included
• 6″ 3-jaw direct mount scroll chuck with top reversing jaws
• 8″ 4-jaw independent chuck
• 12″ faceplate
• Four-way tool post
• Steady and follow rest
• Metric change gear
• Centers and headstock center sleeves
• Threading dial
• Tool box with tools

What’s in The Box

• BDB-1340A, Belt Drive Bench Lathe 321360A
• Owner’s Manual

Warranty

• JET Red Assurance 2-Year Warranty
• 30 Day Satisfaction Guaranteed

Specifications

Size	13 x 40
Swing Over Bed (In.)	13
Swing Over Cross Slide (In.)	7-25/32
Swing Through Gap (In.)	18-3/4
Length of Gap (In.)	8
Distance Between Centers (In.)	40
Spindle Bore (In.)	1-3/8
Spindle Mount	D1-4
Spindle Taper with Sleeve	MT-5 (MT-3)
Number of Spindle Speeds	12
Range of Spindle Speeds (RPM)	60 – 1,240
Number of Longitudinal and Cross Feed Rates	38
Range of Longitudinal Feeds (IPR)	0.0018-0.0374
Range of Cross Feeds (IPR)	0.0006-0.013
Number of Inch Threads	38
Range of Inch Threads (TPI)	3-1/2 – 80
Number of Metric Threads	23
Range of Metric Threads	0.45-10
Max Tool Size (In.)	5/8 x 5/8
Compound Slide Travel (In.)	2-11/16
Cross Slide Travel (In.)	6-5/16
Carriage Travel (In.)	35
Tailstock Spindle Travel (In.)	3-3/4
Taper in Tailstock Spindle	MT-3
Follow Rest Capacity (In.)	2-3/4
Steady Rest Capacity (In.)	2-5/8
Width of Bed (In.)	7-3/8
Motor (HP)	2 HP, 230V, 1Ph
Prewired (V.)	230
Weight (Lbs.)	1,175
Overall Dimensions (L x W x H) (In.)	71 x 32 x 45
Drive	Belt
Style (Type)	Bench
