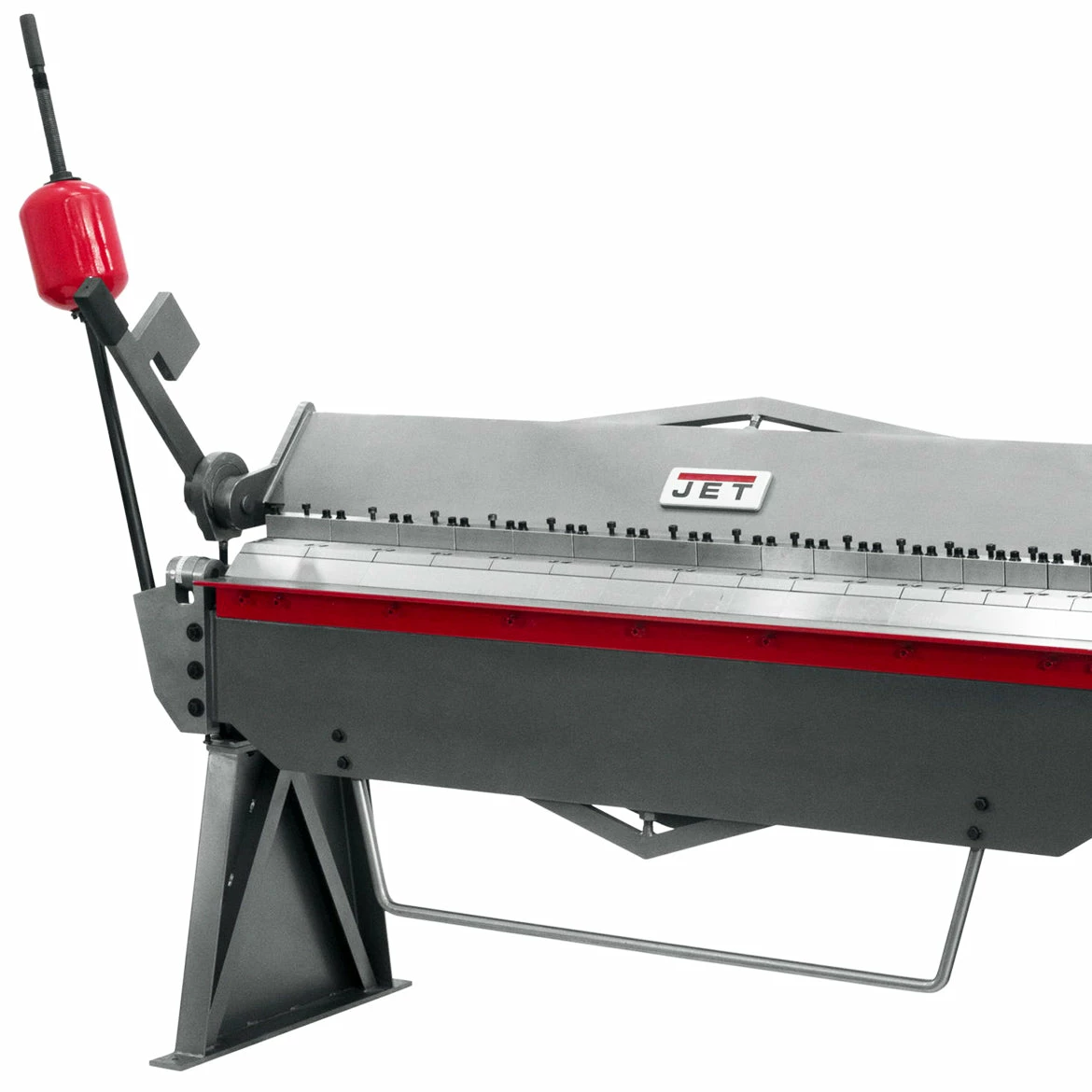

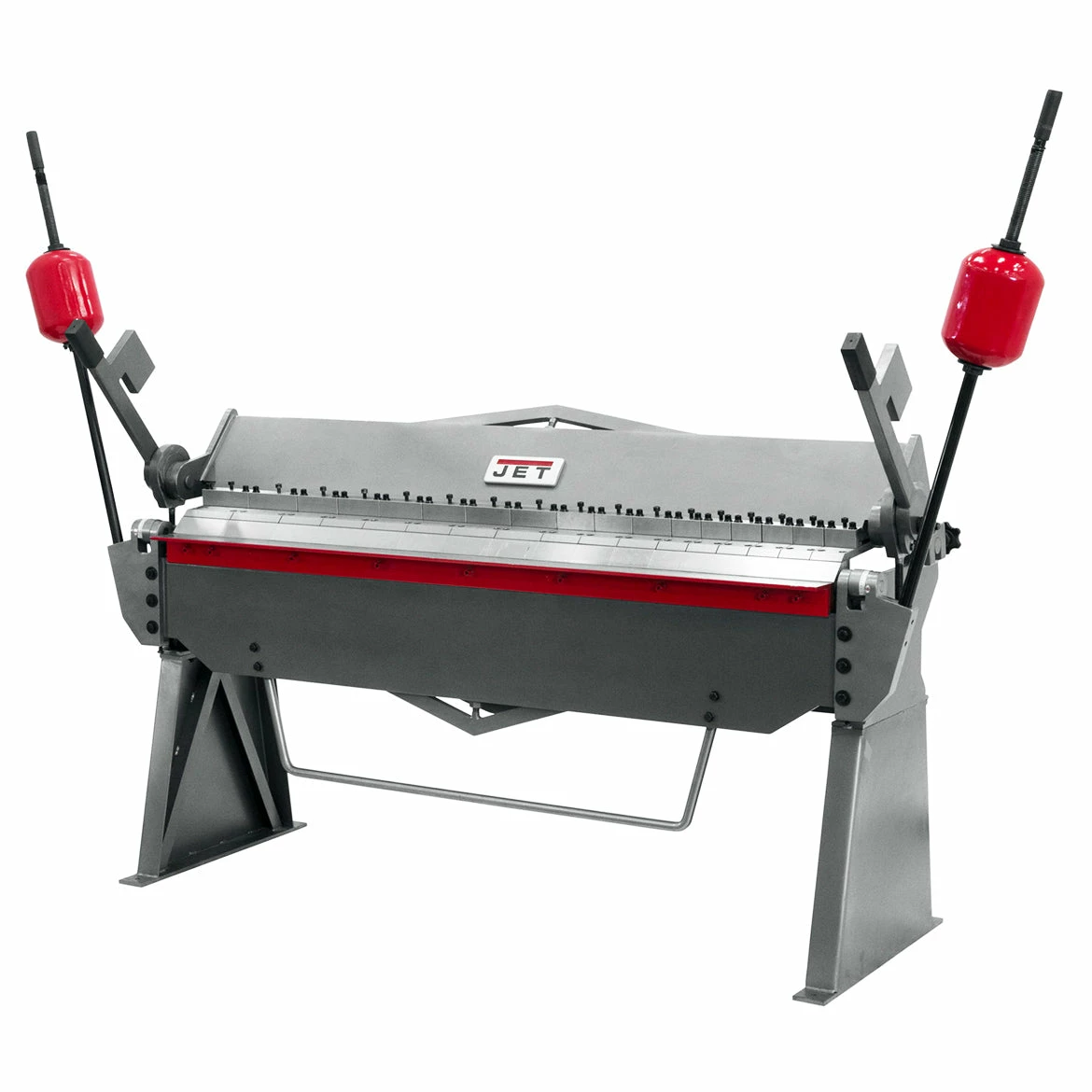

JET BP-1272 12 Gauge X 72″ Heavy Duty Floor Box Model Box W/ Pan Brake Tools & Equipment

Features

• All body sections are welded steel plate with heavy truss rods and braces designed to give greater strength and durability
• Both the bed and apron are bored in line to assure the utmost accuracy
• Soft grips on top of counter weight bar to prevent damaging the operator’s hands
• Tool less angle stop
• Soft touch handle grips
• With all fingers installed it can be used as a full-length nose bar, turning the machine into a straight bending brake
• Wide assortment of finger widths allows greater versatility in the shop
• Repeat bends are easy with a quick turn of the stop collar on the stop rod
• Counter weights can be moved up or down to provide leverage

What’s in The Box

• 12ga x 72-Inch Heavy Duty Floor Box and Pan Brake – 754125
• Owner’s Manual

Warranty

• 2-Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

Sku	754125
Model	BP-1272
Brand	Jet
Mild Steel Capacity (Gauge)	12
Bending Length Capacity (In.)	72
Maximum Box Depth (In.)	4
Maximum Lift of Beam (In.)	2.2
Beam Adjustment (Front to Rear) (In.)	2
Number and Width of Fingers (In.)	6 at 3, 3 at 4, 6 at 5, 2 at 6
Finger Nose Angle (Deg.)	45
Nose Radius (In.)	1/32
Weight (Lbs.)	2,535
Dimensions (L x W x H) (In.)	100 x 30 x 41
