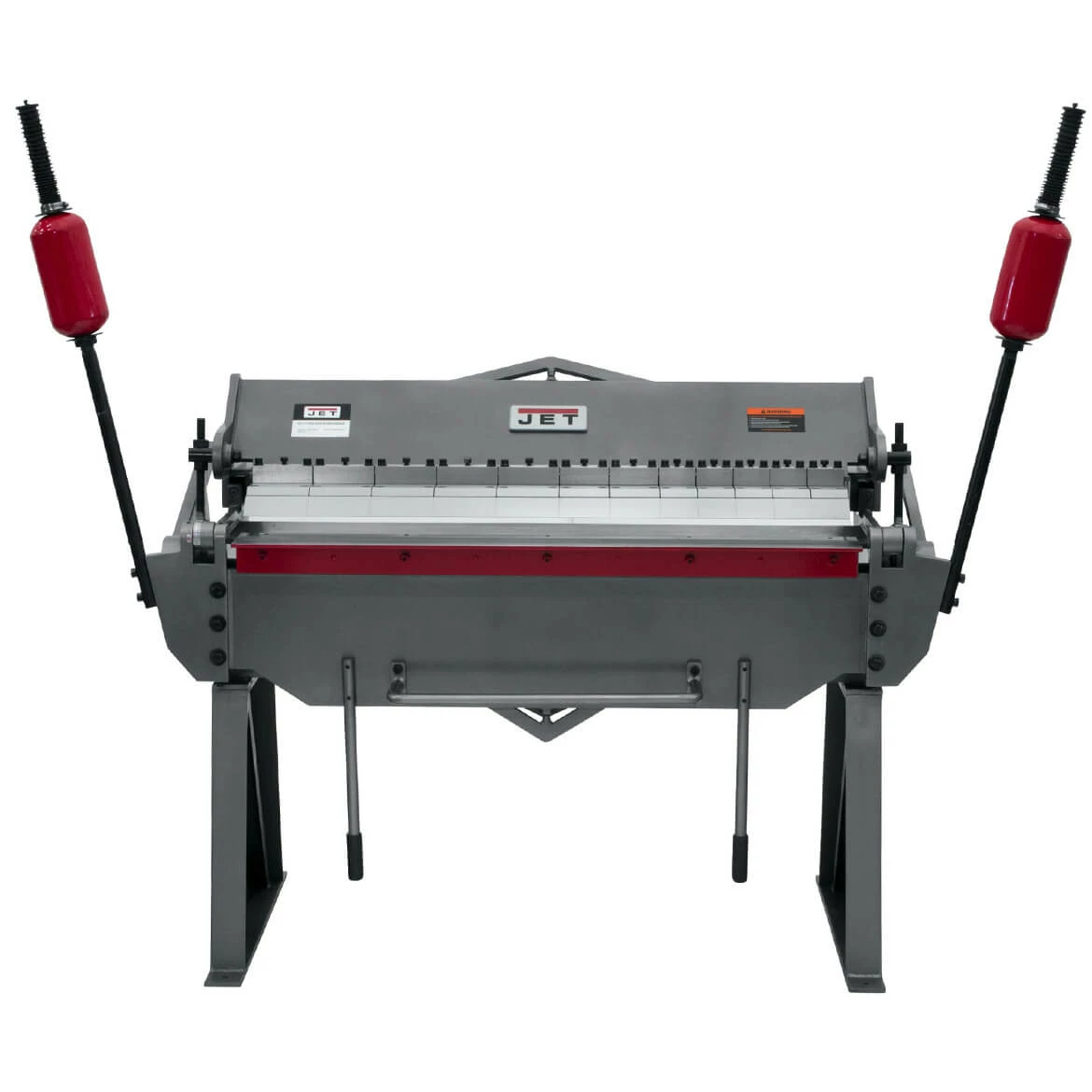

JET BPF-1248 48″ X 12″ Gauge Bench Floor Model Box W/ Pan Brake

Features

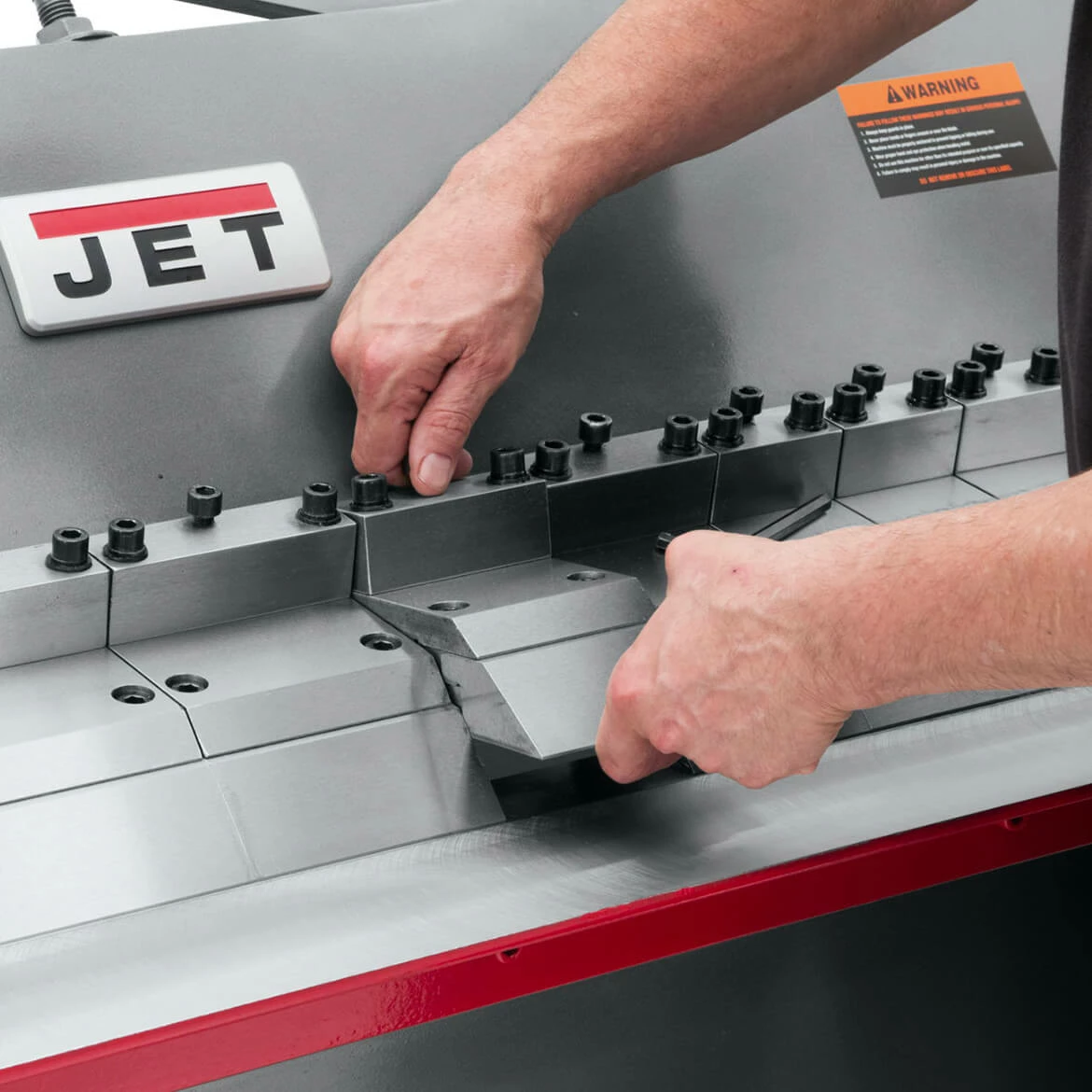

• Wide assortment of finger widths allow greater versatility in the shop
• With fingers installed it can be used as a full-length nose bar, turning the machine into a straight bending brake
• All body sections are welded steel plate with heavy truss rods and braces designed to give greater strength and durability
• Both the bed and apron are bored in line to assure the utmost accuracy
• Counter weights can be moved up or down to adjust desired leverage
• Stop rod for repeatable bending
• 12 gauge maximum capacity for mild-steel
• 10 gauge maximum capacity for aluminum and copper alloys
• 16 gauge maximum capacity for stainless steel

What’s in The Box

• 48-Inch x 12-Gauge Floo Model Box and Pan Brake
• Owner’s Manual

Warranty

• 2-Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

Sku	754110
Brand	Jet
Model	BPF-1248
Mild Steel Capacity	12 Gauge
Bending Length Capacity	48in.
Max. Box Depth	4 in.
Max. Lift of Beam	1-1/2 in.
Beam Adjustment (Front to Rear)	7/8 in.
Number and Width of Fingers	12 (5 at 3 in. / 2 at 4 in. x 5 at 5 in.)
Finger Nose Angle	45-Degrees
Nose Radius	1/32 in.
Length	87 in.
Width	59 in.
Height	70 in.
Product Weight	1,110 lbs.
