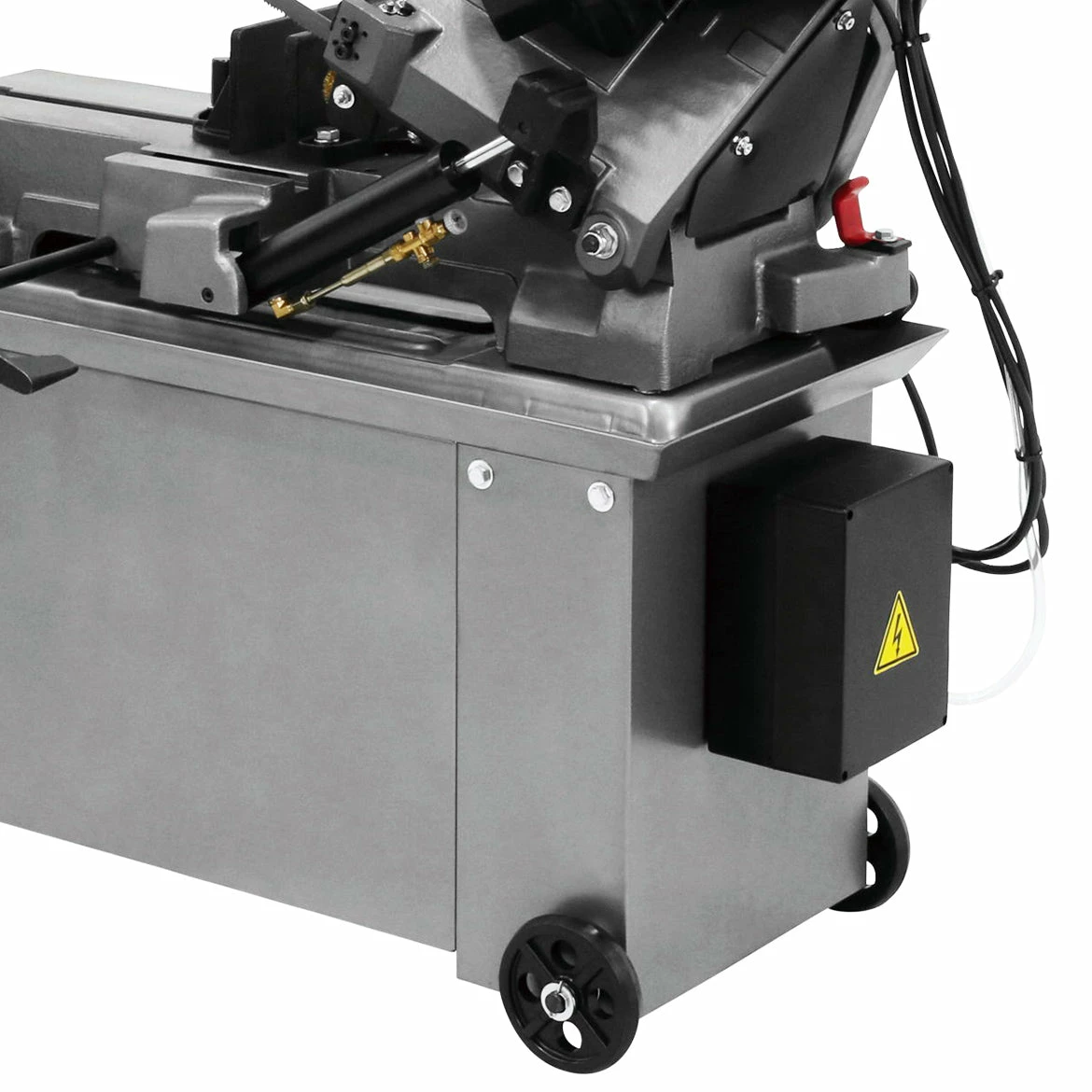

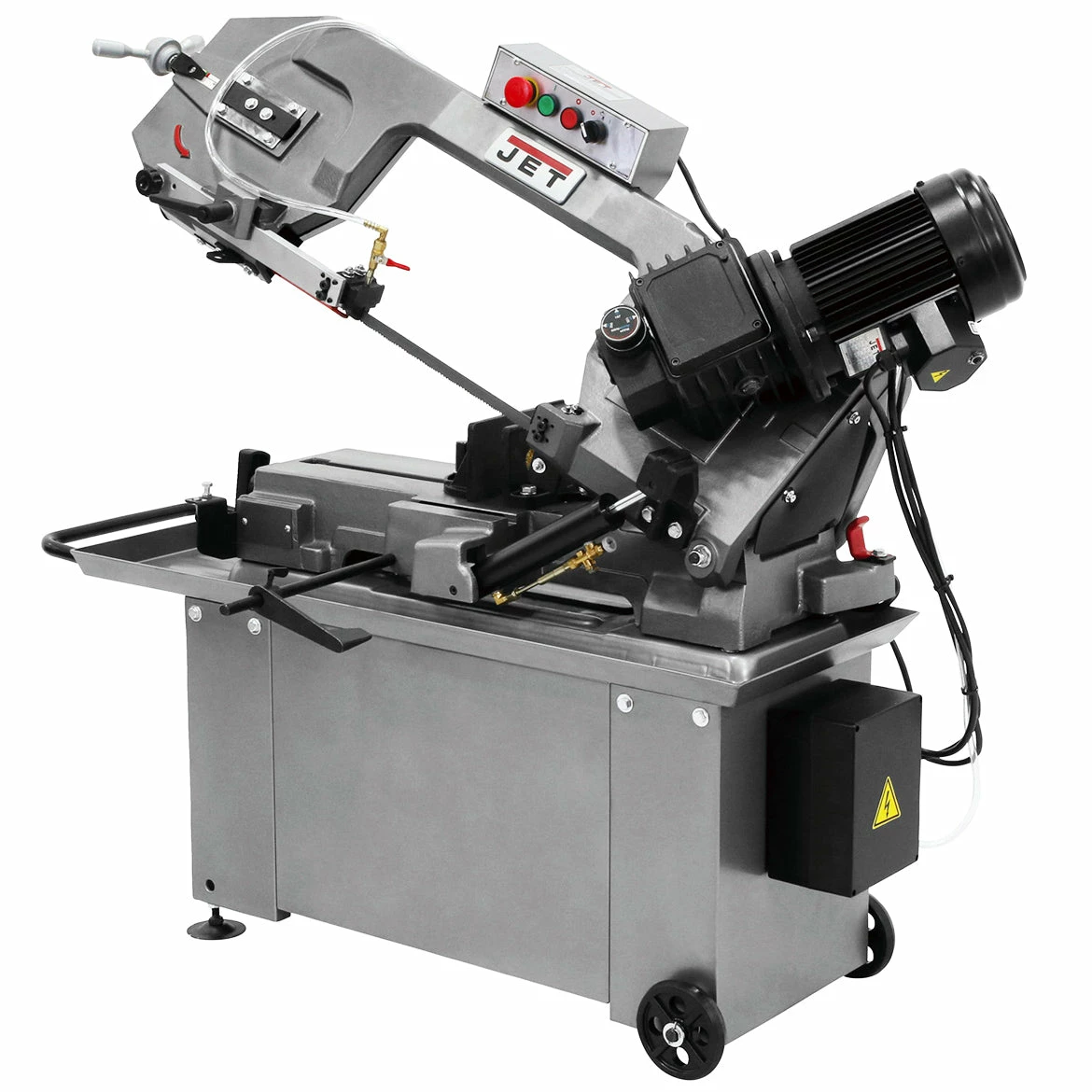

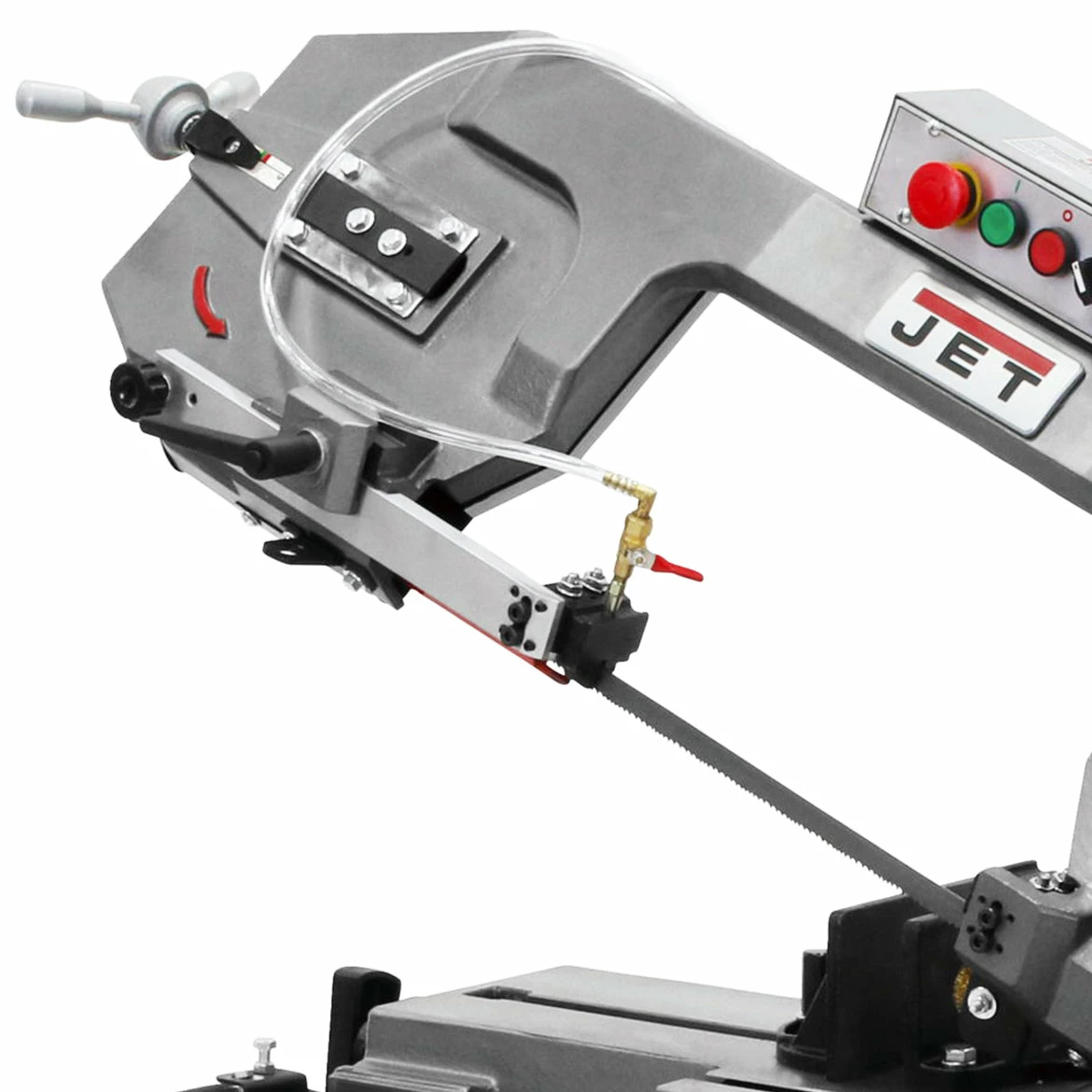

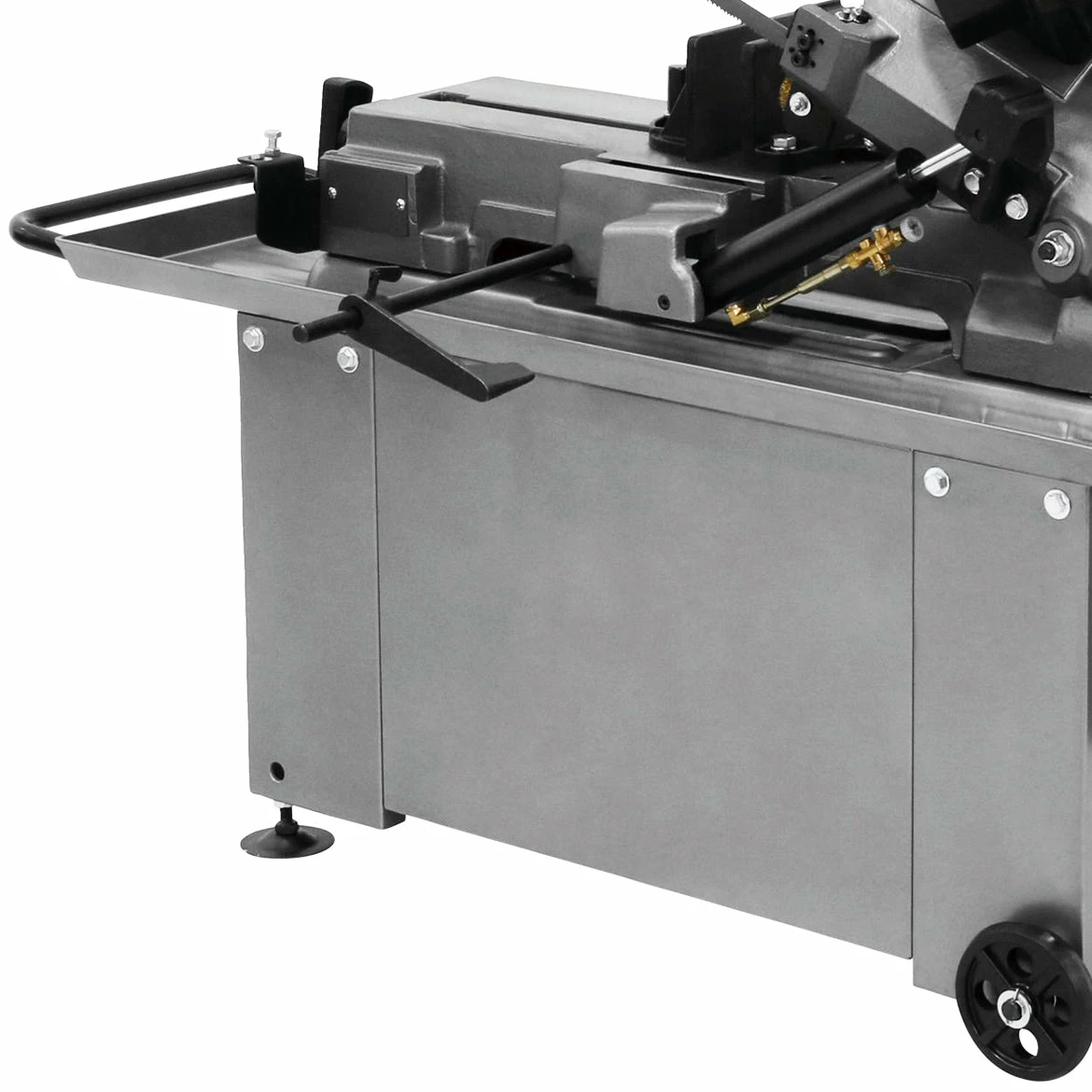

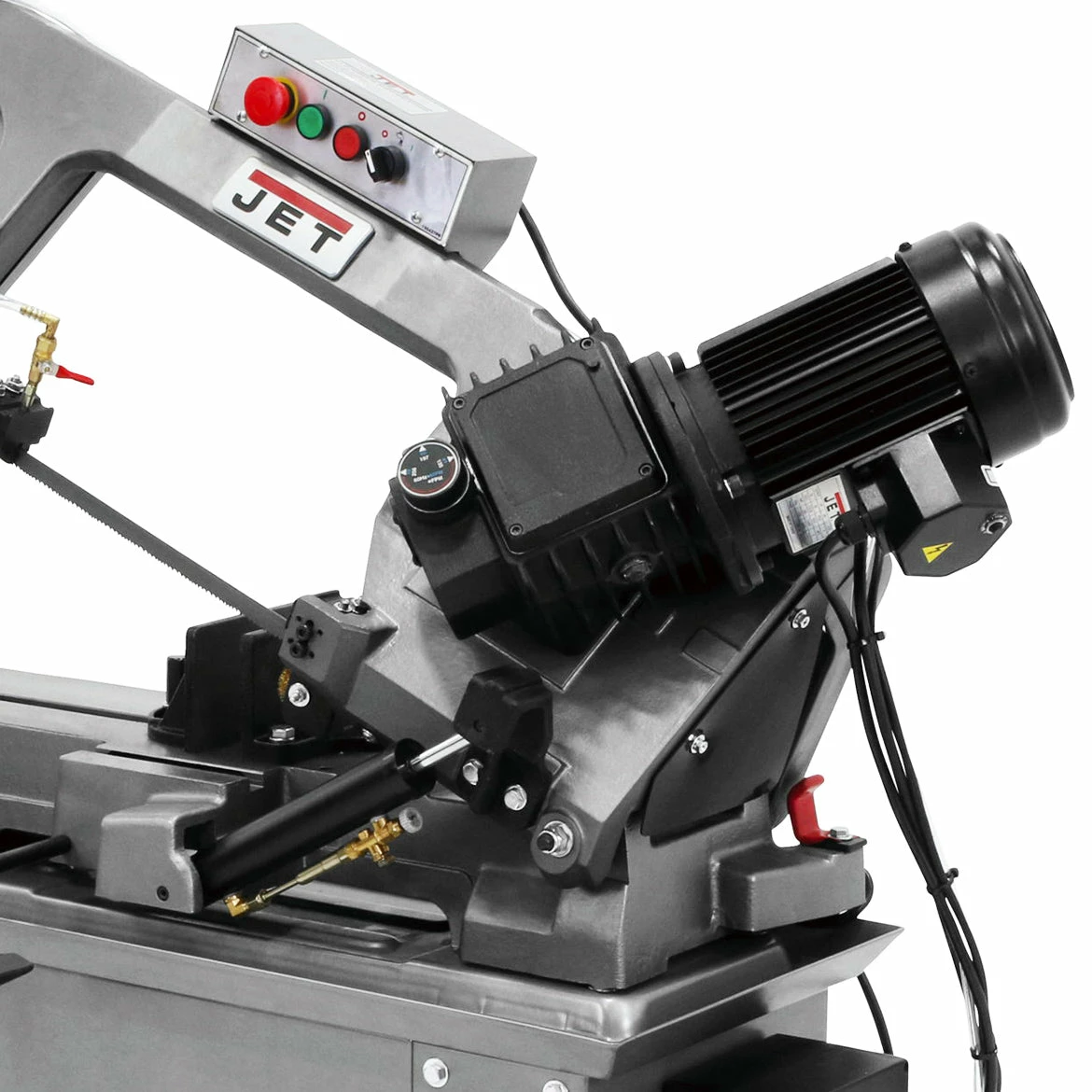

JET HBS-814GH 1-Hp 115/230V 8″ X 14″ Heavy Duty Horizontal Geared Head Bandsaw

Features

• Hardened and ground drive shaft and worm gears transmit maximum torque to blade wheels
• Heavy-duty geared head transmission for quick speed changes
• Fully adjustable hydraulic downfeed system
• Easily accessible saw control panel
• Quick-positioning vise with fully adjustable jaws, swivels to 45°
• Built-in, self propelled blade brush extends blade life
• Wheels permit easy storage and movement
• Coolant system
• Adjustable material stop
• 3/4″ Bi-Metal blade

What’s in The Box

• JET HBS-814GH 8″ x 14″ Horizontal Geared Head Bandsaw 115/230V 1PH
• Owner’s Manual

Warranty

• 2-Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

Model	414466
UPC	662755523434
Cutting Capacity (W x D) (In.)	8 x 14
Round at 90 Degrees (In.)	8
Round at 45 Degrees (In.)	6-1/2
Rectangle at 90 Degrees (In.)	14 x 8 and 2 x 14
Rectangle at 45 Degrees (In.)	6-1/2 x 6 and 2 x 7
Vise Swivels (Deg.)	45°
Blade Speeds (SFPM)	135, 197, 256
Blade Wheel Diameter (In.)	12
Blade Length (In.)	97
Blade Size (In.)	3/4 x .035 x 97
Bed Height (In.)	26
Motor (HP)	1 HP, 115/230V, 1Ph
Weight (Lbs.)	400
Overall Dimensions (L x W x H) (In.)	51-1/2 x 18-1/8 x 44
