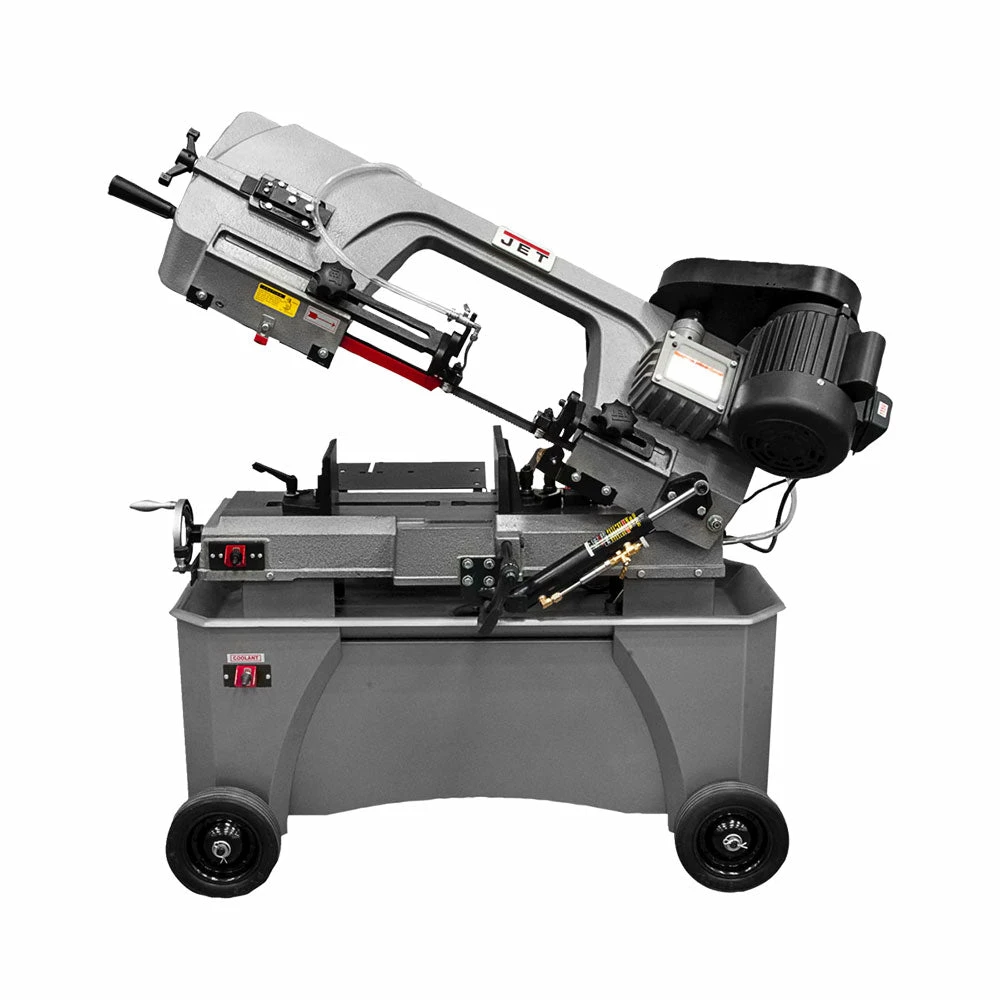

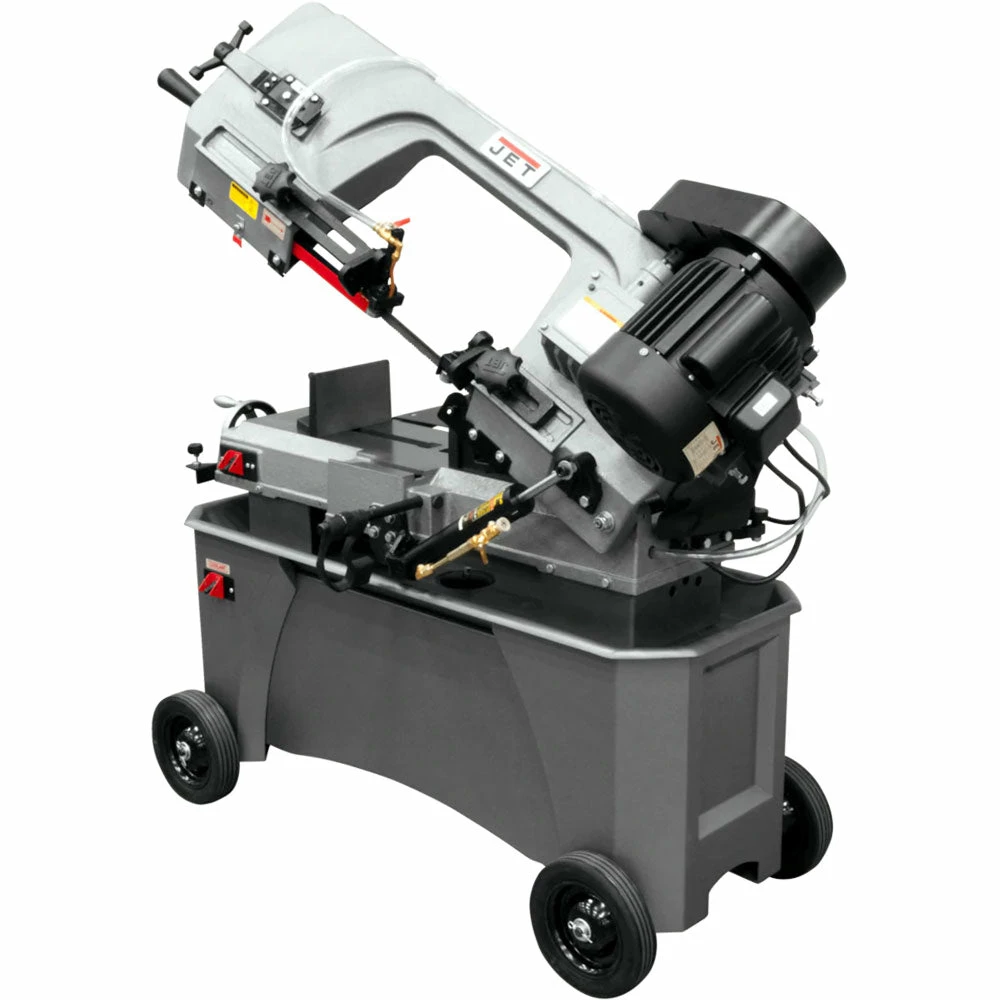

JET HVBS-712D 115V/230V 7″ X 12″ 1 Phase Deluxe Horizontal/Vertical Bandsaw

Features

• Large 9″ x 12″ infeed table assembly extends the support area and can be used in either horizontal or vertical positions
• Multi-position blade guides enhance use in a vertical position by increasing the throat capacity from 4″ to 8″ and creates a safer working position

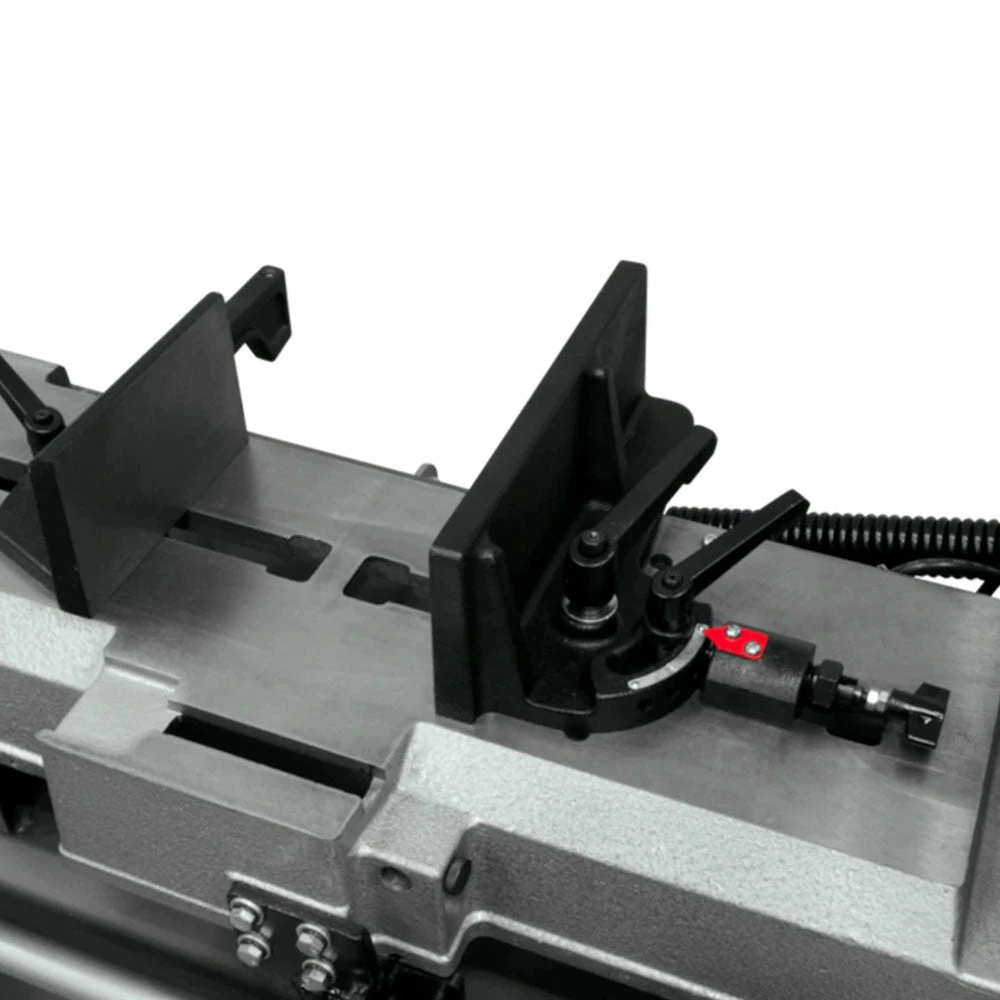

• Tool-less quick-lock vise with preset mitering positions at 15°, 30° & 45°
• Improved Height and width of the stand with a built-in storage cabinet and chip tray
• Micro-adjustable tool-less material stop for accurate set-up and repeatability
• CSA/CUS: Following strict guidelines and electrical requirements, this JET Saw is CSA/CUS certified
• Blade drive is a belt to sealed, hardened, and ground gear drive system
• Blade wheels are made from flanged cast iron for increased durability
• Auto shut-off after the cut
• Adjustable ball bearing blade guides
• Cast mounted adjustable hydraulic down feed
• Complete coolant system
• Four 8″ rubber wheels for ease of movement
• 3/4″ Bi-Metal blade

What’s in The Box

• Horizontal Mitering Bandsaw
• Owner’s Manual

Warranty

• 2 Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

SKU	414560
Brand	Jet
Volts	115/230
Horsepower	3/4
Phase	1
Drive	Step Pulley
Cutting Capacity (W x D)	7 x 12 in
Round at 90 Degrees	7 in
Round at 45 Degrees	5
Rectangle at 90 Degrees	4 x 11/7 x 10-1/4 in
Rectangle at 45 Degrees	6 x 4 in
Square at 90 Degrees	7 x 7 in
Square at 45 Degrees	5 x 5 in
Throat Depth	7 in
Head Movement	0 degrees
Vise Swivel	45 degrees
Blade Speeds (SFPM)	86, 132, 178, 260
Blade Wheel Diameter	11-3/4 in
Blade Length	93 in
Blade Size	3/4 x 0.035 x 93 in
Bed height	22-1/4 in
Coolant Capacity	1 gallon
Dimensions (L x W x H)	48 x 17 x 44 in
Weight	418 lbs
