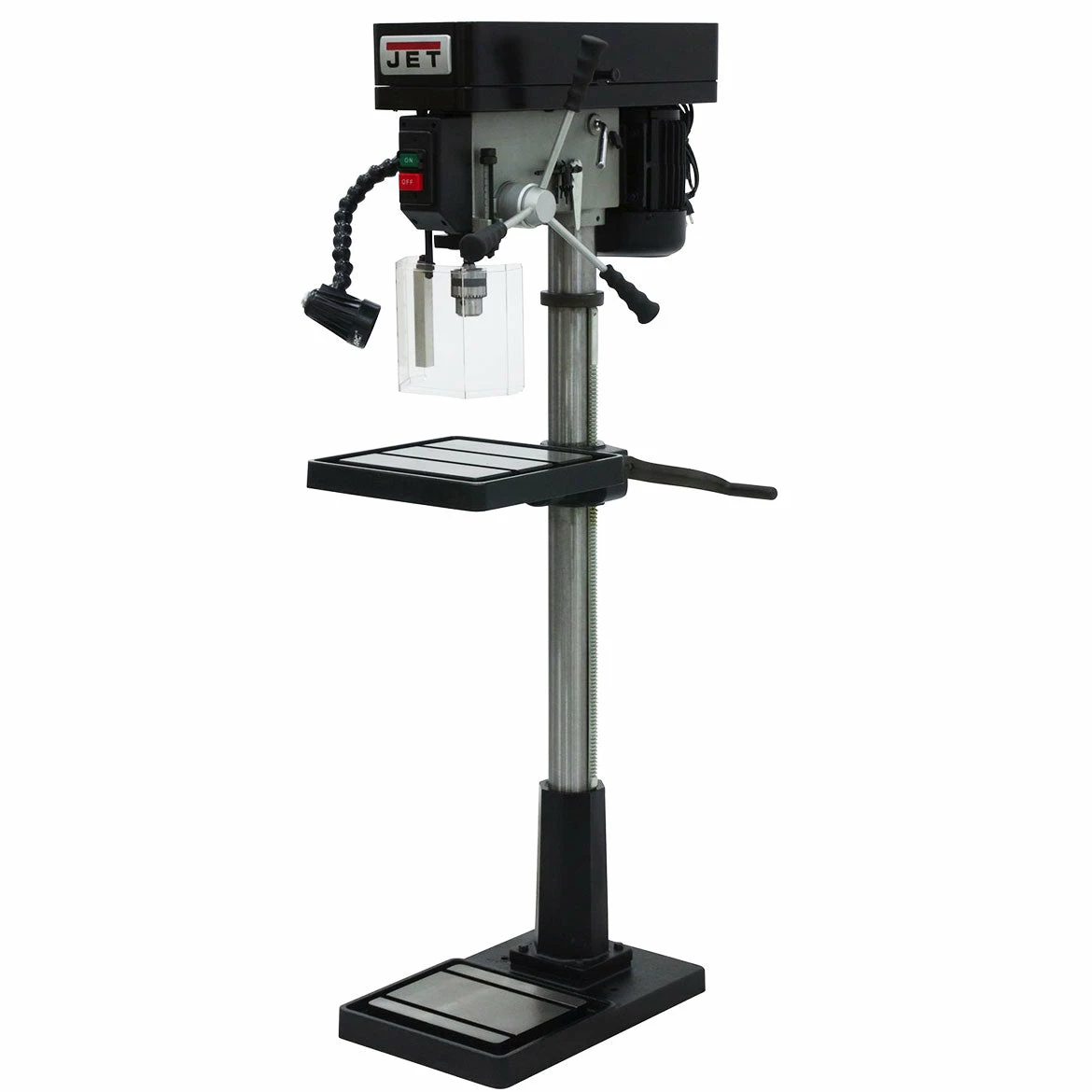

JET IDP-17 1-Hp 115/230V 17″ Heavy Duty Industrial Floor Model Drill Press

Features

• For added Safety, the IDP-17, 17″ Industrial Floor Model Drill Press follows strict guidelines and electrical requirements to be certified by the CSA Group.
• Spindle is supported by high quality ball bearings
• Hinged metal belt and pulley cover coupled with quick adjustment motor mount allow rapid changing of spindle speeds
• Large Hand Grips designed with the users comfort in mind

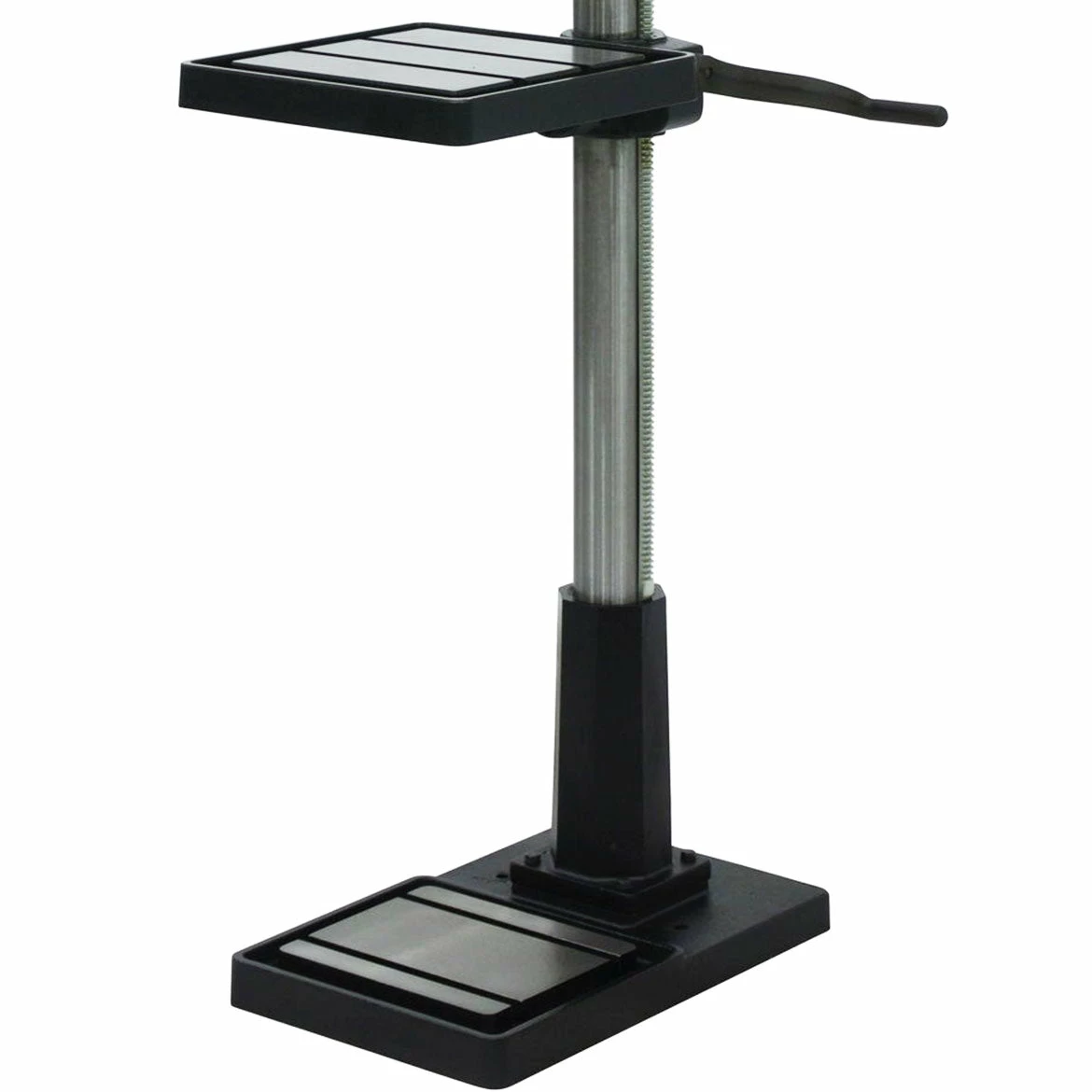

• Rotating, 45-Degree tilting, crank-operated worktable with quick release clamp
• A 1/2″ diameter external positive depth stop with three nut locking feature for quick adjustment
• Adjustable tension spindle return spring
• Drill chuck and key attach to the side of the drill press always within reach of the operator
• On/off switch located on front of the drill press head
• Heavy Duty construction
• Cast Iron table and base
• Table ground for accuracy
• STANDARD EQUIPMENT
• LED Machine Lamp
• Ground Table
• Spindle Safety Guard
• Drill Chuck and Key

What’s in The Box

• 17-Inch Industrial Floor Drill Press
• Owner’s Manual

Warranty

• 2-Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

Model	IDP-17
Sku	354300
Brand	Jet
Style (Type)	Belt Drive
Drills to Center of Circle (in)	17
Drilling Capacity Cast Iron (in.)	3/4
Drilling Capacity Mild Steel (in.)	5/8
Distance Column to Spindle (in.)	8-3/8
Number of Spindle Speeds	12
Range of Spindle Speeds (Rpm)	350 – 2,800
Spindle Taper (in. x tpi)	MT-2
Spindle Travel (in.)	3-5/16
Spindle Distance to Base (in.)	50
Spindle Distance to Table (Max.) (in.)	30-1/2
Table Size (L x W) (in.)	14 x 14
T-Slots Number and Size (in.)	2 and 1/2
T-Slot Centers (in.)	9/16
Base Dimensions (in.)	21-3/4 x 13-3/4
Base Work Table (in.)	16-15/16 x 10-13/16
Base Slots Number and Size (in.)	2 and 1/2
Motor (Hp)	1
Voltage	115/230
Phase	Single
Weight (Lbs.)	276
