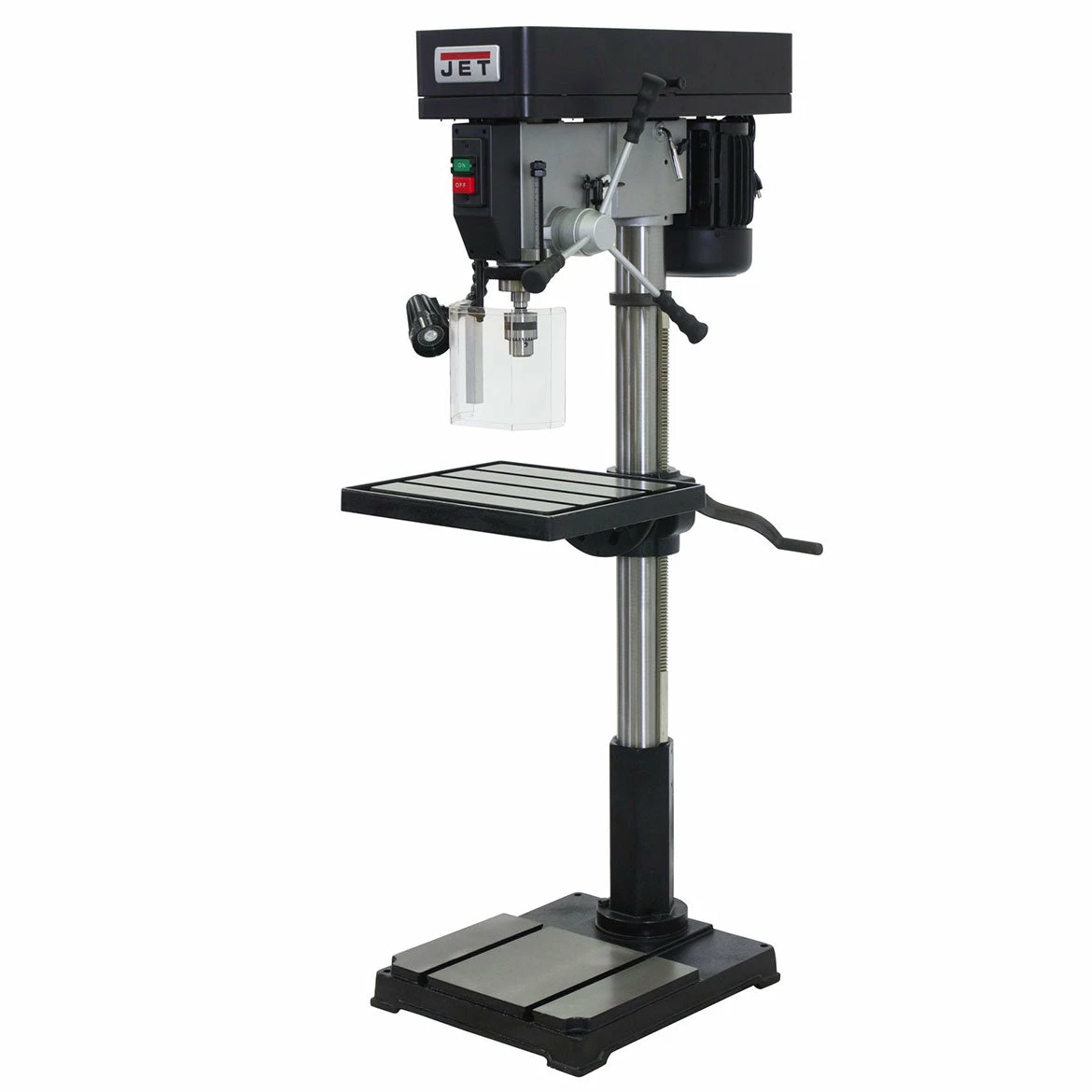

JET IDP-22 1-Hp 115/230V 22″ Heavy Duty Industrial Floor Model Drill Press Tools & Equipment

Features

• For added Safety, the IDP-22, 22″ Industrial Floor Model Drill Press follows strict guidelines and electrical requirements to be certified by the CSA Group.
• Spindle is supported by high quality ball bearings

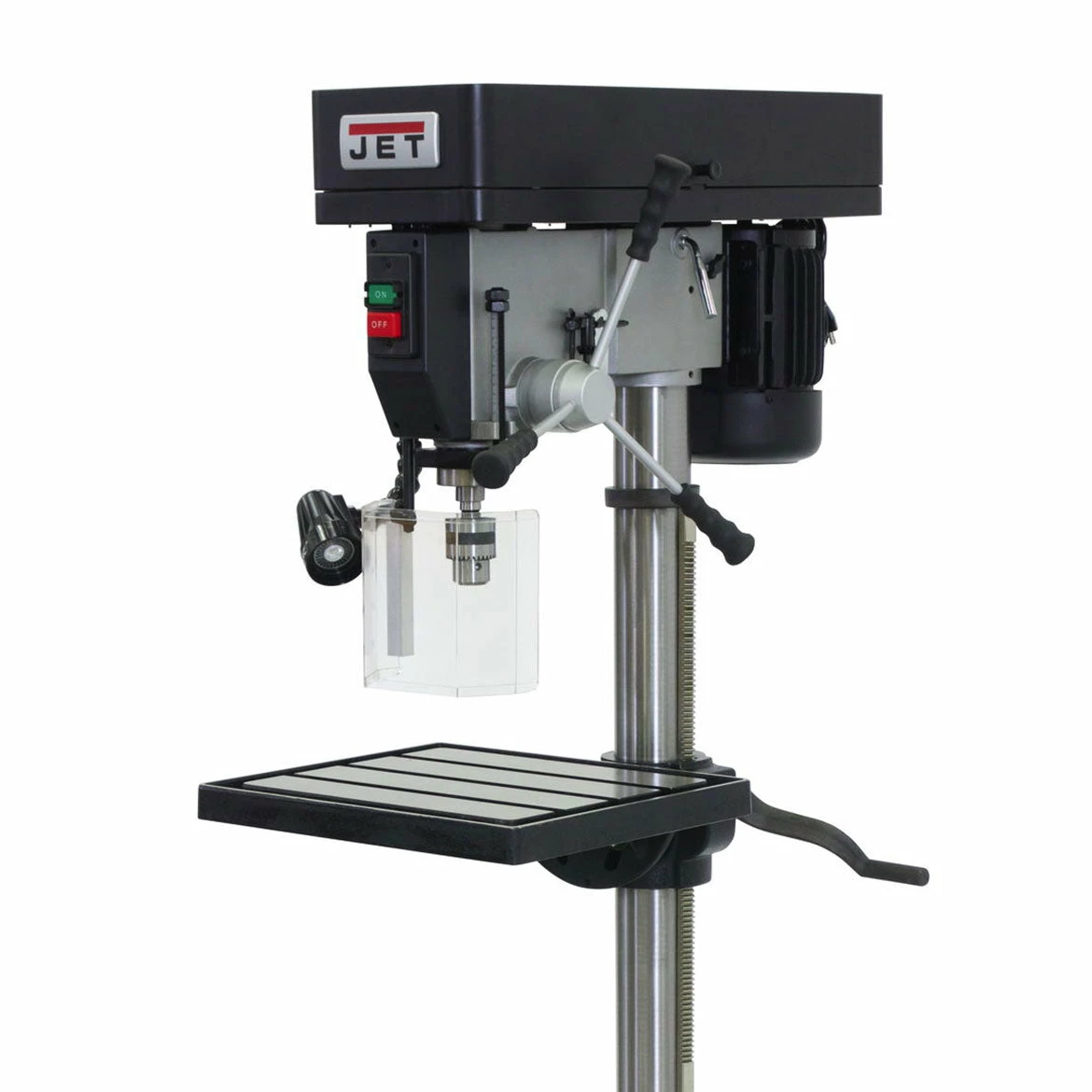

• Hinged metal belt and pulley cover coupled with quick adjustment motor mount allow rapid changing of spindle speeds
• Large Hand Grips designed with the users comfort in mind

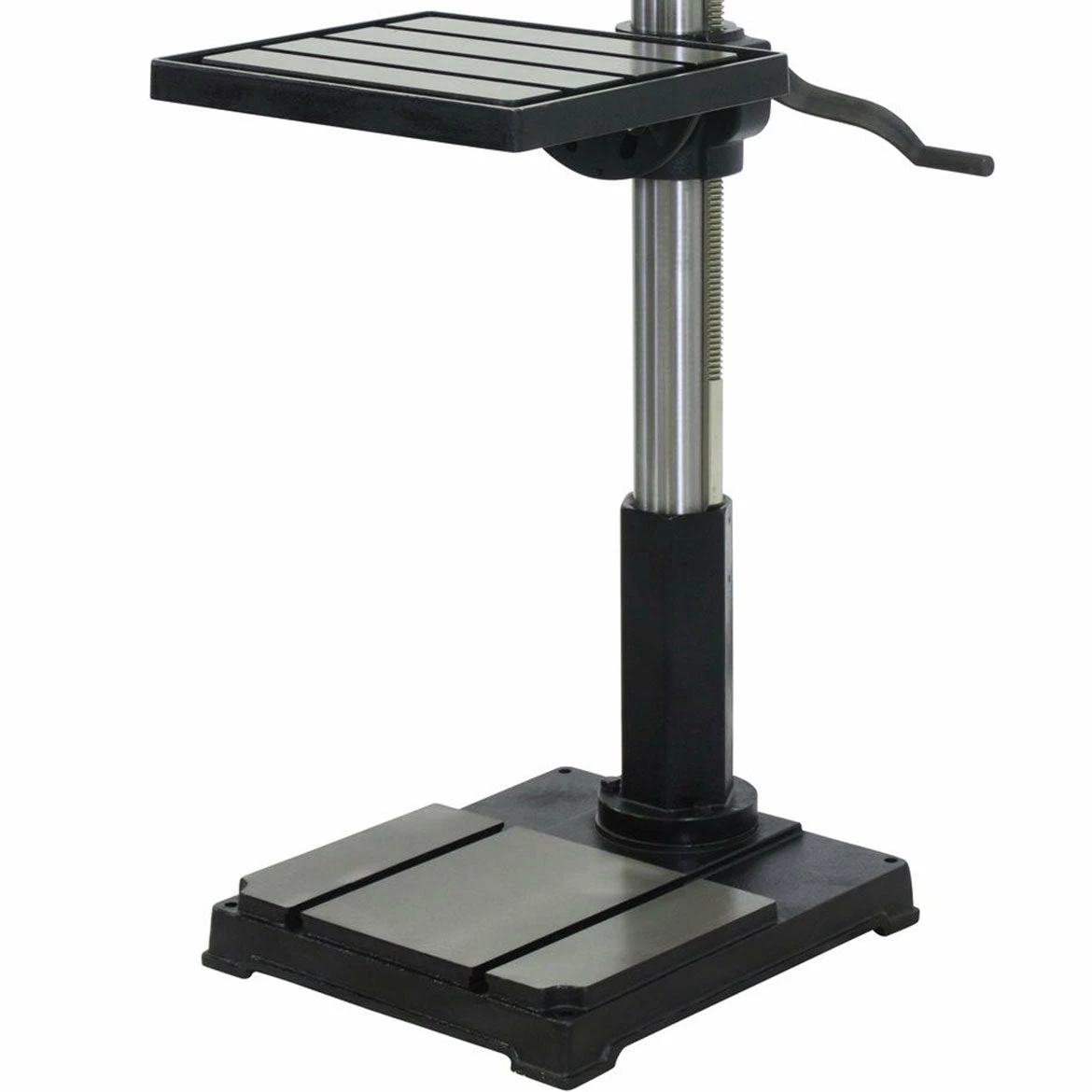

• Rotating, 45° tilting, crank-operated worktable with quick release clamp
• A 1/2″ diameter external positive depth stop with three nut locking feature for quick adjustment
• Adjustable tension spindle return spring
• Drill chuck and key attach to the side of the drill press always within reach of the operator
• On/off switch located on front of the drill press head
• Heavy Duty construction
• Cast Iron table and base
• Table ground for accuracy
• STANDARD EQUIPMENT
• LED Machine Lamp
• Ground Table
• Spindle Safety Guard
• Drill Chuck and Key

What’s in The Box

• 22-Inch Industrial Floor Drill Press
• Owner’s Manual

Warranty

• 2-Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

Model	IDP-22
Sku	354301
Brand	Jewt
Style (Type)	Belt Drive
Drills to Center of Circle (in)	22
Drilling Capacity Cast Iron (in.)	1-1/4
Drilling Capacity Mild Steel (in.)	1
Tapping Capacity Mild Steel (in.)	1
Distance Column to Spindle (in.)	10-7/8
Number of Spindle Speeds	12
Range of Spindle Speeds (Rpm)	175 – 3,050
Column Diameter (in.)	3-5/8
Spindle Taper (in. x Tpi)	MT-3
Spindle Travel (in.)	4-13/16
Spindle Distance to Base (in.)	48-1/2
Spindle Distance to Table (Max.) (in.)	28
Table Size (L x W) (in.)	18-5/8 x 16-1/8
T-Slots Number and Size (in.)	2 and 5/8
T-Slot Centers (in.)	3/4
Work Table Weight Capacity (lbs.)	176
Base Dimensions (in.)	22-5/8 x 19-7/16
Base Work Table (in.)	21-1/2 x 18-5/16
Base Slots Number and Size (in.)	2 and 5/8
Motor (Hp)	1-1/2
Voltage	115/230
Phase	Single
Weight (lbs.)	364
