Features
- Full bearing support on quill for maximum spindle stiffness
- Handwheel speed adjustment of 400 to 5,000 RPM
- Large 2-1/4″ quill for greater accuracy
- 3″ column diameter for maximum head support
- 6″ stroke for deep hole application
- Accurate depth stop for precice hole depths
- 1/2″ drill chuck and arbor included
- Safety collar
What’s in The Box

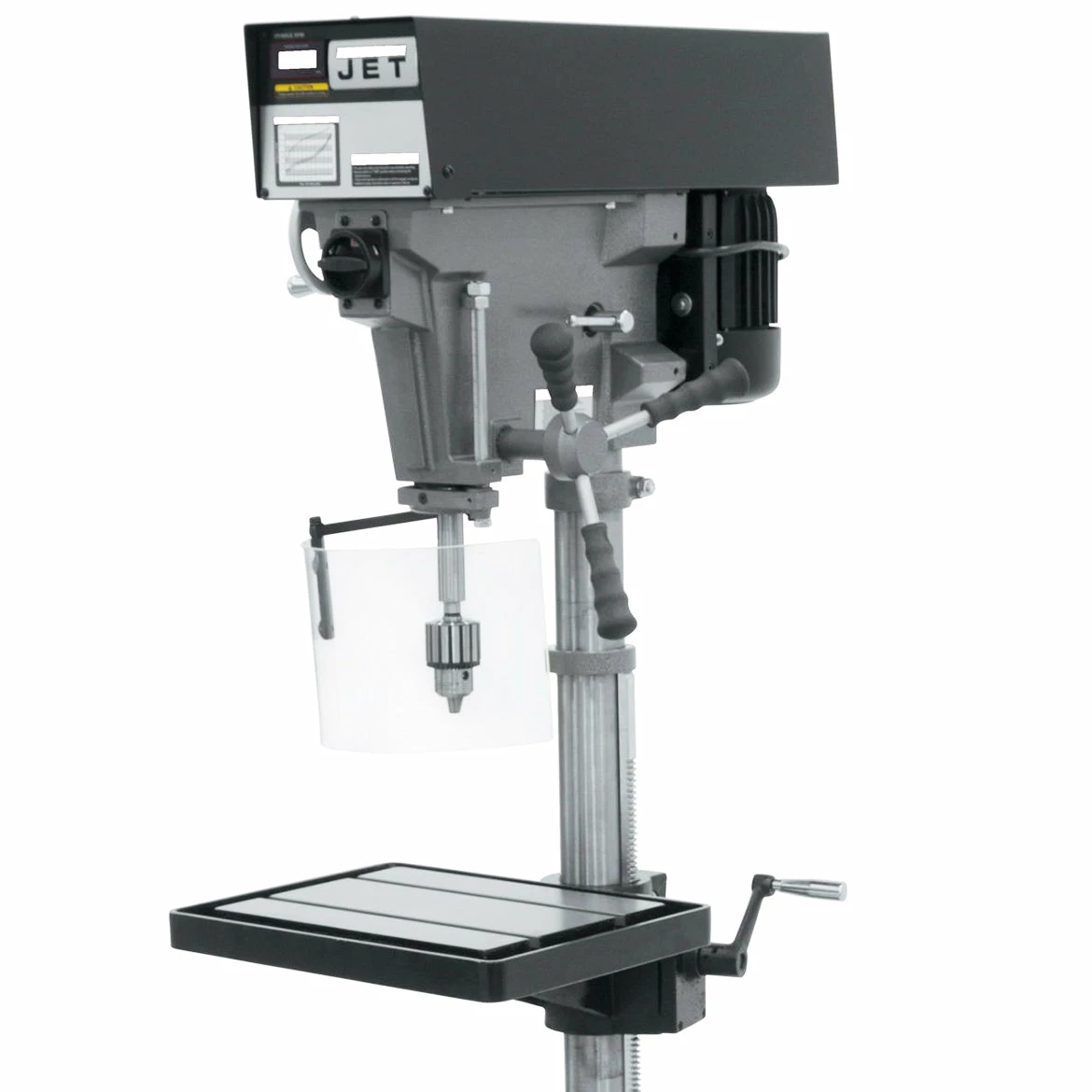

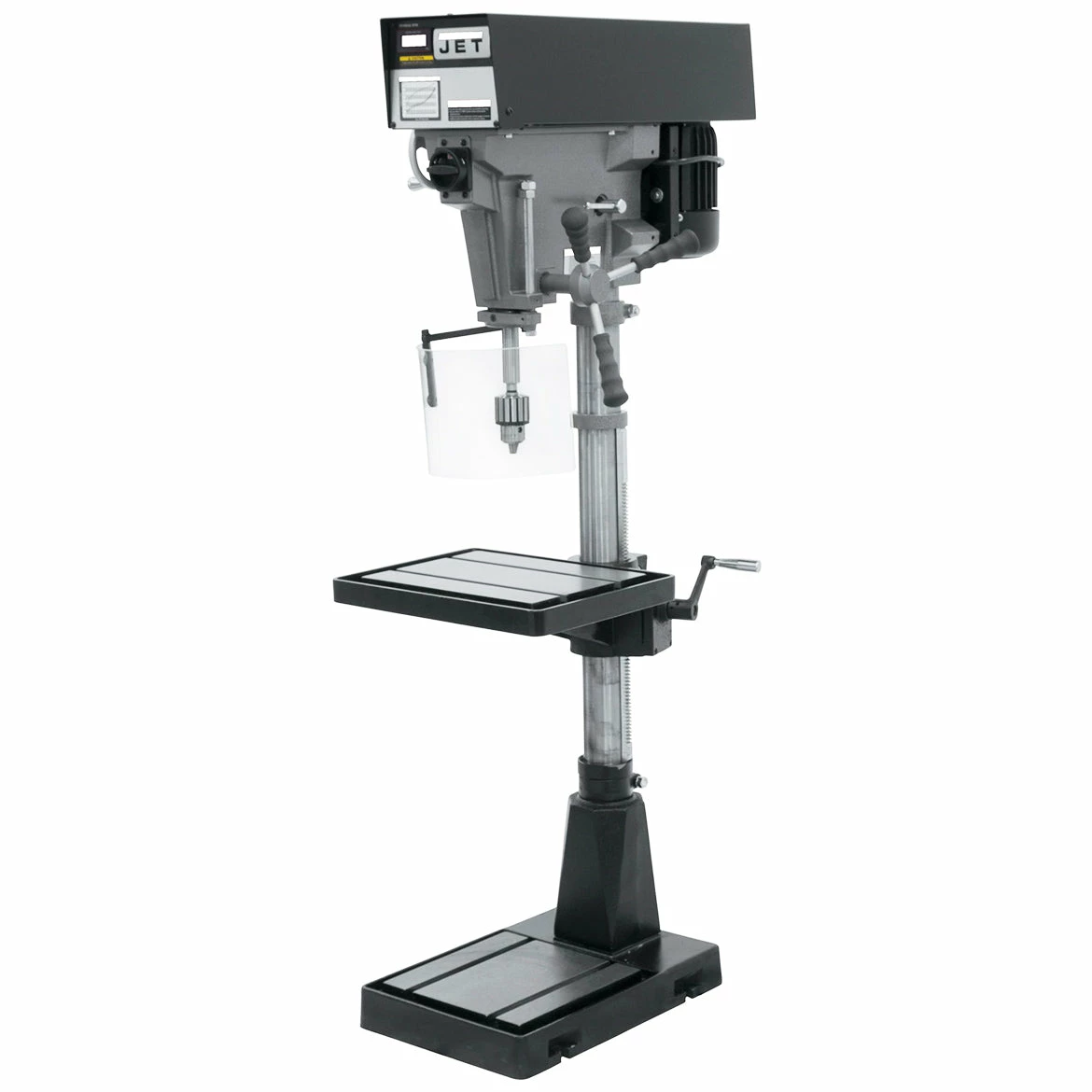

- JET J-A5816, 15″ Variable Speed Floor Model Drill Press 115/230V 1PH
- Owner’s Manual
Warranty
- 2-Year Limited Factory Warranty
- 30 Day Satisfaction Guaranteed
Specifications
| Model | 354550 |
| UPC | 662756092687 |
| Style (Type) | Variable |
| Drills to Center of Circle (in) | 15 |
| Drilling Capacity Cast Iron (In.) | 5/8 |
| Drilling Capacity Mild Steel (In.) | 1/2 |
| Distance Column to Spindle (In.) | 7-1/2 |
| Number of Spindle Speeds | Variable |
| Range of Spindle Speeds (RPM) | 400 – 5,000 |
| Column Diameter (In.) | 3 |
| Spindle Taper (In. x TPI) | MT-2 |
| Spindle Travel (In.) | 6 |
| Spindle Distance to Base (In.) | 44-1/2 |
| Spindle Distance to Table (Max.) (In.) | 25-3/4 |
| Table Size (L x W) (In.) | 15 x 18 |
| Table Travel (In.) | 16-3/4 |
| T-Slots Number and Size (In.) | 2 and 1/2 |
| T-Slot Centers (In.) | 5-5/16 |
| Work Table Weight Capacity (Lbs.) | 90 |
| Base Dimensions (In.) | 20-7/16 x 14-3/16 |
| Base Work Table (In.) | 12-1/8 x 11-13/16 |
| Base Slots Number and Size (In.) | 2 and 1/2 |
| Motor (HP) | 1 HP, 115/230V, 1Ph |
| Overall Dimensions (L x W x H) (In.) | 30 x 20 x 71 |
| Weight (Lbs.) | 426 |
