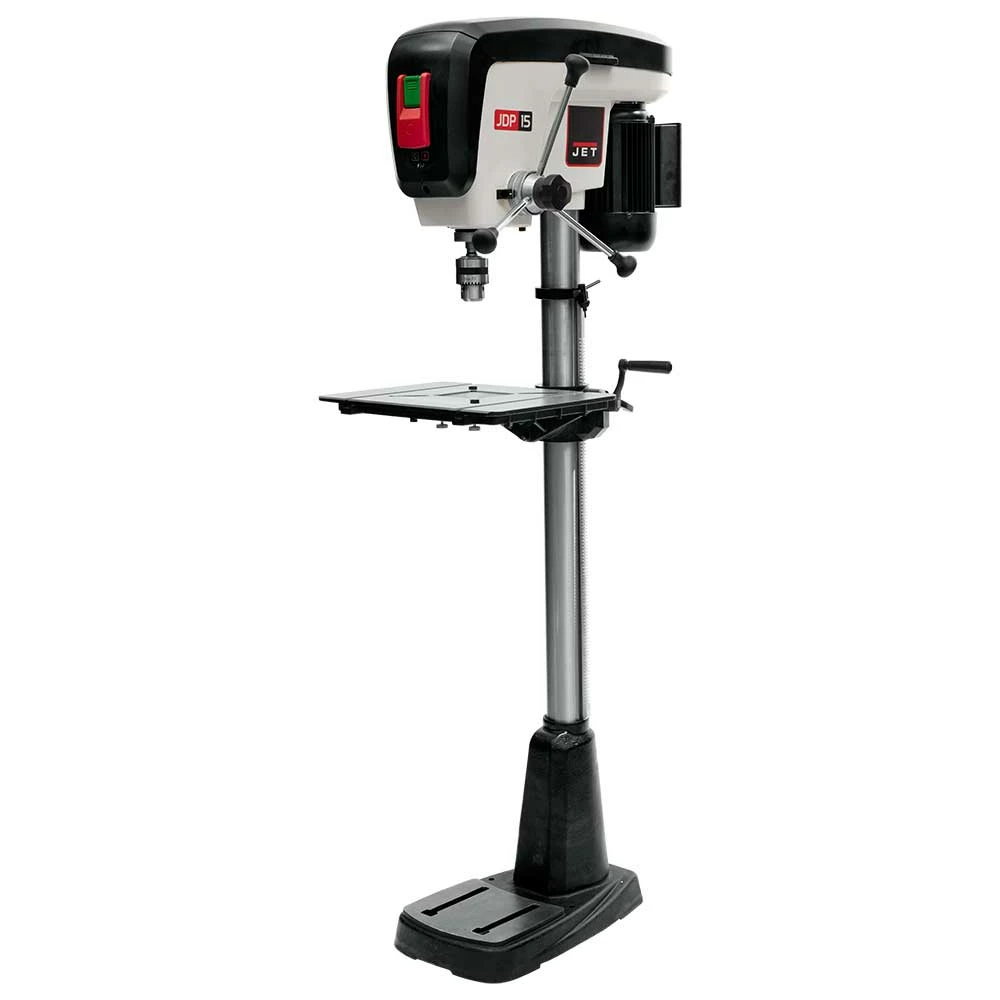

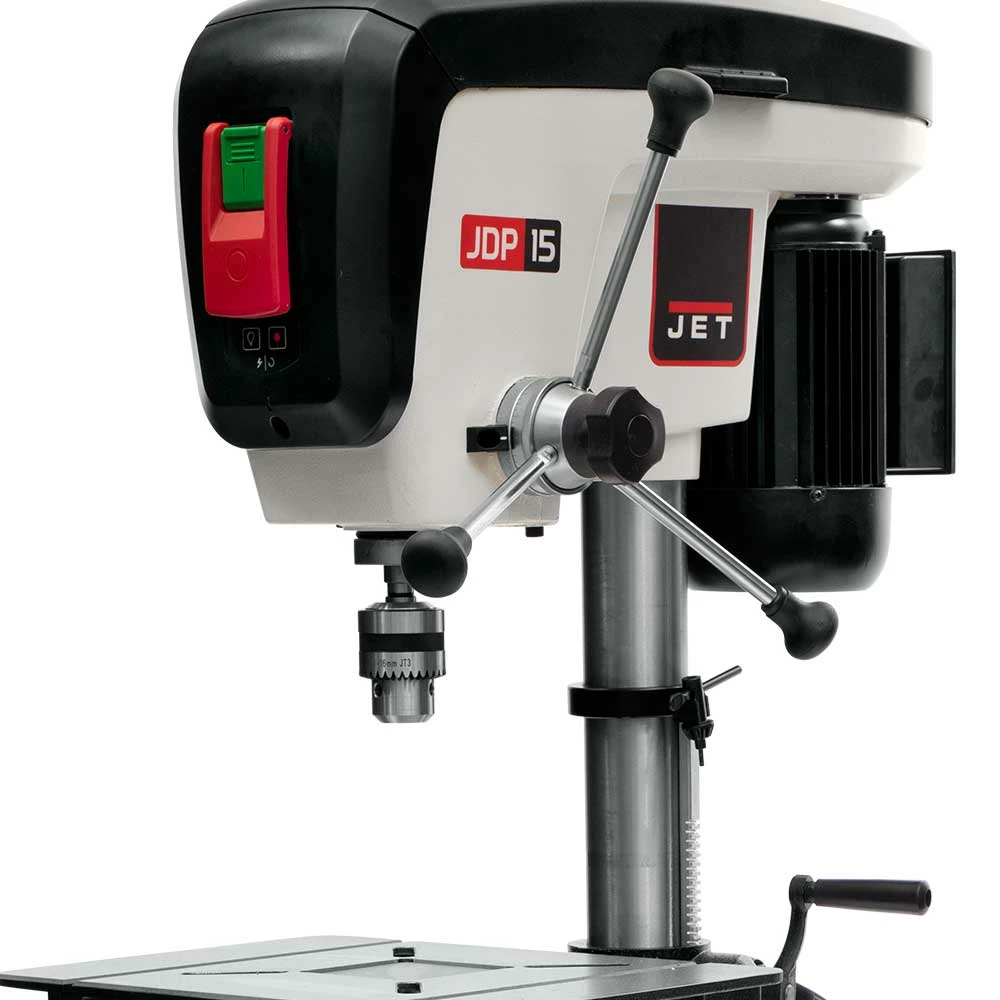

Jet JDP-15F 15-Inch Belt Tensioning Depth Floorstanding Drill Press – 716250 Tools & Equipment

Original price was: $435.00.Current price is: $91.99.

Elevate Your Shopping Experience

Quality You Can Count On

Your Security is Our Promise

Safe Payments for a Better Shopping Experience

Spindle travels a full 3-1/8 with one revolution of the handle
Large 12-1/2 x 17 precision ground work table features twin T-slot grooves and 4 table slots to accommodate any project
One-handed belt tensioning allows for rapid speed changes
Power switch features a safety key and large, paddle-style off button
Integrated depth stop makes repetitive drilling quick and easy
Xacta-X laser system easily identifies the drill center
Long-lasting, built-in LED work light reduces shadows
Table edge lip designed to make clamping easy
Replaceable MDF table insert
Large cast iron base provides stability

Sku	JDP-15F
Model	716250
Brand	Jet
Height	12.81
Length	58
Gross Weight	183
Volume	10.508
Width	24.44
Motor Power (HP)	3/4
Number of Spindle Speeds	16
Motor Voltage (V)	115
Spindle Speed Range (RPM)	210 – 3500
Spindle Distance to Table (Max.) (In.)	30-1/2
Style (Type)	SV_1375591258781
Table Tilt (Deg.)	45 Left and Right
Column Diameter (In.)	2-3/4
Swing (In.)	15
Chuck Size (In.)	5/8
Base Size (In.)	18-7/8 x 11-3/8
Motor Amps	9
Table Size (L x W) (In.)	12-1/2 x 17
Spindle Travel (In.)	3-1/8
Motor Phase (PH)	1
Prewired Voltage (V)	115
Weight (Lbs.)	172
Spindle Taper	MT2/JT3
Spindle Distance to Base (In.)	46-1/2
Assembled Machine Dimensions (L x W x H) (In.)	27 x 17 x 63-1/4
