Jet JDP-17 17″ 3/4HP Drill Press 716300 Tools & Equipment

Features

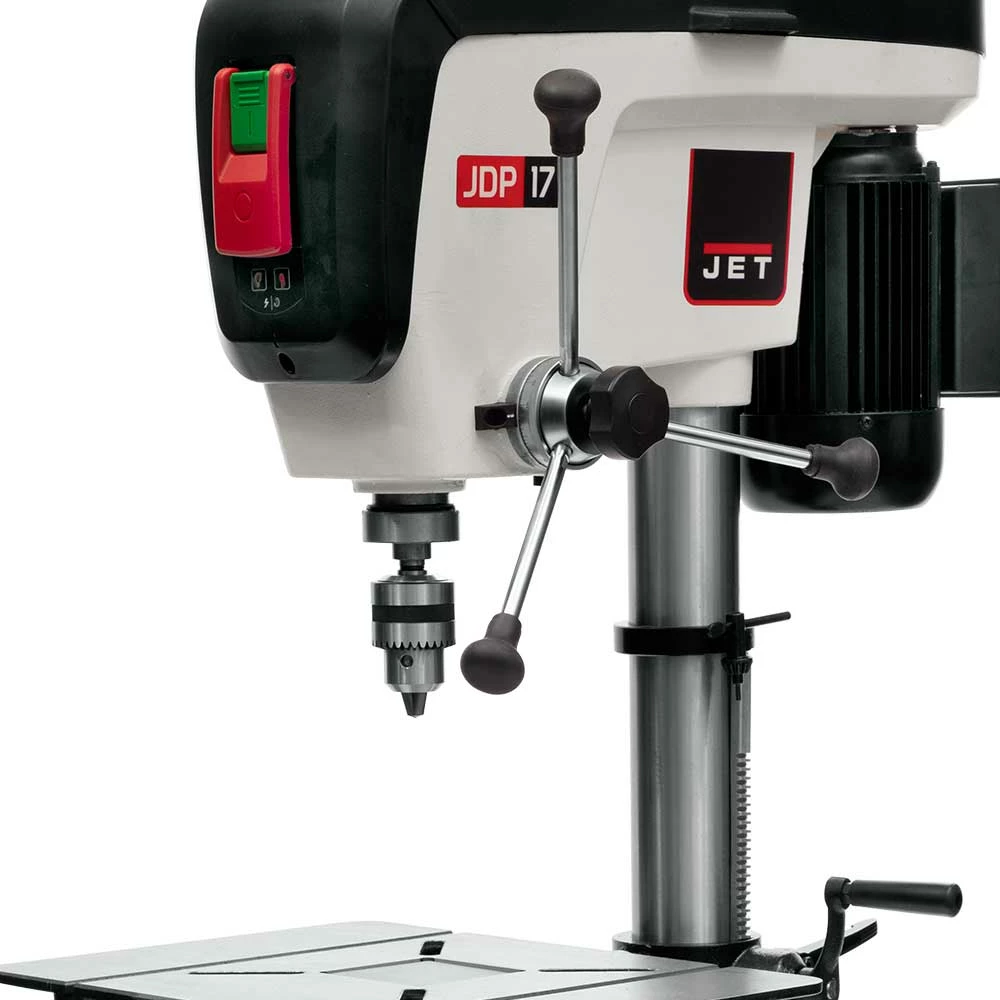

• Introducing the new JET JDP-17, 17 Drill Press. From a full 5 of spindle travel to the sturdy cast iron head with a poly v-belt drive system, this drill press is designed to perform. This drill press also features a long-lasting, built-in LED work light to provide direct lighting while reducing shadows. A large 14 x 19 work table provides plenty of support with an edge designed for easy clamping.
• Spindle travels a full 5 with one revolution of the handle
• Large 14 x 19 precision ground work table features twin T-slot grooves and 4 table slots to accommodate any project
• One-handed belt tensioning allows for rapid speed changes
• Power switch features a safety key and large, paddle-style off button
• Integrated depth stop makes repetitive drilling quick and easy
• Xacta-X laser system easily identifies the drill center
• Long-lasting, built-in LED work light reduces shadows
• Table edge lip designed to make clamping easy
• Replaceable MDF table insert
• Large cast iron base provides stability
• Powered by an efficient 3/4HP, 1Ph, 115V TEFC motor and poly-v belt drive system
• CSA Certified

What’s in The Box

• 17 Drill Press 716300

Warranty

• JET Red Assurance 2-Year Warranty. JET warrants every product it sells. If one of our tools needs service or repair, one of our Authorized Service Centers located throughout the United States can give you quick service. In most cases, any of these JPW Industries Authorized Service Centers can authorize warranty repair, assist you in obtaining parts, or perform routine maintenance and major repair on your JET tools.
• 30 Day Satisfaction Guaranteed

Specifications

Style (Type)	Floorstanding Model
Swing (In.)	16-7/8
Spindle Travel (In.)	5
Number of Spindle Speeds	16
Spindle Speed Range (RPM)	210 – 3500
Spindle Distance to Table (Max.) (In.)	30
Table Size (L x W) (In.)	14 x 19
Table Tilt (Deg.)	90 Left and Right
Chuck Distance to Base (In.)	42-7/8
Chuck Distance to Table (In.)	25-7/8
Chuck Size (In.)	5/8
Column Diameter (In.)	3-5/32
Base Size (In.)	20 x 12-5/8
Motor Power (HP)	3/4
Motor Phase (PH)	1
Motor Amps	6.8
Recommended Circuit Size (Amps.)	15
Weight (Lbs.)	187
