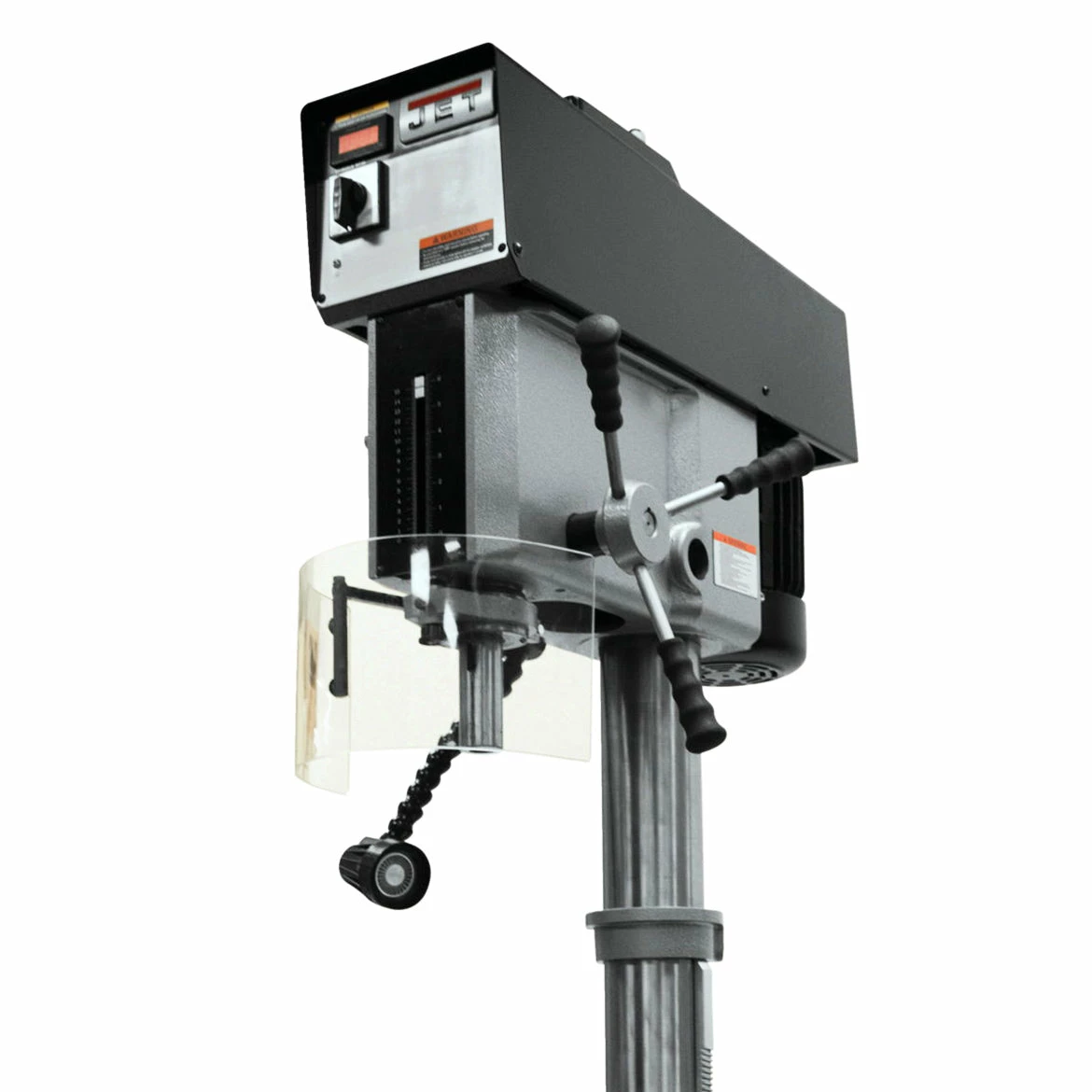

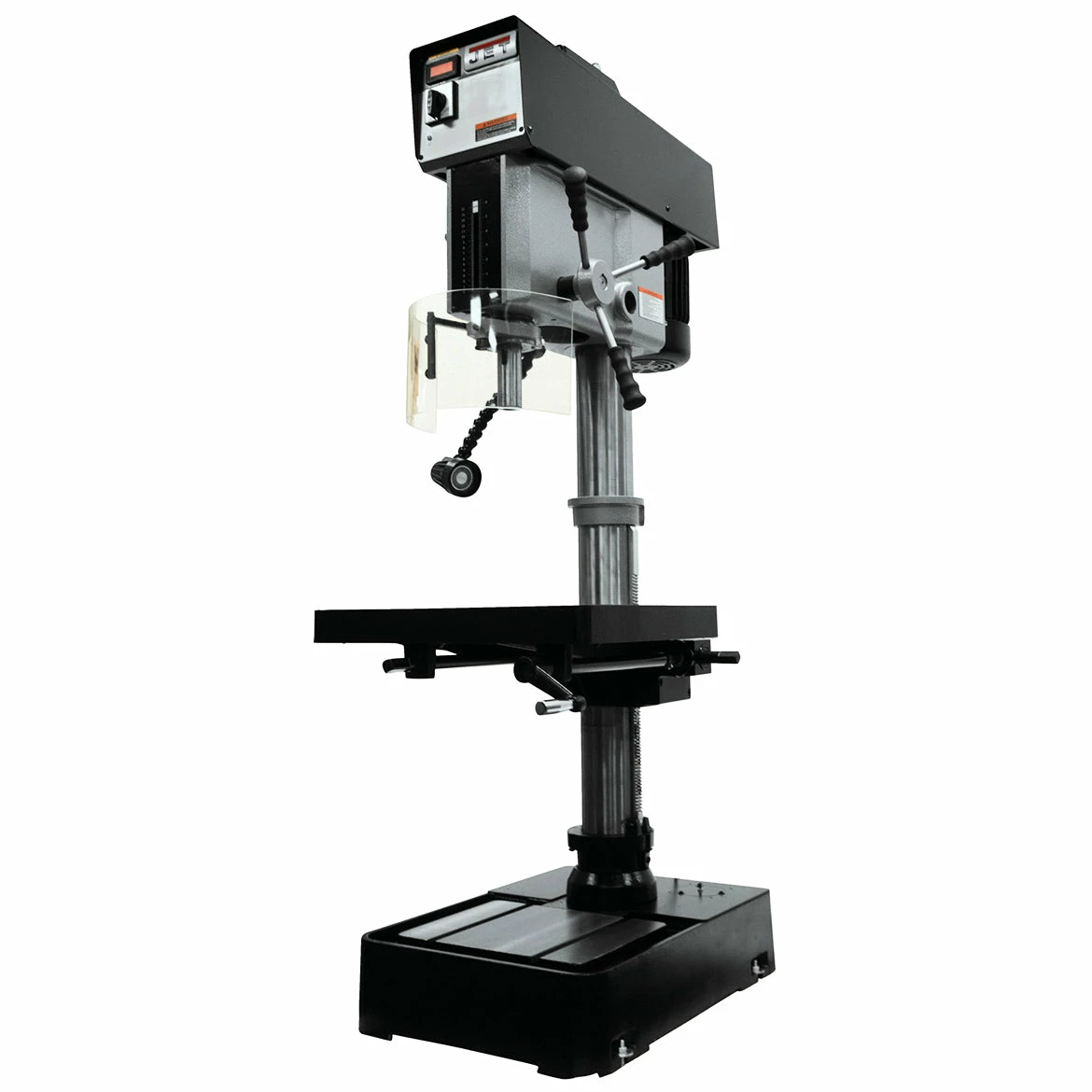

JET JDP-20VS-3 2-Hp 230/460V 20″ Heavy Duty Variable Speed Drill Press

Features

• Steel Column
• Heavy Duty Casted Iron Design
• Head is massively constructed for more accuracy and rigidity
• Large Precision Ground T-slot Production Table for easy set ups
• Massive 3-Inch Quill Diameter
• Following strict guidelines and electrical requirements, these JET Drills are CSA/CUS certified
• LED Machine Lamp
• Spindle Guard
• Variable Spindle Speeds from 65 – 2,000 RPM’s
• Front Mounted LED Spindle RPM Readout
• Front Mounted Postitive Control Depth Stop

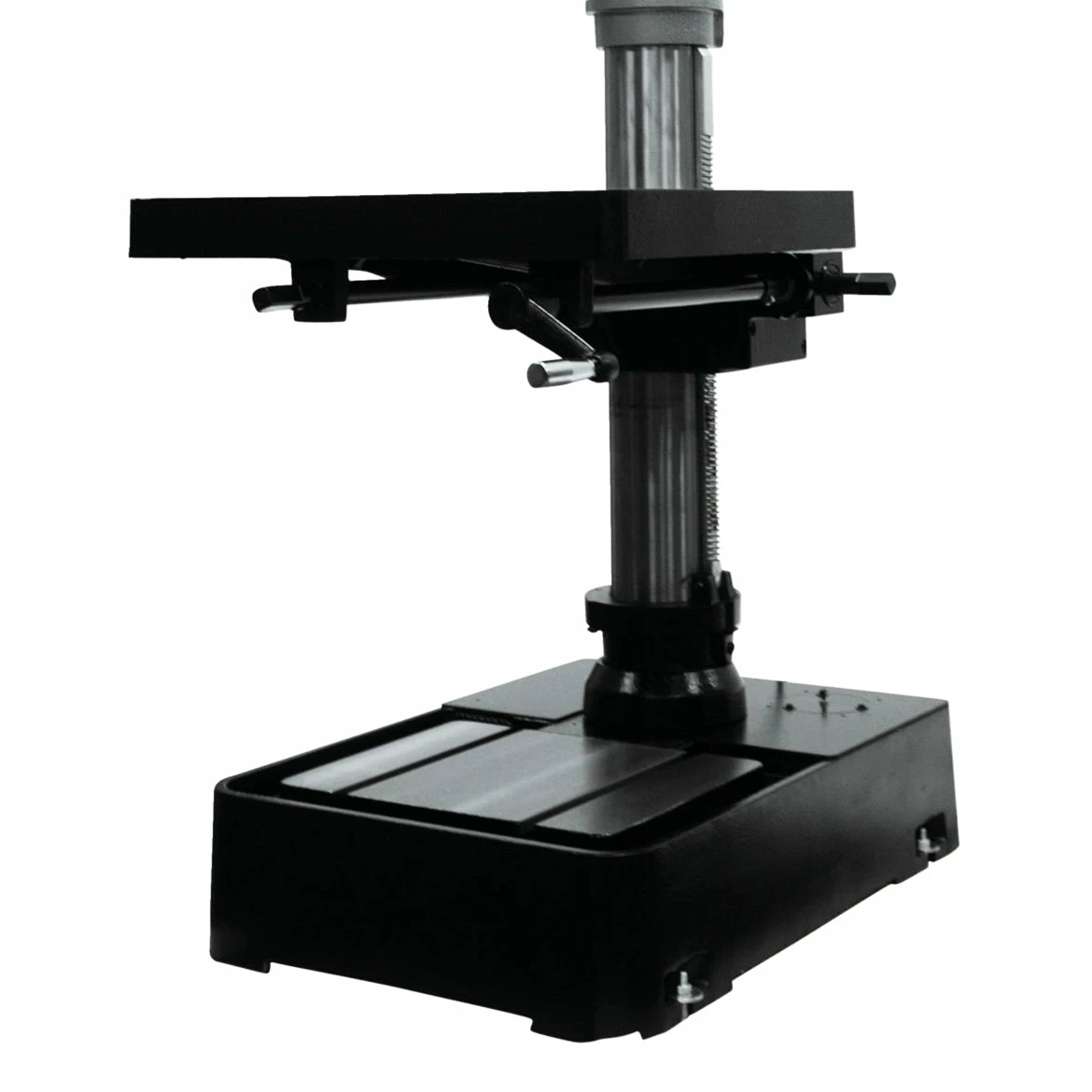

• Table rotates 360 Degree around the column
• Machine T-Slotted base
• Large Hand Grips designed with the Users comfort in mind
• Spindle Safety Guard
• LED Machine Lamp

What’s in The Box

• 20-Inch 2 HP 3-Phase Steel Variable Speed Drill Press – 354231
• Owner’s Manual

Warranty

• 2-Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

Sku	354231
Model	JDP-20VS-3
Brand	Jet
Voltage	230/460V
Motor (HP)	2
Phase	3
Style (Type)	Variable Speed
Drills to Center of Circle (in)	20
Drilling Capacity Cast Iron (In.)	1-1/2
Drilling Capacity Mild Steel (In.)	1-3/8
Distance Column to Spindle (In.)	10 7/16
Number of Spindle Speeds	Variable
Range of Spindle Speeds (RPM)	300 – 2,000
Column Diameter (In.)	4-1/2
Spindle Taper (In. x TPI)	MT-3
Spindle Travel (In.)	6
Spindle Distance to Base (In.)	44-1/2
Spindle Distance to Table (Max.) (In.)	30-1/4
Table Size (L x W) (In.)	22 x 18-3/4
Table Travel (In.)	20
T-Slots Number and Size (In.)	3 and 5/8
T-Slot Centers (In.)	7-7/16
Work Table Weight Capacity (Lbs.)	154
Base Dimensions (In.)	27 x 19
Base Slots Number and Size (In.)	2 and 5/8
Weight (Lbs.)	780
Overall Dimensions (L x W x H) (In.)	38.18 x 27.16 x 79.52
