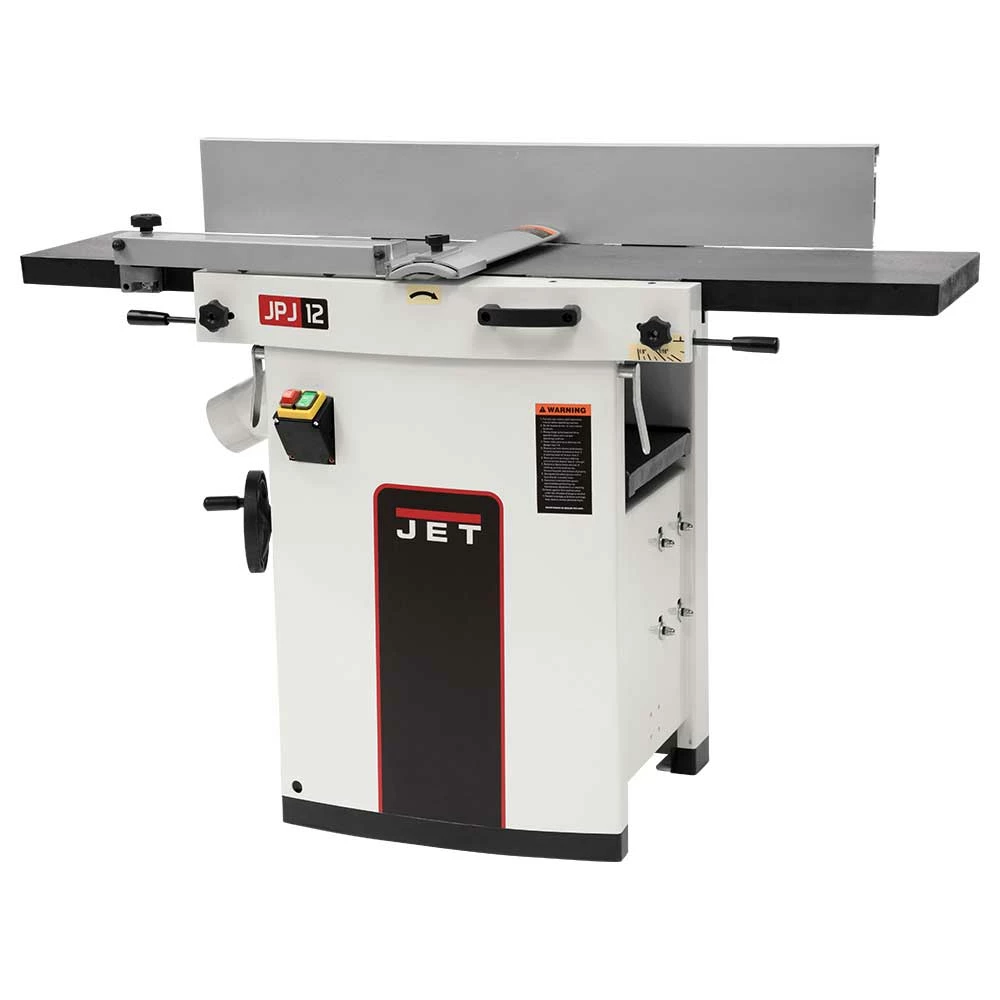

JET JJP-12HH 3-Hp 230V 12″ Heavy Duty Planer/Jointer W/ Helical Head

Features

• Helical cutterhead with indexable carbide inserts for a superior finish and quieter cut
• Parallelogram design keeps the table close to the cutterhead for improved finish and allows for precise depth of cut adjustments
• Extra large aluminum extruded fence with centered controls for quick adjustments
• Extremely quick changeover between jointing and planing functions. Fence does not need to be removed
• Powerful 3HP induction motor easily handles the toughest jointing and planing tasks
• Heavy-duty, one-piece steel closed stand includes mounting tabs for increased stability
• Built-in dust chute with 4″ dust port used for both jointing and planing operations
• Large handwheel for quick and precise adjustments of planer table
• Heavy-duty cast iron tables with a machined finish to ensure accuracy and flatness
• Magnetic switch provides safer and more reliable operation

What’s in The Box

• JJP-12HH 3-Hp 230V 12″ Heavy Duty Planer/Jointer w/ Helical Head
• Owner’s Manual

Warranty

• JET Red Assurance 2-Year Warranty
• 30 Day Satisfaction Guaranteed

Specifications

Style (Type)	Planer/Jointer
Helical Knife Size (L x W x T) (In.)	59/100 x 59/100 x 1/100
Cutterhead Diameter (In.)	2-3/4
Cutterhead Speed (RPM)	5500
Planer Cutting Capacity (W x D) (In.)	12 x 5/32
Planer Table Size (L x W) (In.)	21-1/4 x 12
Jointer Cutting Capacity (W x D) (In.)	12 x 1/8
Jointer Table Size (L x W) (In.)	55 x 12
Fence Size (L x H) (In.)	43 x 6
Fence Positive Stops (Deg.)	90, 45 R
Fence Tilt (Deg.)	90 – 45 R
Dust Collection Minimum CFM Required (CFM)	400
Dust Port Outside Diameter (In.)	4
Motor Power (HP)	3
Motor Voltage (V.)	230
Prewired Voltage (V.)	230
