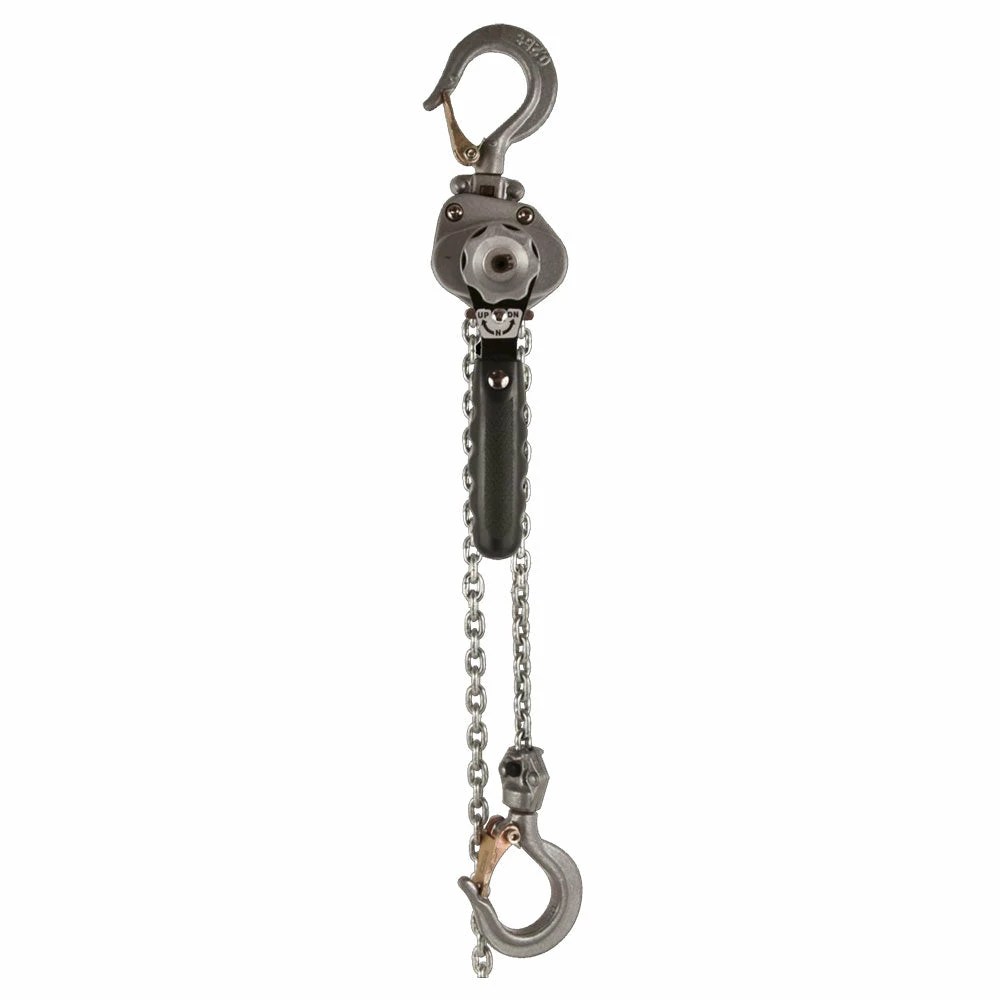

JET JLH-50-10 1/2 Ton Heavy Duty Compact Lever Hoist W/ 10′ Chain Tools & Equipment

Features

• Safety
• Weston Style Dual Pawl Brake System- Dual pawl design increases safety by splitting the load to opposite sides of the ratchet gear for greater load security
• Alloy Steel Hooks- Industrial rated hooks rotate 360 degrees for easy rigging. Hooks slowly stretch to indicate an overload situation increasing Jobsite safety
• Carrying Case- Included is a nylon carrying case for convenient transportation, reducing trips to the tool room and prevents any unnecessary damage to the hoist
• Performance
• Work to Weight Ratio- At 3.5 pounds, the 1/4 ton JLH Compact Lever Hoist can pull or hold a load more than 140 times its weight
• Compact Power- A 1/4 ton of pulling power that fits in the palm of your hand
• Durability
• Geared Drive Train- JET’s exclusive five gear drive train requires less force to lift or secure a load
• Aluminum Housing- Durable, impact-resistant, Aluminum alloy housings makes the JLH Compact lever hoist one of the lightest hoists on the market
• Grade 100 Load Chain- Corrosive resistant grade 100 load chain is stronger than grade 80 load chain extending the life of the hoist
• Cast Steel Safety Latches- Increased durability with heavy-duty safety latches secured with Allen screws and lock nuts
• Heat Treated Load Plates- Heat-treated for durability, these extend the life of the hoist in the harshest of environments
• Compact Design- Smaller body and lightweight design for low headroom applications and use in confined areas
• Standards
• Industry- Complies with OSHA Regulations, ANSI / ASME B30.21, and HST-3 Standards
• Load tested to 125 percent of capacity with certificate

What’s in The Box

• Lever Hoist
• Owner’s Manual

Warranty

• Limited Lifetime Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

SKU	JLH-50-10
Brand	Jet
Load Capacity	1/2 tons
Lift	10 ft
Overload Protection	No
Ship Yard Hooks	No
Headroom	9-7/10 in
Handle Length	6-3/10 in
Lever Pull Force (LBF)	54
Lift per Turn	1/3 in
Number of Falls	1
Load Chain Dimensions (mm)	4.3 x 12
Load Capacity	.5 metric tons
Weight	7 lbs
