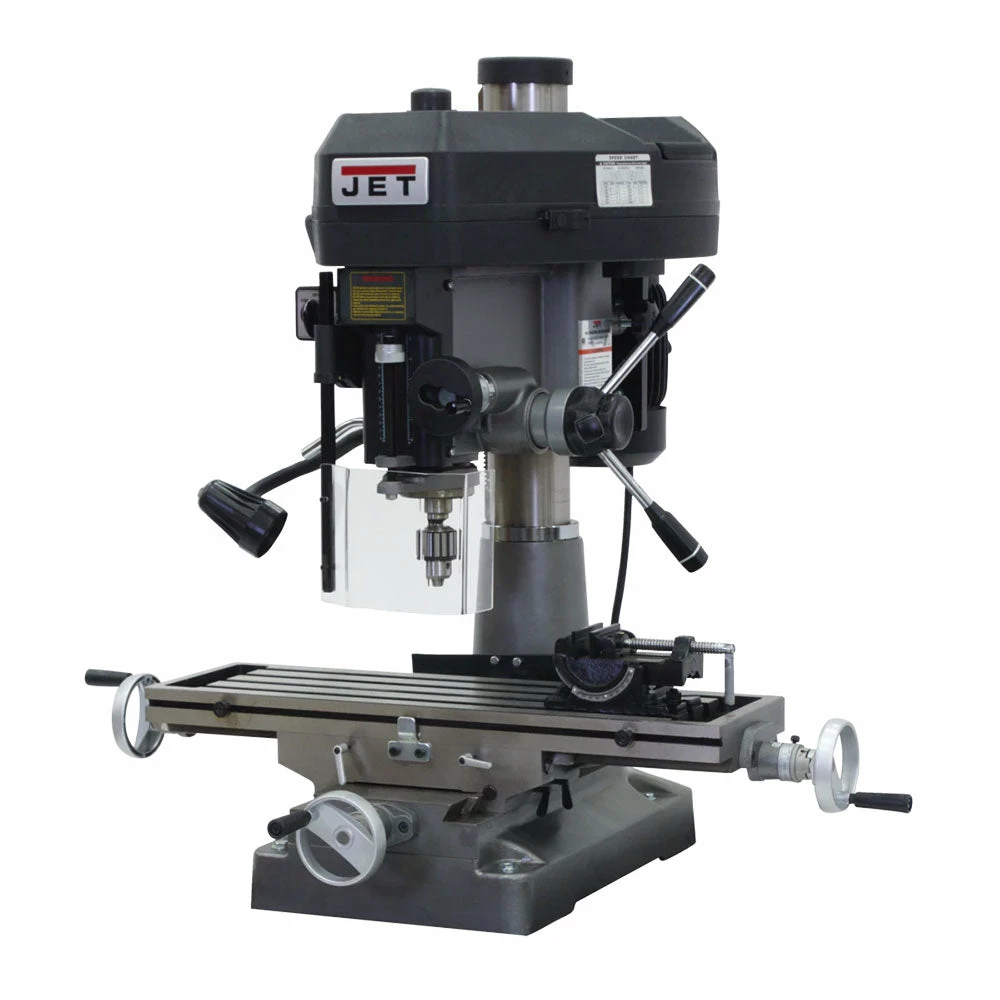

JET JMD-18PFN 115V/230V 2 HP 1 Phase Mill/Drill W/ Power Downfeed

Features

• One-piece cast iron column for added support
• Belt cover with quick slide latch allows faster belt adjustment to change spindle speeds
• The base taper allows for easier cleanup
• Drill Press angle vise
• UL Listed motor
• Extra-large worktable
• Positive quick-stop knob and easy to read internal depth gauge
• 360-degree head swivel
• Work lamp
• Heavy-duty power downfeed with manual fine feed (JMD-18PFN)
• 1/2” drill chuck, chuck arbor
• Drawbar
• Drill Chuck Guard
• Adjustable Carbide face mill

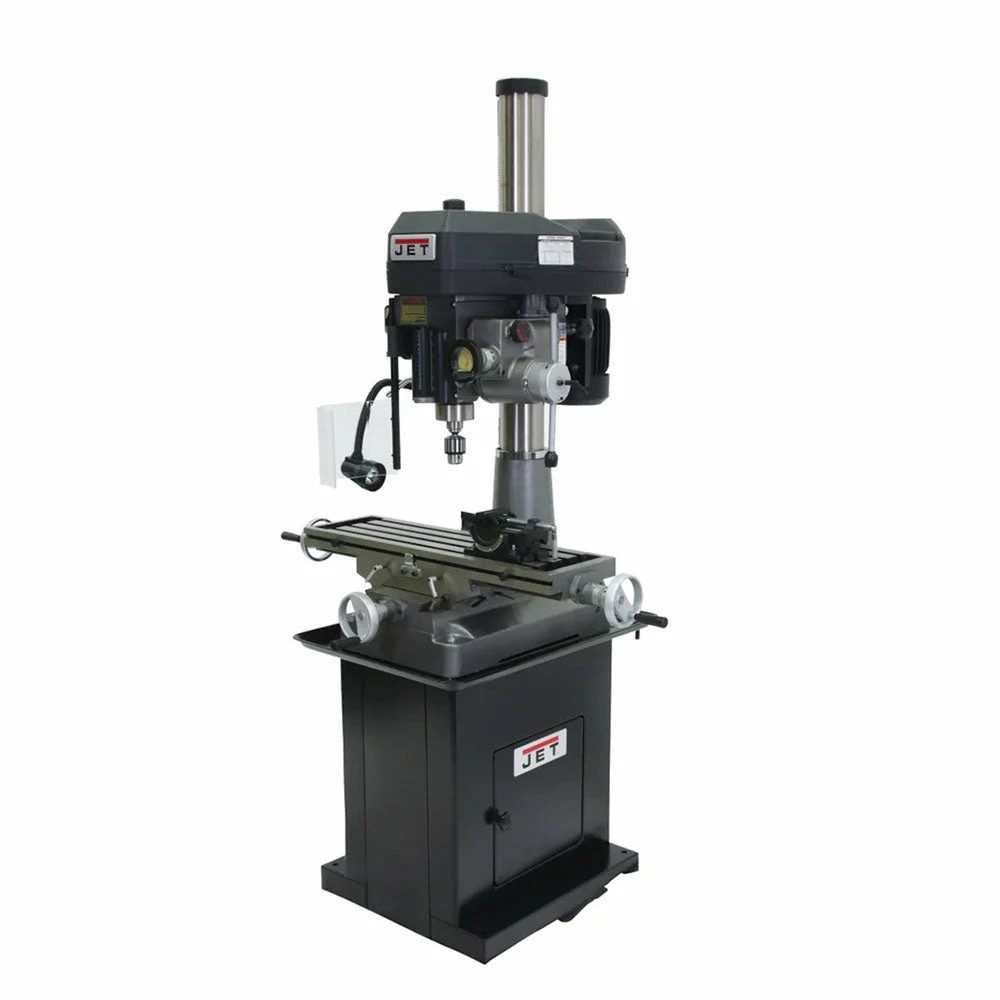

• Mill Drill Stand, p/n 320020, shown in some images, is optional

What’s in The Box

• Mill/Drill w/ Power Downfeed
• Owner’s Manual

Warranty

• 2 Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

SKU	JMD-18PFN
Brand	Jet
Volts	115/230
Horsepower	2
Phase	1
Powerfeed	Downfeed
Drilling Capacity	1-1/4 in
Face Mill Capacity	3 in
End Mill Capacity	3/4 in
Swing	15-7/8 in
Max Distance Spindle to Table	28 in
Spindle Taper (in x TPI)	R-8
Spindle Travel	5 in
Spindle Travel Auto	4-1/4 in
Quill Down Feed Rates (IPR)	0.0047, 0.007, 0.001
Quill Diameter	3
Column Diameter	4-1/2 in
Number of Spindle Speeds	12
Range of Spindle Speeds (RPM)	150 -3000
Table Size (LxW)	9-1/2 x 31-3/4 in
Table Longitudinal Travel	20-1/2 in
Work Table Weight Capacity	400 lbs
T-Slots Number and Size	4 and 5/8 in
T-Slot Centers	1-13/16 in
Dimensions (L x W x H)	47 x 40 x 51
Weight	700 lbs
