Jet JOSS-S 1-Hp Single Phase Oscillating Floor Spindle Sander – 723950 Tools & Equipment

Features

• 4 dust ports connect to your dust collection system for a clean work area

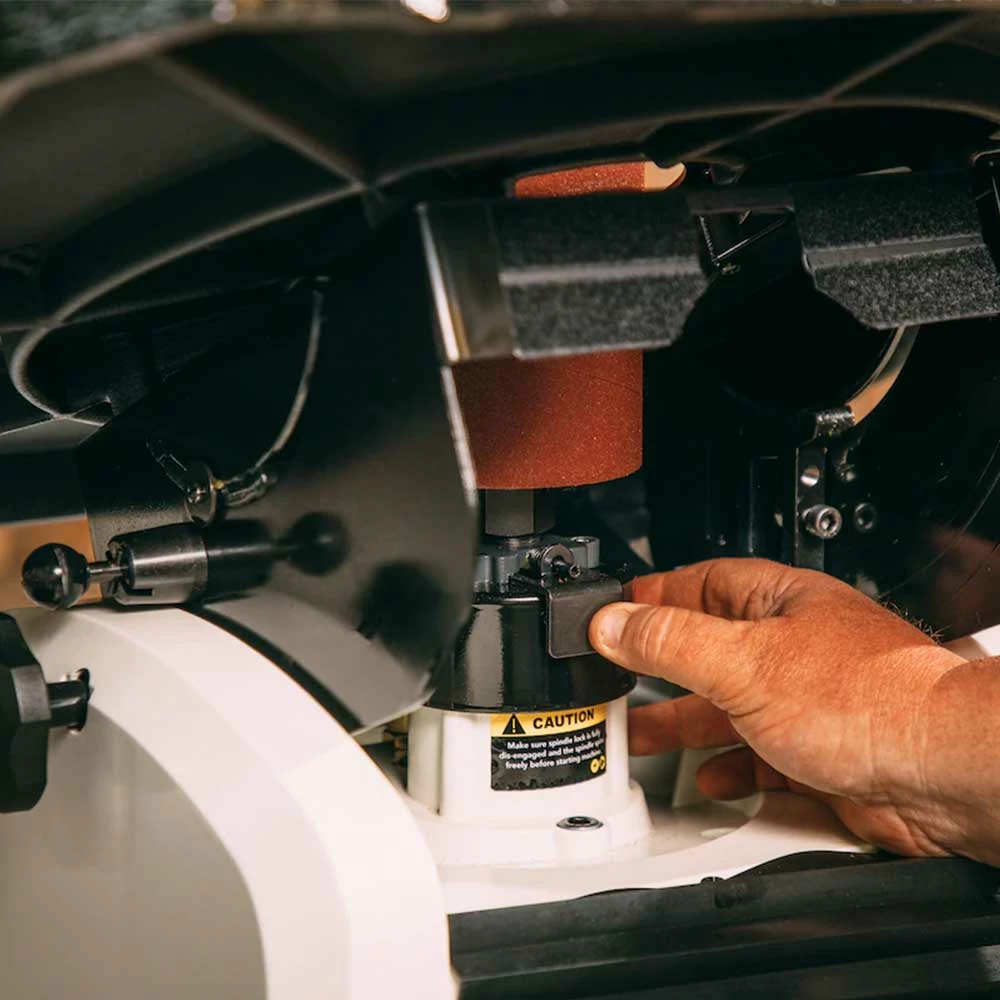

• Spindle lock for quick and easy spindle changes
• Table tilts 45 degrees front and 15 degrees back and features a 90 degree quick index
• Integrated storage provides designated slots for spindles and table inserts
• Sealed access door minimizes dust in the storage area
• 1-1/2 in. oscillating action reduces friction heat to protect wood and prolong sleeve life
• Main spindle support runs on precision ball bearings and is oscillated by a heavy-duty worm and gear mechanism for consistent performance
• Integrated paddle switch with safety key
• Powerful 1 HP motor is independently mounted inside the base for easy access and service
• Worm and gear mechanism runs in an oil bath for prolonged life and durability

What’s in The Box

• JOSS-S 115-Volt 1-Hp Single Phase Oscillating Floor Spindle Sander – 723950
• (10) Spindle Assembly (in.) – 1/4, 3/8, 1/2, 5/8, 3/4, 1, 1-1/2, 2, 3 ,4
• Owner’s Manual

Warranty

• 5 Year œ Woodworking Machinery
• 2 Year œ Woodworking Machinery used for industrial or commercial purposes
• 90 Days œ On Parts; Consumable items
• 30 Day Satisfaction Guaranteed

Specifications

Model	JOSS-S
Sku	723950
Brand	Jet
Length (in.)	24.5
Width (in.)	24.5
Height (in.)	44
Weight (lbs.)	216
AC Voltage	115
Dust Collection Min. CFM	300
Dust Port Size (in.)	4
Horsepower	1
Motor Phase	1
Spindle Speed (RPM)	1,720
Table Dimensions (in.)	24-1/2 x 24-1/2
Table Height from Floor (in.)	39-3/16
Table Tilt (Down) (Degrees)	-60
Type	Stationary
