Jet JSG-96CS 3/4HP 1Ph 115V 6″x48″ Belt / 9″ Disc Sander, Closed Stand 708597K Tools & Equipment

Features

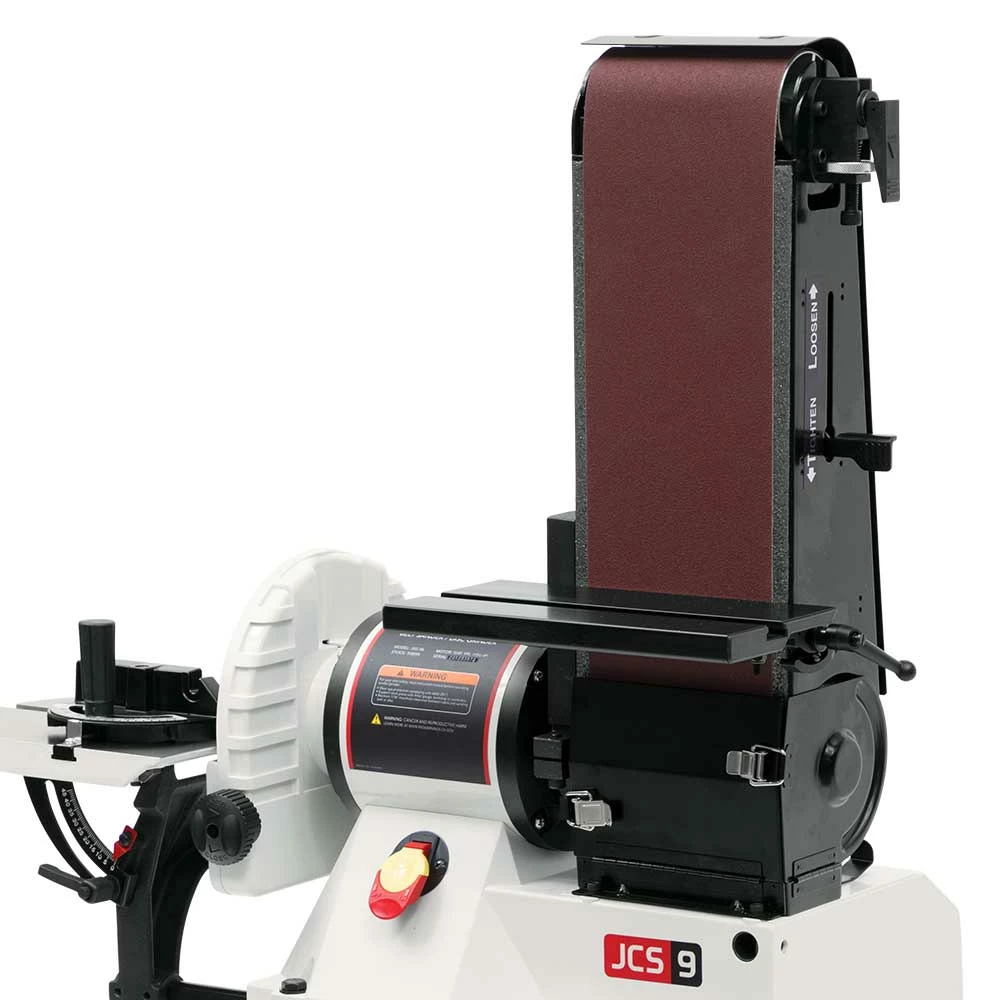

• Large cast iron table has preset stops at 90aDegree and 45aDegree to let you use the belt sander vertically, horizontally or anywhere in between
• Exclusive dual thumbscrew belt tracking adjustment locks to keep belt on track during use
• Graphite covered steel platen runs cooler increasing machine and belt life
• Specially designed belt guard allows full use of the 6 belt width and length
• Drive drum is rubber-coated for a better grip on the sanding belt resulting in less slippage
• Tracking adjustment knob with quick-lock handle keeps belt on track during use
• Quick-release belt tension lever makes belt changes fast and easy
• Quick-lock dust cover allows fast disc changes
• Single 4 dust port on the back of the base collects dust effectively from both the belt and disc
• Powerful 3/4HP motor easily handles the toughest sanding operations
• Built-in handles for easier portability

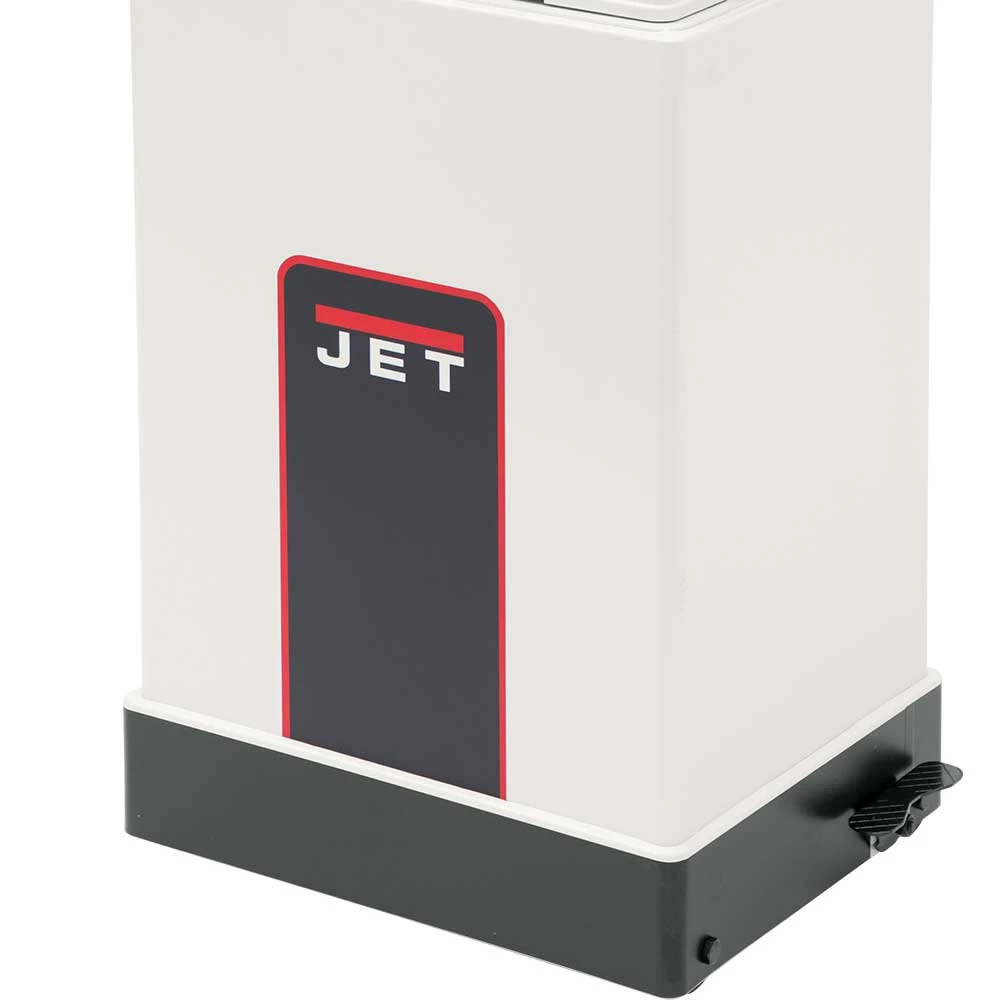

• One-piece formed steel heavy-duty closed stand provides additional support and additional storage for abrasives
• Integrated locking wheels for easy mobility

What’s in The Box

• JSG-96CS, 6 x 48 Belt / 9 Disc Sander with Closed Stand, 3/4HP 1Ph, 115V 708597K
• Owner’s Manual

Warranty

• 2-Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

Style (Type)	Closed Stand
Disc Diameter (In.)	9
Disc Speed (RPM)	1725
Disc Table Tilt (Deg.)	10 Up, 45 Down
Disc Table Size (L x W) (In.)	12 x 7-1/2
Sanding Belt Size (L x W) (In.)	48 x 6
Belt Speed (RPM)	2258
Belt Table Tilt (Deg.)	10 Up, 45 Down
Belt Table Size (L x W) (In.)	11 x 5-1/2
Dust Port Outside Diameter (In.)	4
Motor Power (HP)	3/4
Motor Phase (PH)	1
Motor Voltage (V)	115
Prewired Voltage (V)	115
Motor Amps	11
