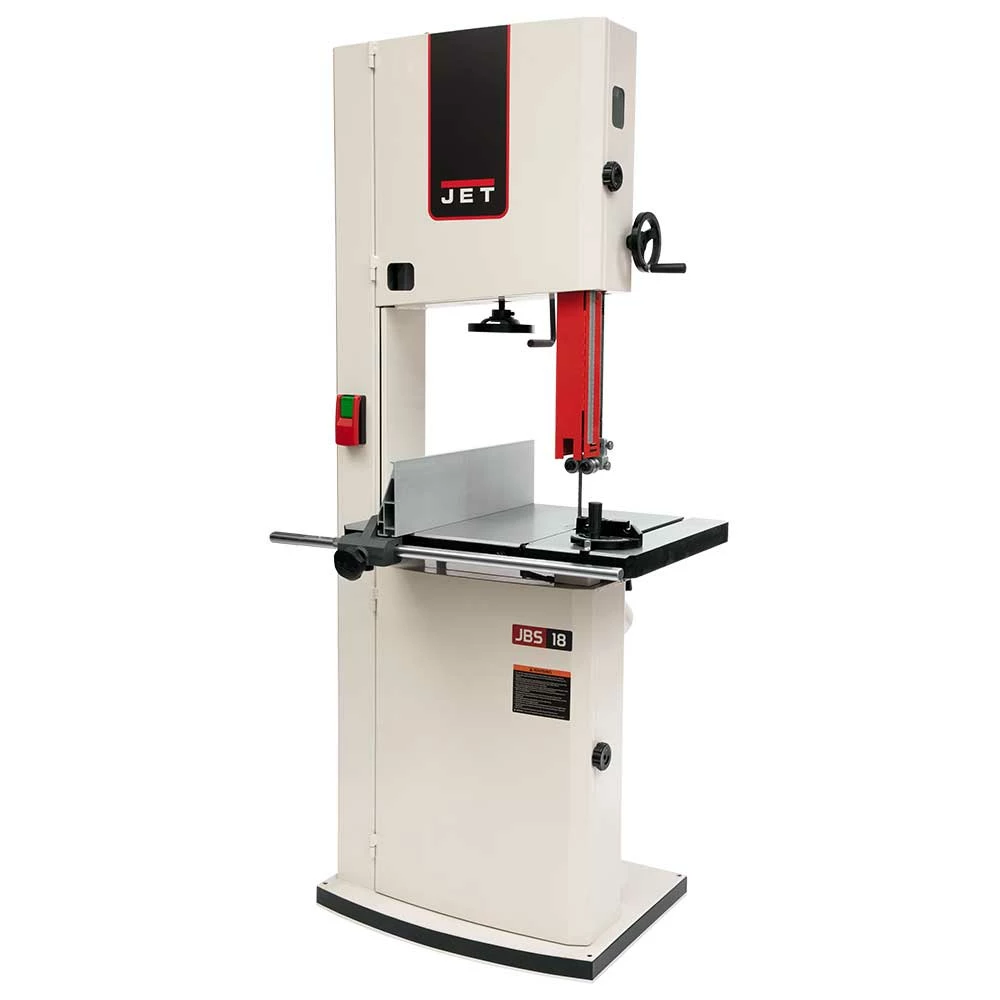

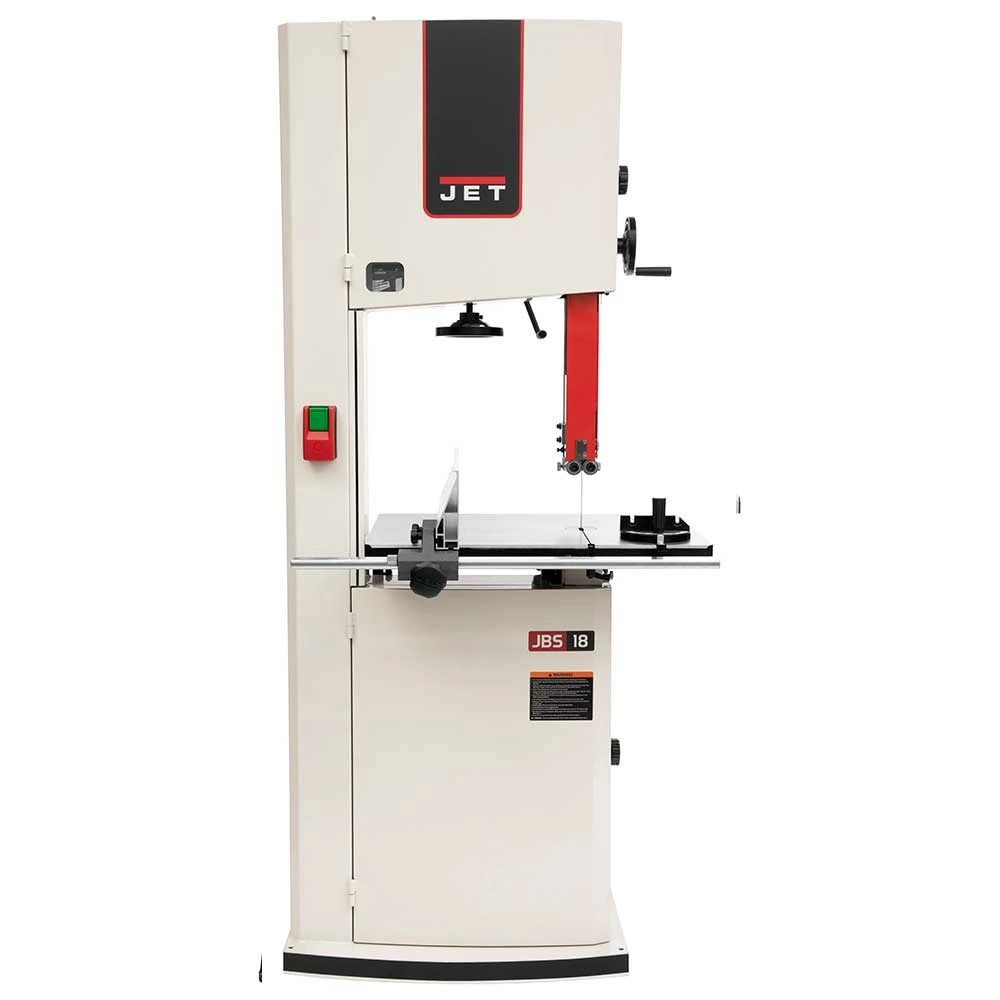

JET JWBS-18-3 3-Hp 230V 18″ Heavy Duty Bandsaw W/ Cast Iron Fence System Tools & Equipment

Features

• 16″ Resaw capacity for cutting large pieces of wood, slicing veneers and cutting book matched panels
• 27-1/4″ x 20″ precision ground cast iron table for added stability and work support
• Fence system features a micro-adjustable, dual-position side plate
• Tool-less, independently adjustable, upper and lower ball bearing guides
• Rigid, four-sided guide post with rack and pinion adjustment for optimum blade support
• Easy-to-read blade tension scale can be viewed through upper door window
• Single knob adjustment simplifies the blade tracking process
• Blade tracking window provides clear view of blade during tracking
• Heavy duty tensioning with quick release features three settings: full tension, partial tension and full release
• Cast iron trunnion for maximum support and stability
• Slotted table allows for front blade removal
• Cast iron handwheels and ergonomically designed knobs make adjustments smooth and easy
• Round table insert features leveling screws for precise adjustment
• Conveniently located dual 4″ dust collection ports catch dust and chips at the source
• Table tilts 5Degree left and 45Degree right to accommodate a wide variety of cuts

What’s in The Box

• 18-Inch 230-Volt 3-Hp Stationary Bandsaw
• Owner’s Manual

Warranty

• 5-Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

Sku	714750
Brand	Jet
Model	JWBS-18-3
Voltage	230V
Horsepower	3 Hp
Phase	1
Recommended Circuit Size	30A
Band Saw Size	18-1/2 in.
Cutting Capacity Width	18 in.
Cutting capacity Height	16 in.
Blade Length	150 in.
Blade Speed	2,300 / 3,800 Sfpm
Table Size (L x W)	27-1/4 in. x 20 in. x 1-5/8 in.
Blade Width	3/4 in. x 6 tpi
Max. Saw Blade Width	1-1/4 in.
Min. Saw Blade Width	1/8 in.
Table Tilt	-5-Degrees, 45-Degrees
Table Height From Floor	37 in.
Dust Collection Minimum Cfm Required	400 Cfm
Dust Port Outside Diameter	(2) 4 n.
