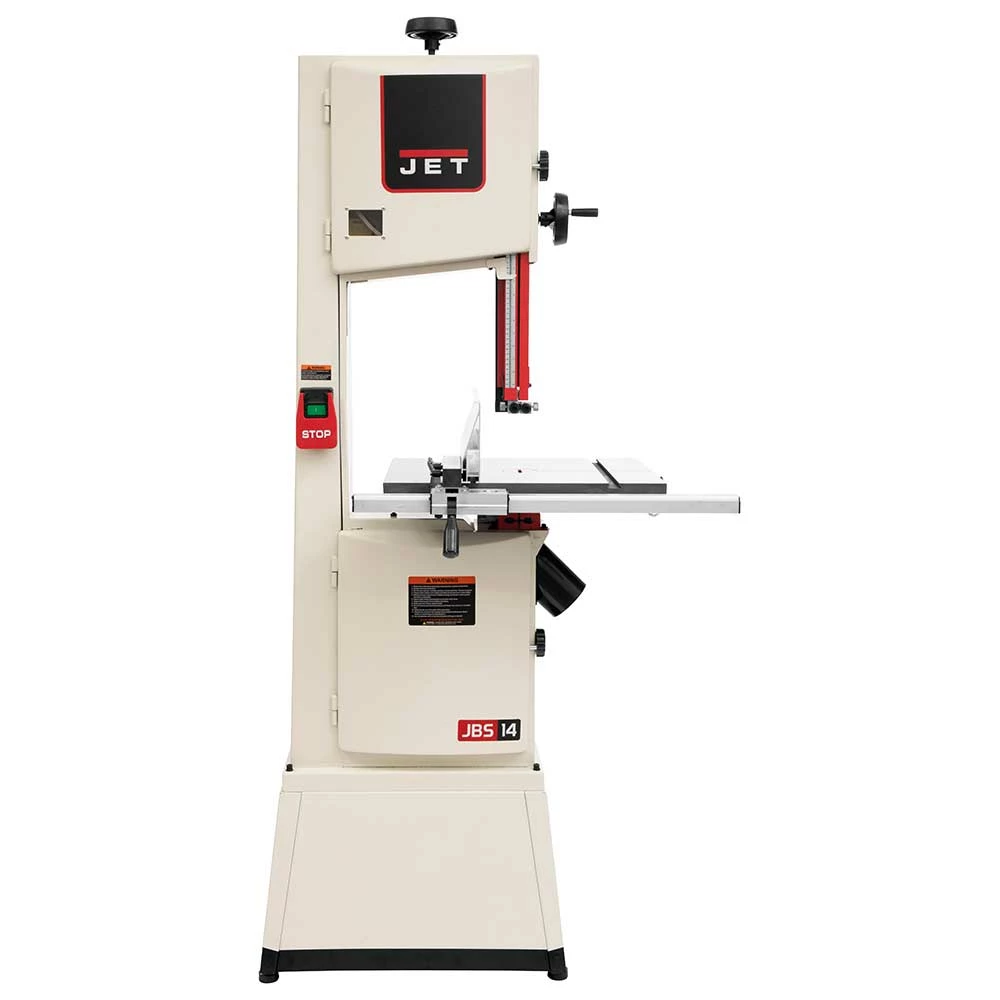

Jet JWBS14-SFX 14-Inch 1.75-Hp 115/230-Volt Steel Frame Bandsaw – 714400K

Features

• Deeper table with a massive 360 sq. in. of cast iron work surface for greater work piece support
• Over 13 Resaw capacity for cutting large pieces of wood, slicing veneers, and cutting book matched panels
• Heavy duty tubular steel welded construction with a total weight of over 300 lbs
• Dual 4 dust ports for maximum dust collection efficiency
• Independently adjustable upper and lower ball bearing blade guides
• Convenient 115V AC outlet location for optional accessories
• Premium metal, fully featured miter gauge included

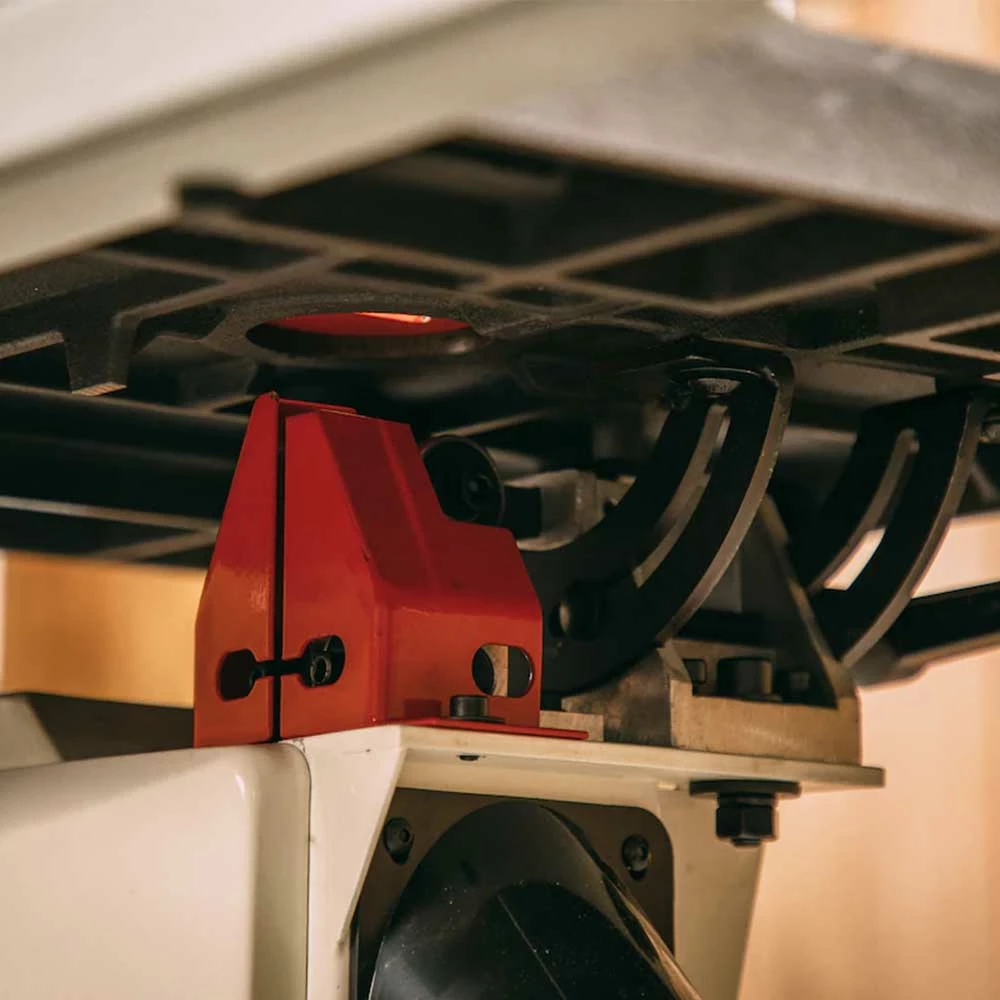

• Engineered die-cast and steel trunnion system, allows for single point adjustments when moving table
• Larger machined aluminum fence surface with easily visible measurements for the most accurate cutting
• Robust stamped steel doors with welded steel pin hinges for greater product durability

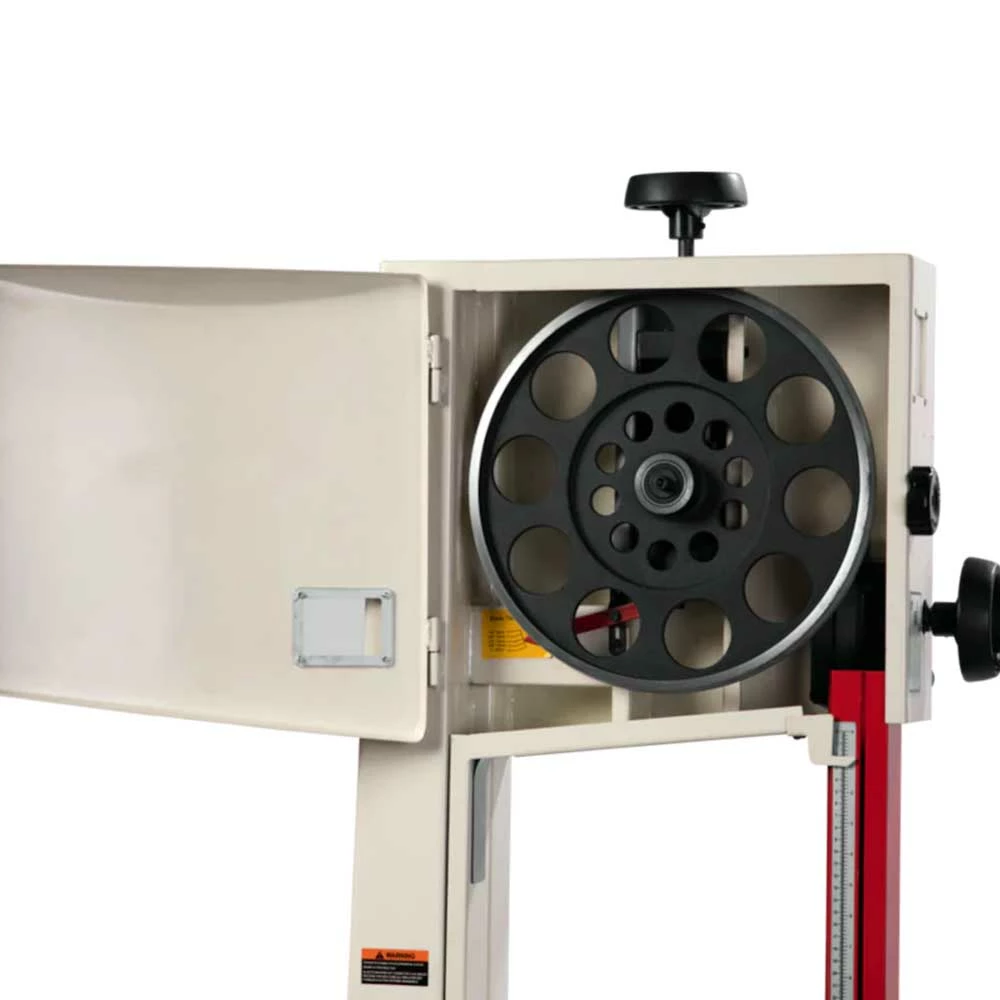

• Blade tensioning wheel located on top of the saw for better work piece clearance when cutting
• Oversized lower bearing bolt pattern for maximum strength and rigidity

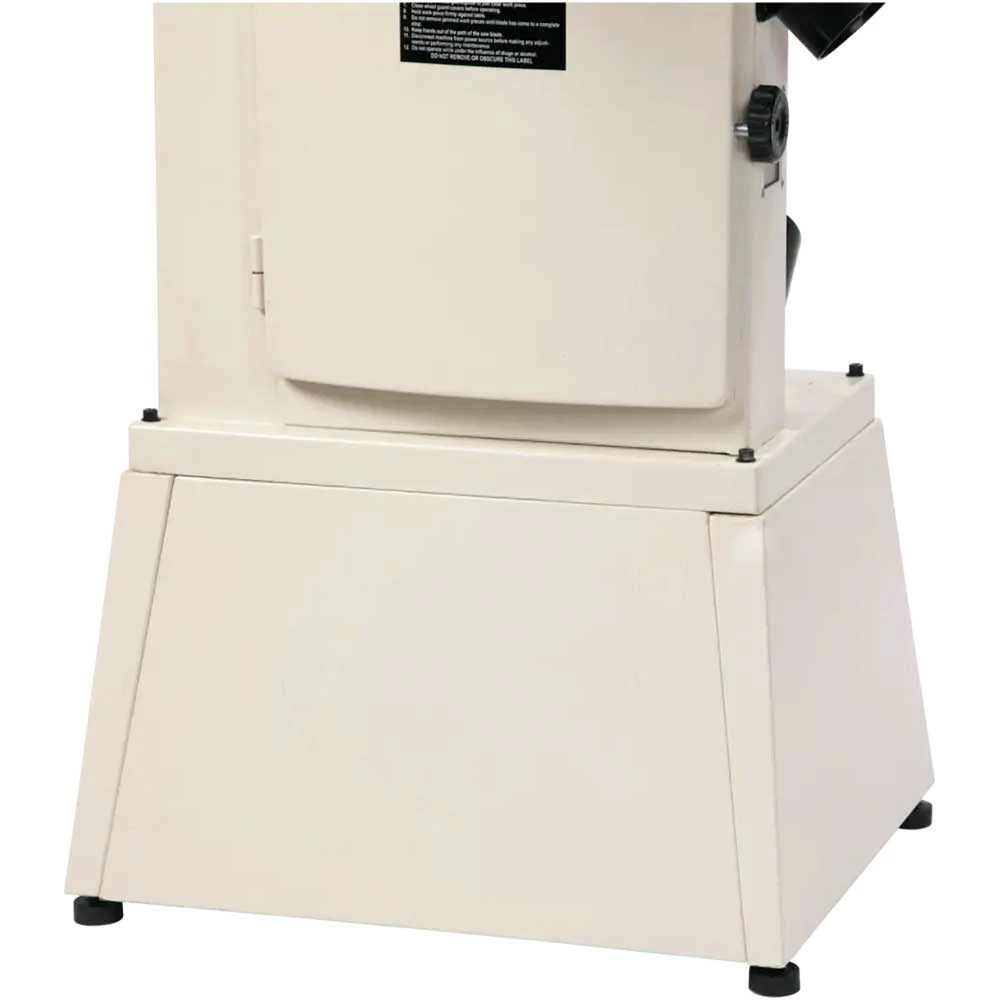

• One piece heavy duty base for maximum stability when sawing large work pieces

What’s in The Box

• 115/230-Volt 14-Inch 1-3/4-Hp Steel Frame Bandsaw
• Saw Blade Sold Separately
• Owner’s Manual

Warranty

• 5-Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

Sku	714400K
Model	JWBS-14SFX
Brand	Jet
Voltage	115/230V
Blade Size	14 in.
Prewired Voltage	115V
Phase	1
Amperage	15A/7.5A
Recommended Circuit Size	20A
Cutting Capacity	12-1/2 in. (Width) 13 in. (Height)
Blade Length	116-1/6 in.
Min. Blade Width	1/8 in.
Max. Blade Width	1 in.
Blade Speed	3,000 Sfpm
Table Size	21 in. x 17 in.
Table Tilt	45-Degrees Right
Table Height from Floor	40 in.
Table T-Slot	3/4 in (X2)
Miter Gauge Positive Stops	0, 45-Degrees Right and 45-Degrees Left
Dust Collection Min. CFM Required	350 Cfm
Dust Port Outside	2 in. x 4 in.
Stand Type	Closed
