Features
- Sandsmart control continuously monitors the load on the drum motor and automatically regulates the speed of the conveyor motor to maintain the highest feed rate without overload
- Conveyor bed parallelism is easily adjusted by turning the dial on the outside of the bed – no tools required
- Parallelism adjust dial features a stop to quickly return the conveyor bed to a flat position
- Dust hood includes an integrated channel that mirrors the shape of the drum and directs chips and dust to the 4 Inch collection port
- Precision-machined and dynamically balanced extruded aluminum drum is designed to dissipate heat and protect the work surface from heat-damage
- Precision-flattened reinforced steel conveyor bed
- Redesigned conveyor system pulls the workpiece through the sander instead of pushing
- One rotation of the top-position handwheel adjusts the drum height by 1/16 Inch
- The relative depth scale on the handwheel allows the user to reset and measure the depth for every project
- Infinitely variable speed control of up to 10 feet per minute allows the user to choose the optimal feed rate
- Toolless abrasive take-up clips make changing abrasives quick and easy
- Snipe is virtually eliminated thanks to the adjustable tension rollers that apply downward pressure to the workpiece
- Separate feed and drum motors provide independent control, optimizing the performance of the sander
- Conveyor belt TRACKERS reduce the need for manual belt adjustments

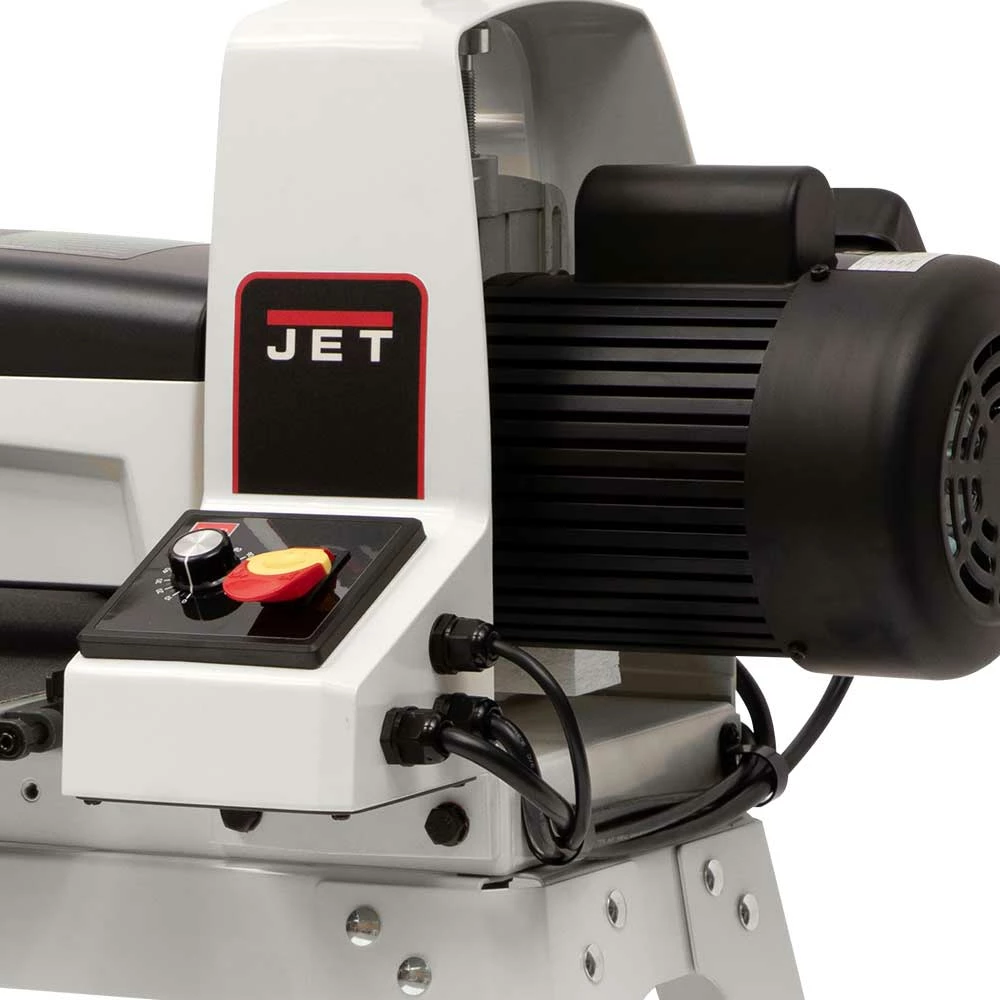

- Integrated on/off switch and variable speed control knob are conveniently located

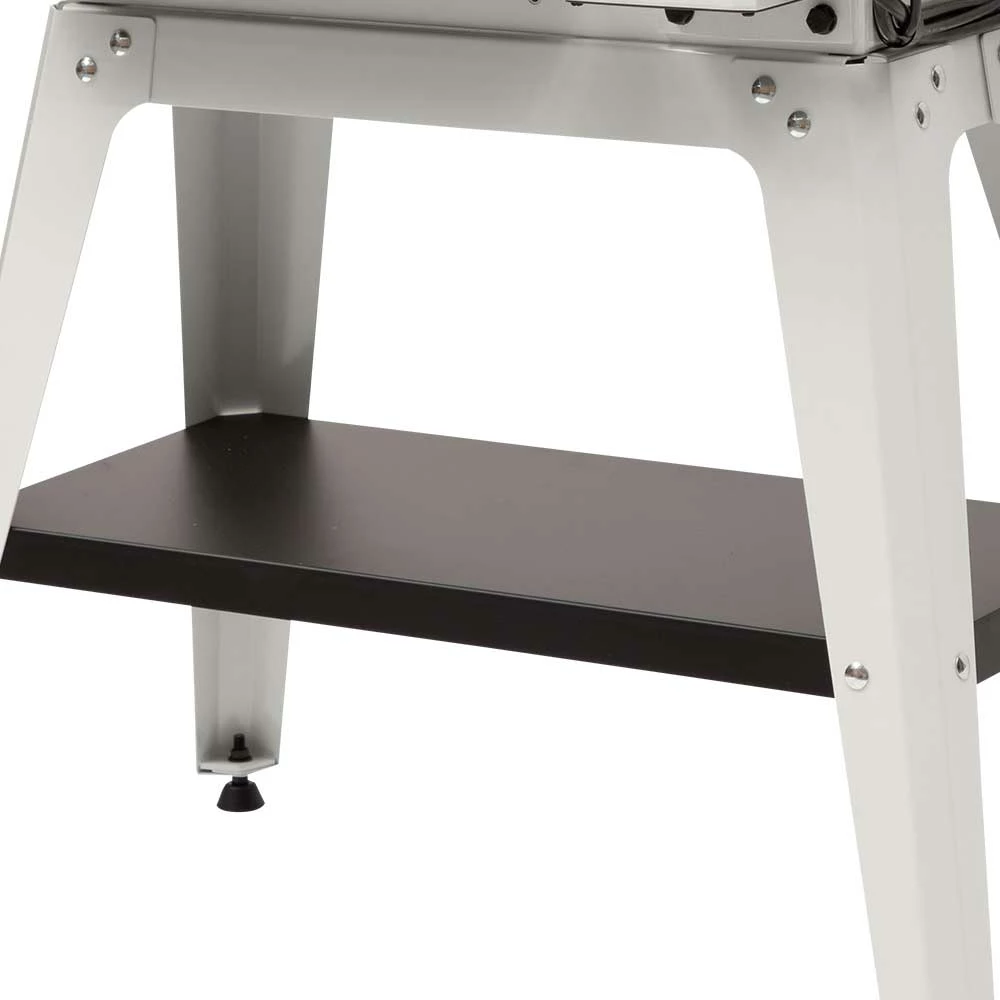

- Stand features a 20 x 37 Inch footprint to increase stability and has a storage shelf and pre-drilled holes for casters
- Drum is easily removable
- Drum utilizes sealed and permanently lubricated ball bearings for longer life
What’s in The Box
- 115-Volt 1-3/4 HP 1-Phase Heavy Duty Machine and Stand – 723530K
- Owner’s Manual
Warranty
- 5-Year Limited Factory Warranty
- 30 Day Satisfaction Guaranteed
Specifications
| Sku | 723530K |
| Model | JWDS-1836 |
| Brand | Jet |
| Voltage | 115V |
| Motor Amps | 15 |
| Motor Power (HP) | 1-3/4 |
| Motor Phase (PH) | 1 |
| Style (Type) | Open Stand |
| Drum Length (In.) | 18 |
| Number of Sanding Drums | 1 |
| Drum Speed (RPM) | 1,720 |
| Drum Diameter (In.) | 5 |
| Drum Bearing Diameter (In.) | 1 |
| Conveyor Motor | 43 in.-lbs. torque, direct drive, dc |
| Conveyor Speed (FPM) | 0 – 10 |
| Maximum Board Thickness (In.) | 3 |
| Maximum Board Width (In.) | 36 (two passes) |
| Minimum Board Length (In.) | 2-3/8 |
| Minimum Board Thickness (In.) | 1/32 |
| Dust Collection Minimum CFM Required (CFM) | 500 |
| Dust Port Outside Diameter (In.) | 4 |
| Recommended Circuit Size (Amps.) | 20 |
