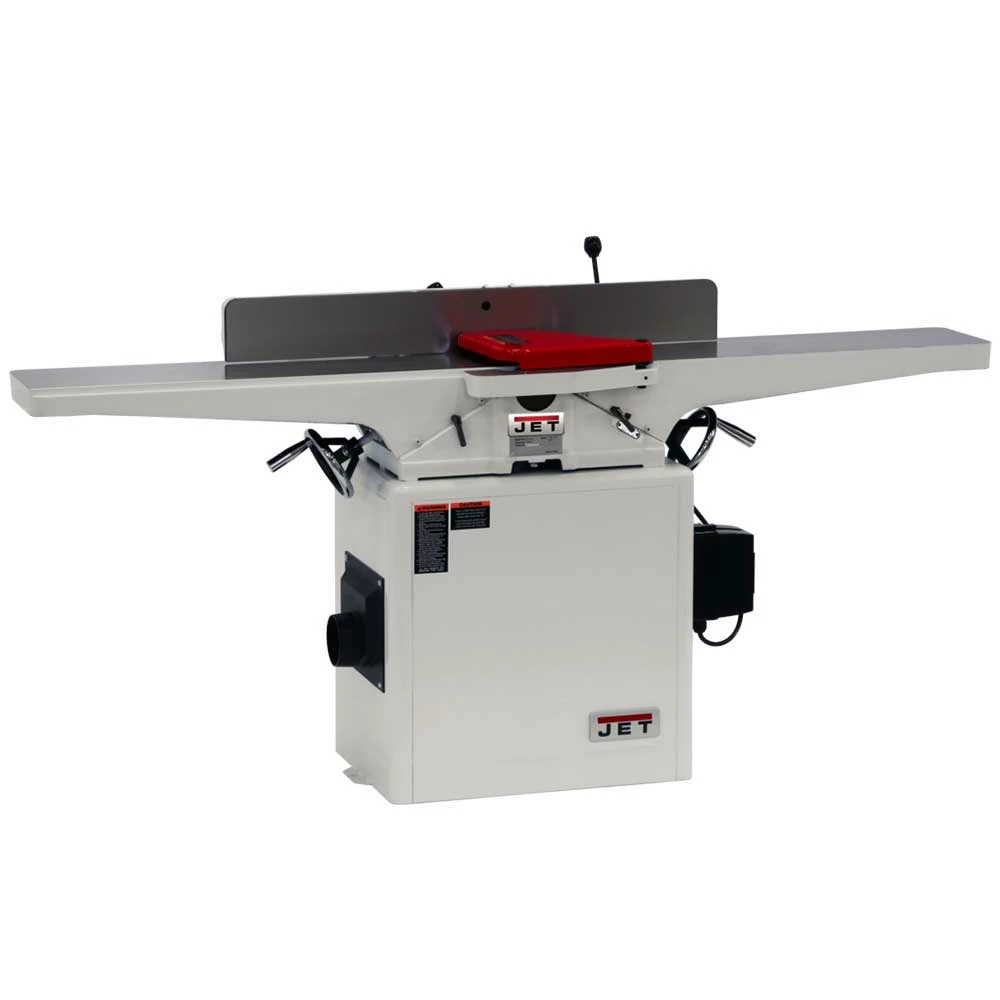

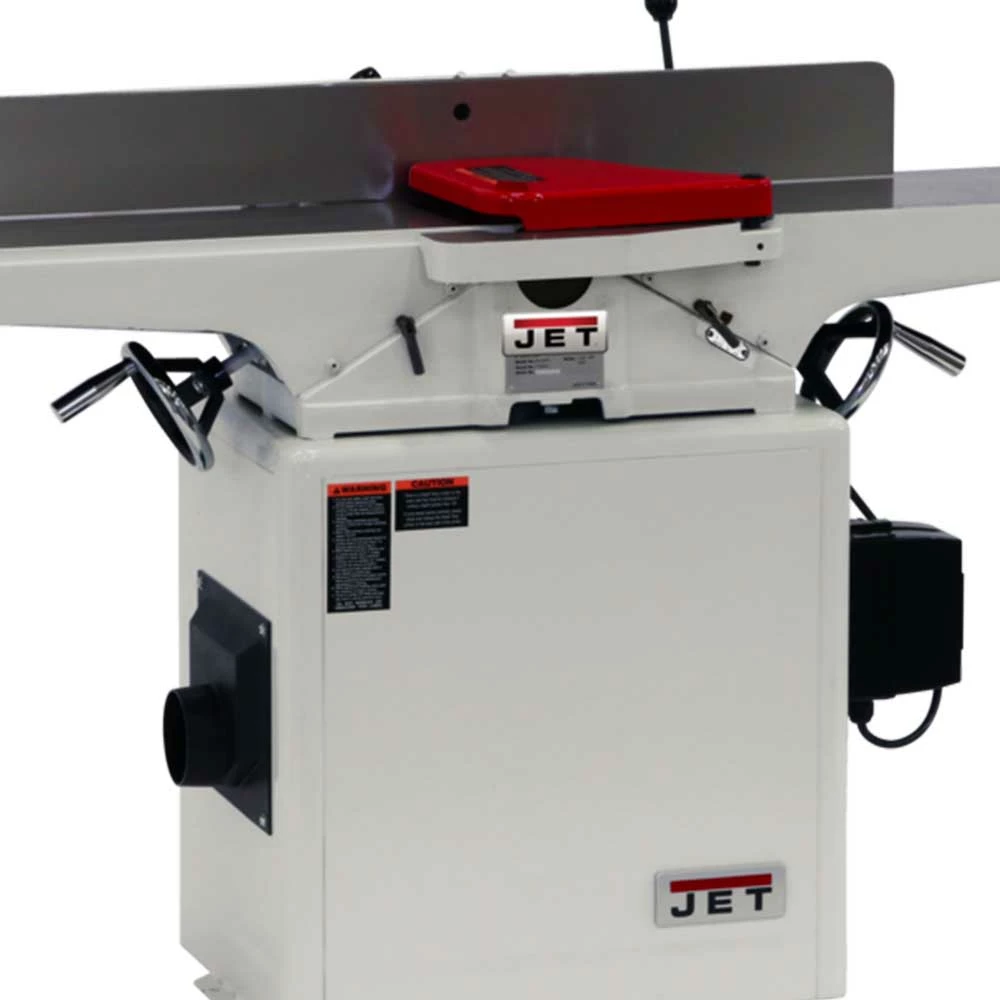

JET JWJ-8CS 2-Hp 230V 8″ Heavy Duty Closed Stand Jointer

Features

• Three high speed steel knives provide over 16,500 cuts per minute for a superior finish
• Extra-long, heavy-duty cast iron infeed and outfeed tables with precision machined finish
• Large chrome handwheels and easy-to-reach locks make table adjustments less of a hassle
• Tall, rigid fence provides added support
• Two-way tilting fence with positive stops at 45Degree and 90Degree to handle bevel operations
• Magnetic controls provide long life and reliability, protecting the motor from potential electrical supply issues
• Built-in 4″ dust chute connects to your collection system for efficient dust/chip disposal
• Fence adjustment levers are conveniently located in the center of the fence for quick access
• Powerful 2HP motor easily handles the toughest jointing tasks
• Heavy-duty, one-piece steel closed stand includes mounting tabs for increased stability
• Built-in rabbeting ledge adds versatility

What’s in The Box

• 8-Inch 2-Hp 1-Phase 230-Volt Closed Stand Jointer
• Owner’s Manual

Warranty

• 5-Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

Sku	718200K
Model	Jet
Model	JWJ-8CS
Voltage	230V
Horsepower	2 Hp
Phase	1
Amperage	12A
Number of Knives	3
Standard Knife Size (L x W x T)	8 in. x 11/16 in. x 1/8 in.
Cuts Per Minute	16,500
Cutterhead Speed	5,500 Rpm
Cutting Capacity (W x D)	8 in. x 1/2 in.
Table Size (L x W)	72 in. x 9 in.
Table Height from Floor	31-1/4 in.
Rabbeting Capacity	1/2 in.
Rabbeting Ledge	3-1/8 in. x 8-3/4 in.
Fence Size (L x H)	38-1/2 in. x 4-3/4 in.
Fence Tilt	45-Degrees R and L 45-Degrees F and b
Fence Positive Stops	45-Degrees L, 90-Degrees, 45-Degrees R
Dust Collection Minimum Cfm Required	350
Dust Port Outside Diameter	4 in.
