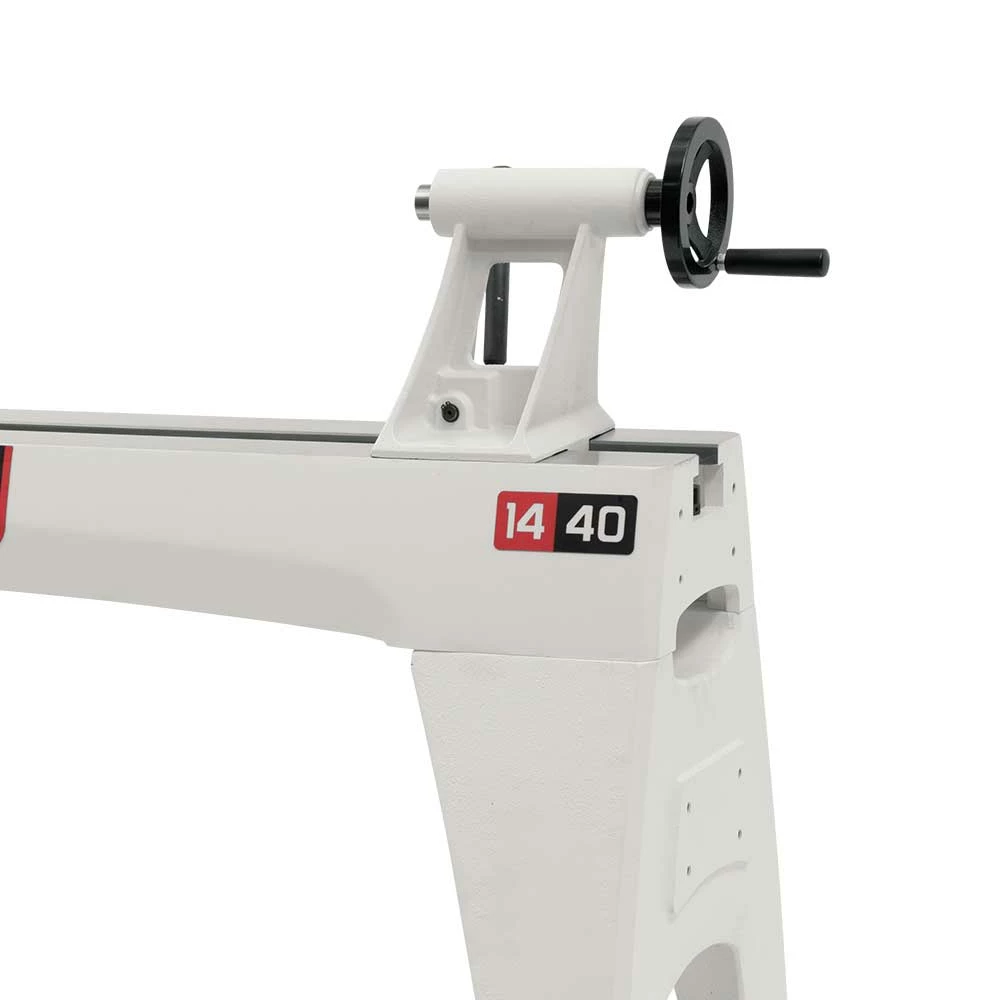

Jet JWL-1440VSK 14″ X 40″ Wood Lathe With Legs 719400K

Features

• Sliding headstock pivots 360 degrees with 7 positive locking positions at 0, 30, 60, 90, 120, 180, and 270 degrees for maximum variability and optimal user comfort
• Variable speed from 400-3000 RPM
• Positive locking tool rest with redesigned clamping
• Optional extension bed mounts in 3 separate positions for larger outboard turning or 60 between centers
• Acme thread in tailstock
• Improved tailstock quill locking with anti-rotation key
• Easy-to-read RPM display
• CSA Certified

What’s in The Box

• JWL-1440VSK 14 x 40 Wood Lathe with Legs 719400K

Warranty

• JET Red Assurance 2-Year Warranty. JET warrants every product it sells. If one of our tools needs service or repair, one of our Authorized Service Centers located throughout the United States can give you quick service. In most cases, any of these JPW Industries Authorized Service Centers can authorize warranty repair, assist you in obtaining parts, or perform routine maintenance and major repair on your JET tools.
• 30 Day Satisfaction Guaranteed

Specifications

Style (Type)	Floorstanding Model
Swing Over Bed (In.)	14-1/2
Swing Over Tool Rest Base (In.)	11
Distance Between Centers (In.)	40
Headstock Movement	Sliding/Pivoting
Spindle Bore (In.)	3/8
Tailstock Bore	5/16
Spindle Taper	MT2
Quill Taper	MT2
Quill Travel (In.)	4-1/4
Spindle Thread (In./TPI)	1/8 TPI
Spindle Speeds	Variable
Speed Range	400-3000
Number of Indexing Positions	36
Centerline of Spindle to Floor (In.)	44
Outboard Turning	Yes
Bed Construction	Cast Iron
Motor Power (HP)	1
Motor Phase (PH)	1
Motor Voltage (V.)	115/230
Prewired Voltage (V.)	115
Motor Amps	11/5.5
