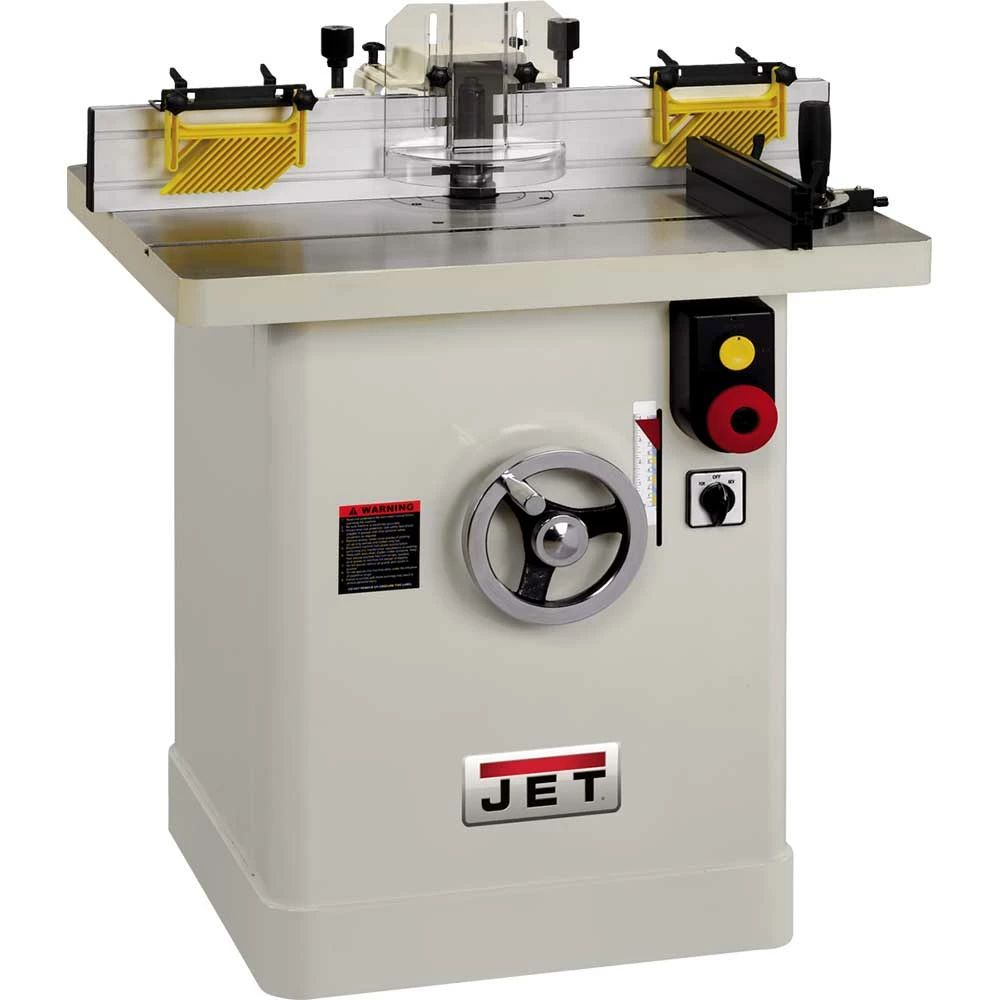

JET JWS-35X5-1 5-Hp 230V 1-Ph Heavy Duty Cast Iron JET Shaper

Features

• Four-speeds 4000, 6000, 8000, 10000 RPM let you select the best speed and torque for different cutter diameters
• Powerful 5HP, 1Ph motor with magnetic controls
• Poly-V-belt transfers maximum power to the spindle
• Large 26-3/4” X 32-1/4” precision ground cast iron table provides a durable work area, predrilled for power feeder
• Spindle height scale
• Starting pins for irregular shaping
• Extruded aluminum fence comes with T-Slots and 2 feather board hold-downs

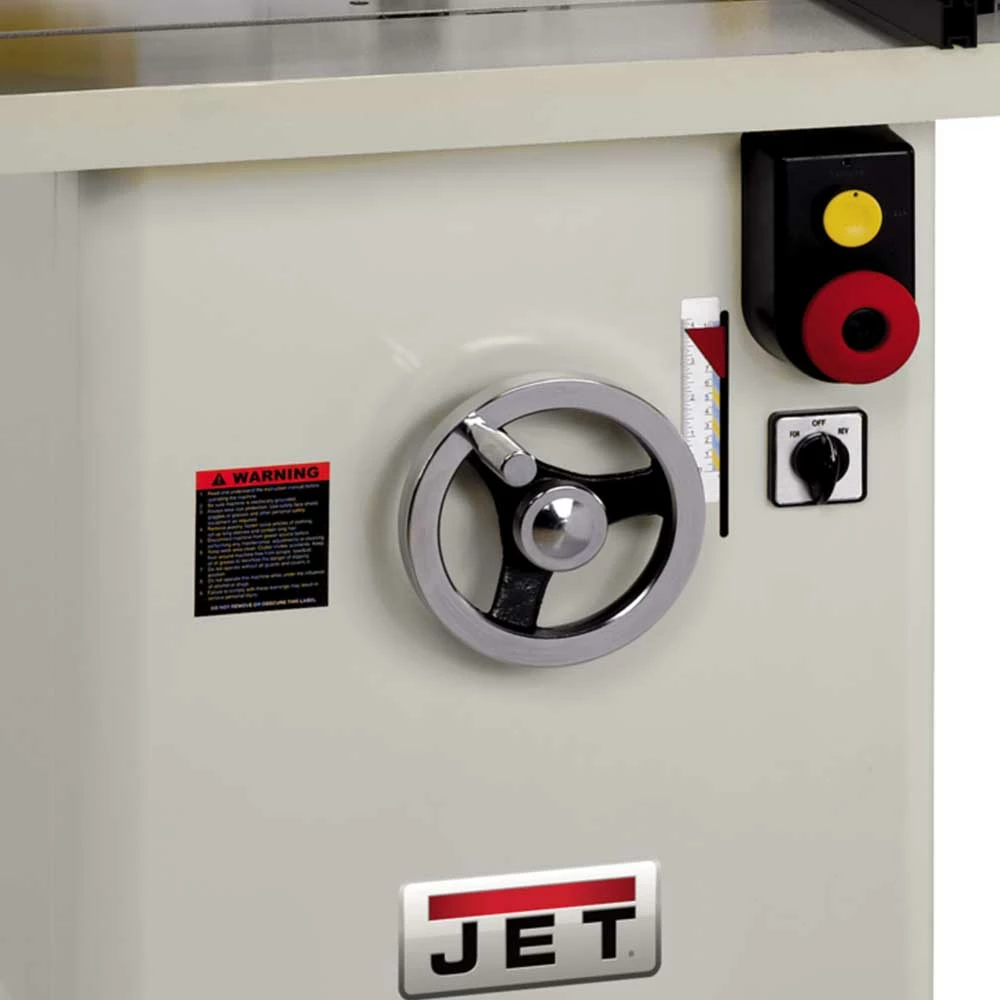

• Extra-large chrome handwheel is conveniently located for fast, easy and accurate spindle height adjustments
• Reversible spindle speeds for diverse shaping jobs
• 4″ Dust port built into fence for convenient hookup to any dust collection system
• Spindle lock for safe and easy cutter set-up

What’s in The Box

• JWS-35X5-1 Industrial Shaper 5HP, 1Ph 708326
• Owner’s Manual

Warranty

• JET Red Assurance 2-Year Warranty
• 30 Day Satisfaction Guaranteed

Specifications

Spindle Speed (RPM)	4000/6000/8000/10000
Maximum Spindle Diameter (In.)	1-1/4
Spindles Included	1-1/4″
Spindle Size Under Nut (In.)	4
Spindle Travel (In.)	4
Reversible	Yes
Maximum Diameter Cutter Above Table (In.)	7-1/2
Maximum Diameter Cutter Below Table (In.)	6
Table Opening Diameter (In.)	6-19/64
Table Inserts (In.)	2
Table Insert Opening Diameter (In.)	2-9/16, 4-5/16
Table Size (L x W) (In.)	32-1/4 x 26-3/4
Table T-Slot (In.)	3/4 x 3/8
Table Height from Floor (In.)	33-1/4
Fence Size (L x H) (In.)	16 x 4-3/4
Fence Travel (Major and Minor) (In.)	4, 1
Dust Port Outside Diameter (In.)	4
Dust Collection Minimum CFM Required (CFM)	600
Electrical Controls	Yes
Motor Power (HP)	5
Motor Phase (PH)	1
Motor Voltage (V.)	230
Prewired Voltage (V.)	230
Motor Amps	17
