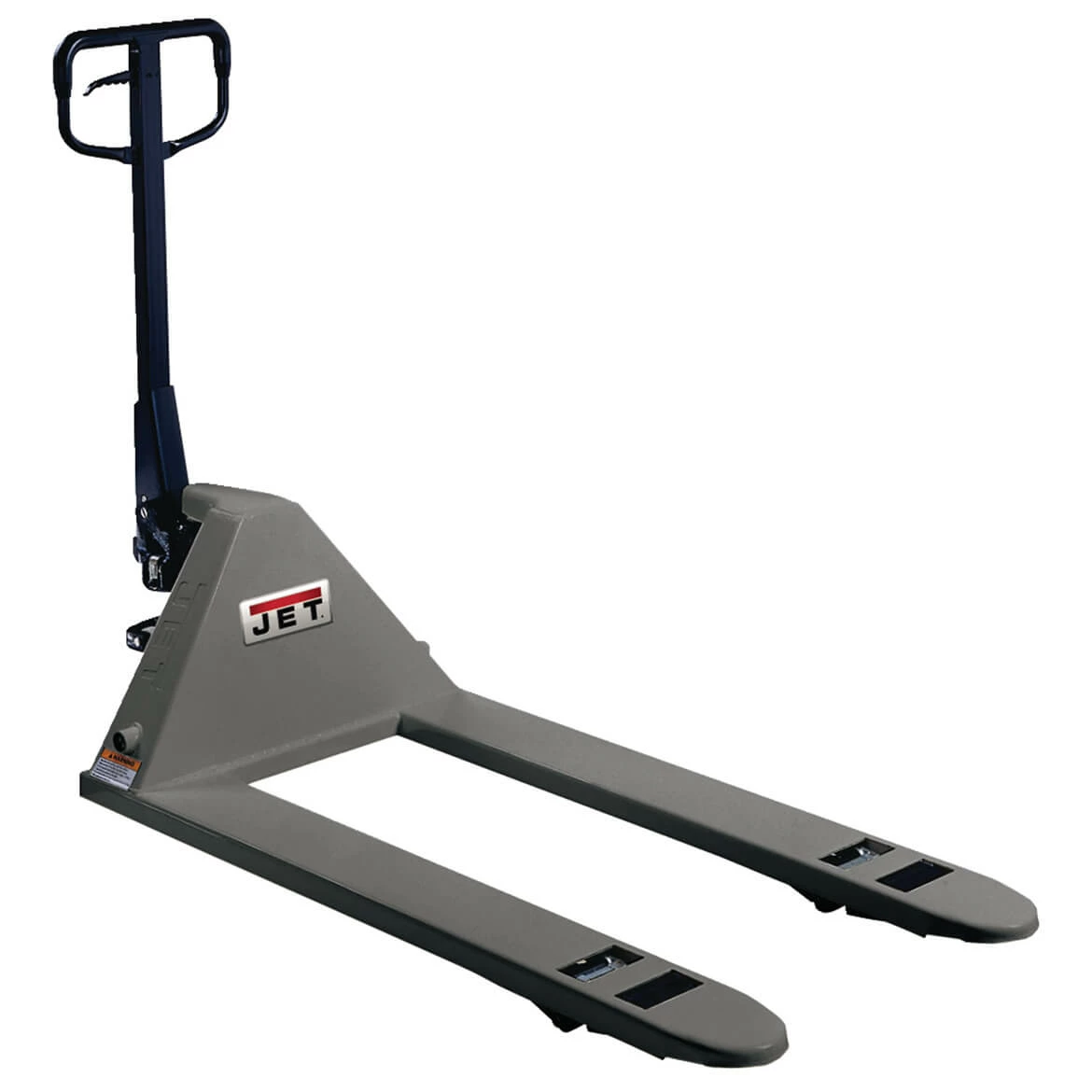

JET PTW-2748 27″ X 48″ 6000LB Pallet Truck

Features

• Capacity: 6,000 pounds
• Turning Radius: 200 degrees
• Overload Protection ball valve prevents lifting loads past maximum capacity
• Top-Stroke release valve prevents cylinder extension beyond maximum height
• Chrome-plated pump piston and ram provide corrosion resistance in any industrial environment
• One-piece cast iron pump has a built-in valve that lowers the material in a controlled decent
• Poly over aluminum 7 x 2 inch steer wheels ensure contact with uneven floors
• Steer wheels feature double sealed lubricated bearings

What’s in The Box

• PTW-2748, 27 x 48 Pallet Truck With 6,000 LB Capacity
• Owner’s Manual

Warranty

• 2-Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

Capacity (Lbs.)	6,000
Overall Fork Dimensions (L x W) (In.)	48 x 27
Lowered Height (In.)	2-7/8
Maximum Height (In.)	7-3/4
Fork Width (In.)	6-1/4
Steer Wheel Size (In.)	7 x 2
Load Wheel Size (OD x W) (In.)	2-7/8 x 3-11/16
W1 (In.)	27
W2 (In.)	6-1/4
L1 (In.)	48
L2 (In.)	64-1/2
H1 (In.)	7-3/4
H2 (In.)	2-7/8
A (In.)	7 x 2
B (In.)	2-7/8 x 3-11/16
C (In.)	47
